BESTEK AC-strømkabel Brugsanvisning

Indledning

This manual provides instructions for the safe and effective use of your BESTEK AC Power Cord. This power cord is designed to provide reliable power to compatible devices, particularly BESTEK voltage converters, in regions utilizing Type E/F electrical outlets.

Image: The BESTEK AC Power Cord, featuring a Type E/F (EU) plug on one end and a C5 (Mickey Mouse) connector on the other.

Opsætningsinstruktioner

1. Bekræft kompatibilitet: Ensure your device requires a C5 (Mickey Mouse) type power input and is compatible with 6A 250V specifications. This power cord is specifically designed for BESTEK voltage converters and other devices with a C5 input.


Image: A visual guide illustrating the compatible C5 (Mickey Mouse) charging port shape, with incompatible port types marked with an 'X'.

2. Opret forbindelse til enhed: Insert the C5 connector end of the power cord firmly into the corresponding power input port on your device.
3. Tilslut til stikkontakten: Plug the Type E/F (EU) plug end of the power cord into a compatible wall socket. This plug is suitable for most European countries, including Germany, France, Finland, Greece, Sweden, Spain, Romania, Portugal, and Poland.

Image: The Type E/F (EU) plug of the power cord correctly inserted into a wall power outlet.
4. Tænd: Once connected, your device should receive power. Refer to your device's manual for specific power-on procedures.

Betjeningsvejledning

The BESTEK AC Power Cord functions as a direct power supply cable. Its operation is passive, providing electrical current from the wall outlet to your connected device. Ensure the power cord is not bent sharply or placed under heavy objects to prevent damage.

• The cable length is 4.9 feet (approximately 1.5 meters), providing flexibility for various setups.


Image: The power cord coiled, illustrating its 4.9-foot length.

• This power cord is rated for 6A 250VAC, suitable for devices within these electrical parameters.
• The cable is constructed with 18AWG wire, featuring a flame-retardant PVC jacket, an insulating layer, and a fire protection layer for safety and durability.

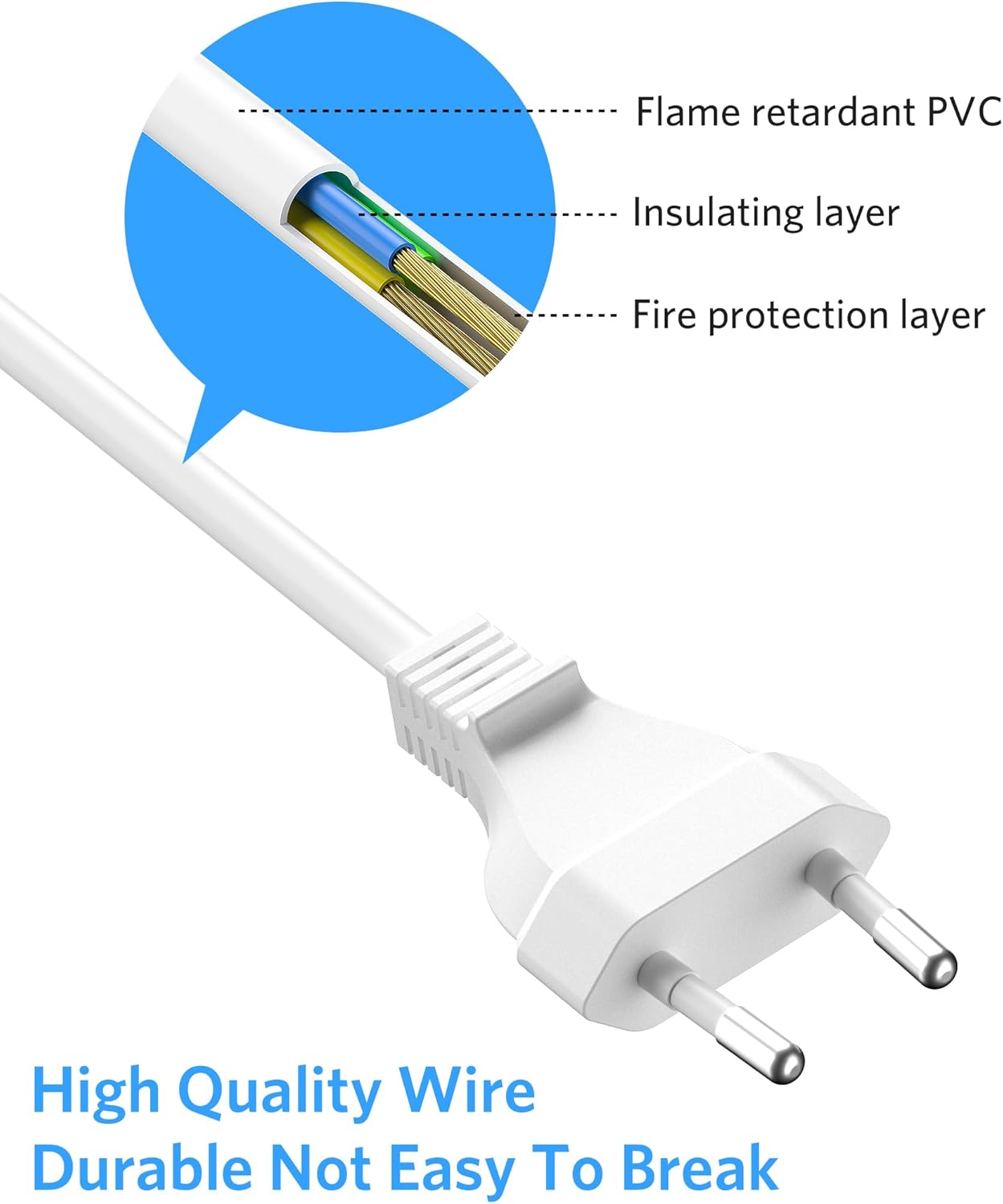

Billede: En udskæring view of the power cord, highlighting its internal construction including the flame-retardant PVC, insulating layer, and fire protection layer.

Opretholdelse

• Rensning: Disconnect the power cord from both the wall outlet and the device before cleaning. Wipe the cord and plugs with a dry, soft cloth. Do not use liquid cleaners or abrasive materials.
• Opbevaring: When not in use, coil the power cord loosely. Avoid tight coiling or kinking, which can damage the internal wires. Store in a cool, dry place away from direct sunlight and extreme temperatures.
• Inspektion: Periodically inspect the power cord for any signs of damage, such as cuts, fraying, or discoloration. If any damage is observed, discontinue use immediately and replace the cord.

Fejlfinding

• Device Not Receiving Power:
  • Ensure both ends of the power cord are securely plugged into the device and the wall outlet.
  • Verify that the wall outlet is functional by testing it with another known working appliance.
  • Check if the device itself is powered on and functioning correctly.
  • Inspect the power cord for visible damage. If damaged, replace it.
• Løs forbindelse:
  • If the connection feels loose, ensure the C5 connector is fully inserted into the device's port.
  • Avoid pulling the cord by the cable itself; always grasp the plug when disconnecting.

Specifikationer

Image: A map highlighting European countries where the Type E/F plug is compatible, including France, Spain, Germany, Switzerland, Poland, Italy, Greece, Denmark, Sweden, and Iceland.

Image: The power cord shown in application, connecting to a BESTEK voltage converter, a television, and an air cleaner, demonstrating its versatility.

Garanti og returpolitik

• Beskyttelsesperiode: The product includes 24 months of protection from the date of purchase.
• Returpolitik: A 30-day return policy is available for this product.
• Defekter: Returnering accepteres ved defekter.

Image: A graphic detailing the service plan, including 24 months protection, 30 days return policy, and return on defects, alongside customer support options.

Kundesupport

For any inquiries or assistance, please contact BESTEK customer support:

• Tilgængelighed: 24-hour support.
• Kontaktmetoder: Support is available via Email and Phone. Specific contact details (email address, phone number) are typically provided on the product packaging or the official BESTEK webwebsted.
