Indledning
Denne manual indeholder detaljerede instruktioner til VEKOOTO AHD 10.36-tommer BSD Side View Vertical Monitor and Right Car Camera System. This system is designed to enhance vehicle safety by offering a clear, wide-angle view of the right side of your truck or bus, featuring a touch screen display, loop recording capabilities, and a Blind Spot Detection (BSD) voice alarm. Please read this manual thoroughly before installation and operation to ensure proper use and optimal performance.

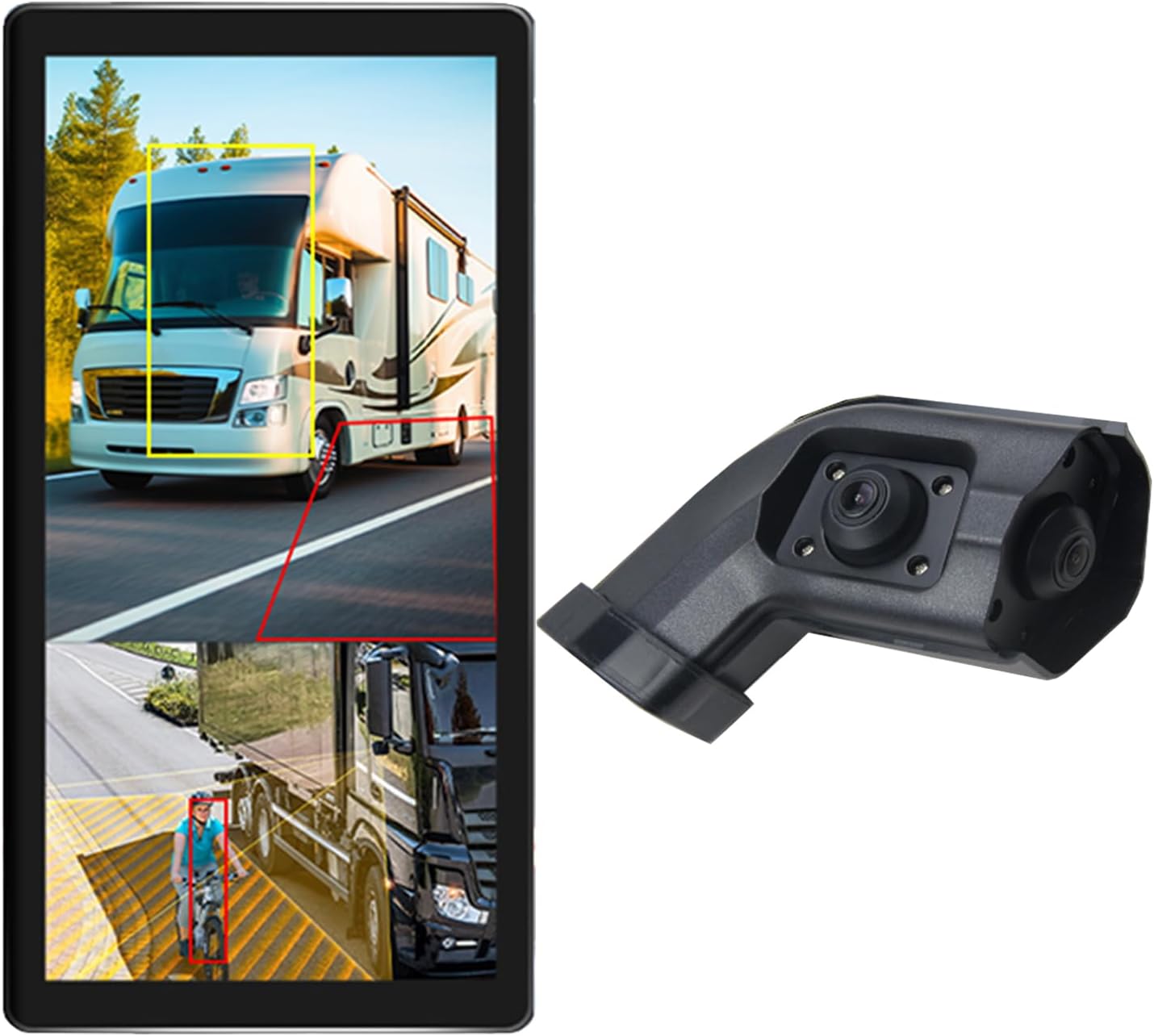

Image: The VEKOOTO 10.36-inch vertical monitor and the right side camera unit, illustrating the primary components of the system.
Hvad er der i æsken
Kontroller, at alle komponenter er til stede og i god stand, når du åbner pakken:
- 10.36-inch Touch Screen Monitor
- Integrated dual camera (for right side view)
- Strømkabel
- Kamerakabel
- Beslag
Nøglefunktioner
- Vise: 10.36-inch IPS touch screen with 2-channel split screen display capability.
- Kamerasupport: Compatible with AHD720P cameras, offering enhanced image clarity, advanced bright color separation, signal filtering, and 3D noise reduction technology.
- Blindvinkeldetektion (BSD): Features a voice alarm system. The alarm area, volume, and sensitivity are adjustable.
- Billedkontrol: Supports camera image screen mirroring function for flexible viewing.
- Displaytilpasning: Allows adjustment of display time, date, brightness, and screen color.
- Strømkompatibilitet: Understøtter en bred voltage rækkevidde på 9V-36V.
- Flersproget support: Available in English, Korean, Japanese, and Chinese.
- Installation: Designed for installation on the right side rearview køretøjets spejl.
Image: The monitor interface highlighting features such as image adjustment, BSD voice alarm, and customizable detection areas, shown with various driving scenarios including night, rain, and blind spots.
Opsætning og installation
Proper installation is crucial for the system's performance. It is recommended to have this system installed by a qualified professional.
1. Placering af komponenter
- Mount the 10.36-inch vertical monitor securely inside the vehicle, ensuring it does not obstruct the driver's view.
- Install the integrated dual camera unit on the right side rearview mirror of your vehicle. Ensure the camera has a clear, unobstructed view.
Image: The vertical monitor installed inside a vehicle, providing a clear view of the right side, simulating a truck's perspective.

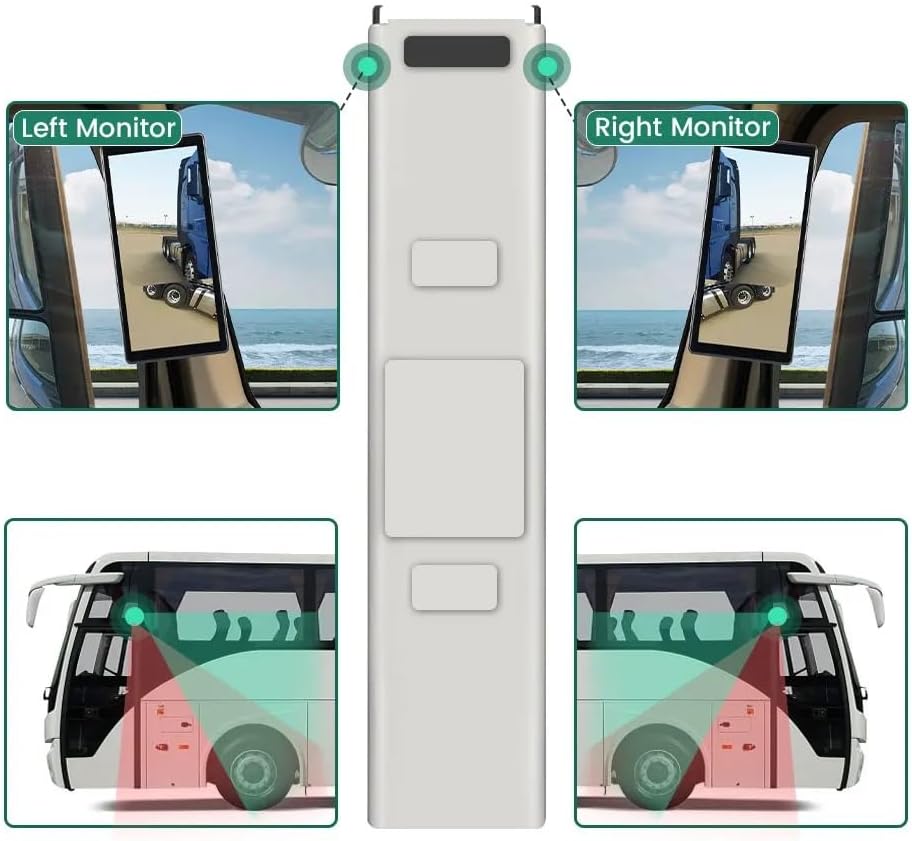

Image: A diagram illustrating the recommended placement of the right monitor and the camera's field of view for comprehensive side coverage on a bus.
2. Ledningsforbindelser
Refer to the wiring diagram below for correct connections. The system supports 9V-36V wide voltage input.
Image: Detailed wiring diagram showing connections for the monitor, integrated dual camera, ACC power supply (+), Ground (-), and Battery Power (+3A). Channel 1 (CH1) and Channel 2 (CH2) inputs are indicated for the camera cables.
- Tilslut ACC Power Supply (+) wire (red) to a switched ignition source.
- Tilslut Jord (-) wire (black) to a suitable chassis ground point.
- Tilslut Battery Power (+) (3A) wire (yellow) to a constant 12V/24V power source.
- Connect the camera cable(s) to the corresponding CH1 and CH2 inputs on the monitor.
- Sørg for, at alle forbindelser er sikre og korrekt isolerede for at forhindre kortslutninger.

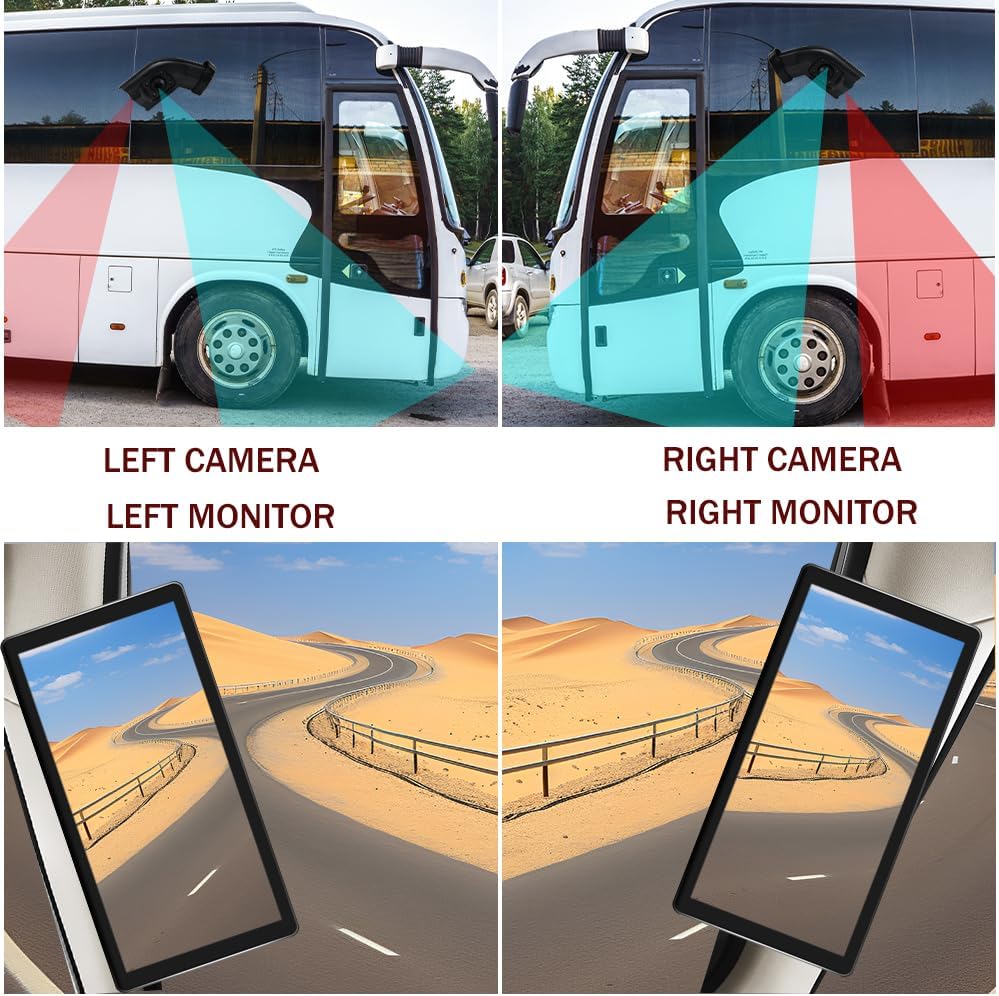

Image: A visual comparison demonstrating the coverage areas for left and right camera installations, along with the corresponding monitor views. This system is for the Right Camera/Monitor.
Betjeningsvejledning
1. Tænd/sluk
The monitor will power on automatically when the vehicle's ignition is turned on (if connected to ACC power) and power off when the ignition is turned off.
2. Navigation med berøringsskærm
Navigate through the monitor's menus and settings using the touch screen interface. Tap icons or options to select them.
3. Split Screen Display
The monitor supports a 2-channel split screen display. Access the display settings to configure how the camera feeds are shown on the screen.
4. BSD Voice Alarm
- Access the BSD settings menu on the touch screen.
- Adjust Alarm Area: Define the specific zones where the BSD system will detect objects and trigger an alarm.
- Control Alarm Volume: Set the desired volume level for the voice alerts.
- Indstil følsomhed: Adjust the sensitivity of the detection system to suit your driving conditions and preferences.
5. Image Mirroring
If needed, enable the camera image mirroring function through the display settings to flip the camera view vandret.
6. Skærmindstillinger
Customize the display by adjusting brightness, screen color, and setting the current time and date through the monitor's settings menu.
7. Loop-optagelse
The system supports loop recording. Ensure a compatible memory card is inserted (if required, check product specifications for card type and capacity). The system will continuously record video, overwriting the oldest files når hukommelseskortet er fuldt.
Image: The monitor screen showing a video playback interface, indicating support for video recording with a timeline illustrating different recording times throughout the day.
Opretholdelse
- Rengøring af skærmen: Use a soft, dry cloth to clean the monitor screen. For stubborn smudges, lightly dampRengør kluden med vand eller et skærmsikkert rengøringsmiddel. Undgå skrappe kemikalier.
- Rengøring af kameraet: Periodically check and clean the camera lens to ensure a clear view. Use a soft cloth and lens cleaner if necessary.
- Kontrol af forbindelser: Regularly inspect all wiring connections to ensure they are secure and free from corrosion or damage.
- Softwareopdateringer: Tjek producentens website for any available firmware or software updates for your system.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Intet billede på skærmen |
|
|
| Distorted or unclear image |
|
|
| BSD alarm not working |
|
|
| Loop recording not functioning |
|
|
Specifikationer
| Feature | Detalje |
|---|---|
| Produktdimensioner | 10.3"L x 2"W x 8"H (Monitor) |
| Varens vægt | 4.4 pund |
| Modelnummer | Højre |
| Displayteknologi | LCD |
| Andre skærmfunktioner | Trådløs |
| Fabrikant | VEKOOTO |
| Mærke | VEKOOTO |
| Skærmstørrelse | 10.36 tommer |
| Kompatible enheder | Overvåge |
| Installationstype | Overflademontering |
| Voltage | 9-36 Volts (Wide Voltage Support) |
| Optisk sensorteknologi | CMOS |
| Linsetype | Vidvinkel |
| Connector Type | Trådløs |
| Optisk sensorstørrelse | 1/3 tomme |
Image: Diagram illustrating the physical dimensions of the 10.36-inch vertical monitor (27cm/10.63inch height, 13cm/5.12inch width) and the camera unit (14.6cm/5.75inch height, 7.8cm/3.07inch width, 6.4cm/2.52inch depth).
Garanti og support
For warranty information, please refer to the documentation included with your purchase or contact VEKOOTO customer support directly. Support contact details can typically be found on the manufacturer's official webwebstedet eller gennem dit købssted.
Always ensure you are using genuine VEKOOTO parts and accessories for optimal performance and to maintain warranty validity.
