LOKITHOR J5000 PRO Jumpstarter med ConnectMax - Brugsanvisning

1. Produktet er slutview

The LOKITHOR J5000 PRO is a powerful and versatile jump starter designed for a wide range of vehicles. Featuring LiFePO4 technology, it offers enhanced safety, extended cycle life, and efficient two-way fast charging. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your device.

Figure 1: LOKITHOR J5000 PRO Jump Starter unit with attached clamps.

2. Hvad er der i æsken

• J5000 PRO Jumpstarter
• Jumper Starter Clamps x1
• USB-A til USB-C-kabel x1
• USB-C til USB-C-kabel x1
• 12V adapter x1
• Accessories Storage Bag x1
• Manual x1

Figure 2: All items included in the LOKITHOR J5000 PRO package.

3. Nøglefunktioner

3.1 LiFePO4 Technology

The J5000 PRO utilizes advanced LiFePO4 battery technology, offering over 2000 cycles at 100% depth of discharge or 8000 cycles at 50% depth of discharge. This significantly extends the lifespan compared to traditional lead-acid or standard lithium batteries, reducing overall cost and improving reliability.

Figur 3: Advantages of LiFePO4 battery technology.

3.2 Kraftfuld ydeevne

Delivering a powerful 5000 Amp starting current, the J5000 PRO is suitable for gasoline engines up to 12 liters and diesel engines up to 10 liters. This makes it a robust tool for various applications, from personal vehicles to heavy-duty equipment.

Figure 4: Performance specifications for starting flat batteries.

3.3 ConnectMax Technology

The integrated ConnectMax technology automatically detects the impedance of the clamp connection to the car battery, ensuring optimal contact and maximizing starting efficiency every time. This feature helps overcome common issues like poor connections due to oxidation or dirt on battery terminals.

Figure 5: ConnectMax technology for reliable jump starts.

3.4 PD 100W Two-way Fast Charging

The jump pack fully recharges in just 60 minutes. It can also provide enough charge to start a car in only 3 minutes. Its internal power bank offers 100W power output, capable of charging USB-C devices such as phones, tablets, laptops, and wearables.

3.5 Super Safety Features

Constructed from 100% safe, non-hazardous energy, the J5000 PRO LiFePO4 battery starter boasts higher chemical stability. It is resistant to thermal runaway, overheating, or catching fire even if punctured. It includes 10 types of protection: spark-proof, mistake-proof, reverse-polarity, short-circuit, reverse-charge, low-temp, high-temp, over-voltage, over-load, over-charge, and over-current protection.

Figure 6: Extreme safety features of the J5000 PRO.

3.6 400-Lumen LED Flashlight

The device includes a 400-lumen LED flashlight with multiple modes: steady, strobe, and SOS, providing essential illumination for roadside emergencies or low-light conditions.

Figure 7: 400-lumen LED flashlight with multiple modes.

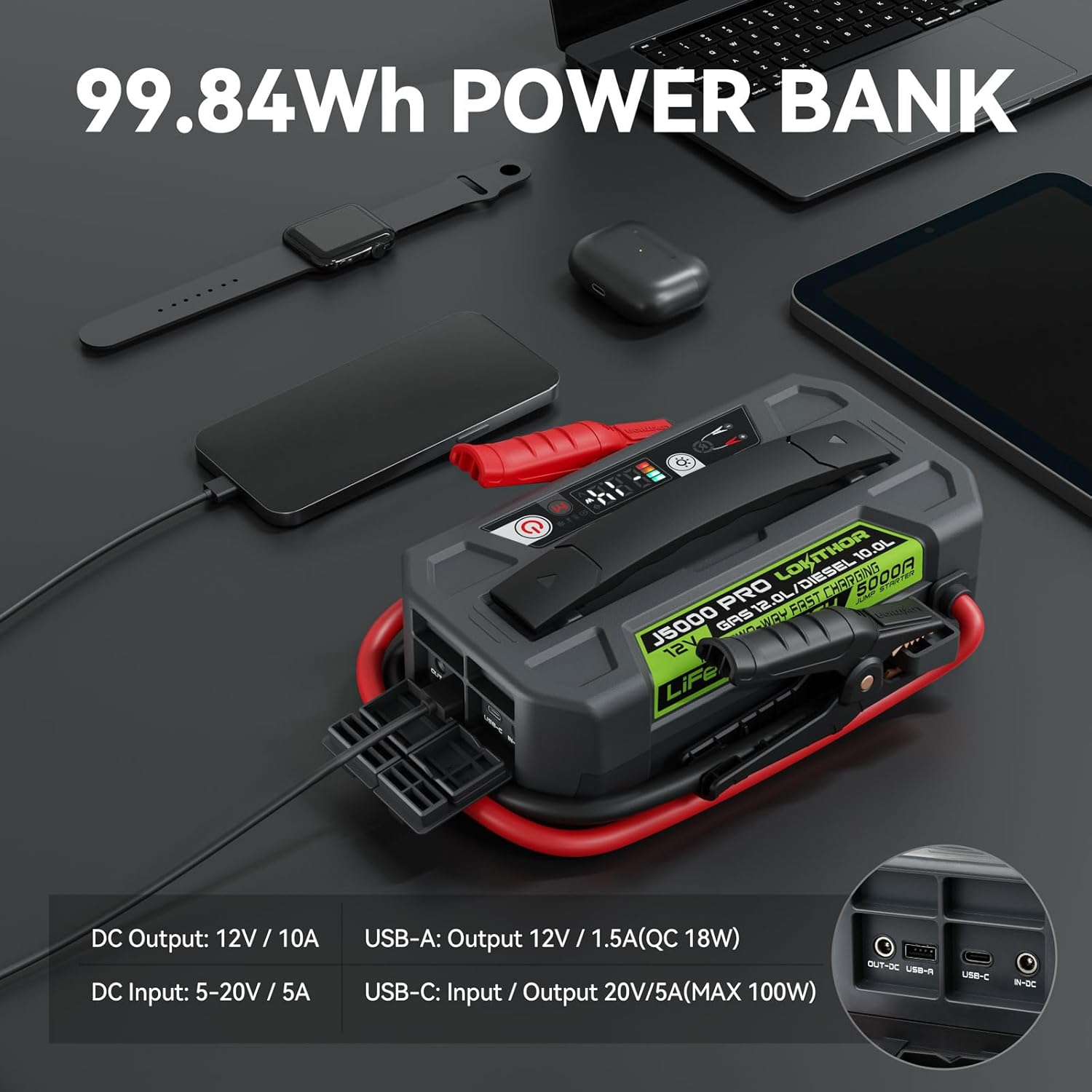

3.7 99.84Wh Power Bank

The J5000 PRO functions as a portable power bank with a 99.84Wh capacity, allowing you to charge various electronic devices on the go.

Figure 8: J5000 PRO as a 99.84Wh portable power bank.

3.8 IP65 Waterproof and Dustproof

With an IP65 rating, the J5000 PRO is designed to withstand various harsh environments, offering protection against water splashes and dust ingress.

3.9 46 Months Ultra-Long Standby Time

The jump starter features an ultra-long standby time of up to 46 months, with a standby power self-discharge of only 0.46mAh. Once fully charged, it remains available for use for up to 1380 days.

4. Opsætning

Before initial use, fully charge the LOKITHOR J5000 PRO. Ensure the device is turned off before connecting to a vehicle battery. Connect the jumper cables to the device, ensuring a secure fit.

5. Betjeningsvejledning

5.1 Normal Jump Start Mode

1. Ensure the jump starter is off.
2. Tilslut den røde (positive) clamp til den positive (+) pol på køretøjets batteri.
3. Tilslut den sorte (negative) clamp til den negative (-) pol på køretøjets batteri.
4. Turn on the LOKITHOR J5000 PRO. The display will show the battery voltage.
5. Start køretøjet.
6. Når køretøjet starter, skal du straks afbryde strømmen.amps from the battery, then turn off the jump starter.

Figure 9: Normal Jump Start Procedure.

5.2 Boost Mode (for completely dead batteries)

If the vehicle battery is completely dead and the jump starter does not automatically detect it, you may need to use Boost Mode.

1. Ensure the jump starter is off.
2. Tilslut den røde (positive) clamp til den positive (+) pol på køretøjets batteri.
3. Long press the 'M' (Mode) button for more than 5 seconds until the display indicates Boost Mode is active.
4. Tilslut den sorte (negative) clamp til den negative (-) pol på køretøjets batteri.
5. Start køretøjet.
6. Når køretøjet starter, skal du straks afbryde strømmen.amps from the battery, then turn off the jump starter.

Figure 10: Boost Mode Jump Start Procedure.

5.3 Charging the J5000 PRO

Use the provided USB-C to USB-C cable and a 100W compatible charger (not included) to fully recharge the jump starter. The device can also be charged via the 12V adapter.

6. Vedligeholdelse

• Genopladning: For optimal performance and longevity, recharge the J5000 PRO after each use and at least once every 3-6 months, even if not used.
• Opbevaring: Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Rensning: Use a soft, dry cloth to clean the exterior of the device. Do not use harsh chemicals or abrasives.

7. Fejlfinding

• Enheden tænder ikke: Sørg for, at enheden er fuldt opladet.
• Vehicle not starting in Normal Mode: The vehicle battery might be completely discharged. Try using Boost Mode.
• Fejlmeddelelse på displayet: Refer to the detailed troubleshooting section in the included manual for specific error codes and solutions.
• No spark when connecting clamps: This is a safety feature. Ensure correct polarity and a secure connection.

8. Specifikationer

9. Garanti og support

For any after-sales questions or warranty claims, please contact LOKITHOR customer support. Refer to the included manual for specific warranty terms and contact information.
