BARCODE-USA Chainway C71 Android Barcode Scanner User Manual

1. Introduktion

This manual provides instructions for the safe and efficient operation of the Chainway C71 Android Barcode Scanner. The C71 is a robust and versatile handheld device designed for various applications, including warehouse inventory management and forklift operations. It features a Zebra SE55 long-range 2D/1D/QR code reader, runs on Android 13, and offers comprehensive connectivity options.

Læs venligst denne manual grundigt, inden du bruger enheden, og gem den til senere brug.

2. Produktet er slutview

2.1 Nøglefunktioner

• Durable and Versatile Design: Suitable for both indoor and outdoor environments, ideal for warehouse inventory and forklift scanning.
• Zebra SE55 Long Range Scanner: Capable of scanning 2D, 1D, and QR codes from distances up to 40 feet (depending on barcode size and media).
• Android 13-operativsystem: Provides access to the latest Android features and the Google Play Store for application downloads.

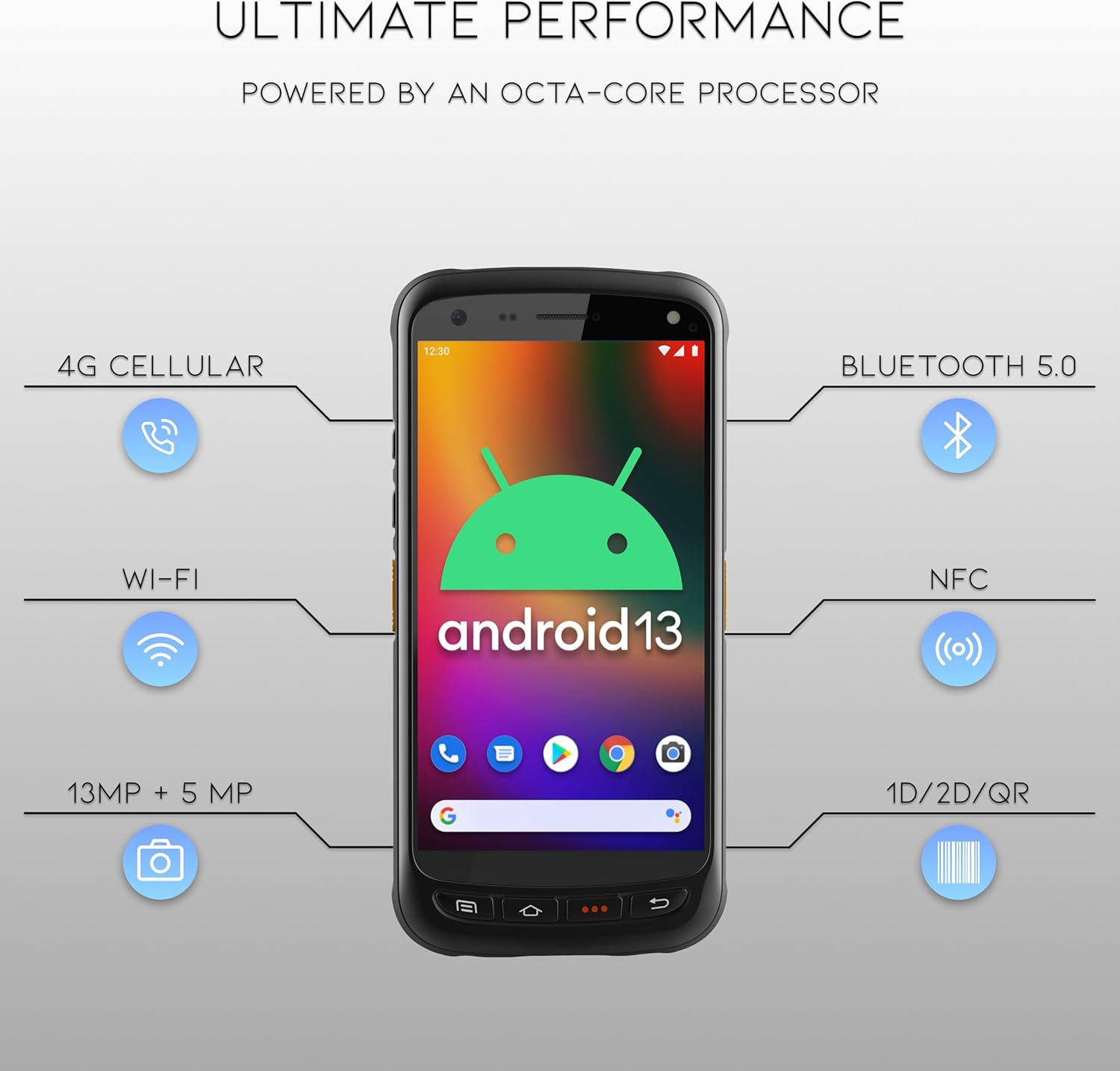

• Trådløs forbindelse: Features fast and reliable WiFi, Bluetooth 5.0, NFC, and GPS for seamless data transmission and real-time updates.
• Large Vivid Screen: A bright and clear display for easy reading and interaction in various lighting conditions.
• Batteri med høj kapacitet: Equipped with a 5000mAh battery for extended operational periods.
• Octa-Core-processor: Ensures fast and responsive performance for demanding applications.

2.2 Enhedskomponenter

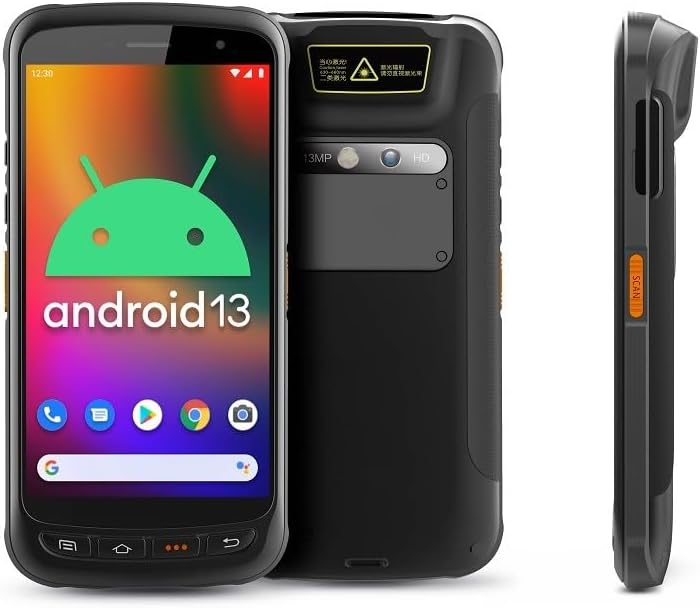

The Chainway C71 scanner features a robust design with an integrated display, scanning engine, and various ports and buttons.

• Vise: Large vivid touchscreen for user interaction.
• Scan knap: Located on the side for convenient barcode scanning activation.

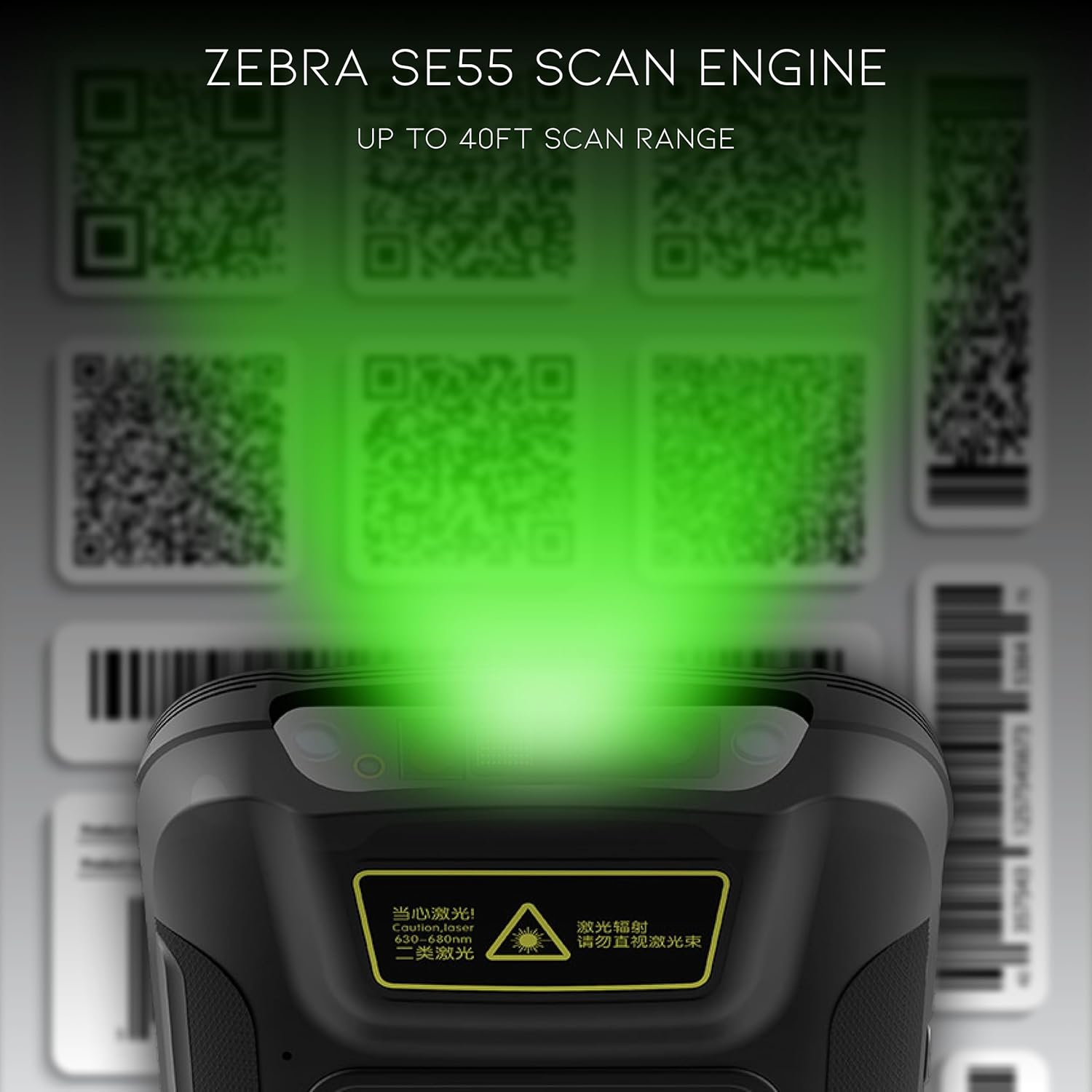

• Zebra SE55 Scan Engine: Integrated at the top rear for long-range barcode capture.
• Bagkamera: For image capture (13MP).
• Forreste kamera: For video calls or selfies (5MP).
• Fysiske knapper: Power, volume, and programmable function keys.
• Porte: USB-C for charging and data transfer.

3. Opsætning

3.1 Batteriinstallation og opladning

The Chainway C71 requires one Lithium Ion battery for operation. Ensure the battery is correctly installed before first use.

1. Locate the battery compartment cover on the rear of the device.
2. Open the cover and insert the Lithium Ion battery, ensuring the contacts align correctly.
3. Luk batterirummets dæksel forsvarligt.
4. Connect the device to a power source using the provided USB-C cable and power adapter. The device will begin charging.

3.2 Indledende tænding

1. Press and hold the Power button (usually on the side) until the device vibrates and the screen illuminates.
2. Følg vejledningen på skærmen for at fuldføre den indledende Android 13-opsætning, inklusive sprogvalg, Wi-Fi-forbindelse og login til Google-konto.

4. Betjeningsvejledning

4.1 Barcode Scanning with Zebra SE55 Engine

The Chainway C71 is equipped with a powerful Zebra SE55 scan engine for efficient barcode capture.

1. Open the desired application that requires barcode scanning (e.g., inventory management app).
2. Point the top of the device, where the scan engine is located, towards the barcode.
3. Press the dedicated scan button on the side of the device. A green aiming pattern will appear.
4. Align the aiming pattern with the barcode. The device will emit a sound or vibrate upon successful scan.
5. The scanned data will be input into the active field of your application.

Note: The Zebra SE55 can scan barcodes from up to 40 feet away, depending on the barcode size and quality. For optimal performance, ensure clear line of sight and adequate lighting.

4.2 Android 13-operativsystem

The C71 runs on Android 13, providing a familiar and intuitive user experience. You can navigate the interface using touch gestures.

• Startskærm: Få adgang til dine installerede applikationer og widgets.
• Meddelelser: Stryg ned fra toppen af ​​skærmen til view notifikationer og hurtigindstillinger.
• Google Play Butik: Download and install additional applications relevant to your workflow.

4.3 Forbindelse

The device supports multiple connectivity options for data transfer and communication.

• Wi-Fi: Connect to wireless networks for internet access and data synchronization. Go to Indstillinger > Netværk og internet > Wi-Fi.
• Bluetooth 5.0: Pair with Bluetooth-enabled devices such as headsets or printers. Go to Indstillinger > Forbundne enheder > Bluetooth.
• NFC: For near-field communication applications.
• GPS: For location-based services.
• 4G mobilnetværk: (If equipped with SIM card slot) For mobile data connectivity.

5. Vedligeholdelse

5.1 Rengøring af enheden

• Brug en blød, fnugfri klud lidt dampened with water or a mild, non-abrasive cleaning solution to clean the screen and exterior.
• Brug ikke skrappe kemikalier, opløsningsmidler eller slibende materialer, da disse kan beskadige enheden.
• Sørg for, at der ikke kommer væske ind i portene eller åbningerne.

5.2 Pleje af batterier

• Undgå at udsætte batteriet for ekstreme temperaturer (varme eller kolde).
• Oplad batteriet regelmæssigt, men undgå at lade det være helt afladet i længere perioder.
• Use only the manufacturer-approved charging accessories.

6. Fejlfinding

This section addresses common issues you might encounter with your Chainway C71 scanner.

6.1 Enheden tændes ikke

• Sørg for, at batteriet er korrekt installeret og fuldt opladet.
• Connect the device to the charger and attempt to power it on after a few minutes.
• Kontakt kundesupport, hvis problemet fortsætter.

6.2 Barcode Not Scanning

• Verify that the scanning application is open and ready to receive input.
• Ensure the barcode is clean, undamaged, and within the scanner's range (up to 40 feet).
• Check for adequate lighting; extreme glare or insufficient light can affect scanning performance.
• Confirm the scan engine is pointed directly at the barcode.

6.3 Problemer med Wi-Fi-forbindelse

• Kontroller, om Wi-Fi er aktiveret i enhedens indstillinger.
• Ensure you are within range of a known Wi-Fi network.
• Verify the Wi-Fi password if connecting to a new network.
• Restart the device and the Wi-Fi router if necessary.

7. Specifikationer

Technical specifications for the Chainway C71 Android Barcode Scanner.

8. Garanti og support

For warranty information and technical support, please contact the seller, BARCODE-USA. Details regarding specific warranty periods and coverage will be provided at the point of purchase or upon request from the seller.

Sælger: BARCODE-USA

For assistance, refer to your purchase documentation or visit the BARCODE-USA store page on Amazon: BARCODE-USA Store
