SCHWAIGER RAFM0100 Bathroom Radio Plug User Manual

1. Introduktion

Thank you for choosing the SCHWAIGER RAFM0100 Bathroom Radio Plug. This device combines an FM radio, Bluetooth speaker, alarm clock, and an integrated light sensor into a compact plug-in unit. This manual provides essential information for the safe and efficient operation of your device. Please read these instructions carefully before use and retain them for future reference.

2. Sikkerhedsinstruktioner

• Ensure the device is connected to a properly grounded power outlet.
• Udsæt ikke enheden for ekstreme temperaturer, direkte sollys eller høj luftfugtighed.
• Avoid placing the device near water sources or in areas where it may be splashed.
• Forsøg ikke at åbne eller reparere enheden selv. Overlad al service til kvalificeret personale.
• Opbevares utilgængeligt for børn.
• Tag enheden ud af stikkontakten før rengøring.

3. Pakkens indhold

• 1x SCHWAIGER RAFM0100 Bathroom Radio Plug
• 1x brugermanual

4. Produktet er slutview

The SCHWAIGER RAFM0100 is designed for convenience and functionality, featuring an integrated plug for direct power connection. It includes an LED display, control buttons, a rotary volume knob, a speaker, and a light sensor.

SCHWAIGER RAFM0100 Bathroom Radio Plug, front view showing the LED display and control buttons, with a German flag ribbon indicating 'Deutsche Marke'.

Detailed diagram of the SCHWAIGER RAFM0100 controls, showing buttons for volume, track navigation, power/mode, and alarm.

Kontroller og indikatorer:

• LED display: Shows time, FM frequency, and mode indicators.
• Lydstyrkeknap: Rotary control for adjusting audio volume. Press to Power On/Off or Play/Pause.
• Previous Button (<<): Skips to the previous track in Bluetooth mode or tunes down in FM mode.
• Next Button (>>): Skips to the next track in Bluetooth mode or tunes up in FM mode.
• Mode/Alarm Button (⏰/M): Switches between FM, Bluetooth, and AUX modes. Long press to enter alarm setting.
• Lyssensor: Automatically activates LED lighting in dark environments when noise is detected.

5. Opsætning

1. Strømtilslutning: Plug the device directly into a standard wall power outlet. The LED display will illuminate.
2. Første gang tændt: Press the Volume knob (Power/Play/Pause button) to turn on the device.

6. Betjeningsvejledning

6.1 Tænd/sluk

• For at tænde: Tryk på lydstyrkeknappen.
• For at slukke: Press and hold the Volume knob for a few seconds.

6.2 FM-radiofunktion

The SCHWAIGER RAFM0100 radio plug highlighting its FM radio functionality, with a graphic representation of radio waves.

1. Select FM Mode: Press the Mode/Alarm button (⏰/M) until 'FM' is displayed.
2. Automatisk stationssøgning: Press and hold the Play/Pause button (Volume knob) in FM mode to initiate an automatic scan for available stations. The radio will save found stations.
3. Manuel indstilling: Briefly press the Previous (<<) or Next (>>) buttons to manually tune to the next available station.

6.3 Bluetooth -parring

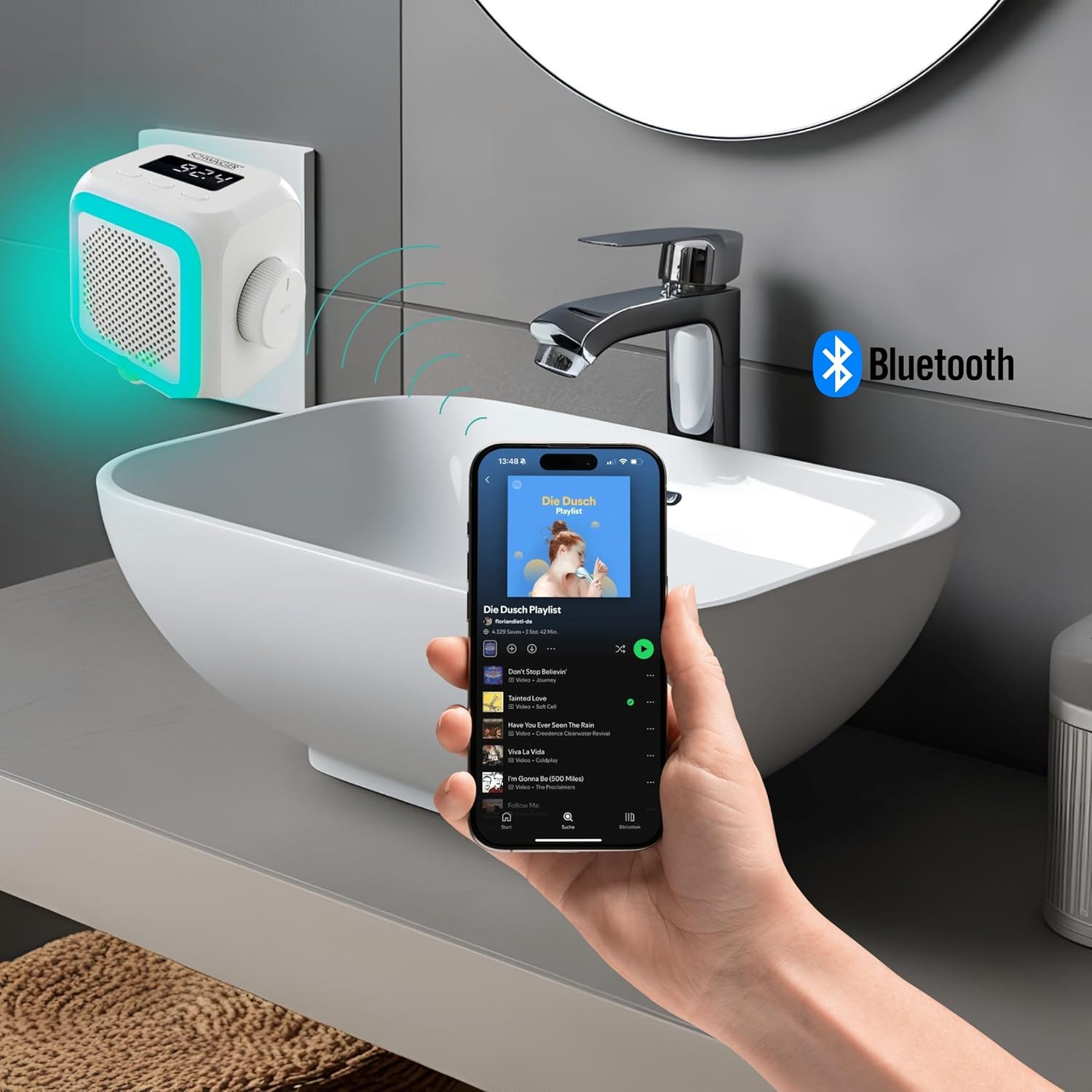

The SCHWAIGER RAFM0100 radio plug in a bathroom setting, connected via Bluetooth to a smartphone playing music.

1. Vælg Bluetooth-tilstand: Press the Mode/Alarm button (⏰/M) until 'BT' is displayed on the screen. The device will enter pairing mode.
2. Aktivér Bluetooth på din enhed: Gå til Bluetooth-indstillingerne på din smartphone, tablet eller anden Bluetooth-aktiveret enhed, og aktiver Bluetooth.
3. Forbinde: Søg efter 'SCHWAIGER RAFM0100' in the list of available devices and select it to pair. A confirmation sound will indicate successful pairing.
4. Afspil musik: Once paired, you can play audio from your connected device through the radio's speaker. Use the Previous (<<), Next (>>), and Play/Pause (Volume knob) buttons to control playback.

6.4 Lydstyrkejustering

• Drej volumenknappen med uret for at øge lydstyrken.
• Drej lydstyrkeknappen mod uret for at mindske lydstyrken.

6.5 Alarmfunktion

• Indstil alarm: Press and hold the Mode/Alarm button (⏰/M) to enter alarm setting mode. Use the Previous (<<) and Next (>>) buttons to adjust the hour and minute, and press the Mode/Alarm button to confirm each setting.
• Aktiver/deaktiver alarm: Briefly press the Mode/Alarm button to toggle the alarm on or off. An alarm icon will appear on the display when active.
• Udsæt: When the alarm sounds, press any button to activate snooze.
• Stop alarm: To stop the alarm completely, press and hold the Volume knob.

6.6 Integrated Light Sensor

Side view of the SCHWAIGER RAFM0100 radio plug, showing the speaker grille and the integrated light sensor at the bottom.

The device features an integrated light sensor that, in dark environments, will automatically activate the LED display and ambient lighting when it detects noise. This provides a convenient night light function.

7. Vedligeholdelse

• Rensning: Disconnect the device from the power outlet before cleaning. Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners or solvents.
• Opbevaring: If not in use for an extended period, unplug the device and store it in a cool, dry place.

8. Fejlfinding

9. Specifikationer

• Mærke: SCHWAIGER
• Modelnummer: RAFM0100
• Farve: Hvid
• Forbindelse teknologi: Bluetooth
• Særlige funktioner: Bluetooth, Integrated Clock, Compact Size, Night Light (Light Sensor)
• Kompatible enheder: Smartphone, Tablet, MP3 Player, Laptop, Headphones
• Produktdimensioner: 8.6L x 11.4W x 9.7H centimeter
• Tuningteknologi: FM
• Stil: Moderne
• Strømkilde: Elektrisk med ledning
• Understøttede radiobånd: FM
• Inkluderede komponenter: Instruktionsbog

10. Garanti og support

SCHWAIGER products are designed and manufactured to the highest quality standards. For information regarding warranty, returns, or technical support, please refer to the warranty card included with your product or visit the official SCHWAIGER website. Please have your model number (RAFM0100) and purchase details ready when contacting support.
