Produkt overview
The NANLITE FC-120B is a compact and powerful bi-color LED spotlight designed for various lighting applications. It offers adjustable color temperature and brightness, multiple control options, and high color accuracy, making it suitable for both professional and enthusiast use.
This image shows the NANLITE FC-120B Bi-Color LED Spotlight, a versatile lighting unit, attached to a light stand. The spotlight features a reflector dish to direct and shape the light output. A power cable is visible, connecting the unit to a power source.
Hvad er der i æsken
Please verify that all components are present upon unboxing your NANLITE FC-120B.
- NANLITE FC-120B Bi-Color LED Spotlight
- AC Adapter
- Bowens Mount Adapter
- Beskyttende etui
- Fjernbetjening
This image displays the items included with the NANLITE FC-120B Bi-Color LED Spotlight. Visible components are the spotlight unit, a reflector dish, an AC power adapter, a power cable, and a Bowens mount adapter, all neatly arranged next to the product packaging.
Opsætning
- Udpakning: Fjern forsigtigt alle komponenter fra emballagen.
- Montering: Attach the FC-120B to a compatible light stand using the integrated mounting bracket. Secure it by tightening the locking knob.
- Strømtilslutning:
- For AC power: Connect the included AC adapter to the FC-120B's power input port and then plug the adapter into a standard electrical outlet.
- For battery power (optional, battery grip sold separately): Attach a V-Mount battery to the compatible battery grip and connect it to the FC-120B.
- For USB-C power (optional): Connect a USB-C power bank to the USB-C port on the unit.
- Tilbehørsvedhæftning: If using a light modifier, such as the included reflector, attach it to the Bowens mount on the front of the spotlight.
En side view of the NANLITE FC-120B Bi-Color LED Spotlight mounted on a light stand. The image highlights the power input port and the connected power cable, illustrating how the unit receives electrical power.
Betjeningsvejledning
Tænd/sluk
Locate the power button on the rear panel of the FC-120B. Press and hold the button for approximately 2 seconds to turn the unit on or off.
Grundlæggende kontrol
The FC-120B features onboard controls and a display screen for direct adjustments:
- Mode knap: Press to cycle through different operating modes (e.g., CCT mode, Effects mode).
- Menu-knap: Access advanced settings and configurations.
- Dæmpningsknap: Rotate to adjust the brightness (dimming percentage) of the light.
- CCT-knap: Rotate to adjust the color correlated temperature (CCT) from warm to cool light.
Kontrolmuligheder
The FC-120B offers multiple methods for control:
- Indbyggede kontroller: Direct adjustments using the buttons and knobs on the unit.
- Bluetooth app kontrol: Download the official NANLITE mobile application to control the light wirelessly via Bluetooth.
- 2.4G fjernbetjening: Use the included 2.4G handheld remote for wireless control.
- DMX/RDM: For professional setups, connect the FC-120B to a DMX console for advanced control and integration into larger lighting systems.

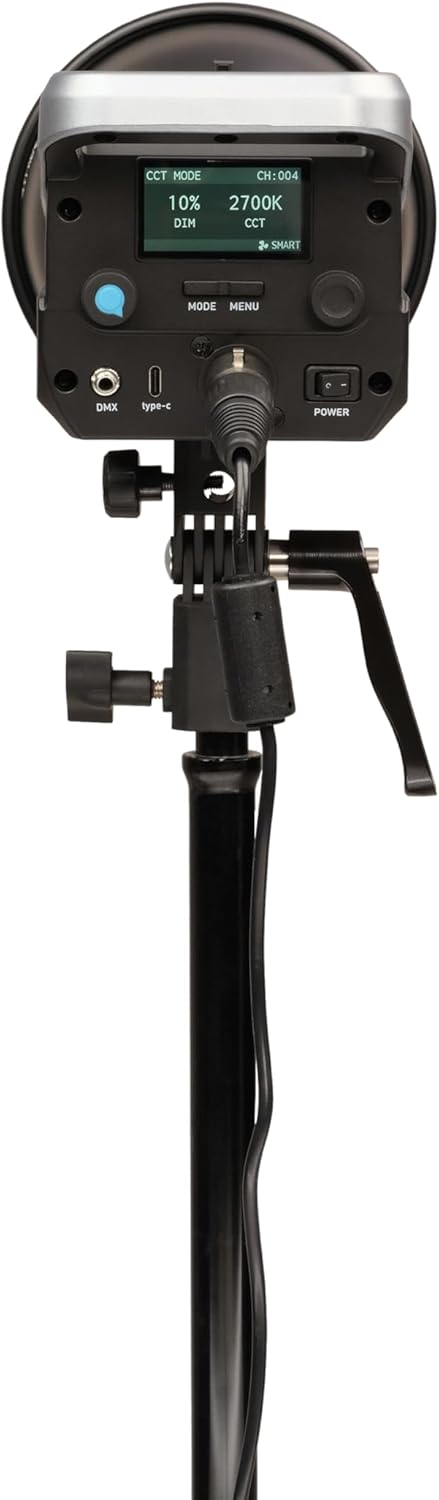

Dette billede giver en klar view of the rear control panel of the NANLITE FC-120B Bi-Color LED Spotlight. The display screen shows current settings such as CCT mode, dimming percentage, and color temperature. Various buttons and knobs for power, mode selection, and adjustments are visible, along with DMX and USB-C ports.
Opretholdelse
- Rensning: Use a soft, dry cloth to clean the exterior of the unit. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Linsepleje: Gently wipe the LED lens with a clean, dry microfiber cloth to remove dust or smudges. Avoid touching the lens directly with your fingers.
- Opbevaring: When not in use, store the FC-120B in its protective case in a cool, dry place, away from direct sunlight and extreme temperatures.
- Ventilation: Ensure the ventilation openings on the unit are clear of obstructions during operation to prevent overheating. Do not block these vents.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tænder ikke | Ingen strømforsyning | Check AC adapter connection, ensure power outlet is functional, or verify battery charge if using battery power. |
| Lysudgangen er svag | Dæmpningsniveauet er indstillet for lavt | Increase the dimming percentage using the control knob on the unit or via the mobile app/remote. |
| Fjernbetjening virker ikke | Remote battery low or not paired | Replace remote batteries. Refer to the remote's specific manual for pairing instructions if necessary. |
| Overheating warning displayed | Blocked ventilation or high ambient temperature | Ensure all ventilation openings are clear. Operate the unit in a well-ventilated area. Allow the unit to cool down before resuming operation. |
This image depicts the NANLITE FC-120B Bi-Color LED Spotlight in an active studio environment. The light is positioned to illuminate a subject, demonstrating its use in a practical setting. Other studio equipment may be visible in the background.
Specifikationer
- Model: FC-120B
- UdgangseffektCirka 120 W
- Farvetemperatur: Bi-Color (Adjustable)
- Color Accuracy (CRI/TLCI): SSI 82 (3200K) and 74 (5600K), TCI 96, TLCI 98
- Montering: Bowens Mount
- Kontrolmetoder: Onboard, Bluetooth App, 2.4G Remote, DMX/RDM
- Strømkilde: AC Adapter, V-Mount Battery (via optional grip), USB-C Power Bank
- Produktdimensioner: 8 x 4.5 x 7.6 tommer
- Varens vægt: 4.4 pund
A view of the NANLITE FC-120B Bi-Color LED Spotlight, showcasing its compact and robust design. The image emphasizes the overall form factor of the light, suitable for various production environments.
Garanti og support
The NANLITE FC-120B Bi-Color LED Spotlight comes with a 2 års garantiDenne garanti kan udvides til 3 år with online registration. Please retain your proof of purchase for warranty claims.
For technical support, warranty claims, or service inquiries, please visit the official NANLITE website or contact their customer service department. You can also find more information and products at the official NANLITE Amazon Store:
