1. Introduktion og overview
Thank you for choosing the Midea 11S Bagged Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. The Midea 11S is designed for powerful and versatile cleaning, featuring a 1400W motor, 18kPa suction, and a range of convenient features to keep your home spotless.
Image: Efficient Cleaning. This image shows the Midea 11S in action, demonstrating its powerful suction for effective dust and debris removal from various surfaces.
Image: Lightweight and Portable. This image illustrates the ease of portability of the Midea 11S vacuum cleaner, showing it being carried by its handle.
Produkt overview Video: This video demonstrates the key features and benefits of the Midea 11S Bagged Vacuum Cleaner, including its powerful suction, multi-surface cleaning capabilities, and compact design.
2. Vigtige sikkerhedsinstruktioner
Please read all safety warnings and instructions before using this appliance to prevent electric shock, fire, or serious injury.
- Tag altid støvsugeren ud af stikkontakten, inden du rengør eller udfører vedligeholdelse.
- Do not use the appliance to pick up water or any other liquids, as this may cause electric shock.
- Do not pick up burning or smoking objects such as cigarettes, matches, or hot ashes.
- Hold hår, løstsiddende tøj, fingre og alle dele af kroppen væk fra åbninger og bevægelige dele.
- Må ikke bruges uden støvposen og/eller filtrene på plads.
- Lad ikke børn bruge støvsugeren. Nøje opsyn er nødvendigt, når den bruges i nærheden af børn.
- Hvis forsyningsledningen er beskadiget, skal den udskiftes af producenten, dennes serviceagent eller lignende kvalificerede personer for at undgå en fare.
- Brug kun som beskrevet i denne manual. Brug kun producentens anbefalede tilbehør.
3. Hvad er der i æsken
Carefully unpack all components and check against the list below. Ensure all parts are present and undamaged before assembly.
- Midea 11S Vacuum Cleaner Body
- Fleksibel slange
- Plastic Tube (Extension Wand)
- Floor Brush (for multi-surface cleaning)
- Crevice Tool (2-in-1 brush)
- Paper Dust Bags (3 included)
Image: Main Components. This image displays the main body of the Midea 11S vacuum cleaner along with its essential accessories: the flexible hose, plastic tube, floor brush, and crevice tool.
4. Opsætningsvejledning
- Fastgør den fleksible slange: Insert the end of the flexible hose into the suction inlet on the main body of the vacuum cleaner until it clicks securely into place.
- Assemble the Extension Tube: Connect the plastic tube (extension wand) to the handle end of the flexible hose.
- Fastgør gulvbørsten: Connect the floor brush to the end of the plastic tube. Ensure it is firmly attached.
- Installer støvpose: Open the dust bag compartment. Insert a new paper dust bag, ensuring it is correctly seated and sealed around the inlet. Close the compartment securely.
5. Betjeningsvejledning
Follow these steps for effective and safe operation of your Midea 11S vacuum cleaner.
- Strømtilslutning: Extend the 5m power cord and plug it into a suitable electrical outlet.
- Tænd/sluk: Tryk på tænd/sluk-knappen på støvsugerens hus for at tænde eller slukke apparatet.
- Multi-Surface rengøring: The floor brush is suitable for various surfaces including hardwood floors, carpets, tiles, and rugs. Adjust the brush setting if available for optimal performance on different floor types.
Image: Multi-Floor Cleaning. This image illustrates the Midea 11S vacuum cleaner's versatility across different floor types, including marble, wood, tiles, and carpet.
- Brug af tilbehør:
- Crevice Tool (2-in-1 brush): Use this attachment for cleaning narrow spaces, corners, and upholstery. It can be used as a brush or a narrow nozzle.

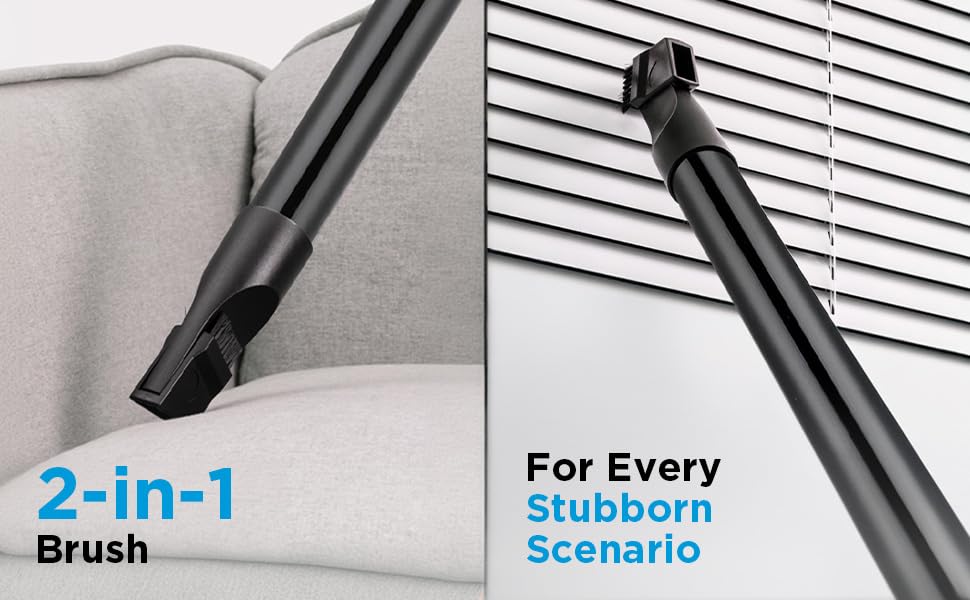

Image: Versatile Attachments. This image highlights the 2-in-1 brush and crevice tool, demonstrating their effectiveness for cleaning various surfaces and tight spots, such as sofa cushions and window blinds.
- Dustbag Full Indicator: The indicator will change color or illuminate when the dust bag is full and needs to be replaced, or if there is a blockage.
- Auto Cord Rewind: After use, press the cord rewind button to automatically retract the power cord into the appliance for neat storage.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid. Tag altid stikket ud af apparatet, før du udfører nogen form for vedligeholdelse.
- Udskiftning af støvposen:
- When the dustbag full indicator signals, or suction power decreases, replace the dust bag.
- Åbn støvposerummet, fjern forsigtigt den fulde pose, og bortskaf den.
- Insert a new paper dust bag, ensuring it is properly seated.
- Rengøring af filtre:
- The Midea 11S uses a foam filter. Locate the filter compartment (refer to your product diagram if unsure).
- Remove the foam filter and gently tap it to remove loose dust. If heavily soiled, rinse it under cold running water.
- Allow the filter to air dry completely before reinserting it into the vacuum cleaner. Do not use the appliance with a wet filter.
- Tilbehør til rengøring:
- Wipe down the hose, tubes, and brushes with a damp klud. Sørg for, at de er tørre, før du sætter dem på igen.
- Remove any tangled hair or debris from the floor brush.
- Opbevaring: Store the vacuum cleaner in a cool, dry place. Its compact design allows for easy storage in small spaces.
Image: Compact Storage. This image shows the Midea 11S vacuum cleaner stored conveniently in a kitchen cabinet, highlighting its compact design for easy storage.
7. Fejlfinding
If you encounter any issues with your Midea 11S, refer to the common problems and solutions below.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Støvsugeren tænder ikke. | Ikke tilsluttet; stikkontakt defekt; tænd/sluk-knap ikke trykket ind. | Ensure the plug is securely in the outlet. Test the outlet with another appliance. Press the power button firmly. |
| Lav sugeevne. | Full dust bag; clogged hose/tube/brush; dirty filter. | Check the dustbag full indicator and replace the dust bag if needed. Clear any blockages in the hose, tubes, or brush. Clean or replace the foam filter. |
| Usædvanlig støj under drift. | Blockage in the hose or brush; motor issue. | Kontrollér for og fjern eventuelle blokeringer. Hvis støjen fortsætter, skal du kontakte kundesupport. |
| Støv slipper ud af støvsugeren. | Dust bag not installed correctly; filter missing or damaged. | Ensure the dust bag is properly seated and sealed. Check that all filters are correctly installed and undamaged. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Midea |
| Modelnavn | M11SINBL |
| Wattage | 1400 watt |
| Maksimalt sug | 18 kPa (180 Millimetres) |
| Filtertype | Skum |
| Strømkilde | Elektrisk med ledning |
| Ledningslængde | 5 meters (Auto Cord Rewind) |
| Støjniveau | 80 decibel |
| Produktmål (L x B x H) | 24.5L x 22.8W x 31.6H Centimeter |
| Varens vægt | 2.6 kilo |
| Vakuumopsamlingsteknologi | Indpakket |
| Særlige funktioner | Automatic Cord Rewind, Compact, Spotless Cleaning, Wheels |
Billede: Produktmål. This image provides a visual representation of the Midea 11S vacuum cleaner with its key dimensions: 245 mm (length), 228 mm (width), and 316 mm (height).
9. Garanti og support
The Midea 11S Bagged Vacuum Cleaner comes with a 1 års garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl og materialefejl ved normal brug.
For warranty claims, technical support, or any product-related inquiries, please contact Midea customer service. Keep your purchase receipt as proof of purchase.
Manufacturer: JIANGSU MIDEA CLEANING APPLIANCES CO., LTD. SUZHOU, JIANGSU, CHINA
Importer: Midea India Private Limited, Unit 517-522, 5th Floor, BPTP Park Centra, Sector-30, Gurugram-122001, Haryana
