1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your BHI 12,000 BTU 115-Volt, 17 SEER2, Wi-Fi Ductless Mini Split Air Conditioner with Heat Pump. Please read this manual thoroughly before operating the unit to ensure proper use and to prevent damage or injury. Keep this manual for future reference.
The BHI mini-split system is designed to provide efficient cooling and heating for spaces up to 600 sq. ft., featuring Wi-Fi connectivity for convenient control and a heat pump for year-round comfort.
2. Sikkerhedsoplysninger
Always adhere to the following safety precautions to reduce the risk of fire, electric shock, or injury.
- Professionel installation påkrævet: Installation, maintenance, and repair of this appliance must be performed by qualified service personnel. Improper installation can lead to electric shock, fire, or water leakage.
- Elektrisk sikkerhed: Ensure the power supply matches the unit's specifications (115-Volt). Do not use extension cords. Always disconnect power before servicing.
- Kølemiddelsikkerhed: This unit contains R410A refrigerant. Handle with care and ensure proper ventilation during installation and servicing.
- Frirum: Sørg for tilstrækkelig afstand omkring både indendørs og udendørs enheder for korrekt luftgennemstrømning og adgang til service.
- Børn og kæledyr: Hold børn og kæledyr væk fra enheden under drift og vedligeholdelse.
- Ingen forhindringer: Do not block the air inlet or outlet of either unit.
- Vandafledning: Ensure proper drainage for condensate to prevent water damage.
3. Pakkens indhold
Ved udpakning skal du kontrollere, at alle komponenter er til stede og ubeskadigede. Hvis der mangler eller er beskadigede dele, skal du straks kontakte din leverandør.
Figure 3.1: Complete BHI Mini Split Air Conditioner System Components.
This image displays the full package contents, including the indoor air handler, the outdoor condenser unit, the wireless remote control, and the 16.4 ft. pre-charged lineset, along with other installation accessories.
- Indoor Unit (Air Handler)
- Udendørsenhed (kondensator)
- Trådløs fjernbetjening
- 16.4 ft. Pre-charged Lineset
- Afløbsslange
- Elektriske ledninger
- Installation Accessories (e.g., wall sleeve, insulation tape)
- Brugervejledning (dette dokument)
4. Produktfunktioner
4.1 Wi-Fi-kontrol
The BHI mini split system features integrated Wi-Fi connectivity, allowing users to easily control the air conditioner from outside the home via a smart device. This provides convenient and intelligent life management of your indoor climate.
4.2 Outdoor Unit Heating Belt
The BHI Outdoor Unit is equipped with a "Heating Belt" that operates via a temperature sensor. If the ambient temperature drops below 32°F (0°C), the heating belt will automatically activate to prevent the outdoor unit from freezing. It will deactivate once the temperature rises above 32°F (0°C), ensuring reliable operation in cold climates.

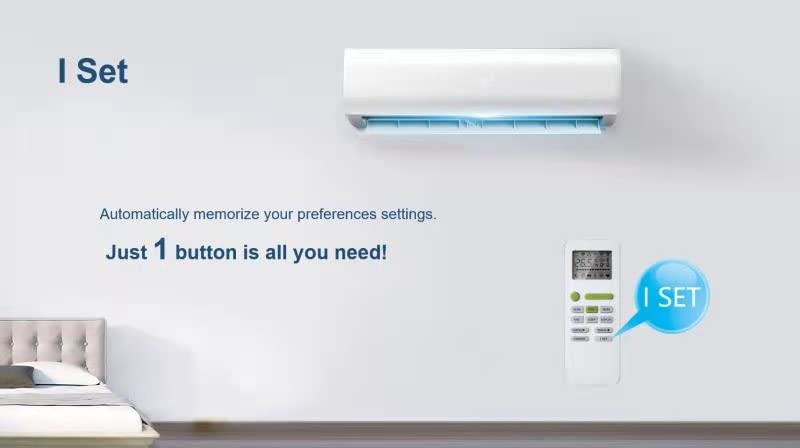

4.3 "I Set" Function
The "I Set" function allows the unit to automatically memorize your preferred settings. With just one button press, you can recall your customized comfort preferences, simplifying operation.

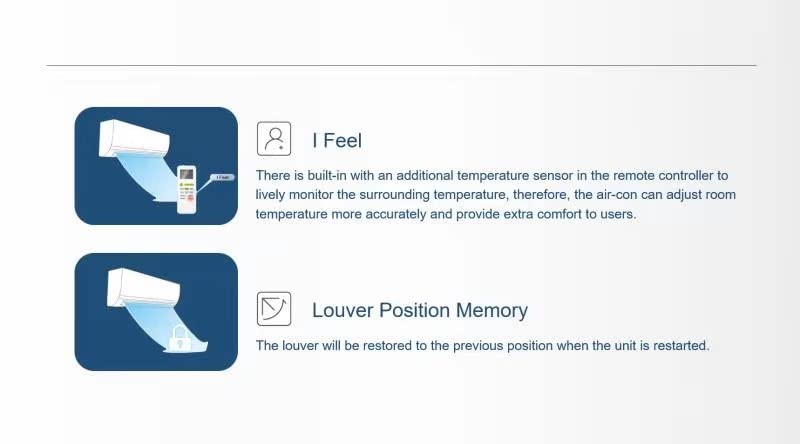

4.4 "I Feel" Function and Louver Position Memory
I Feel: This feature utilizes a built-in temperature sensor in the remote controller to monitor the surrounding temperature more accurately. This allows the air conditioner to adjust the room temperature precisely, providing enhanced comfort.
Louver Position Memory: The unit remembers the last louver position. When the unit is restarted, the louvers will automatically return to their previously set position.
5. Opsætning og installation
Installation of this mini split system requires specialized tools and knowledge. It is strongly recommended that installation be performed by a certified HVAC professional to ensure safety, proper operation, and warranty validity.
5.1 enhedsdimensioner
Figure 5.1: Indoor and Outdoor Unit Dimensions.
This image provides detailed measurements for both the indoor air handler and the outdoor condenser unit, crucial for planning installation space and clearances.
- Indendørs enhed:
- Bredde: 30.59 tommer
- Højde: 11.91 tommer
- Dybde: 9.84 tommer
- Udendørs enhed:
- Bredde: 30.59 tommer
- Højde: 19.63 tommer
- Dybde: 11.41 tommer
5.2 Generelle installationstrin (overview for professionelle)
- Placering af indendørsenhed: Select a suitable location on an interior wall, ensuring adequate space for airflow and maintenance.
- Placering af udendørsenhed: Choose a stable, level outdoor location with sufficient clearance for airflow and service access.
- Boring af væghul: Create a hole through the wall for the refrigerant lines, drain hose, and electrical cables.
- Lineset Connection: Connect the pre-charged 16.4 ft. lineset between the indoor and outdoor units. Ensure proper flaring and torque.
- Elektriske ledninger: Connect the power supply and communication wiring according to the wiring diagram provided with the unit. Ensure proper grounding.
- Afløbsforbindelse: Connect the condensate drain hose from the indoor unit to an appropriate drainage point.
- Støvsugning og lækagetest: Evacuate the refrigerant lines to remove air and moisture, then perform a leak test.
- Testkørsel: After installation, perform a test run to verify proper operation in all modes.
6. Betjeningsvejledning
Your BHI mini split system is controlled primarily by the wireless remote control. Familiarize yourself with the remote's functions for optimal use.

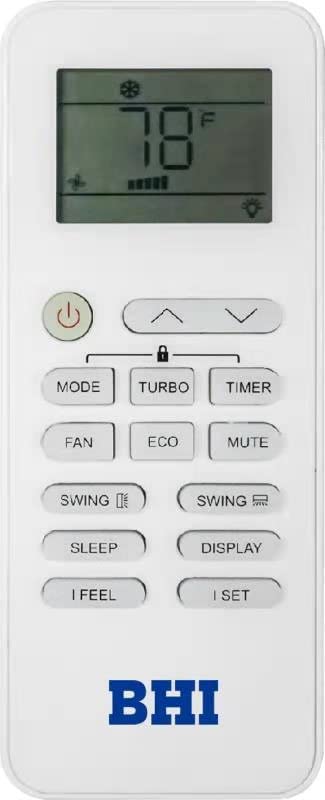

Figure 6.1: Wireless Remote Control.
This image shows the layout of the wireless remote control, which is used to operate the BHI mini split air conditioner.
6.1 Fjernbetjeningsfunktioner
| Knap | Fungere |
|---|---|
| Effekt (⏻) | Tænder eller slukker for enheden. |
| MODE | Skifter mellem driftstilstande: Auto, Køling, Tørring, Varme, Ventilator. |
| TEMP (▲/▼) | Justerer den indstillede temperatur. |
| FAN | Justerer ventilatorhastigheden (Auto, Lav, Mellem, Høj). |
| SWING (↕/↔) | Controls vertical (up/down) and horizontal (left/right) louver swing. |
| TIMER | Indstiller ON/OFF-timeren til automatisk drift. |
| TURBO | Aktiverer hurtig afkøling eller opvarmning til hurtige temperaturændringer. |
| ØKO | Aktiverer energisparetilstand. |
| STUM | Silences beeps or sounds from the unit. |
| SOVE | Optimerer temperatur og ventilatorhastighed for en behagelig søvn. |
| VISE | Turns the indoor unit's display ON or OFF. |
| JEG FØLER | Activates the remote's temperature sensor for more accurate room temperature sensing. |
| JEG SÆTTER | Recalls previously saved preferred settings. |
6.2 Wi-Fi App Control
For Wi-Fi control, download the dedicated BHI smart app from your device's app store. Follow the in-app instructions to connect your mini split unit to your home Wi-Fi network. Once connected, you can control the unit's functions remotely, set schedules, and monitor its status.
7. Vedligeholdelse
Regular maintenance ensures the longevity and efficiency of your BHI mini split system. Always disconnect power to the unit before performing any maintenance.
7.1 Rengøring af luftfilter
Indendørsenhedens luftfiltre bør rengøres hver anden uge eller oftere afhængigt af brug og luftkvalitet.
- Åbn frontpanelet på indendørsenheden.
- Fjern luftfiltrene.
- Rengør filtrene med en støvsuger, eller vask dem med lunkent vand og et mildt rengøringsmiddel.
- Allow filters to dry completely in a shaded area before reinstalling.
- Sæt filtrene i igen, og luk frontpanelet.
7.2 Rengøring af udendørsenhed
Periodically inspect the outdoor unit for debris, leaves, or dirt that may obstruct airflow. Gently clean the coils with a soft brush or water hose. Do not use high-pressure water directly on electrical components.
7.3 Professionel service
It is recommended to have a qualified HVAC technician perform annual professional maintenance, including checking refrigerant levels, electrical connections, and overall system performance.
8. Fejlfinding
Før du kontakter service,view følgende almindelige problemer og deres mulige løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Ingen strømforsyning; Fjernbetjeningens batterier er døde; Afbryderen er udløst. | Kontroller strømforbindelsen; Udskift fjernbetjeningens batterier; Nulstil afbryderen. |
| Utilstrækkelig køling/opvarmning. | Snavsede luftfiltre; Tilstoppet udendørsenhed; Forkert indstilling af tilstand; Lavt kølemiddelniveau. | Clean air filters; Clear obstructions from outdoor unit; Select correct mode; Contact professional for refrigerant check. |
| Vandlækage fra indendørsenheden. | Tilstoppet afløbsslange; Forkert installation. | Clear drain hose; Contact professional for inspection. |
| Usædvanlig støj. | Løse dele; Blokering af ventilator; Problem med kompressor. | Check for loose parts; Clear obstructions; Contact professional. |
| Problemer med Wi-Fi-forbindelse. | Incorrect Wi-Fi password; Router too far; App issues. | Verify password; Move router closer or use extender; Reinstall app. |
If the problem persists after attempting these solutions, please contact BHI customer support or a qualified service technician.
9. Specifikationer
| Attribut | Detalje |
|---|---|
| Modelnummer | BHI-T17-12K115V-US-C |
| Kølekapacitet | 12,000 BTU |
| Voltage | 115-volt |
| SEER2-vurdering | 17 SEER2 |
| Dækningsområde | Op til 600 sq. ft. |
| Kølevæsketype | R410A |
| Linesæt længde | 16.4 ft. (Pre-charged) |
| Produktmål (indendørsenhed) | 30.59 x 11.91 x 9.84 tommer (B x H x D) |
| Produktmål (udendørsenhed) | 30.59 x 19.63 x 11.41 tommer (B x H x D) |
| Varens vægt | 68.33 Pounds (Total system weight) |
| Fabrikant | BHI |
10. Garanti og support
For specific warranty terms and conditions, please refer to the warranty card included with your product packaging or visit the official BHI webwebsted. Gem din købsbevis til garantikrav.
If you require technical assistance, have questions about operation, or need to report an issue, please contact BHI customer support. Contact information can typically be found on the manufacturer's webwebsted eller i produktemballagen.
