Holyton Robot Toys K103 Brugsanvisning

1. Introduktion

The Holyton K103 Robot Toy offers an exciting and educational interactive experience for children. This remote-controlled robot features gesture sensing, auto-demonstration, dance moves, music, and voice recording capabilities. Crafted from child-friendly, BPA-free ABS material, it is designed for durability and safety, ensuring smooth, burr-free edges to protect little hands. The robot is rechargeable, providing extended playtime after a quick charge, making it an ideal companion for imaginative play and developing logical thinking skills.

4. Opsætningsvejledning

4.1 Robot Battery Installation & Charging

The robot comes with a pre-installed rechargeable Lithium Polymer battery. Before first use, fully charge the robot.

Locate the charging port on the robot.
Connect the included USB charging cable to the robot's charging port and the other end to a USB power source (e.g., computer, USB wall adapter).
The robot requires approximately 80 minutes for a full charge. A full charge provides up to 150 minutes of playtime.

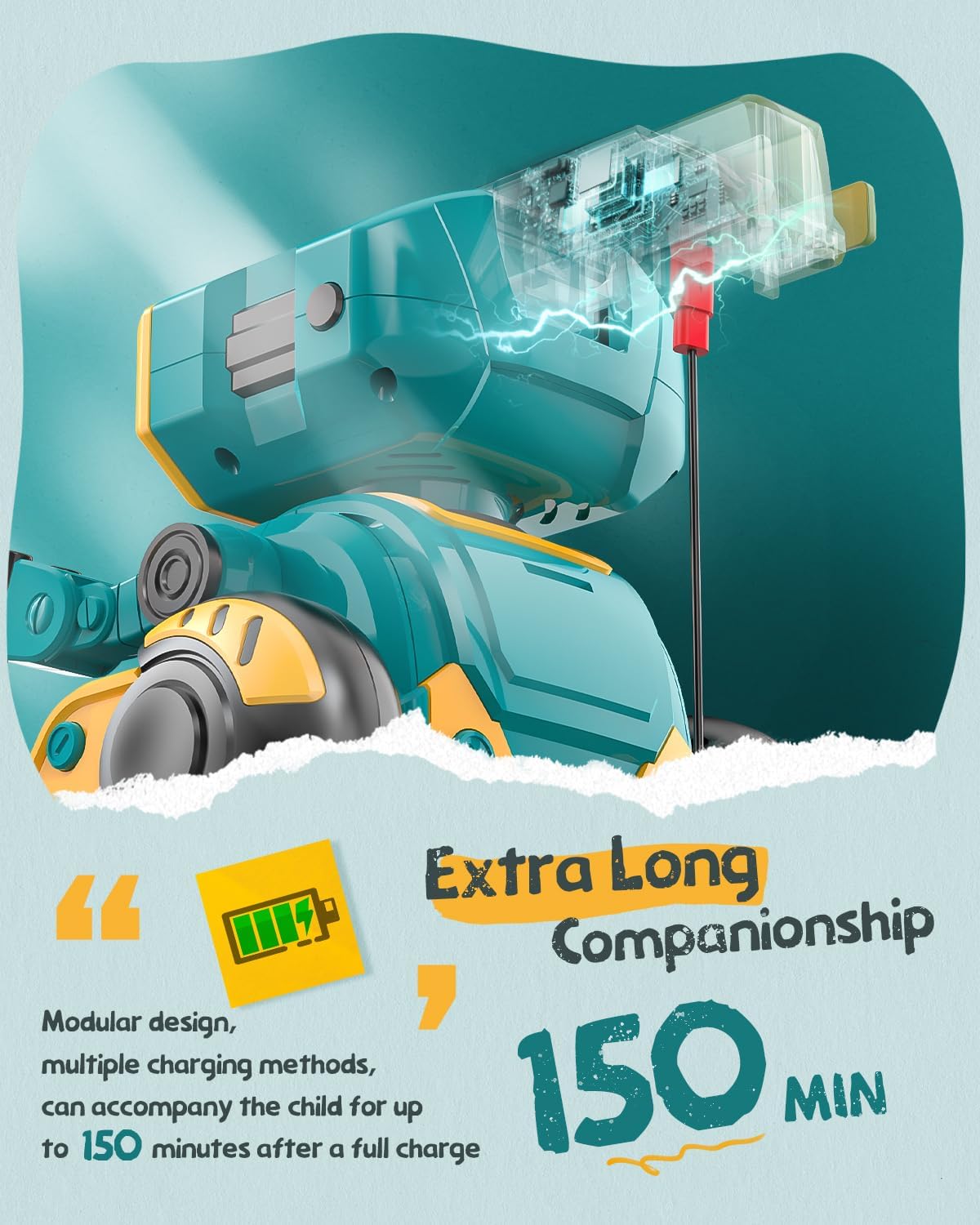

Holyton K103 Robot showing its charging port and battery life.

Image: The robot's charging port and battery indicator.

4.2 Installation af batteri i fjernbetjening

Fjernbetjeningen kræver 2 AAA-batterier (medfølger ikke).

Find batterirummet på bagsiden af fjernbetjeningen.
Use a small screwdriver (included) to open the battery compartment.
Isæt 2 AAA-batterier, og sørg for at polerne vender korrekt (+/-).
Luk batterirummet og fastgør det med skruen.

5. Betjeningsvejledning

Familiarize yourself with the robot's functions and the remote control buttons for optimal play.

5.1 Tænd/sluk

Press the power button on the robot's chest to turn it on. The LED eyes will light up. Press again to turn off.

Holyton K103 Robot with its power button visible on the chest.

Image: The robot's main body showing the power button.

5.2 Fjernbetjeningsfunktioner

The remote control allows for various movements and actions. Refer to the remote control layout for button identification.

Holyton K103 Robot with its remote control, illustrating movement and interaction.

Image: The robot and its remote control, highlighting interactive features.

Bevægelse: Use the directional buttons (up, down, left, right) to control the robot's movement.
Dans: Press the dance button to make the robot perform various dance moves with music.
Auto-Demonstration: Activate the auto-demonstration mode for the robot to showcase its full range of movements and features automatically.
LED Expression Switching: Use the dedicated button to change the robot's LED eye expressions, displaying different emotions or patterns.
Encyclopedia Content: The robot can recite informational content. Press the encyclopedia button to hear various facts or stories.
Lydstyrkekontrol: Adjust the robot's sound volume using the volume up/down buttons.

5.3 Gesture Sensing

The robot is equipped with gesture sensing technology. Wave your hand in front of the robot to trigger specific movements or sounds.

Child interacting with Holyton K103 Robot using gesture control.

Image: Demonstrating gesture control and touch sensitivity.

5.4 Voice Recording & Playback

Record your voice through the remote control, and the robot will play it back in a robotic voice.

Press and hold the recording button on the remote control.
Speak clearly into the remote control's microphone.
Slip knappen for at stoppe optagelsen.
Press the playback button to hear your recorded message from the robot.

5.5 Programming Actions

You can program a sequence of actions for the robot to perform.

Enter programming mode by pressing the programming button on the remote.
Input your desired sequence of movements or actions using the remote control buttons.
Press the programming button again to save the sequence.
Press the play button to execute the programmed actions.

5.6 Arm Launcher

The robot comes with toy cannonballs that can be launched from its arm.

Load a toy cannonball into the arm launcher.
Press the dedicated launch button on the remote control to fire.

Video: Overståetview of Holyton K103 Robot features including activation, dancing, encyclopedia, LED expressions, demonstration, recording, programming, touch sensing, gesture recognition, and arm launcher.

6. Vedligeholdelse

Rensning: Wipe the robot and remote control with a soft, dry cloth. Do not use harsh chemicals or immerse in water.

Opbevaring: When not in use for extended periods, turn off the robot and remove batteries from the remote control. Store in a cool, dry place away from direct sunlight.

Batteripleje: Recharge the robot's battery regularly to maintain its lifespan. Avoid overcharging or completely draining the battery.

7. Fejlfinding

Problem	Mulig årsag	Løsning
Robotten tænder ikke.	Lavt batteri eller ikke opladet.	Charge the robot fully using the USB cable.
Fjernbetjeningen reagerer ikke.	Fjernbetjeningens batterier er lave eller er installeret forkert.	Replace AAA batteries in the remote control, ensuring correct polarity.
Robot not moving or moving erratically.	Interference or out of range.	Ensure no obstacles are blocking the robot. Move closer to the robot.
Voice recording/playback unclear.	Microphone too far or background noise.	Speak closer to the remote's microphone in a quiet environment.

Problem

Mulig årsag

Løsning

Robotten tænder ikke.

Lavt batteri eller ikke opladet.

Charge the robot fully using the USB cable.

Fjernbetjeningen reagerer ikke.

Fjernbetjeningens batterier er lave eller er installeret forkert.

Replace AAA batteries in the remote control, ensuring correct polarity.

Robot not moving or moving erratically.

Interference or out of range.

Ensure no obstacles are blocking the robot. Move closer to the robot.

Voice recording/playback unclear.

Microphone too far or background noise.

Speak closer to the remote's microphone in a quiet environment.

8. Specifikationer

Produktdimensioner: 5.27 x 4.29 x 5.27 tommer

Varens vægt: 1.15 pund

Varemodelnummer: K-103

Producentens anbefalede alder: 36 måneder - 8 år

Batterier: 1 Lithium Polymer battery (included for robot), 2 AAA batteries (not included for remote)

Opladningstid: Cirka 80 minutter

Spilletid: Op til 150 minutter

Materiale: BPA-fri ABS-plast

Oprindelsesland: Kina
