1.Overview
This manual provides essential information for the proper installation, operation, and maintenance of your maXpeedingrods 48V 500A Golf Cart Speed Controller. This controller is designed for use with golf carts requiring 48V and 500A, and is compatible with models such as Curtis 1205M-5601, 1205M-5603, and P125M-5603.
The controller utilizes advanced pulse width modulation (PWM) technology to ensure efficient electricity usage, minimizing energy consumption and optimizing torque conversion. Its robust operating system facilitates simultaneous control of vehicle functions, motor performance, and user-defined programs.
2. Sikkerhedsoplysninger
Always prioritize safety when working with electrical components. Failure to follow safety guidelines can result in serious injury or damage to the product and vehicle.
- Disconnect all power sources from the golf cart before attempting any installation or maintenance.
- Wear appropriate personal protective equipment (PPE), including safety glasses and insulated gloves.
- Ensure the installation area is dry and well-ventilated.
- Avoid touching electrical terminals with bare hands when power is connected.
- Kontakt en kvalificeret tekniker, hvis du er usikker på installations- eller fejlfindingstrin.
3. Specifikationer
The following table details the technical specifications of the maXpeedingrods 48V 500A Golf Cart Speed Controller:
| Specifikation | Værdi |
|---|---|
| Voltage | 48V |
| Nuværende vurdering | 500A |
| Gasspjældstype | 0-5kΩ |
| Varens vægt | 5.48 pund |
| Produktdimensioner | 10.24 x 7.09 x 4.72 tommer |
| Producentens varenummer | NJ29BL |
4. Opsætning og installation
The maXpeedingrods 48V 500A Speed Controller is designed for direct replacement and ease of installation. However, professional installation is recommended to ensure correct wiring and optimal performance.
4.1 Kompatibilitet
This controller is compatible with various golf cart systems, including those that use Curtis 1205M-5601, 1205M-5603, and P125M-5603 controllers. Verify your golf cart's existing controller model before proceeding with installation.
4.2 Forbindelsespunkter

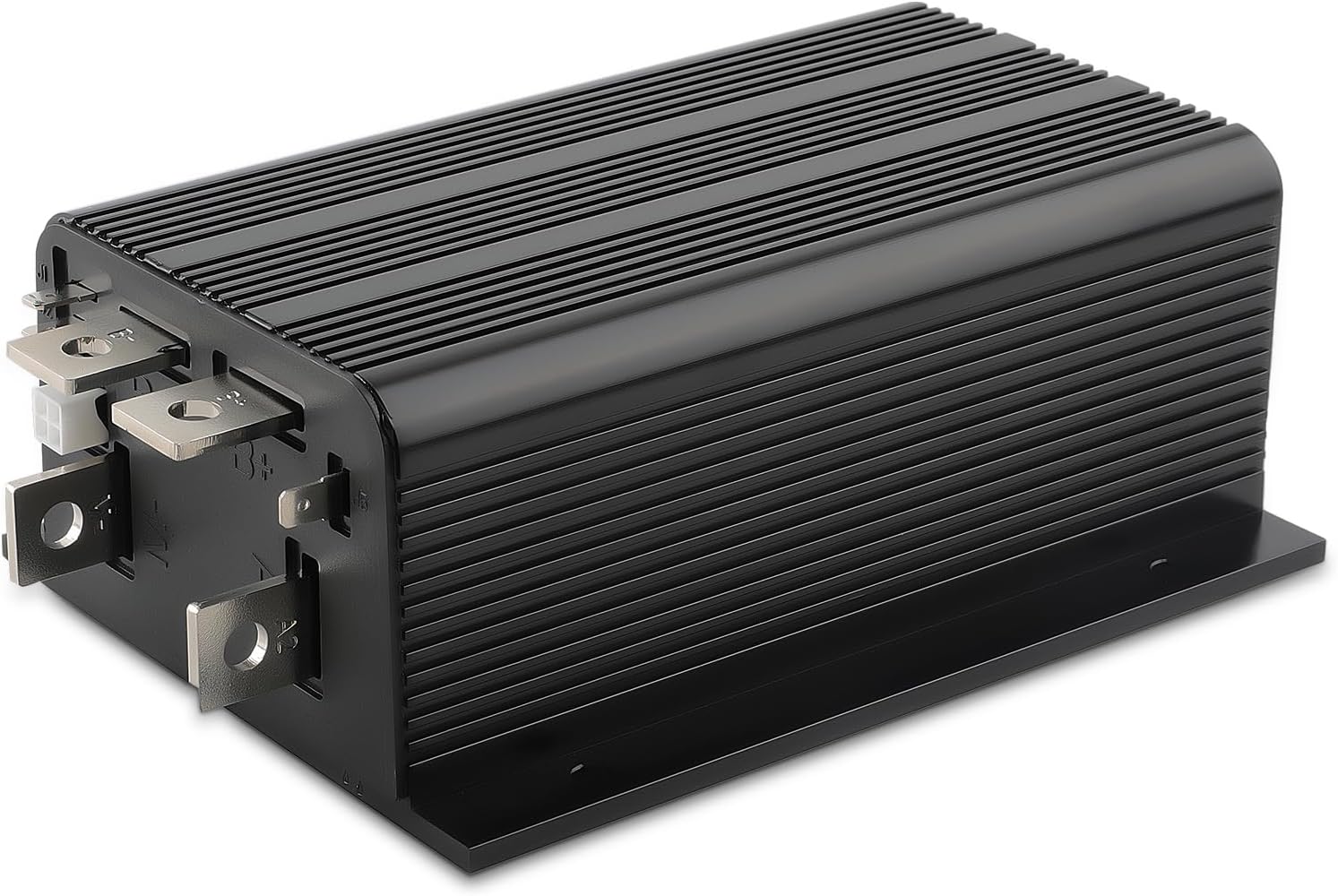

The controller features clearly labeled connection points for power input, motor output, and throttle signals. Refer to the detailed images below for identification of terminals.
4.3 Installationstrin (generelt)
- Forberedelse: Ensure the golf cart is turned off and the battery pack is disconnected.
- Fjernelse: Carefully remove the old speed controller, noting all existing connections. Take photos for reference if necessary.
- Montering: Mount the new maXpeedingrods controller securely in the designated location.
- Ledningsføring: Connect the power, motor, and throttle wires to the corresponding terminals on the new controller. Double-check all connections for tightness and correct polarity.
- Genforbindelse: Reconnect the battery pack and power on the golf cart.
- Test: Perform initial functional tests at low speed in a safe, open area.
4.4 Installationsvideoer
The following videos provide visual guidance on the product and its installation process:
Video: 500A 48V DC Motor Controller 1205M-5601
This video demonstrates the 500A 48V DC Motor Controller, model 1205M-5601, showcasing its physical attributes and potential applications.
Video: 48V 500A 1205M-5603 Golf Cart Controller for Club Car DS
A video presentation of the 48V 500A Golf Cart Controller, model 1205M-5603, specifically for Club Car DS models, highlighting its features and fitment.
Video: 500A 48V 0-5K Controller Replace Curtis 1205 Controller
This video illustrates the 500A 48V 0-5K controller as a replacement for Curtis 1205 series controllers, demonstrating its form and function.
5. Betjening
Once correctly installed, the maXpeedingrods speed controller will manage the power delivery to your golf cart's motor based on throttle input. The advanced PWM technology ensures smooth acceleration and efficient power utilization, contributing to reduced energy loss and optimized torque.
The controller's powerful operating system is designed to seamlessly integrate vehicle control, motor management, and any user-side programming, providing a responsive and consistent driving experience.
6. Vedligeholdelse
Regular inspection and proper maintenance can extend the lifespan and ensure the reliable operation of your speed controller.
- Visuel inspektion: Periodically check the controller for any signs of physical damage, corrosion, or loose connections.
- Renhed: Keep the controller free from dirt, dust, and moisture. Use a dry, soft cloth for cleaning. Do not use harsh chemicals or solvents.
- Ventilation: Ensure that the area around the controller allows for adequate airflow to prevent overheating.
- Ledningsføring: Verify that all wiring connections remain secure and free from fraying or damage.
7. Fejlfinding
If you encounter issues with your golf cart's speed control after installing the maXpeedingrods controller, consider the following general troubleshooting steps:
- Ingen strøm: Check battery connections and ensure the main power switch is on. Verify battery voltage.
- No Movement/Erratic Movement: Inspect all wiring connections to the controller and motor. Ensure the throttle mechanism is functioning correctly.
- Overophedning: Check for proper ventilation around the controller. Ensure the motor is not overloaded.
- Diagnostiske værktøjer: If available, use a compatible diagnostic tool to read error codes from the controller.
For complex issues or if the problem persists, it is highly recommended to consult a qualified golf cart technician or contact maXpeedingrods customer support.
8. Garanti og support
maXpeedingrods stands behind the quality of its products. This speed controller is covered by a 1 års garanti from the date of purchase, protecting against manufacturing defects in materials and workmanship.
For any technical assistance, installation queries, or warranty claims, maXpeedingrods provides unlimited technical support and customer service. Please refer to the contact information provided with your product packaging or visit the official maXpeedingrods webwebsted for supportdetaljer.
