NXGKET FRS 2-Way Radio Walkie Talkies User Manual

Indledning

This manual provides detailed instructions for the operation and maintenance of your NXGKET FRS 2-Way Radio Walkie Talkies. Please read this manual thoroughly before using the product to ensure proper function and safety. These walkie talkies are designed for reliable communication in various environments, featuring long-range transmission, durable batteries, and NOAA weather alerts.

Billedbeskrivelse: This image displays the four NXGKET walkie talkie units included in the pack, showcasing their distinct color options: purple, blue, orange, and yellow.

Produkt overview

Pakkens indhold

• 4 x NXGKET FRS 2-Way Radio Walkie Talkies
• 4 x ørestykker
• 2 x 2-i-1 USB-C opladningskabler

Nøglefunktioner

• Intelligent Control System: Includes auto squelch, auto memory, auto scan, auto power saving, and low battery alarm.
• iVOX Hands-Free Operation: Allows for voice-activated transmission without pressing buttons.
• Holdbart design: Drop-proof construction.
• Channels and Privacy Codes: 22 FRS channels with 122 privacy codes (2684 combinations).
• NOAA Emergency Weather Alert: Provides alerts for unpredictable weather conditions.
• Genopladeligt batteri: Built-in 1200mAh Li-ion battery with overcharge, overvoltage, og kortslutningsbeskyttelse.
• USB-C opladning: Convenient charging with included 2-in-1 USB-C cables.
• Langtrækkende transmission: Upgraded custom gain antenna and lossless transmission technology for clear communication.

Komponentidentifikation

Refer to the diagram below for identification of the walkie talkie components.

Billedbeskrivelse: A detailed diagram of the NXGKET walkie talkie, highlighting key components such as the antenna, LCD display, PTT button, Power button, Up/Down buttons, Menu/Lock button, Speaker/Mic, Charge Jack (USB-C), and Earphone Jack.

Opsætning

Opladning af batteriet

1. Locate the USB-C charging port on the walkie talkie.
2. Connect one end of the provided 2-in-1 USB-C charging cable to the walkie talkie's charging port.
3. Connect the other end of the USB-C charging cable to a compatible USB power source (e.g., wall adapter, power bank, computer USB port).
4. The charging indicator light on the walkie talkie will illuminate to show it is charging.
5. A full charge typically provides 3-4 days of use.
6. The walkie talkie automatically shuts down after 3-4 hours of non-use to conserve power. Restart it when needed.

Billedbeskrivelse: Two NXGKET walkie talkies (orange and yellow) connected to USB-C charging cables, illustrating the convenient charging method. The image also compares the built-in 1200mAh Li-ion battery to AAA batteries, highlighting its durability.

Tænd/sluk

• For at tænde skal du trykke på og holde nede Power-knap until the LCD screen illuminates.
• For at slukke, skal du trykke på og holde nede Power-knap until the LCD screen turns off.

Betjeningsvejledning

Selecting Channels and Privacy Codes

1. Tryk på MENU button once to enter channel selection mode. The channel number will flash on the LCD screen.
2. Brug "+" (Op) eller "-" (Down) buttons to select your desired channel (1-22).
3. Tryk på MENU button again to enter privacy code selection mode. The privacy code will flash.
4. Brug "+" (Op) eller "-" (Down) buttons to select your desired privacy code (1-122).
5. Tryk på MENU button a third time or wait a few seconds for the settings to be saved.
6. Vigtig: For successful communication, all walkie talkies must be set to the same channel and privacy code.

Transmission og modtagelse

• For at sende, tryk og hold nede PTT (Push-to-Talk) button and speak clearly into the microphone.
• Slip PTT button to stop transmitting and listen for a response.
• The walkie talkie will automatically receive transmissions when not transmitting.

iVOX (Hands-Free Operation)

• The iVOX feature allows for voice-activated transmission without needing to press the PTT button.
• To activate/deactivate iVOX, consult the full user manual for specific button sequences, as this feature often has adjustable sensitivity levels.

NOAA Nødvejr Alert

• To enter the NOAA channel mode, long press the "+" (Up) key. The radio will automatically jump to one of the 11 NOAA channels.
• Tryk på MENU key to lock the selected NOAA channel.
• Brug "+" (Op) eller "-" (Down) keys to adjust to a different NOAA channel if desired.
• To exit the NOAA channel mode, long press the "+" (Up) key again.

Billedbeskrivelse: A family hiking through a forest, each carrying an NXGKET walkie talkie. Icons at the bottom represent various weather phenomena like tornadoes, snowstorms, rainstorms, fires, tsunamis, and earthquakes, indicating the NOAA emergency weather alert capability for outdoor safety.

Opretholdelse

Batteripleje

• To maximize battery life, fully charge the walkie talkies before first use.
• Undgå at aflade batteriet helt regelmæssigt.
• Store the walkie talkies in a cool, dry place when not in use for extended periods.
• The built-in Li-ion battery includes protection against overcharge, overvoltage, og kortslutninger.

Rensning

• Wipe the exterior of the walkie talkie with a soft, damp klæde.
• Brug ikke hårde kemikalier eller slibende rengøringsmidler.
• Ensure the charging port cover is securely closed to prevent dust and moisture ingress.

Fejlfinding

• Ingen strøm: Ensure the battery is charged. Connect the walkie talkie to the charger and verify the charging indicator.
• Kan ikke kommunikere: Verify that all walkie talkies are on the same channel and privacy code. Check that the PTT button is being pressed fully during transmission.
• Dårlig lydkvalitet/statisk: Move to an open area with fewer obstructions. Ensure you are within the effective communication range. Check for any interference from other electronic devices.
• Begrænset rækkevidde: Range is affected by terrain, weather, and obstructions (buildings, dense foliage). Optimal range is achieved in open areas.
• Batteriet aflades hurtigt: Ensure the walkie talkie is fully charged. Reduce usage of power-intensive features like continuous transmission.

Specifikationer

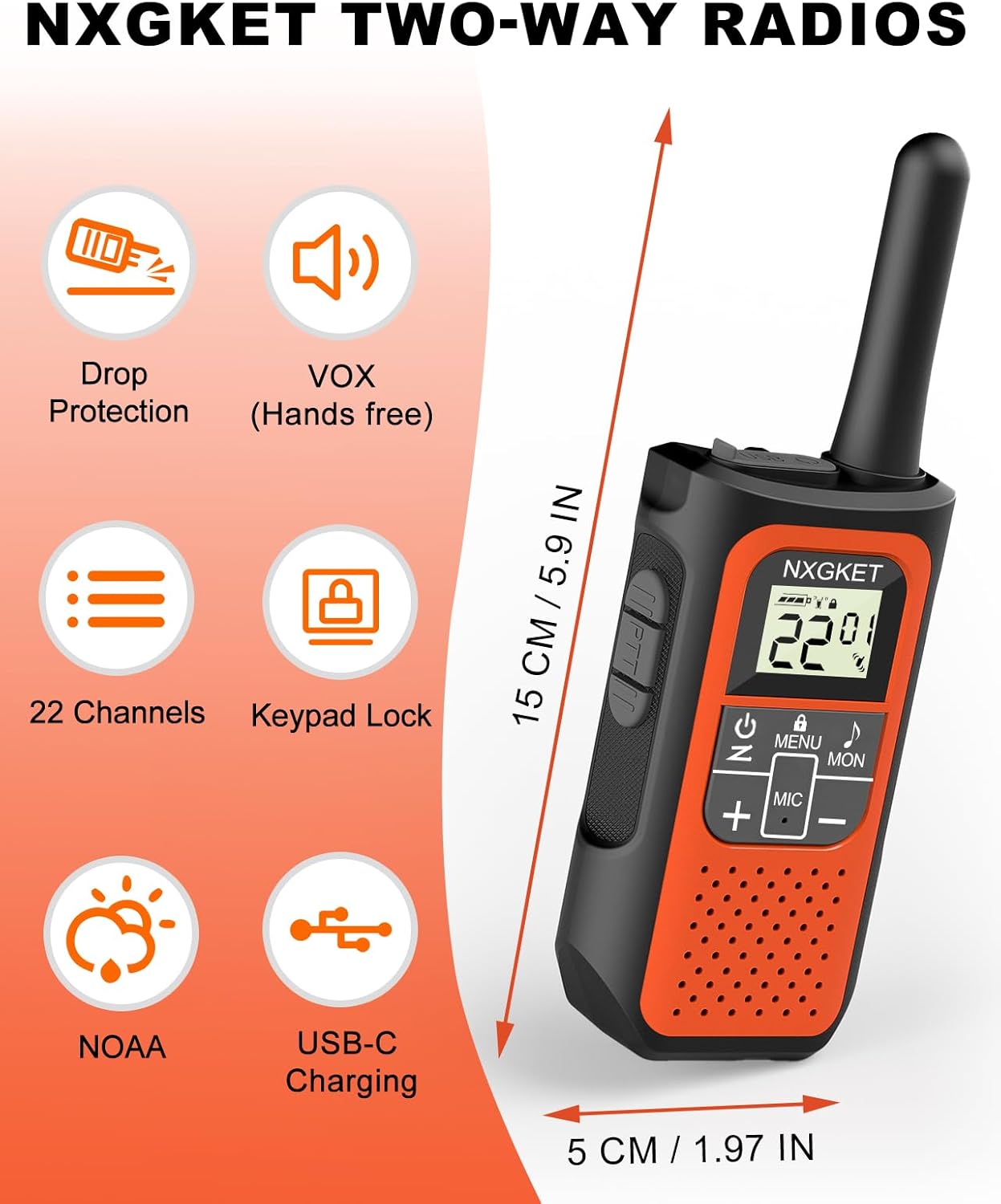

Billedbeskrivelse: An orange NXGKET two-way radio displayed alongside icons representing its features: Drop Protection, VOX (Hands-free), 22 Channels, Keypad Lock, NOAA, and USB-C Charging. Dimensions of the radio (15 cm / 5.9 inches height, 5 cm / 1.97 inches width) are also indicated.

Billedbeskrivelse: A graphic titled "Long Range Walkie-Talkies" showing a person on a mountain path using a walkie talkie, with signal waves extending. Text indicates communication ranges: up to 1.5 miles in city and town, up to 3 miles in open water area, and up to 5 miles in mountain or valley.

Garanti og support

Garantioplysninger

Dette produkt leveres med 2 års producentgaranti. Gem venligst din købsbevis til garantikrav.

Kundesupport

For technical assistance, troubleshooting, or warranty inquiries, please contact NXGKET customer support. Refer to the product packaging or the official NXGKET webhjemmeside for aktuelle kontaktoplysninger.
