Indledning
Thank you for choosing the Zipro Wave Elliptical Trainer. This manual provides essential information for the safe and effective assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before using the elliptical trainer and keep it for future reference.
Figure 1: Zipro Wave Elliptical Trainer Overview
Sikkerhedsoplysninger
Before beginning any exercise program, consult with your physician. It is crucial to follow these safety guidelines to prevent injury and ensure proper operation of the equipment.
- Always place the elliptical trainer on a flat, stable surface. Ensure there is sufficient clear space around the equipment for safe operation.
- The maximum user weight for this elliptical trainer is 120 kg (264 lbs). Do not exceed this limit.
- Hold børn og kæledyr væk fra udstyret under drift.
- Wear appropriate athletic clothing and footwear when using the elliptical trainer. Avoid loose clothing that could get caught in moving parts.
- Inspect the equipment before each use for any loose parts, damage, or wear. Do not use if any components are damaged.
- Do not attempt to modify the equipment. Use only original replacement parts if needed.
- Hvis du oplever svimmelhed, kvalme, brystsmerter eller andre unormale symptomer, skal du straks stoppe din træning og kontakte en læge.
Komponentliste
Please ensure all components listed below are present in your package before beginning assembly. If any parts are missing or damaged, contact customer support.
- Hovedramme
- Forreste base
- Bageste base
- Handlebars (fixed and moving)
- Tilslutningskabel
- Allen screws (M8 x 15)
- Resistance adjustment knob and cover
- Flat washers (d5, d8)
- Screws (M5 x 40, M10 x 57)
- Pulsmålekabel
- Arc support discs
- Nylon nuts (M8, M10)
- Styr skum
- Computer/Console
- Styr dæksel
- Phillips skruer
- Plastik ærme
- Håndklædeholder
- Brugsanvisning
- Pedaler
- Håndsving
- Front bunddæksel
- Rear base balancing plate
- Modstandsjusteringskabel
- Computer kabel
Figur 2: Eksample of Elliptical Trainer Components
Opsætning og montering
Assembly typically involves attaching the front and rear bases to the main frame, installing the handlebars, pedals, and connecting the console. Follow the detailed instructions provided in the included instruction manual for step-by-step assembly. Ensure all bolts and nuts are securely tightened before use.
Figure 3: The elliptical trainer features transport wheels for easy relocation after assembly.
Figure 4: Detail of the integrated transport wheels for convenient movement.
Betjeningsvejledning
Konsol funktioner
The integrated console displays key workout metrics such as time, distance, speed, calories burned, and heart rate. Use the buttons on the console to navigate through modes, adjust settings, and select programs.

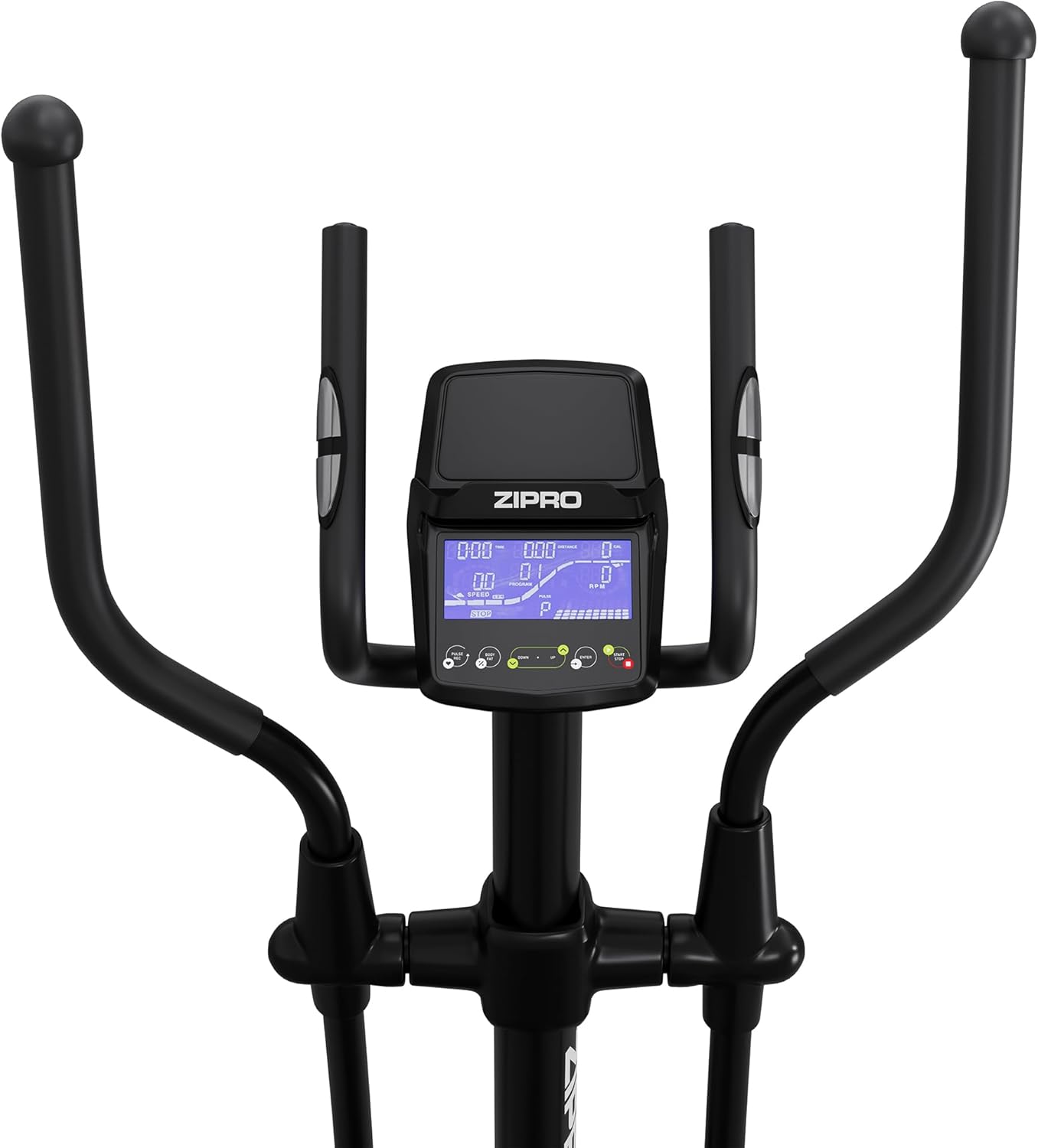

Figur 5: Nærbillede view of the elliptical trainer's digital console.
Modstandsjustering
The Zipro Wave Elliptical Trainer offers 32 levels of electromagnetic resistance. Adjust the resistance level via the console to increase or decrease the intensity of your workout. Higher levels provide a more challenging exercise.
Forudindstillede programmer
The elliptical trainer includes 16 pre-set workout programs designed for various fitness goals, such as endurance, fat burning, and interval training. Refer to the console's user guide for details on each program and how to select them.
Pulsovervågning
Grip the pulse sensors on the fixed handlebars to monitor your heart rate during your workout. The console will display your current heart rate, allowing you to stay within your target heart rate zone. The HRC (Heart Rate Control) programs automatically adjust resistance based on your heart rate.
App Connectivity (Bluetooth)
Connect your smartphone or tablet to the elliptical trainer via Bluetooth to use compatible fitness apps like Kinomap and Zwift. These apps can provide interactive training experiences, virtual routes, and track your progress.
Figure 6: User interacting with the console and a tablet mounted on the elliptical trainer.
Figure 7: The console features a dedicated holder for tablets or smartphones.
Figure 8: Proper posture and movement during elliptical exercise.
Opretholdelse
Regular maintenance ensures the longevity and safe operation of your elliptical trainer.
- Rensning: Tør udstyret af med reklameamp en klud efter hver brug for at fjerne sved og støv. Undgå slibende rengøringsmidler eller opløsningsmidler.
- Smøring: Periodically check moving parts for friction. Apply a silicone-based lubricant to joints and pivot points as recommended in the detailed assembly manual.
- Inspektion: Regularly check all bolts, nuts, and connections to ensure they are tight. Tighten any loose fasteners. Inspect cables and wires for any signs of wear or damage.
- Opbevaring: Store the elliptical trainer in a dry, cool place away from direct sunlight and extreme temperatures.
Fejlfinding
Dette afsnit omhandler almindelige problemer, du kan støde på. Ved problemer, der ikke er nævnt her, bedes du kontakte kundesupport.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Console not turning on/displaying | Loose power connection; Dead batteries (if applicable) | Ensure power adapter is securely plugged in. Replace console batteries if battery-operated. |
| Usædvanlig støj under drift | Løse bolte; Mangel på smøring; Slidte dele | Check and tighten all assembly bolts. Apply lubricant to moving joints. Inspect for worn components and replace if necessary. |
| Modstanden ændrer sig ikke | Resistance cable disconnected or damaged; Console malfunction | Check the resistance adjustment cable connection. Ensure it is not pinched or damaged. If the problem persists, contact customer support. |
| Unøjagtig pulsmåling | Improper hand placement; Dry hands; Sensor malfunction | Ensure hands are firmly and fully gripping the pulse sensors. Lightly moisten hands if they are too dry. Clean sensors. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | Bølge |
| Modelnummer | 13112327 |
| Farve | Sort |
| Hovedmateriale | Aluminium, polyethylen, metal |
| Produktmål (L x B x H) | 117 x 67 x 163 cm (46.1 x 26.4 x 64.2 tommer) |
| Varens vægt | 41 kg (90.4 lbs) |
| Maksimal brugervægt | 120 kg (264 lbs) |
| Modstandsmekanisme | Magnetisk |
| Antal modstandsniveauer | 32 |
| Maksimal skridtlængde | 30 cm (11.8 tommer) |
Garanti og support
For warranty information, please refer to the warranty card included with your product or visit the official ZIPRO website. If you require technical assistance, have questions about assembly, operation, or need to order replacement parts, please contact ZIPRO customer support through their official channels. Keep your purchase receipt as proof of purchase for any warranty claims.
