TECPHILE iPad-tastaturcover til iPad Pro 12.9 tommer (6., 5., 4., 3. generation) brugermanual

Indledning

This manual provides detailed instructions for the TECPHILE iPad Keyboard Case, Model T5509D. It covers setup, operation, maintenance, and troubleshooting to ensure optimal use of your device. Please read this manual thoroughly before using the product.

Kompatibilitet

The TECPHILE iPad Keyboard Case (Model T5509D) is specifically designed for the following iPad Pro 12.9-inch models:

• iPad Pro 12.9-inch (6th Generation, 2022): Modellerne A2436, A2764, A2437, A2766
• iPad Pro 12.9-inch (5th Generation, 2021): Modellerne A2378, A2379, A2461, A2462
• iPad Pro 12.9-inch (4th Generation, 2020): Modellerne A2233, A2229, A2069, A2232
• iPad Pro 12.9-inch (3rd Generation, 2018): Modellerne A1876, A2014, A1895, A1983

This case is not compatible with any other iPad models.

Image: Compatibility chart for TECPHILE iPad Keyboard Case. Please verify your iPad model number on the back of your device to ensure compatibility.

Pakkens indhold

Når du åbner pakken, skal du sørge for at alle varer er til stede:

• TECPHILE iPad Keyboard Case (with integrated kickstand and pencil holder)
• Detachable Wireless Backlit Keyboard
• USB-C ladekabel
• Brugervejledning (dette dokument)

Billede: Overview of the TECPHILE iPad Keyboard Case components, including the case with an iPad and the detached wireless keyboard.

Opsætningsvejledning

1. Attaching Your iPad to the Case

1. Gently align your iPad Pro 12.9-inch with the case.
2. Insert the iPad into the protective shell, ensuring all corners are securely fitted. The case provides full protection and features honeycomb heat release design.
3. The case includes a dedicated pencil holder and supports wireless charging for your Apple Pencil.

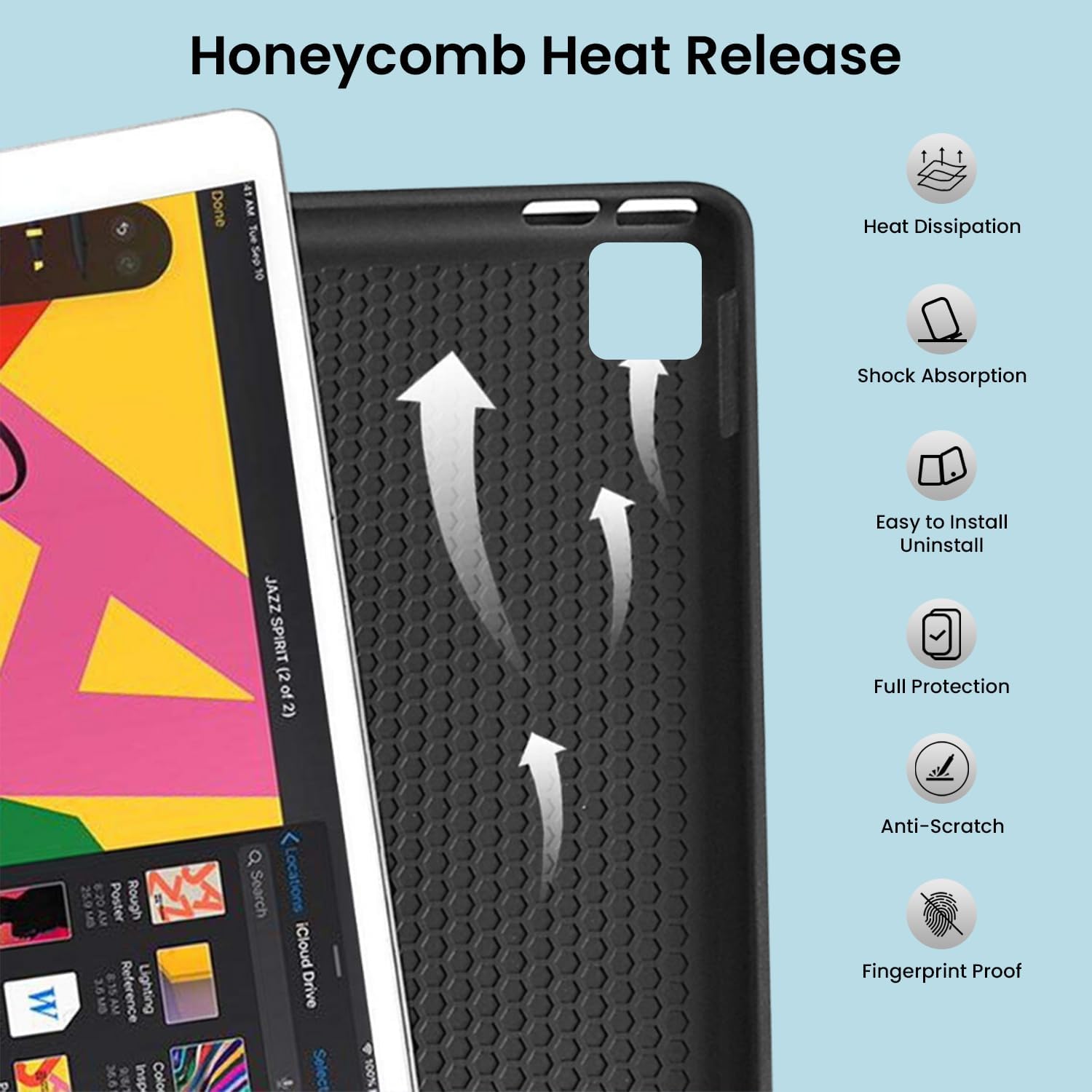

Image: Detail of the case's honeycomb structure for heat dissipation and protective features.

Image: Illustrates the wireless charging capability for the Apple Pencil and the integrated pencil holder.

2. Opladning af tastaturet

Before initial use, fully charge the keyboard. The keyboard has a 500mAh battery capacity.

1. Find USB-C-opladningsporten på siden af ​​tastaturet.
2. Connect the provided USB-C cable to the keyboard and a power source (e.g., USB wall adapter, computer USB port).
3. The charging indicator light will illuminate. Once fully charged, the light may change or turn off.

A full charge provides approximately 80 hours of use without backlight or 5 hours with backlight enabled.

Image: Keyboard charging port and battery performance details.

3. Tilslutning af tastaturet via Bluetooth

The keyboard connects wirelessly to your iPad via Bluetooth.

1. Sørg for, at tastaturet er opladet og tændt.
2. Tryk på på tastaturet Fn+Z keys simultaneously. The Bluetooth indicator light will start blinking, indicating it's in pairing mode.
3. På din iPad skal du gå til Indstillinger > Bluetooth.
4. Slå Bluetooth til. Din iPad vil søge efter tilgængelige enheder.
5. Locate and tap "Bluetooth Keyboard" (or similar name) in the list of devices to connect.
6. Once connected, the Bluetooth indicator light on the keyboard will stop blinking.

Image: Visual guide for Bluetooth pairing process.

Betjeningsvejledning

Tastatur funktioner

The detachable keyboard features a QWERTY layout with additional function keys for iPad control.

• Baggrundslys kontrol: Trykke Fn + 💡 (light bulb icon) to turn on/off the backlight and cycle through 7 different colors. Press Fn + ☀️ (sun icon) to adjust the 3 levels of brightness.
• Full Shortcut Row: Access common iPad functions directly from the top row of keys.
• Intelligent Voice Input Function: Utilize the dedicated key for voice input.

Billede: Detaljeret view of the keyboard's backlit keys and function controls.

Smart Multi-Gesture Trackpad

The integrated large trackpad supports multi-touch gestures for enhanced navigation.

• Grundlæggende navigation: Move the cursor by sliding your finger across the trackpad.
• Click Functions: Supports right and left click functions.
• Multi-Finger Gestures: Utilize native iPad multi-finger gestures for scrolling, swiping, and other actions. Refer to your iPad's settings for a full list of supported gestures.
• Turn On/Off Trackpad: Trykke Fn + 🖱️ (trackpad icon) to enable or disable the trackpad.

Adjustable Kickstand and Usage Modes

The case features an adjustable kickstand that allows for multiple viewing angles and usage modes.

• Typetilstand: Position the iPad upright with the keyboard attached for a laptop-like experience.
• View Mode: Adjust the kickstand to a comfortable angle for watching videos or presentations without the keyboard.
• Læsetilstand: Fold the keyboard behind the iPad for a tablet-like reading experience.
• Skitsetilstand: Lower the angle for drawing or writing with the Apple Pencil.

The kickstand offers a seamless range of angles, smoothly reclining from 30° to 160° while maintaining stability.

Image: Various usage modes enabled by the adjustable kickstand and detachable keyboard.

Auto Wake/Sleep Function

The keyboard case includes an auto wake/sleep function to conserve battery life. Closing the case will put your iPad to sleep, and opening it will wake it up.

Opretholdelse

• Rensning: Brug en blød, damp cloth to wipe the exterior of the case and keyboard. Avoid harsh chemicals or abrasive materials.
• Opbevaring: When not in use for extended periods, store the keyboard case in a cool, dry place. Ensure the keyboard is turned off to preserve battery life.
• Batteripleje: To prolong battery life, avoid fully discharging the keyboard frequently. Charge it regularly.

Fejlfinding

Tastaturet forbinder ikke

• Tjek strøm: Sørg for, at tastaturet er tændt, og at batteriniveauet er tilstrækkeligt.
• Genparr Bluetooth:
  1. På din iPad skal du gå til Indstillinger > Bluetooth.
  2. Forget or unpair the "Bluetooth Keyboard" if it appears in "My Devices".
  3. Genstart din iPad.
  4. Put the keyboard into pairing mode (press Fn+Z).
  5. Søg efter and connect to the keyboard again on your iPad.
• Interferens: Flyt dig væk fra andre trådløse enheder, der kan forårsage interferens.

Taster reagerer ikke

• Batteriniveau: Oplad tastaturet helt.
• Bluetooth-forbindelse: Sørg for, at tastaturet er korrekt forbundet via Bluetooth.
• Genstart: Sluk tastaturet og tænd det igen.

Trackpad Not Working

• Enable Trackpad: Ensure the trackpad is enabled by pressing Fn + 🖱️ (trackpad icon).
• iPad Settings: Check iPad accessibility settings for pointer control.
• Clean Trackpad: Ensure the trackpad surface is clean and free of debris.

Specifikationer

Garanti og support

For warranty information or technical support, please refer to the documentation included with your purchase or contact TECPHILE customer service through the retailer where the product was purchased. Please have your model number (T5509D) and purchase details ready when contacting support.
