1. Introduktion
The GuliKit KK3 PRO Controller is a high-performance gaming controller designed for multi-platform compatibility. It features advanced Hall Effect technology for joysticks and triggers, ensuring precision and durability without drift. With multiple vibration modes and customizable options, the KK3 PRO enhances your gaming experience across various devices.
2. Nøglefunktioner
- Patented Maglev Vibration Motor: Offers distinct Rotor, HD Rumble, and Maglev Super Haptic vibration modes for immersive feedback.
- Hall-effekt joysticks og triggere: Provides high precision and eliminates stick drift, ensuring long-term reliability.
- High Precision Joystick: Features 2200 levels of precision for delicate micro-control.
- 1000Hz Wired & Wireless: Achieves super-fast response times with both wired and 2.4G wireless connections via the Hyperlink Adapter.
- 2 Metal Rear Paddles: Detachable, swappable, and remappable for personalized control.
- Multi-platform kompatibilitet: Supports Windows, Switch, Android, iOS, macOS, and Steam Deck.
- Seksakset gyroskop: Enables immersive motion control for supported games.
- Adjustable D-Pad: Supports switching between 4-direction and 8-direction modes to prevent ghosting in FPS games.
- Anti-Friction Metal Stick Ring: Ensures smoother joystick control.
- Adjustable Joystick Sensitivity: Three modes available to meet different gaming needs.
- Auto-Pilot Gaming (APG): Record and playback up to 10 seconds of operations.
3. Opsætning
3.1. Pakkens indhold
- GuliKit KK3 PRO Controller
- USB-C ladekabel
- GuliKit Hyperlink Adapter (2.4G Dongle)
- Extra Button Caps (Nintendo Switch layout)
- Protective Case (for controller)
3.2. Første opladning
Before first use, fully charge the controller using the provided USB-C cable. Connect the USB-C end to the controller and the USB-A end to a power source (e.g., computer USB port, wall adapter). The indicator light will show charging status.
3.3. Parring og tilslutning
The KK3 PRO supports multiple connection methods:
- Kablet forbindelse: Connect the controller directly to your device (PC, Switch dock) using the USB-C cable.
- 2.4G Wireless (Hyperlink Adapter):
- Plug the GuliKit Hyperlink Adapter into a USB port on your PC or other compatible device.
- Turn on the controller. It should automatically connect to the adapter.
- Bluetooth-forbindelse:
- Tænd for controlleren.
- Press and hold the pairing button (refer to the controller diagram in the manual for exact location) until the indicator light flashes rapidly.
- On your device (Switch, Android, iOS, macOS), go to Bluetooth settings and select 'GuliKit Controller' to pair.
Image: GuliKit KK3 PRO Controller with the Hyperlink Adapter for 2.4G wireless connectivity.
4. Betjeningsvejledning
4.1. Knaplayout og funktioner
The GuliKit KK3 PRO features a standard controller layout with additional customizable elements:
- Ansigtsknapper (A, B, X, Y): Standard handlingsknapper.
- D-Pad: Directional input, adjustable between 4-way and 8-way modes.
- Joysticks: Left and Right Hall Effect analog joysticks with anti-friction metal rings.
- Skulderknapper (V, H): Digital indgang.
- Triggers (ZL, ZR): Hall Effect analog triggers.
- Hjemknappen: Vender tilbage til systemets startskærm.
- Skærmbillede-knap: Tager skærmbilleder.
- Indstillingsknap: Accesses controller settings and customization options.
- Rear Paddles (G1, G2, G3, G4): Two detachable and remappable metal paddles on the back.
Billede: Forside view of the GuliKit KK3 PRO Controller, showing joysticks, D-pad, and face buttons.
4.2. Joystick and Trigger Customization
- Justerbar følsomhed: The controller offers three levels of joystick sensitivity. Refer to the in-box manual for specific button combinations to cycle through these settings.
- D-Pad Mode Switch: The D-Pad can be switched between 4-direction and 8-direction modes. This is useful for different game genres, such as fighting games or FPS.
4.3. Vibration Settings
The KK3 PRO features a patented Maglev Vibration Motor with three distinct modes and two vibration strengths:
- Rotor Vibration Mode: Standard vibration.
- HD Rumble Mode: More nuanced and precise vibration feedback.
- Maglev Super Haptic Mode: Advanced haptic feedback for enhanced immersion.
You can adjust the vibration strength to your preference. Consult the included manual for instructions on how to switch between modes and strengths.

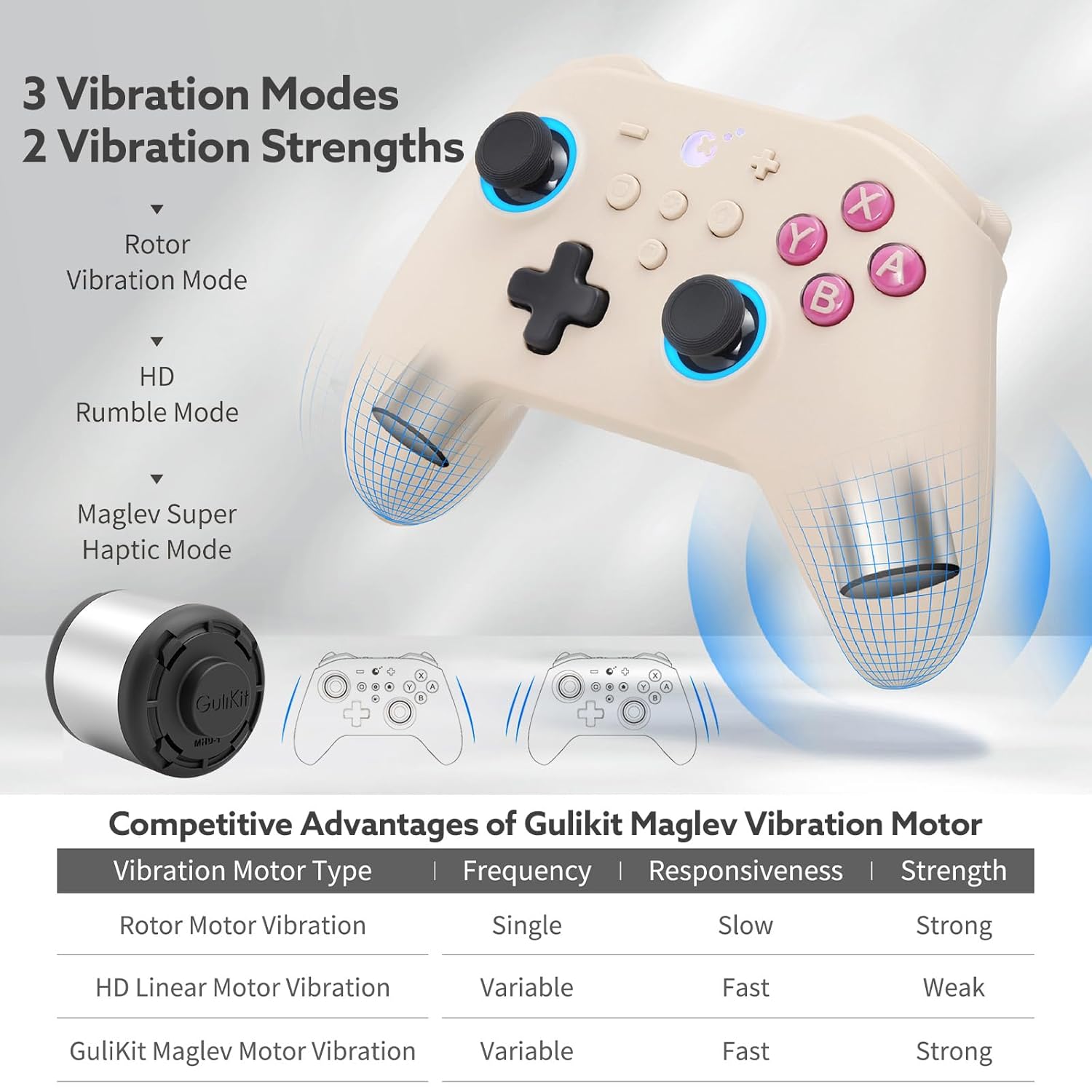

Image: Illustration of the GuliKit KK3 PRO's three vibration modes: Rotor, HD Rumble, and Maglev Super Haptic.
4.4. Rear Paddle Customization
The two metal rear paddles (G1, G2) are detachable and can be remapped to other button functions. This allows for quick access to frequently used commands without moving your thumbs from the joysticks.
4.5. Auto-Pilot Gaming (APG)
The APG feature allows you to record a sequence of up to 10 seconds of button presses and joystick movements. This recorded sequence can then be played back with a single button press, useful for repetitive tasks or complex combos in games.
Image: Visual representation of the Auto-Pilot Gaming (APG) feature, showing recording and playback functionality.
5. Connectivity and Compatibility
The GuliKit KK3 PRO Controller is designed for broad compatibility:
- Nintendo Switch: Fully compatible with Switch 1.0.0 or above, including gyroscope functionality.
- PC: Supports Windows 7 or above, and SteamOS. Achieves 1000Hz polling rate with the Hyperlink Adapter for optimal performance.
- Mobile enheder: Compatible with Android 4.0 or above and iOS 13 or above.
- MacOS: Supports macOS 10.10 or above.
Billede: Overview of GuliKit KK3 Pro's multi-platform compatibility, including Switch, SteamOS, Android, macOS, iOS, and Windows.
6. Vedligeholdelse
Proper maintenance ensures the longevity and optimal performance of your GuliKit KK3 PRO Controller:
- Rensning: Use a soft, dry cloth to wipe the controller. Avoid using harsh chemicals or abrasive materials.
- Opbevaring: Store the controller in a cool, dry place away from direct sunlight and extreme temperatures. The included protective case is ideal for storage and travel.
- Batteripleje: To prolong battery life, avoid completely draining the battery frequently. Charge the controller regularly, but avoid leaving it connected to a charger for extended periods after it's fully charged.
- Joystick & Trigger Care: While Hall Effect technology reduces wear, keep the joystick and trigger areas free from dust and debris.
7. Fejlfinding
If you encounter issues with your GuliKit KK3 PRO Controller, refer to the following common solutions:
- Controlleren forbinder ikke:
- Sørg for, at controlleren er opladet.
- Verify the correct connection mode (wired, 2.4G, Bluetooth) is selected on the controller and your device.
- For Bluetooth, try unpairing and re-pairing the controller.
- For 2.4G, ensure the Hyperlink Adapter is securely plugged in and recognized by your device.
- Input lag:
- For competitive gaming, use the 2.4G Hyperlink Adapter or a wired connection for the lowest latency.
- Ensure there are no obstructions or excessive distance between the controller and the wireless receiver.
- Joystick/Trigger Issues (e.g., unexpected movement):
- Although Hall Effect technology prevents drift, recalibration might be necessary in rare cases. Refer to the official GuliKit website or included manual for calibration steps.
- Ensure the joystick and trigger areas are clean.
- Knapper reagerer ikke:
- Check if the controller is properly connected and powered on.
- Sørg for, at der ikke sidder snavs fast under knapperne.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Model | KK3 PRO |
| Mærke | GuliKit |
| Forbindelse | Wired (USB-C), Bluetooth, 2.4G Wireless (Hyperlink Adapter) |
| Understøttede platforme | Windows, Switch, Android, iOS, macOS, Steam Deck |
| Joystick Technology | Hall Effect (2200 levels precision) |
| Trigger Technology | Hall Effect Analog Triggers |
| Vibration | Patented Maglev Vibration Motor (Rotor, HD Rumble, Maglev Super Haptic) |
| Afstemningsfrekvens | 1000Hz (Wired & 2.4G Wireless) |
| Rear Paddles | 2 Metal, Detachable, Swappable, Remappable |
| Gyroskop | Six-Axis (for Switch) |
| Auto-Pilot Gaming (APG) | Record up to 10 seconds |
| Dimensioner | 6.18 x 5.98 x 2.83 tommer |
| Varens vægt | 14.9 ounce |
9. Officielle produktvideoer
9.1. GuliKit KK3 MAX Controller Overview (Relevant Features)
Video: En overview of the GuliKit KK3 MAX Controller, showcasing features such as Hall Effect joysticks and triggers, SmartTrigger technology, detachable back buttons, Gpower CPU, and magnetic levitation vibration. While specific to the MAX model, many core technologies and design principles apply to the KK3 PRO.
9.2. GuliKit KK3 Overview
Video: En detaljeret oversigtview of the GuliKit KK3 controller, highlighting its design, button feel, connectivity options, and included accessories. This video provides a general unboxing and first impressions of the KK3 series.
10. Garanti og support
GuliKit products are typically covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty details, duration, and terms, please refer to the warranty card included with your product or visit the official GuliKit website. For technical support, troubleshooting assistance, or service inquiries, please contact GuliKit customer support through their official channels.
Extended protection plans may be available for purchase separately from retailers, offering additional coverage beyond the standard manufacturer's warranty.
