1. Produktet er slutview
The VICTOR 04S is a versatile multi-function calibrator designed for precise measurement and generation of voltage, current, and temperature signals. It features a large LCD display with backlight, ensuring clear readability in various conditions. This device is engineered for high accuracy (0.05% basic accuracy) and ease of use, making it suitable for a wide range of industrial and laboratory applications.
Nøglefunktioner omfatter:
- Voltage and Current Signal Generation
- High Definition Large Screen Display with Backlight
- Basic Accuracy of 0.05%
- Flashlight Lighting Function
- Automatic Shut-down for Power Saving
- Clear (ZERO) Function
- Waveform Output Capability
Figur 1: Forside view of the VICTOR 04S Multi-function Calibrator, showing the large LCD display, control buttons, and input/output terminals.
2. Sikkerhedsoplysninger
Please read all safety warnings and operating instructions before using this instrument. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Generel sikkerhed: Always operate the calibrator within its specified limits. Do not use the device if it appears damaged or is not operating correctly.
- Elektrisk sikkerhed: Before opening the battery compartment or replacing fuses, ensure the device is turned off and all test leads are disconnected from any circuits. Avoid contact with live circuits.
- Batterisikkerhed: Use only the specified battery type (3 x 1.5V AA batteries). Do not mix old and new batteries, or different types of batteries. Dispose of batteries properly.
- Miljø: Do not use the calibrator in explosive atmospheres, near flammable gases, or in wet conditions.
3. Pakkens indhold
Carefully unpack the calibrator and check for any damage. If any item is missing or damaged, contact your supplier immediately.
- VICTOR 04S Multi-function Calibrator
- Industrial Test Leads (Red and Black)
- Alligator klip
- Latch Key
- Fuses (Spare)
- Brugervejledning (dette dokument)
- Produktkvalifikationscertifikat
Figur 2: Overview of the packaging accessories included with the VICTOR 04S.
4. Enhedslayout
Familiarize yourself with the various parts of the VICTOR 04S calibrator for efficient operation.

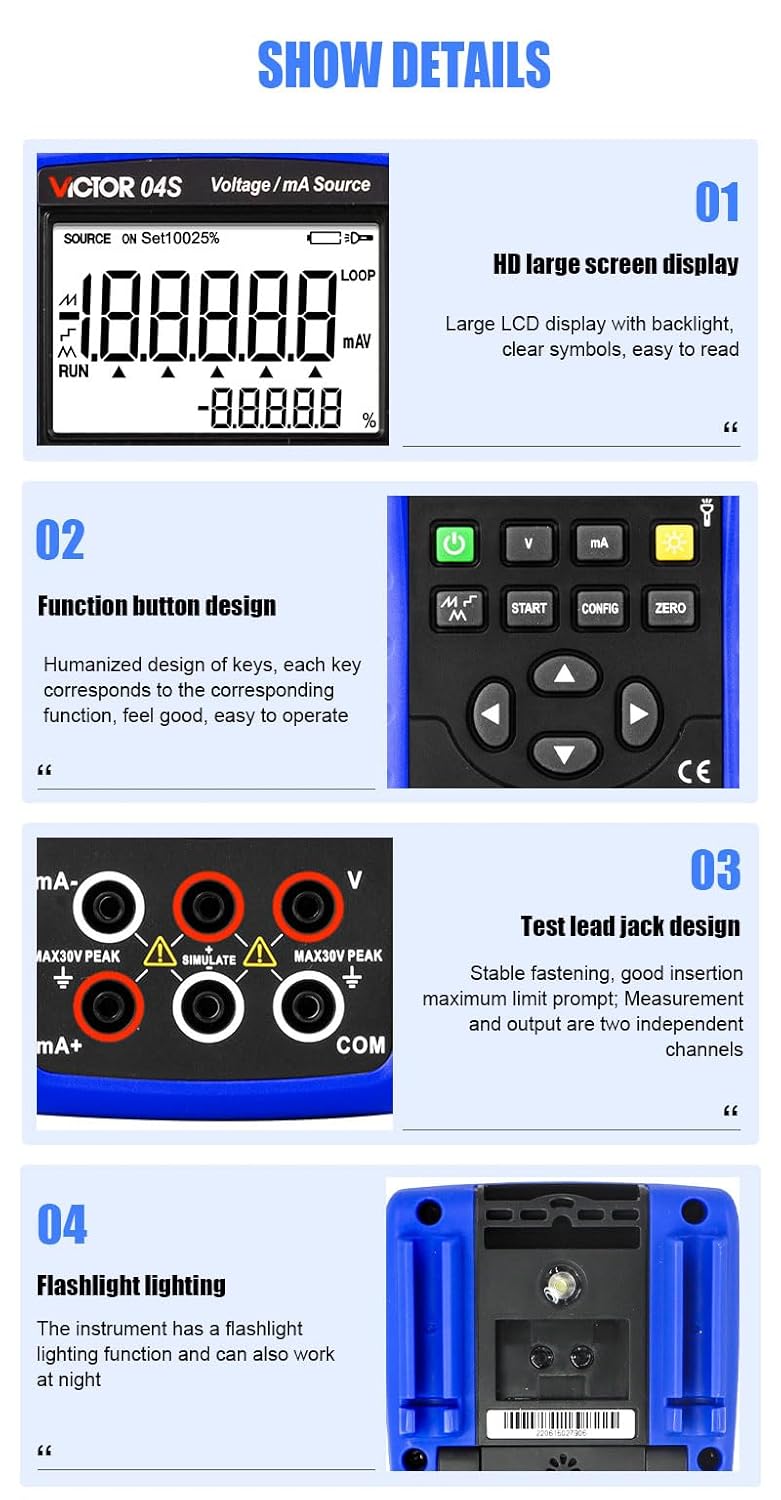

Figure 3: Detailed features of the VICTOR 04S calibrator.
- HD storskærmsvisning: Large LCD display with backlight for clear readings.
- Function Button Design: Ergonomically designed keys for easy operation and corresponding functions.
- Test Lead Jack Design: Stable fastening for test leads, with maximum limit prompts and independent channels for measurement and output.
- Lommelygtebelysning: Integrated flashlight for working in low-light conditions.
- Batterirum: Houses three 1.5V AA batteries for power.
Figur 4: Side view illustrating the flashlight, battery compartment, and integrated bracket.
5. Opsætning
5.1 Batteriinstallation
The VICTOR 04S requires three 1.5V AA batteries for operation. Ensure the device is turned off before installing or replacing batteries.
- Locate the battery compartment on the back of the calibrator.
- Use a suitable tool (e.g., a small screwdriver or the provided latch key) to open the battery compartment cover.
- Insert three 1.5V AA batteries, observing the correct polarity (+/-) as indicated inside the compartment.
- Luk dækslet til batterirummet forsvarligt.
Figure 5: Back of the calibrator with the battery compartment. Serial number: 220615027906.
5.2 Tilslutning af testledninger
Connect the industrial test leads to the appropriate input/output jacks on the calibrator based on your measurement or source requirements. Ensure a stable and secure connection.
- For bdtage measurements/sourcing, use the 'V' and 'COM' terminals.
- For current (mA) measurements/sourcing, use the 'mA+' and 'mA-' terminals.
- Overhold den maksimale voltage/current limits indicated near the jacks.
6. Betjeningsvejledning
The VICTOR 04S offers various modes for calibration and signal generation. Refer to the on-screen indicators and button labels for specific functions.
6.1 Tænd/sluk
- Tryk på Magt knap (
) for at tænde eller slukke enheden.
- The device features an automatic shut-down function to conserve battery life after a period of inactivity.
6.2 Valg af tilstand
Use the dedicated function buttons to select the desired operating mode:
- V: Voltage measurement/source mode.
- mA: Current (mA) measurement/source mode.
- Temperatur: For temperature calibration (if applicable to the specific model variant).
- Bølgeform: For waveform output.
6.3 Adjusting Output/Input Values
- Brug retningspilsknapperne (Op, Ned, Venstre, Højre) to navigate menus and adjust values.
- De STARTE button initiates a function or measurement.
- De KONFIG button allows access to configuration settings.
- De NUL button performs a clear or zero function for current readings.
6.4 Baggrundsbelysning og lommelygte
- Tryk på Lyspære knap (
) for at slå displayets baggrundsbelysning til/fra.
- The flashlight function can be activated for illumination in dark environments.
7. Vedligeholdelse
7.1 Rengøring
For at rengøre kalibratoren skal du tørre huset af med enamp cloth and a mild detergent. Do not use abrasives or solvents. Ensure the device is off and disconnected from all circuits before cleaning.
7.2 Udskiftning af batteri
When the low battery indicator appears on the display, replace all three 1.5V AA batteries as described in Section 5.1. Remove batteries if the device will not be used for an extended period.
7.3 Udskiftning af sikringer
If the calibrator fails to function correctly, a fuse may need replacement. Refer to the safety warnings before attempting to replace fuses. Use only fuses of the specified type and rating (spare fuses are included in the package).
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | Døde eller forkert installerede batterier | Udskift batterierne, og sørg for korrekt polaritet. |
| Unøjagtige aflæsninger | Poor test lead connection, incorrect mode, or environmental interference | Check lead connections, verify selected mode, move away from strong electromagnetic fields. |
| Intet udgangssignal | Incorrect settings, blown fuse, or open circuit | Check output settings, replace fuse if necessary, ensure circuit is closed. |
| Displayet er svagt eller tomt | Low battery, backlight off, or display issue | Replace batteries, press backlight button, contact support if issue persists. |
9. Specifikationer
| Parameter | Værdi |
|---|---|
| Modelnummer | E-VICTOR 04S |
| Grundlæggende nøjagtighed | 0.05 % |
| Strømforsyning | 3 x 1.5V AA batterier |
| Vise | Stor LCD med baggrundsbelysning |
| Produktdimensioner | 20 x 15 x 18 cm |
| Produktets vægt | 1 kg |
| Fabrikant | Xi'an Beicheng Electronics Co.Ltd (VICTOR og Ruoshui) |
10. Garanti og support
The VICTOR 04S Multi-function Calibrator is manufactured to high-quality standards. For warranty information, please refer to the product qualification certificate included in your package or contact your point of purchase.
For technical support or service inquiries, please contact the manufacturer or your local distributor. Keep your purchase receipt and product serial number (e.g., 220615027906) handy when seeking support.
