1. Introduktion
The KADAMS Pomodoro Productivity Interval Timer (Model K6219) is a versatile time management tool designed to enhance focus and efficiency across various activities. It features three distinct modes: Pomodoro, Countdown, and Count-Up, making it suitable for study sessions, gym workouts, cooking, and more. This manual provides comprehensive instructions for setting up, operating, and maintaining your timer.
2. Produktet er slutview
2.1 Komponenter
- KADAMS Pomodoro Productivity Interval Timer Unit
- Instruktionsmanual
2.2 Nøglefunktioner
- 3 driftstilstande: Easily switch between Pomodoro, Countdown, and Count-Up modes.
- Customizable Pomodoro: Adjust work and rest periods to fit your specific needs.
- Progress Visualization: A circular display shows total countdown time, and a progress bar indicates time remaining in the current work or rest period.
- Game Controller Design: Intuitive analog sticks for setting rounds, work time, and rest time.
- Multi-usage Compatibility: Ideal for exam preparation, HIIT, CrossFit, Cardio, Weightlifting, Strength Training, Tabata, and more.
- 2 Monteringsmuligheder: Features a versatile flip stand for desk use and magnetic pads for attachment to metallic surfaces.

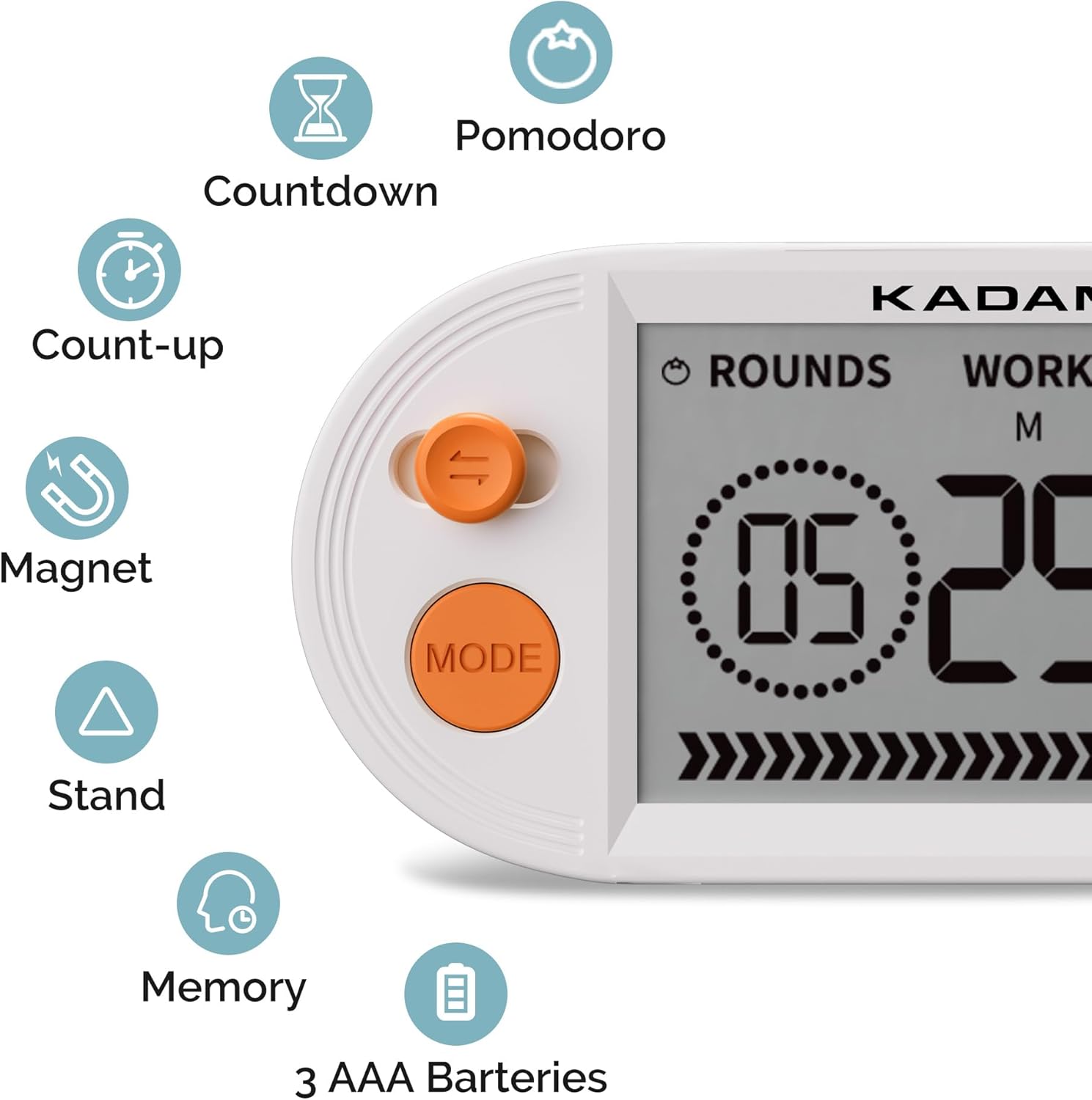

Figur 1: Overview of KADAMS Timer features including its three modes, magnetic back, and flip stand.
Figure 2: The timer's versatile design allows for magnetic mounting or use with its integrated flip stand.
3. Opsætning
3.1 Batteriinstallation
The KADAMS timer requires 3 AAA batteries (not included). Follow these steps to install them:
- Find batterirummet på bagsiden af timeren.
- Open the battery cover by sliding it off or gently prying it open.
- Insert 3 AAA batteries, ensuring correct polarity (+ and - ends match the indicators).
- Sæt batteridækslet forsvarligt på plads.
Figure 3: Open the flip stand to access the battery compartment.
Figure 4: Slide the battery cover downwards to open.
Figure 5: Insert three AAA batteries, observing correct polarity.
4. Betjeningsvejledning
4.1 Tænd/sluk
The timer automatically powers on once batteries are installed. To conserve battery life, the display will dim after a period of inactivity. To fully power off, remove the batteries.
4.2 Valg af tilstand
Tryk på MODE button on the left side of the timer to cycle through the available modes: Pomodoro, Countdown, and Count-Up.
4.3 Pomodoro Mode
This mode allows you to set work and rest intervals for focused productivity. The display shows 'ROUNDS', 'WORK', and 'REST'.
- Trykke MODE until 'ROUNDS' is displayed. Use the left analog stick to adjust the number of Pomodoro rounds.
- Tryk på OK button to confirm and move to 'WORK' time setting. Use the right analog stick to set the work duration (minutes and seconds).
- Trykke OK again to confirm and move to 'REST' time setting. Use the right analog stick to set the rest duration.
- Trykke OK one last time to confirm all settings. The timer is now ready.
- Press the right analog stick (Play/Pause) to start the Pomodoro sequence. The timer will count down the work period, then the rest period, for the set number of rounds.
Figure 6: Setting the number of rounds in Pomodoro mode.
Figure 7: Setting the work duration for each Pomodoro round.
Figure 8: Setting the rest duration between Pomodoro work periods.
4.4 Nedtællingstilstand
To use the Countdown mode:
- Trykke MODE until 'COUNTDOWN' is displayed.
- Use the analog sticks to set your desired countdown time (minutes and seconds).
- Press the right analog stick (Play/Pause) to start the countdown.
4.5 Count-Up Mode
To use the Count-Up mode:
- Trykke MODE until 'COUNT-UP' is displayed.
- Press the right analog stick (Play/Pause) to start counting up from zero.
4.6 Justering af lydstyrke og lysstyrke
The timer features adjustable volume and screen brightness. Refer to the included quick start guide for specific button combinations to modify these settings.
Video 1: Demonstrates the KADAMS timer's three modes (Pomodoro, countdown, count-up) and its suitability for HIIT and study focus.
5. Vedligeholdelse
5.1 Rengøring
To clean your KADAMS timer, gently wipe the surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these may damage the display or casing.
5.2 Opbevaring
When not in use for extended periods, store the timer in a cool, dry place. Remove batteries if storing for several months to prevent leakage.
6. Fejlfinding
6.1 Almindelige problemer og løsninger
- Timer not powering on: Ensure batteries are correctly installed and are not depleted. Replace with fresh AAA batteries if necessary.
- Skærmen er svag eller ulæselig: Check battery level. If batteries are low, replace them. Adjust screen brightness settings if applicable.
- Alarmen er for stille eller lyder ikke: Verify that the volume setting is not muted or set too low. Adjust the volume as needed.
- Knapperne reagerer ikke: Ensure the timer is not in a locked mode (if applicable, refer to quick start guide). Remove and reinsert batteries to perform a soft reset.
7. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | KADAMS |
| Modelnummer | K6219 |
| Farve | Orange |
| Materiale | Acrylonitrilbutadienstyren, LCD |
| Produktdimensioner | 6.1" D x 1.1" B x 2.7" H |
| Varens vægt | 6.4 ounce (0.18 kilo) |
| Antal indstillinger | 3 (Pomodoro, Countdown, Count-Up) |
| Skærmstørrelse | 5.7 tommer |
| Batterier påkrævet | Yes (3 AAA batteries) |
| Inkluderede komponenter | Timer enhed |
8. Garanti og support
8.1 Garantioplysninger
This KADAMS product comes with a 1-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
8.2 Kundesupport
For any questions, technical assistance, or warranty claims, please contact KADAMS customer support through the retailer's platform or visit the official KADAMS webwebsted for kontaktoplysninger.
