ELISWEEN Wireless Presenter WP006 User Manual

Indledning

This manual provides detailed instructions for the ELISWEEN Wireless Presenter Model WP006. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device. Please read this manual thoroughly before using the product.

Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• ELISWEEN Wireless Presenter (Model WP006)
• USB/Type-C Dual-Head Receiver
• Beskyttende bæretaske
• Brugervejledning (dette dokument)

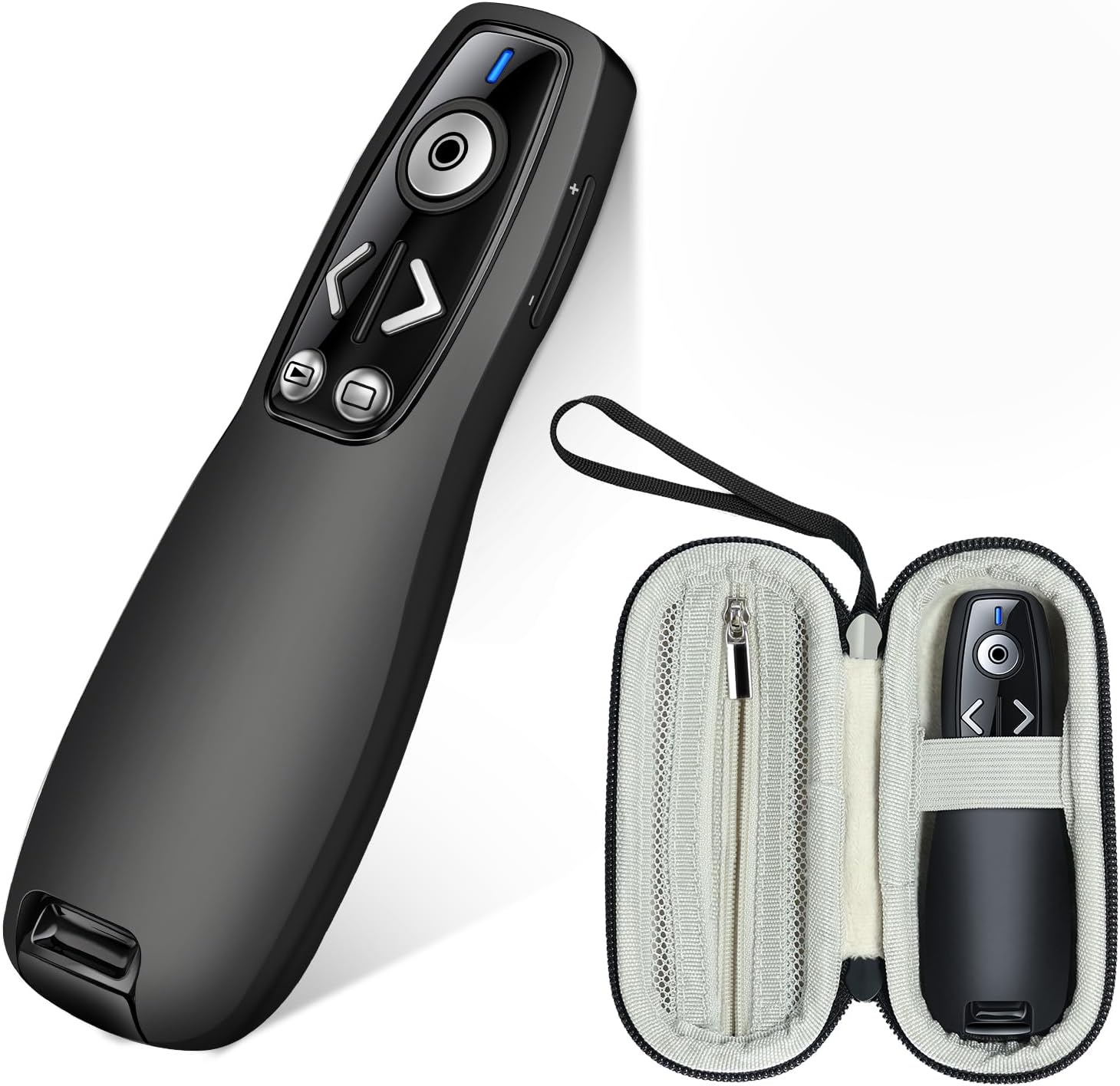

Image: The ELISWEEN Wireless Presenter and its included protective carry case.

Produkt overview

The ELISWEEN Wireless Presenter WP006 is designed for seamless presentations. It features intuitive controls and a dual-head USB/Type-C receiver for broad compatibility.

Billede: Et nærbillede view of the ELISWEEN Wireless Presenter, highlighting its control buttons including Page Up/Down, Slide Show/Black Screen, Laser Pointer, and the wireless receiver storage.

Nøglefunktioner:

• Side op/ned: Navigate through slides.
• Slide Show & Black Screen: Start/end presentations and black out the screen.
• Laserpointer: Highlight specific content on the screen.
• Lydstyrkekontrol: Juster lydudgangen.
• Skift vinduer: Toggle between open applications.
• Dobbelthoved modtager: USB-A and USB-C compatibility.
• Integrated Receiver Storage: Securely store the receiver within the presenter.

Opsætning

1. Batteriinstallation

The ELISWEEN Wireless Presenter requires 2 AAA batteries (not included).

1. Locate the battery compartment on the back of the presenter.
2. Åbn batteridækslet.
3. Isæt to AAA-batterier, og sørg for at polariteten (+/-) vender korrekt.
4. Luk batteridækslet forsvarligt.

2. Tilslutning af modtageren

The presenter uses a dual-head USB/Type-C receiver for versatile connectivity.

1. Remove the USB/Type-C receiver from its storage slot at the bottom of the presenter.
2. Identify the appropriate port on your computer (USB-A or USB-C).
3. Plug the receiver into the chosen USB port. The system will automatically detect and install the necessary drivers. No additional software installation is required.

Image: The wireless presenter with its USB receiver inserted into a laptop's USB port, illustrating the plug-and-play functionality.

Image: Two laptops demonstrating the dual compatibility of the receiver, showing both USB-A and USB-C connections.

3. Tænd/sluk

Locate the power switch on the side of the presenter. Slide it to the "ON" position to activate the device. Slide it to "OFF" when not in use to conserve battery life.

Betjeningsvejledning

Once the receiver is connected and the presenter is powered on, you can begin your presentation.

• Side op/ned: Tryk på < (Page Up) or > (Page Down) buttons to navigate through your presentation slides.
• Slide Show & Black Screen: Tryk på knappen med play/pause icon to start or end a slide show. Press the button with the black screen icon to black out the screen during a presentation and press again to resume.
• Laserpointer: Tryk og hold på circular button in the center to activate the red laser pointer. Release to turn it off.
• Lydstyrkekontrol: Brug + og - buttons on the side of the presenter to adjust the system volume.
• Skift vinduer: Tryk på den dedikerede window icon button to switch between open applications on your computer.

Image: A presenter using the ELISWEEN Wireless Presenter to highlight content on a screen with its red laser pointer, demonstrating its long-range control.

Kompatibilitet:

The ELISWEEN Wireless Presenter is compatible with a wide range of operating systems and presentation software:

• Operativsystemer: Windows, Mac OS, Linux, Android
• Software: PowerPoint, Excel, Word, Prezi, PDF, Keynote

Opretholdelse

Presenter Care:

• Clean the presenter with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Do not expose the presenter to extreme temperatures, humidity, or direct sunlight.
• Remove batteries if the presenter will not be used for an extended period to prevent leakage.

Carry Case Care:

The included protective carry case is made from durable EVA material to shield your presenter from drops, scratches, bumps, and dust.

• Keep the case clean by wiping it with a damp klæde.
• Utilize the internal mesh pocket for storing spare batteries or other small accessories.
• Always store the presenter in its case when transporting to ensure maximum protection.

Billede: Forskellige views of the protective carry case, showcasing its zippered mesh pocket for accessories, comfortable hand strap, and the presenter securely stored inside.

Fejlfinding

Specifikationer

Garanti og support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official ELISWEEN webwebsted. Behold din købskvittering som købsbevis i tilfælde af garantikrav.
