1. Introduktion
This manual provides detailed instructions for the setup, operation, and maintenance of your DANFI AUDIO DF TE-103 Vinyl Record Player. This versatile audio system features a 3-speed turntable, Bluetooth input, USB/SD card playback and recording, FM radio, and auxiliary input/output options. Please read this manual thoroughly before use to ensure proper function and longevity of your device.
2. Sikkerhedsoplysninger
- Udsæt ikke enheden for regn eller fugt.
- Bloker ikke nogen ventilationsåbninger.
- Sørg for, at netledningen ikke kommer i klemme eller går på.
- Tag stikket ud af enheden under tordenvejr, eller når den ikke skal bruges i længere perioder.
- Overlad al service til kvalificeret servicepersonale.
- Hold enheden væk fra direkte sollys, varmekilder og stærke magnetfelter.
3. Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- DANFI AUDIO DF TE-103 Vinyl Record Player
- Strøm enhed
- 45 RPM Adapter
- slipmat
- Backup Needle
4. Produktet er slutview
Familiarize yourself with the main components and controls of your record player.
Figur 4.1: Forside view of the DANFI AUDIO DF TE-103 Vinyl Record Player.
4.1 Kontrol og tilslutninger på frontpanelet
Figur 4.2: Detaljeret view of the front panel with USB, AUX IN, LED Display, and Mode Switch key.
- LED display: Viser aktuel tilstand, sporinformation eller FM-frekvens.
- Mode Switch-tast: Toggles between Turntable, Bluetooth, USB/SD, FM Radio, and AUX modes.
- USB-port: For USB flash drives for playback and recording.
- AUX IN: 3.5 mm indgang til tilslutning af eksterne lydenheder.
- Lydstyrkekontrol: Justerer udgangslydstyrken.
- EQ knap: Selects sound equalizer presets (Jazz, Pop, Classical, Rock, Vocal).
4.2 Bagpaneltilslutninger
Figure 4.3: Rear panel with RCA Line Out connections.
- RCA Line Out: Forbinder til ekstern ampløftere eller elektriske højttalere.
- Strømindgang: Tilsluttes den medfølgende strømadapter.
5. Opsætning
- Udpakning: Carefully remove the record player and all accessories from the packaging. Retain packaging for future transport or storage.
- Placering: Place the unit on a stable, level surface away from direct sunlight, heat sources, and excessive dust.
- Støvdæksel: Fastgør støvdækslet til hængslerne bag på enheden.
- Strømtilslutning: Connect the power unit to the DC input on the rear of the record player, then plug the power adapter into a wall outlet.
- Første gang tændt: Press the power button to turn on the unit. The LED display will illuminate.
6. Betjeningsvejledning
6.1 Afspilning af vinylplader
Figure 6.1: The turntable supports 3 speeds for various record types.
- Sørg for, at enheden er tændt.
- Løft støvdækslet.
- Place a vinyl record on the platter. If playing a 45 RPM single, use the included 45 RPM adaptor.
- Vælg den passende hastighed (33, 45 eller 78 o/min) ved hjælp af hastighedsvælgeren.
- Gently move the tonearm to the desired position on the record. The platter will begin to spin automatically.
- Juster lydstyrken efter dine præferencer.
- The AUTO STOP function will automatically stop the turntable when the record finishes playing.
6.2 Bluetooth Connection (Input Only)

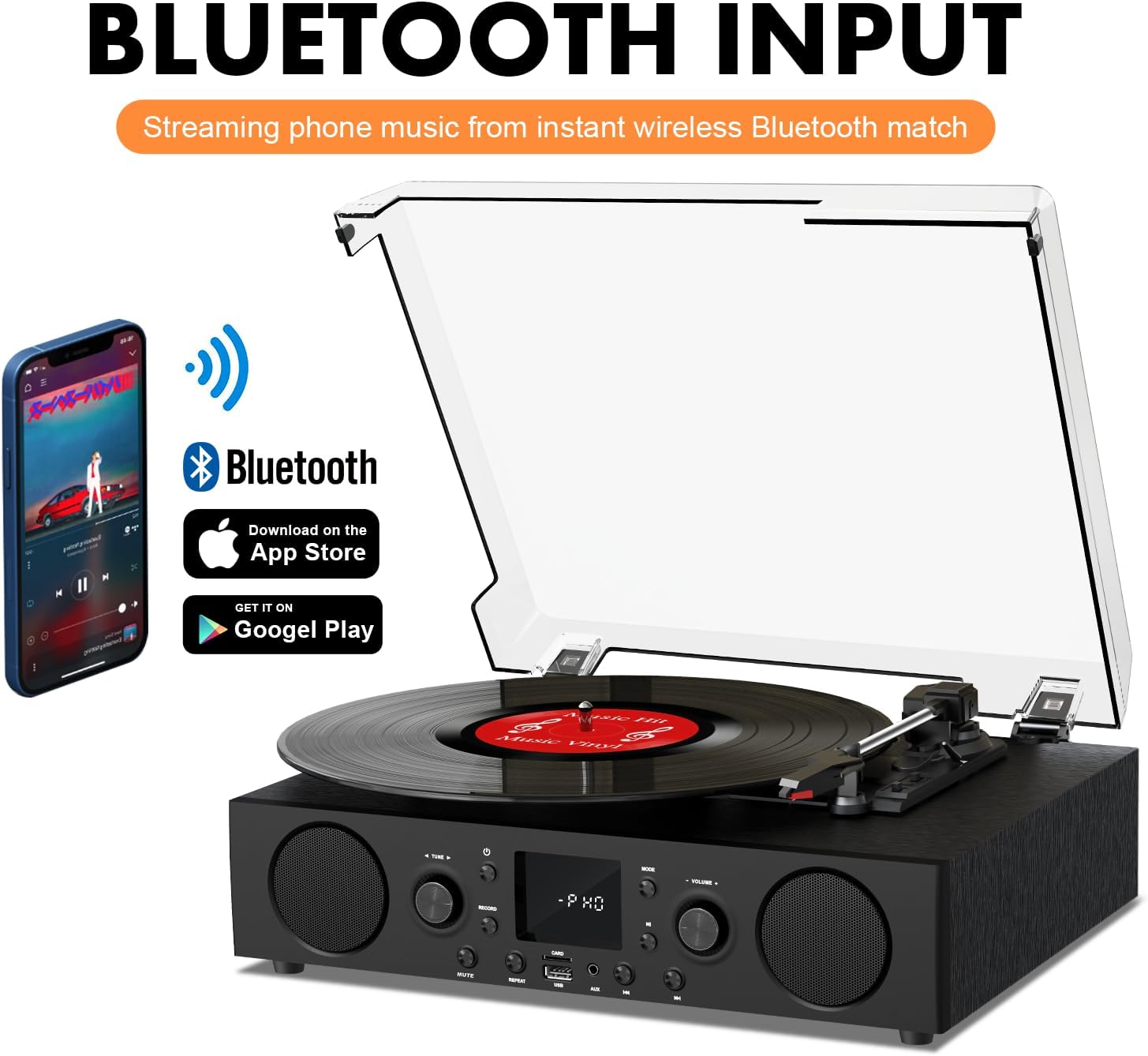

Figure 6.2: Connecting a smartphone via Bluetooth to the turntable.
- Tryk på Mode button until "Bluetooth" or a similar indicator appears on the LED display. The unit will enter pairing mode.
- Aktiver Bluetooth på din smartphone, tablet eller computer, og søg efter tilgængelige enheder.
- Select "DANFI AUDIO DF TE-103" (or similar name) from the list of devices to pair.
- Once paired, you can stream audio wirelessly from your device to the record player.
- Note: This turntable supports Bluetooth input only and cannot transmit audio to Bluetooth headphones or speakers.
6.3 USB/SD Input and MP3 Encoding
Figure 6.3: Vinyl to MP3 encoding process using a USB flash drive.
- USB/SD-afspilning: Insert a USB flash drive or SD card into the respective port. Press the Mode button to select USB/SD mode. The unit will automatically play compatible audio files.
- Vinyl to MP3 Encoding:
- Insert a USB flash drive or SD card into the port.
- Start playing a vinyl record.
- Tryk på Optage button. The LED display will indicate recording is in progress.
- Tryk på Optage button again to stop recording. The recorded audio will be saved as an MP3/WAV file on the USB drive/SD card.
6.4 FM radio
- Tryk på Mode button to select FM Radio mode. The current frequency will appear on the LED display.
- Use the tuning controls (often the Skip/Search buttons) to scan for radio stations.
- The unit can store approximately 20 stations.
6.5 RCA Line Out and AUX Input
Figure 6.4: Connecting to external speakers using RCA Line Out.
- RCA Line Out: Connect RCA cables from the rear of the record player to the audio input of an external amplifier or powered speakers. This allows for boosted volume and playback through a larger sound system. The turntable's internal speakers will not be muted automatically when using RCA output.
- AUX-indgang: Connect an external audio source (e.g., MP3 player, smartphone) to the 3.5mm AUX IN port on the front panel using an audio cable. Press the Mode -knappen for at vælge AUX-tilstand for at afspille lyd fra den tilsluttede enhed.
6.6 Equalizer (EQ)
Figure 6.5: Available equalizer presets for audio customization.
Tryk på EQ button to cycle through the available sound equalizer presets: Jazz, Pop, Classical, Rock, and Vocal. Select the preset that best suits your audio preference.
7. Vedligeholdelse
- Rensning: Use a soft, dry cloth to clean the exterior of the unit. For the dust cover, use a slightly damp klud og tør derefter grundigt. Undgå slibende rengøringsmidler.
- Styluspleje: Periodically check the stylus (needle) for wear or damage. A worn stylus can damage records and degrade sound quality. Replace the stylus with a compatible backup needle when necessary.
- Optagelsespleje: Keep your vinyl records clean and stored vertically in their sleeves to prevent dust accumulation and warping.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Netledning ikke tilsluttet; Strømudtag ikke aktivt | Sørg for, at netledningen er korrekt tilsluttet; Test stikkontakten med en anden enhed |
| Ingen lyd | Volume too low; Incorrect mode selected; External speakers not connected/powered | Increase volume; Press Mode button to select correct source; Check RCA connections and external speaker power |
| Pladespiller drejer ikke | Unit not powered on; Tonearm not moved over record | Ensure power is on; Gently move tonearm over the record to activate platter |
| Bluetooth forbinder ikke | Not in Bluetooth mode; Device too far; Already paired with another device | Select Bluetooth mode; Move device closer; Disconnect from other devices and try pairing again |
| Dårlig lydkvalitet fra vinyl | Dirty record; Worn stylus; Incorrect speed selected | Clean record; Replace stylus; Select correct RPM speed |
9. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | TE-103 |
| Mærke | DANFI AUDIO DF |
| Produktdimensioner | 14.37 x 10.82 x 5.28 tommer |
| Varens vægt | 6.2 pund |
| Materiale | Acrylic, Engineered Wood |
| Pladespiller hastigheder | 33 1/3, 45, 78 omdr./min |
| Inkluderede komponenter | Power unit, 45 rpm adaptor, Slipmat, Backup needle |
| Særlige funktioner | Equalizer (EQ), FM Radio, USB Input, USB/SD Card Recording, Bluetooth Input |
| Forbindelse | Bluetooth (Input only), USB, SD Card, AUX Input, RCA Line Out |
| Kompatible enheder | Headphones, MP3 Players, Personal Computers, Smartphones, Speakers, Tablets |
| Strømforbrug (tændt tilstand) | 5 watt |
10. Garanti og support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact DANFI AUDIO DF customer service through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
