Indledning
Thank you for choosing the Aqiila Airbird C7 Portable Air Pump. This device is designed to provide accurate and effortless inflation for various items, including car tires, bicycle tires, motorcycle tires, and sports balls. It features a high-performance compressor, a built-in battery, a flashlight, and a power bank function. Please read this manual thoroughly before operating the device to ensure safe and optimal performance.
Sikkerhedsoplysninger
- Always read and understand this manual before use.
- Hold enheden væk fra børn og kæledyr.
- Do not operate the device in wet conditions or near flammable liquids or gases.
- Ensure the inflation hose is securely attached to prevent accidental detachment during operation.
- Overpust ikke genstande. Se altid producentens anbefalede tryk.
- Undgå langvarig kontinuerlig drift for at forhindre overophedning. Lad enheden køle af, hvis den bliver varm.
- Brug kun det medfølgende opladningskabel og de medfølgende adaptere.
- Du må ikke skille enheden ad eller forsøge at reparere den selv. Kontakt kundesupport for at få hjælp.
Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- Aqiila Airbird C7 Portable Air Pump
- Schrader connect hose
- Presta ventil adapter
- Dunlop ventiladapter
- Kuglenål
- USB-C ladekabel
- Opbevaringskasse
Image: The Aqiila Airbird C7 pump shown with all included accessories: Schrader connect hose, ball needle, Presta valve, Dunlop valve, USB-C charging cable, and storage case.
Produkt overview
The Aqiila Airbird C7 features a compact design with an intuitive display and control buttons for easy operation.

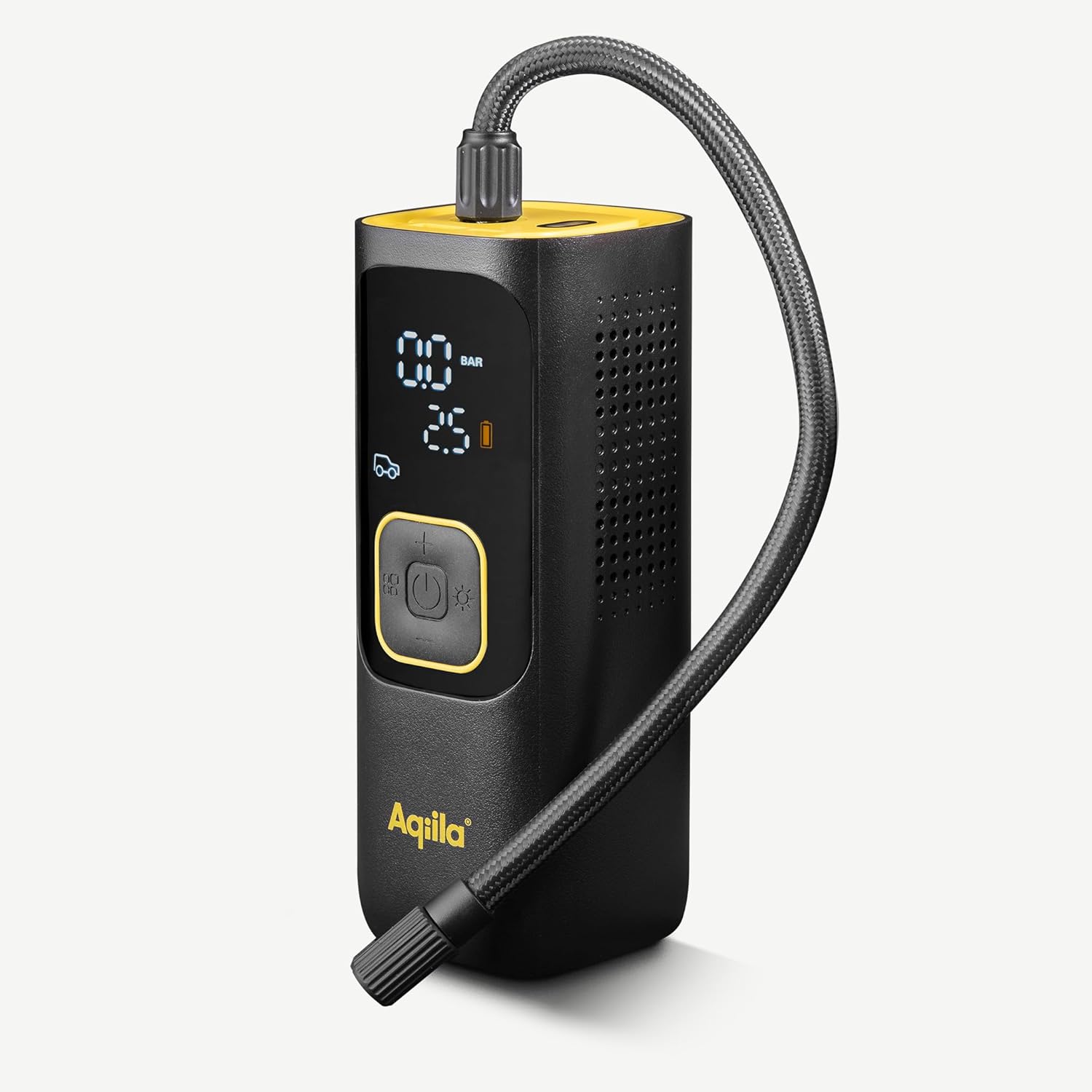

Billede: Et nærbillede view of the Aqiila Airbird C7 portable air pump, highlighting its digital display showing pressure readings and battery level, along with the control buttons for power, mode selection, and adjustment.
Nøglefunktioner:
- Digital skærm: Shows current pressure, target pressure, battery level, and selected mode.
- Kontrolknapper: Power/Start/Stop, Mode Selection, Unit Selection, Increase/Decrease Pressure.
- Inflation Hose Port: For connecting the flexible inflation hose.
- USB-C opladningsport: Til genopladning af det interne batteri.
- USB-A udgangsport: For using the device as a power bank.
- LED lommelygte: Integrated light for visibility in low-light conditions.
Opsætning
1. Opladning af enheden
Before first use, fully charge the Aqiila Airbird C7. Connect the provided USB-C charging cable to the device's USB-C port and plug the other end into a compatible USB power adapter (not included). The display will indicate the charging status. A full charge typically takes several hours.
2. Montering af oppustningsslangen
Screw the Schrader connect hose clockwise into the inflation port at the top of the device until it is finger-tight. Ensure a secure connection to prevent air leakage.
Betjeningsvejledning
1. Tænd/sluk
- Sådan tænder du: Tryk på tænd/sluk-knappen ( og hold den nede)U) for 2-3 seconds. The display will light up.
- Sådan slukker du: Tryk på tænd/sluk-knappen ( og hold den nede)U) for 2-3 seconds. The display will turn off. The device will also automatically power off after a period of inactivity.
2. Selecting Pressure Units
With the device powered on, short press the 'M' button to cycle through available pressure units: PSI, BAR, KPA, KG/CM².
3. Selecting Inflation Mode
Short press the 'M' button repeatedly to select the desired inflation mode. The icon on the display will change to indicate the current mode (e.g., car, motorcycle, bicycle, ball). Each mode has a default pressure preset, which can be adjusted.
4. Indstilling af måltryk
After selecting a mode, use the '+' and '-' buttons to adjust the target pressure. The set pressure will flash on the display. Once you stop adjusting, the value will be saved.
5. Start af oppustning
Connect the inflation hose to the item you wish to inflate. The display will show the current pressure. Press the power button (U) to start inflation. The device will automatically stop once the target pressure is reached.
Image: A user demonstrating the inflation process, connecting the Aqiila Airbird C7 portable air pump to a car tire valve. The pump's display is visible, showing pressure readings.
6. Brug af lommelygten
With the device powered on, short press the flashlight button (☀) to turn the LED flashlight on. Short press again to cycle through different light modes (e.g., steady, flashing, SOS) or to turn it off.
7. Brug som powerbank
Connect your electronic device (e.g., smartphone) to the USB-A output port on the Aqiila Airbird C7 using a compatible USB cable. The pump's internal battery will then charge your device.
Opretholdelse
1. Rensning
Tør ydersiden af enheden af med en blød, damp klud. Brug ikke skrappe kemikalier eller slibende rengøringsmidler. Sørg for, at enheden er slukket og frakoblet enhver strømkilde, før du rengør den.
2. Opbevaring
Store the Aqiila Airbird C7 and its accessories in the provided storage case in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the device is fully charged before long-term storage to maintain battery health.
Image: A person carrying the Aqiila Airbird C7 portable air pump securely stored in its compact black zippered case, demonstrating its portability.
3. Batteripleje
To prolong battery life, avoid completely draining the battery frequently. Recharge the device regularly, even if not in use, especially if stored for extended periods.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tændes ikke. | Low battery. Device is off. | Charge the device. Press and hold the power button for 2-3 seconds. |
| Device does not inflate. | Hose not connected securely. Target pressure not set. Battery too low. | Ensure hose is tightly screwed. Set a target pressure. Charge the device. |
| Unøjagtig trykaflæsning. | Hose connection leak. Sensor issue. | Check hose connection. If problem persists, contact support. |
| Enheden overophedes. | Langvarig kontinuerlig brug. | Turn off the device and allow it to cool down for at least 15-20 minutes before resuming use. |
Specifikationer
| Feature | Detalje |
|---|---|
| Model | Aqiila Airbird C7 |
| Luftmængde kapacitet | 28 liter i minuttet |
| Maksimalt tryk | 11 bar (160 PSI) |
| Strømkilde | Batteridrevet (1 lithium-ion-batteri påkrævet) |
| Materiale | Plast |
| Varens vægt | 820 g |
| Pakkedimensioner | 22 x 10.4 x 10.2 cm |
Image: An infographic illustrating the inflation capacity of the Aqiila Airbird C7, showing it can inflate 5 car tires (6 min each), 35 bicycle tires (40s each), 15 motorcycle tires (2 min each), or 80 balls (15s each) on a single charge.
Garanti og support
The Aqiila Airbird C7 Portable Air Pump comes with a 2-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.
For technical support, warranty inquiries, or any questions regarding your product, please contact Aqiila customer support through the retailer's platform or the official Aqiila webwebsted.
