Indledning
This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your Lionelo Whizz Freestyle Stunt Pro Scooter. Please read these instructions carefully before use and retain them for future reference. Proper use and maintenance will ensure the longevity and performance of your scooter.
Sikkerhedsoplysninger
Din sikkerhed er altafgørende. Følg altid følgende retningslinjer:
- Brug altid passende sikkerhedsudstyr, herunder hjelm, knæbeskyttere og albuebeskyttere, når du kører på scooteren.
- Sørg for, at alle bolte og clamps are securely tightened before each use.
- Den maksimale vægtkapacitet for denne scooter er 100 kg. Overskrid ikke denne grænse.
- This scooter is designed for adults and experienced riders. Younger users should be supervised.
- Kør i sikre, åbne områder væk fra trafik, fodgængere og forhindringer.
- Undgå at køre på våde, ujævne eller glatte overflader.
- Do not modify the scooter in any way, as this may compromise its safety and void the warranty.
- Familiarize yourself with the braking system before riding at speed.
Pakkens indhold
Når du åbner pakken, skal du kontrollere, at alle komponenter er til stede og ubeskadigede:
- Lionelo Whizz Freestyle Stunt Pro Scooter (partially assembled)
- Short wrench
- Long wrench
- Brugermanual
Monteringsvejledning
The Lionelo Whizz Freestyle Stunt Pro Scooter comes partially assembled. Follow these steps to complete the assembly:
- Udpak komponenter: Fjern forsigtigt alle dele fra emballagen.
- Fastgør styret: Insert the Y-Bar handlebar into the fork column. Ensure the handlebar is fully seated and aligned straight with the front wheel.
- Fastgør Clamp: Use the provided wrenches to tighten the bolts on the HIC compression clamp. Tighten them evenly and securely to prevent any movement of the handlebar. Do not overtighten.
- Endelig kontrol: Before riding, double-check all bolts, especially on the wheels, handlebar, and brake, to ensure they are tight and secure.
Image: The Y-bar handlebar and HIC compression clamp, ready for secure attachment to the scooter's fork column.
Billede: En detaljeret view of the HIC compression system, showing the bolts that need to be tightened to secure the handlebar.
Betjeningsvejledning
Once assembled and safety checks are complete, you are ready to ride your Lionelo Whizz scooter:
- Holdning: Place one foot firmly on the anti-slip deck. The deck is designed for optimal grip and control.
- Fremdrift: Brug din anden fod til at skubbe fra jorden og få momentum.
- Styretøj: Lean your body and gently turn the handlebar in the desired direction.
- Bremsning: To slow down or stop, apply pressure to the Flex Fender brake located over the rear wheel with your foot.
Image: A rider's foot positioned on the scooter's anti-slip deck, highlighting the textured surface for secure footing.
Opretholdelse
Regelmæssig vedligeholdelse vil forlænge din scooters levetid og sikre sikker drift:
- Rensning: Tør scooteren af med reklameamp cloth after use. Avoid harsh chemicals.
- Bolt Checks: Periodically inspect all bolts and fasteners for tightness. Retighten as necessary.
- Hjul- og lejeinspektion: Check the 110mm PU wheels and ABEC-9 bearings for wear and tear. Replace them if they show signs of significant damage or reduced performance.
- Bremsefunktionalitet: Ensure the Flex Fender brake is operating correctly and provides adequate stopping power.
- Opbevaring: Opbevar scooteren et tørt sted, væk fra direkte sollys og ekstreme temperaturer.
Billede: En detaljeret view of the scooter's 110mm PU wheels, showcasing their aluminum core and ABEC-9 bearings, crucial for smooth performance.
Fejlfinding
Se tabellen nedenfor for almindelige problemer og løsninger på disse:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Styret er løst eller ustabilt | Compression clamp boltene er ikke stramme nok. | Tighten the HIC compression clamp bolts evenly with the provided wrenches. |
| Wheels are noisy or not spinning freely | Bearings are dirty, worn, or overtightened. | Clean or replace bearings. Ensure wheel bolts are tightened correctly, not excessively. |
| Brake is not effective | Brake mechanism is worn or misaligned. | Inspect the Flex Fender brake for wear. Ensure it is properly aligned with the rear wheel. Replace if necessary. |
| Usædvanlige lyde under kørsel | Løse komponenter eller indvendig skade. | Stop riding immediately. Inspect all parts for looseness or damage. Tighten any loose bolts. If damage is found, discontinue use and contact support. |
Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Lionelo |
| Modelnavn | Whiz Neo |
| Modelnummer | LO-WHIZZ NEO BLACK CARBON MULTICOLOR |
| Farve | CARBON MULTICOLOR |
| Aldersinterval | Voksen |
| Maksimal vægtkapacitet | 100 kilo |
| Rammemateriale | Aluminium |
| Hjul materiale | PU (Polyurethane) with Aluminum Core |
| Hjulstørrelse | 110 mm |
| Lejer | ABEC-9 |
| Styretype | Y-Bar (48 cm wide) |
| Kompressionssystem | HIC (Hidden Internal Compression) |
| Bremse type | Flex Fender (MN Steel) |
| Produktmål (L x B x H) | 67 x 11 x 84 cm |
| Produktets vægt | 3.52 kilo |

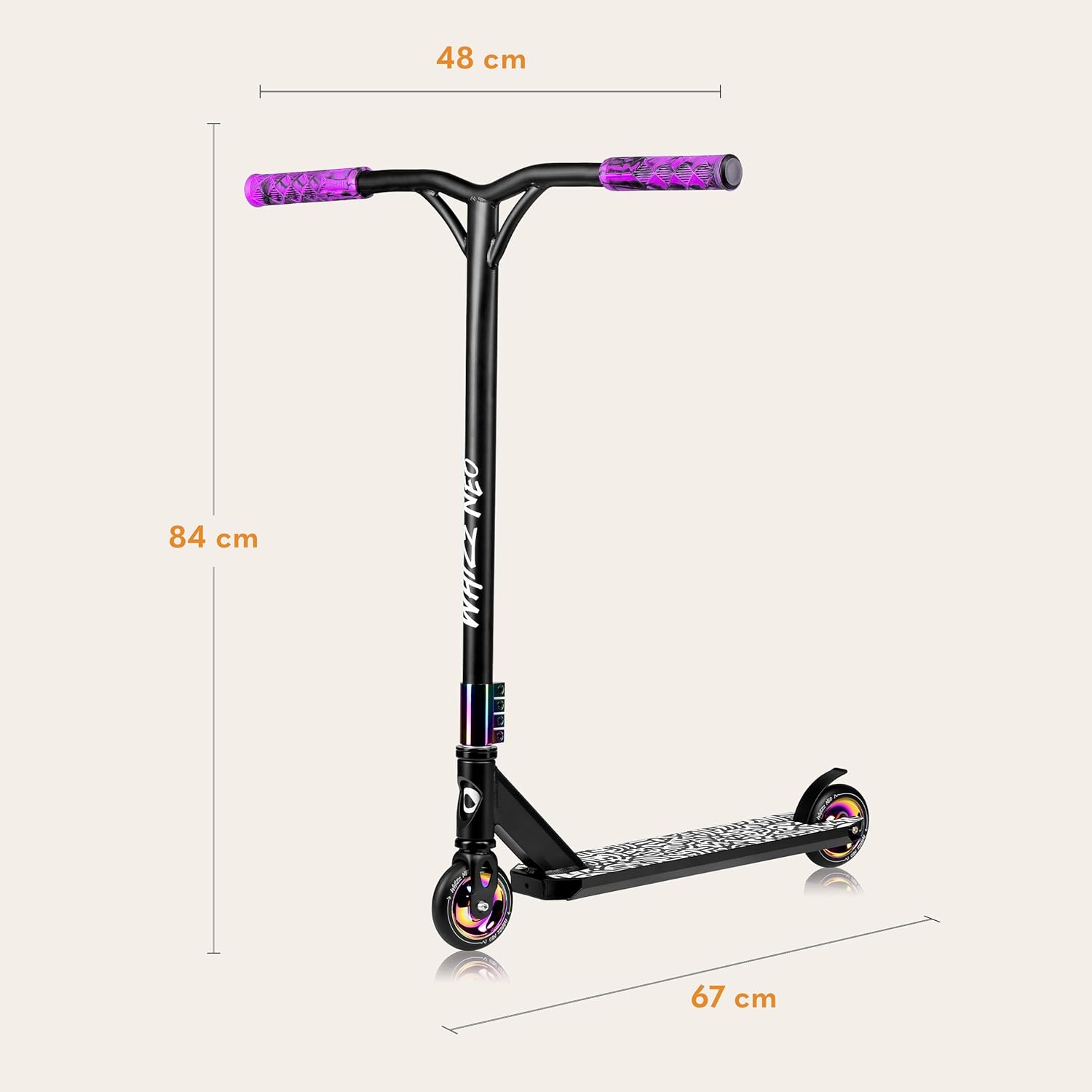

Image: A visual representation of the scooter's key dimensions, including handlebar width, overall height, and deck length.
Garanti og support
Lionelo products are designed for durability and performance. For information regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or visit the official Lionelo website. If you encounter any issues not covered in this manual or require further assistance, please contact Lionelo customer support through their official channels.
