Dreame X30 Master robotstøvsuger brugsanvisning

Indledning

This manual provides detailed instructions for the safe and efficient operation of your Dreame X30 Master Robot Vacuum. Please read this manual thoroughly before use and retain it for future reference. The Dreame X30 Master is designed to provide comprehensive floor cleaning, combining powerful vacuuming with advanced mopping capabilities.

Sikkerhedsoplysninger

To reduce the risk of injury or damage, always observe basic safety precautions when operating electrical appliances. This includes, but is not limited to:

• Sørg for, at strømforsyningen voltage matcher klassificeringsmærkatet på opladningsdokken.
• Brug ikke robotstøvsugeren i våde omgivelser eller i nærheden af ​​vand.
• Hold hår, løstsiddende tøj, fingre og alle dele af kroppen væk fra åbninger og bevægelige dele.
• Do not pick up large or sharp objects, or flammable/combustible materials.
• Hold opsyn med børn og kæledyr, når robotstøvsugeren er i brug.
• Only use manufacturer-recommended accessories and replacement parts.

Produkt overview

The Dreame X30 Master Robot Vacuum is equipped with advanced features for automated home cleaning. Key components include the robot vacuum unit and the ultra-thin base station.

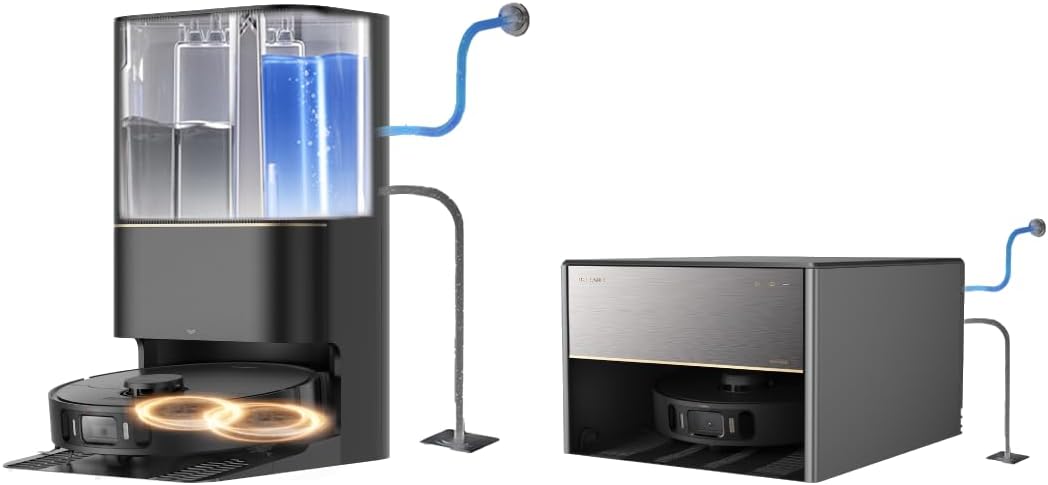

Image 1: The Dreame X30 Master Robot Vacuum with its compact base station, illustrating the automatic water refill and drainage connection.

Nøglefunktioner:

• Enhanced MopExtend 3.0: Designed to reach deep into corners and along edges for thorough mopping.
• Auto Washboard Self-Cleaning: The base station automatically cleans the mop pads with 60°C hot water.
• Anti-Tangle TriCut Brush: Features a hair-cutting roller brush to prevent tangles and simplify maintenance.
• 8,300Pa Strong Suction Power: Provides powerful vacuuming for various floor types.
• Automatic Water Refill & Drain: Integrated water hookup kit for continuous water supply and drainage, eliminating manual tank refills.
• Smart Carpet Cleaning: Exclusive mops removal technology to prevent wetting carpets, with automatic mop lifting for short-pile carpets.

Image 2: An illustration highlighting the Dreame X30 Master's core technologies, including MopExtend 3.0, Auto Cutting Roller Brush 2.0, Auto Washboard Self-Cleaning, 60°C Mop Hot Water Washing, 8,300Pa Suction Power, and Water Refill & Drainage.

MopExtend 3.0 Technology

The MopExtend 3.0 system allows the robot to extend its mop pads to clean closer to walls, into corners, and around furniture legs, reaching areas typically missed by standard robot mops. This feature helps in removing hidden debris and ensures comprehensive floor coverage.

Image 3: Visual representation of the MopExtend 3.0 feature, showing the mop pads extending to clean corners, wall edges, skirting, and around table/chair legs.

Image 4: A comparison illustrating the advantages of Dreame MopExtend 3.0 over other mop extension systems, highlighting its ability to clean deep into gaps and corners, AI obstacle recognition, and elastic stretch structure.

Sugekraft

The Dreame X30 Master features an 8,300Pa suction power, supported by a self-developed fan with 38,500 RPM ultra-high fan speed and a Super Fluid Air Duct Design, ensuring effective debris collection from various surfaces.

Image 5: An illustration demonstrating the 8,300Pa strong suction power of the robot vacuum, emphasizing its fan speed and air duct design.

Opsætning

Installation af basestation

The Dreame X30 Master features an integrated water hookup kit for automatic water refill and drainage. For this functionality, the base station requires professional installation to your household's water pipe and drainage system. There are three installation methods available to adapt to diverse scenarios, ensuring a compact and space-saving setup.

The base station is designed to be ultra-thin (28cm) and can be fully embedded for a seamless appearance. An electric hatch opens with a light touch for convenient access.

Indledende opladning

After installation, place the robot vacuum onto the charging dock. Ensure the charging contacts on both the robot and the dock are aligned. Allow the robot to fully charge before its first use. The indicator lights on the robot will show the charging status.

App-forbindelse

Download the Dreame Home app from your smartphone's app store. Follow the in-app instructions to connect your Dreame X30 Master Robot Vacuum to your home Wi-Fi network. The app allows for remote control, scheduling, and access to advanced features.

Betjeningsvejledning

Start af en rengøringscyklus

You can start a cleaning cycle using the physical button on the robot, or through the Dreame Home app. The robot will automatically map your home during its first few cleaning runs.

Rengøringstilstande

The app allows you to select various cleaning modes, including vacuum-only, mop-only, or vacuum and mop simultaneously. You can also define specific areas for cleaning or set no-go zones.

Carpet Handling

The Dreame X30 Master features intelligent carpet detection. For high-pile or mid-pile carpets, the robot can automatically remove its mop pads to prevent wetting. For short-pile carpets, the mop pads will be lifted by 10.5mm to allow for vacuuming without mopping.

Image 6: An illustration demonstrating the robot's smart carpet cleaning capabilities, showing mop avoidance for bathroom rugs, mop removal for long-pile carpets, and mop lifting for living room short-pile carpets.

Opretholdelse

Auto Self-Cleaning Base Station

The base station is equipped with dual wiper blades that clean the mop pads and the washboard area, similar to a windshield wiper. This process significantly reduces residual dirt and odor, ensuring the mop pads are clean for the next use. The system uses 60°C hot water for effective mop cleaning.

Image 7: A diagram illustrating the internal mechanism of the auto self-cleaning base station, showing how dual wiper blades clean the mop and washboard, contrasting it with traditional manual washing.

Anti-Tangle TriCut Brush Maintenance

The Anti-Tangle TriCut Brush (Hair Cutting Roller Brush 2.0) automatically cuts hair that gets tangled in the brush and transfers it to the dust box. This feature minimizes manual cleaning of the main brush. Periodically check the brush for any remaining debris and clean as needed. Note: The Hair Cutting Roller Brush 2.0 may be purchased separately or included depending on your specific package.

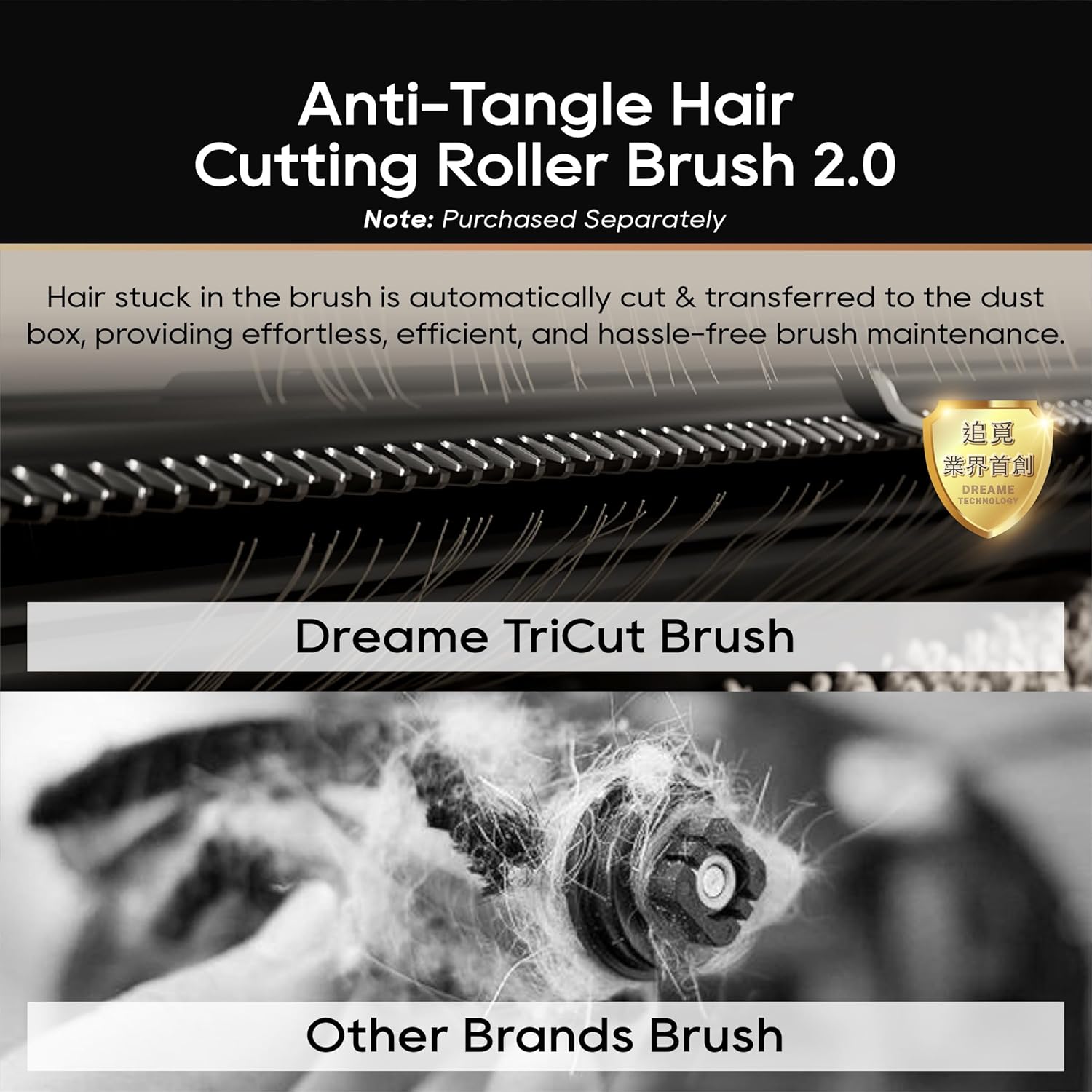

Image 8: A comparison showing the Dreame TriCut Brush with its hair-cutting mechanism versus a traditional brush tangled with hair, demonstrating the anti-tangle feature.

Dust Bag and Filter

The base station features a 4.2L dust bag for automatic dust collection. Replace the dust bag when full. The robot vacuum uses a cloth filter, which should be cleaned regularly and replaced periodically to maintain optimal suction performance.

Sensorrensning

Regularly wipe the robot's sensors (cliff sensors, wall sensors, charging contacts) with a soft, dry cloth to ensure proper navigation and functionality.

Fejlfinding

If you encounter issues with your Dreame X30 Master, refer to the following common troubleshooting steps:

• Robotten oplader ikke: Ensure the robot is correctly docked and the power cable is securely connected to the base station and wall outlet. Clean charging contacts.
• Robot sidder fast eller er forsvundet: Clear obstacles around the robot. If it's lost, manually place it back on the charging dock. Check the app for error messages.
• Dårlig rengøringsevne: Check if the dust bag is full, the filter is clogged, or the main brush/side brushes are tangled. Clean or replace as necessary.
• Mop not cleaning effectively: Ensure the water tank is filled (if applicable, or water supply is connected for auto-refill). Check if mop pads are dirty and require cleaning by the base station or manual intervention.
• Problemer med app-forbindelse: Sørg for, at dit Wi-Fi-netværk er stabilt, og at robotten er inden for rækkevidde. Genstart robotten og din router, hvis det er nødvendigt.

For mere detaljeret fejlfinding eller vedvarende problemer, kontakt venligst Dreame kundesupport.

Specifikationer

Image 9: A detailed comparison table outlining the features and specifications of the Dreame X30 Master against the X30 Ultra, including navigation, suction power, mop extend, brush types, mop cleaning, and base station dimensions.

Garanti og support

For garantioplysninger henvises til garantikortet, der følger med dit produkt, eller besøg den officielle Dreame website. If you require technical support, have questions about operation, or need assistance with parts, please contact Dreame customer service through their official channels.

Officiel Webwebsted: www.dreame.com
