Indledning
This user manual provides detailed instructions for the proper use, installation, and maintenance of your RAVEMEN K700 LED Bike Light. Please read this manual thoroughly before using the product to ensure optimal performance and safety.
Image: The RAVEMEN K700 LED Bike Light, a compact black unit with a clear lens and control buttons on top.
Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- RAVEMEN K700 LED Bike Light x 1
- USB-C ladekabel x 1
- Handlebar Mount Strap x 1
- AUB01 Upside-down Mount x 1
- Brugervejledning x 1
Image: A visual representation of the RAVEMEN K700 bike light and its included accessories, laid out neatly on a white background.
Opsætning og installation
The K700 bike light offers two tool-free installation methods:
- Styrmontering: Attach the quick-release handlebar mount strap to your bicycle's handlebar. Secure the K700 light onto the mount until it clicks into place.
- Under-Mounted (AUB01): Utilize the AUB01 upside-down mount to position the light underneath your handlebar, often compatible with existing computer mounts.
Image: Two distinct mounting options for the K700 light are shown: one directly on the handlebar using a strap, and another under-mounted using a GoPro-compatible adapter.
Komponentidentifikation
Image: A diagram illustrating various components of the K700 light, including the wide-angle lens, side visibility, battery indicator/light sensor, Type-C charging port, and handlebar mount.
Betjeningsvejledning
Tænd/sluk og valg af tilstand
- To turn on/off: Press and hold the power button for approximately 1 second.
- To cycle through modes: With the light on, short press the power button to switch between High, Mid, Low, and Pulse Flashing modes. The light remembers your last selected mode.
Smart Daytime Riding Mode
The K700 features a smart daytime riding mode that utilizes a light sensor and a vibration sensor for automatic operation.
- Aktivering: Hold the power button for 3.5 seconds until the blue indicator light illuminates.
- Automatisk justering: In this mode, the light automatically adjusts its brightness based on ambient light conditions.
- Auto Shut-Off/On: The light will turn off after 2 minutes of inactivity and automatically switch back on when movement is detected.
Image: A visual comparison showing the K700 light operating in pulse flashing level during bright ambient light and mid-brightness level during low ambient light, demonstrating its smart daytime running mode.
Light Output and Visibility
The K700 provides up to 700 lumens of brightness with a uniform flood light design to reduce eye fatigue and enhance riding safety. It also features side visibility for increased awareness.

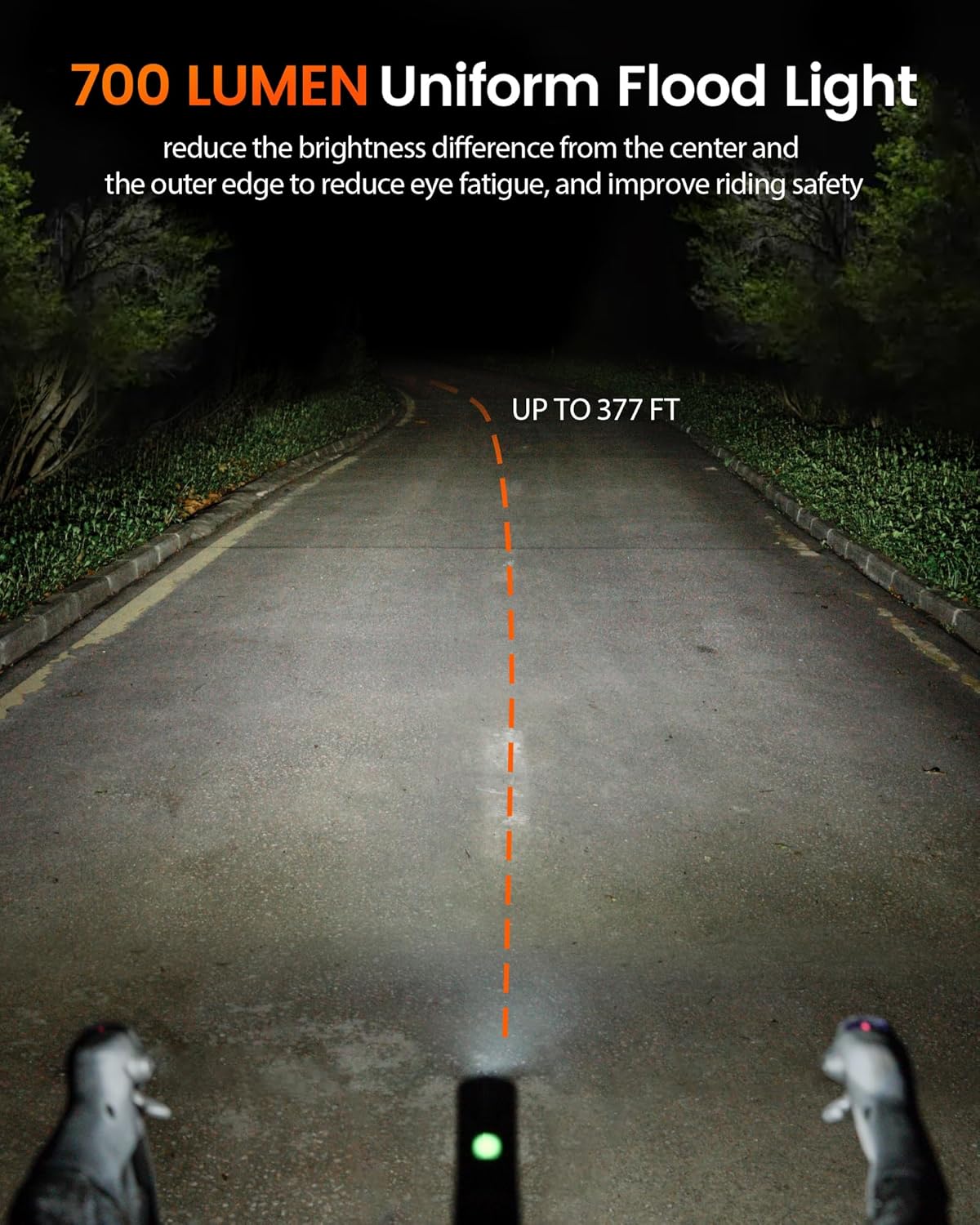

Image: A night view of a road illuminated by the K700's 700 lumen uniform flood light, showing a beam reaching up to 377 feet.
Opladning og batteristatus
Opladning af lyset
The K700 is equipped with a USB-C charging port. Connect the provided USB-C cable to the light and a suitable USB power source. A full charge takes approximately 1.5 hours. The light can be used while charging.
Image: The K700 bike light being charged via a USB-C cable connected to a power bank, illustrating its fast rechargeable feature.
Batteriniveauindikator
To check the battery level, perform a quick press of the power button when the light is in standby mode. The indicator light will display the current battery status:
- Grønt lys: Batteriniveauet er over 30%.
- Rødt lys: Batteriniveauet er mellem 5% og 30%.
- Rødt blinkende lys: Battery level is below 5%, requiring immediate charging.
Image: A hand pressing the power button on the K700 light, with an overlay showing the different color indicators (green, red, red flashing) corresponding to battery charge levels.
Vedligeholdelse og pleje
- Rensning: Tør lyset af med en blød, damp klæde. Undgå at bruge slibende rengøringsmidler eller opløsningsmidler.
- Vandtæthed: The K700 has an IPX7 waterproof rating, meaning it can withstand immersion in water up to 1 meter for 30 minutes. Ensure the USB-C port cover is securely closed to maintain water resistance.
- Opbevaring: Store the light in a cool, dry place when not in use. For long-term storage, charge the battery to approximately 50% every few months to preserve battery life.
- Holdbarhed: The light features a robust aluminum alloy housing with a triple hard-anodized finish, providing good drop resistance and scratch resistance.

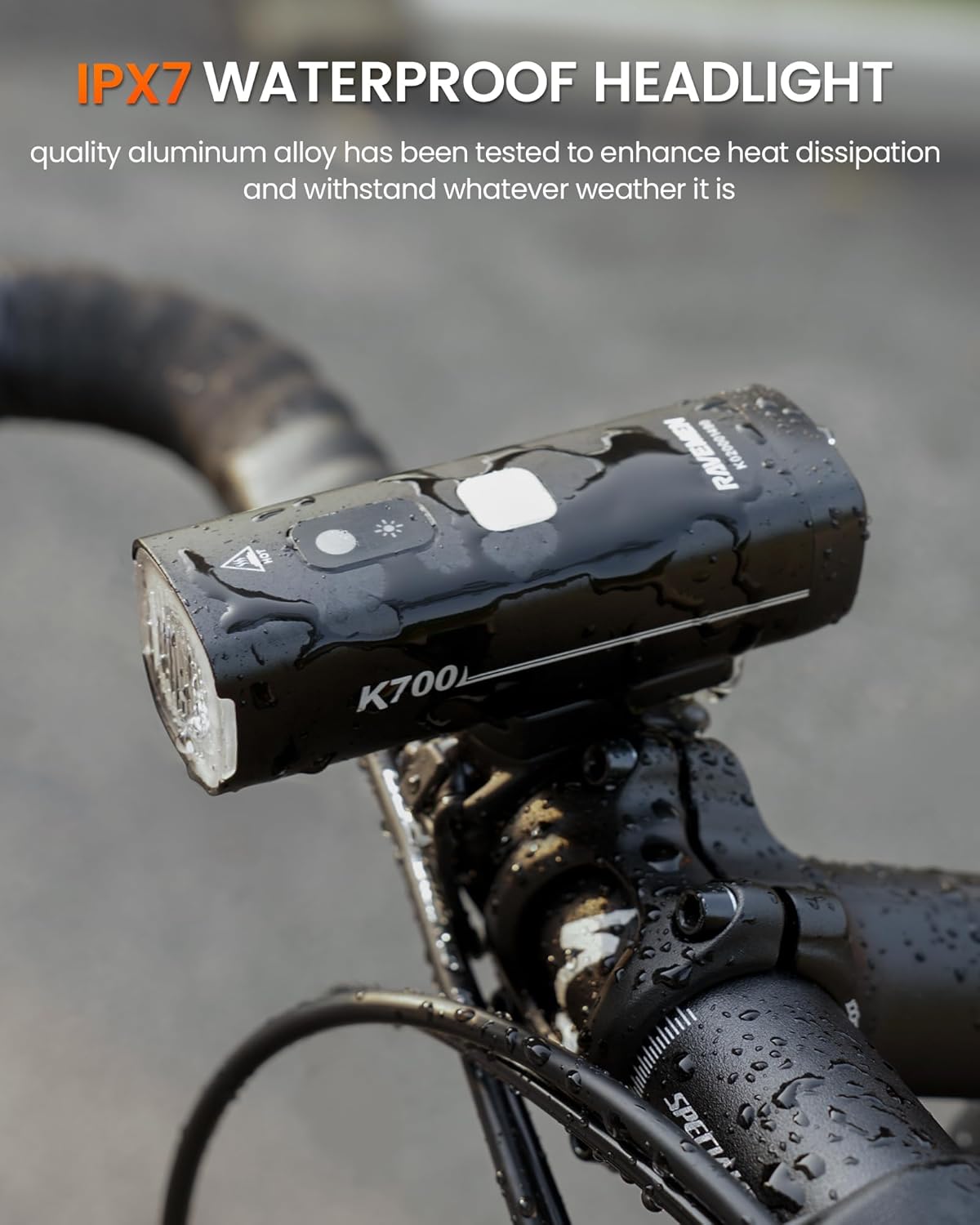

Image: The K700 bike light mounted on a wet bicycle handlebar, demonstrating its IPX7 waterproof capability in rainy conditions.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Lavt batteri, eller tænd/sluk-knappen er ikke trykket korrekt ind. | Charge the light using the USB-C cable. Press and hold the power button for 1 second to turn on. |
| Lyset oplader ikke. | Faulty cable, power source, or charging port. | Prøv et andet USB-C-kabel og en anden strømadapter. Sørg for, at opladningsporten er ren og fri for snavs. |
| Light turns off unexpectedly in Smart Mode. | No movement detected for 2 minutes. | This is normal behavior for the auto shut-off feature. The light will reactivate with movement. |
| Beslaget føles løst. | Mount not securely fastened or worn strap. | Ensure the mount strap is tightened correctly. If using the AUB01 mount, check all screws. Replace worn parts if necessary. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | K700 |
| Mærke | Ravemænd |
| Lysstyrke | Op til 700 Lumens |
| Strømkilde | USB-C genopladelig |
| Opladningstid | Ca. 1.5 timer |
| Materiale | Aluminiumslegering |
| Vandmodstand | IPX7 (vandtæt) |
| Varens vægt | 138 gram |
| Produktdimensioner | 3.98 cm L x 1.46 cm B x 1.34 cm H |
| Monteringstype | Handlebar Mount, Under-Mounted (AUB01) |
| Særlige funktioner | Smart Sensors (Light & Vibration), Auto On/Off, Mode Memory, Side Visibility |
Garantioplysninger
The RAVEMEN K700 LED Bike Light comes with a 2 års garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl og materialefejl ved normal brug. Den dækker ikke skader forårsaget af misbrug, ulykker, uautoriserede ændringer eller normal slitage.
Gem venligst dit købsbevis for garantikrav.
Support og kontakt
For any questions, technical assistance, or warranty claims regarding your RAVEMEN K700 LED Bike Light, please contact RAVEMEN customer support through the retailer where the product was purchased or visit the official RAVEMEN webwebsted for kontaktoplysninger.
