Mastech MS2203 3-faset digital strømforsyningamp Instruktionsmanual til måleren

1. Introduktion

The Mastech MS2203 is a professional 3-Phase Digital Power Clamp Meter designed for accurate measurement of electrical parameters in three-phase systems. This instrument features high sensitivity, True-RMS measurement, power factor correction, and a USB interface for data logging. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your MS2203 meter.

2. Sikkerhedsoplysninger

To ensure safe operation and service of the meter, follow these safety precautions:

• Overhold altid lokale og nationale sikkerhedsforskrifter.
• Brug ikke måleren, hvis den ser beskadiget ud, eller hvis isoleringen på testledningerne er kompromitteret.
• Ensure the rotary switch is in the correct position for the desired measurement before connecting to the circuit.
• Overskrid ikke de maksimale inputværdier for nogen funktion.
• Udvis ekstrem forsigtighed, når du arbejder med spændingsførende kredsløb.
• Keep fingers behind the finger guards on the test leads during measurements.
• Udskift batterierne, når indikatoren for lavt batteri vises, for at sikre nøjagtige aflæsninger.

3. Produktet er slutview

The Mastech MS2203 is a versatile clamp meter capable of measuring AC voltage, AC current, frequency, active power, apparent power, reactive power, and power factor. It features a large LCD display with backlight, data hold, MAX/MIN recording, and a bar graph for quick visual indication.

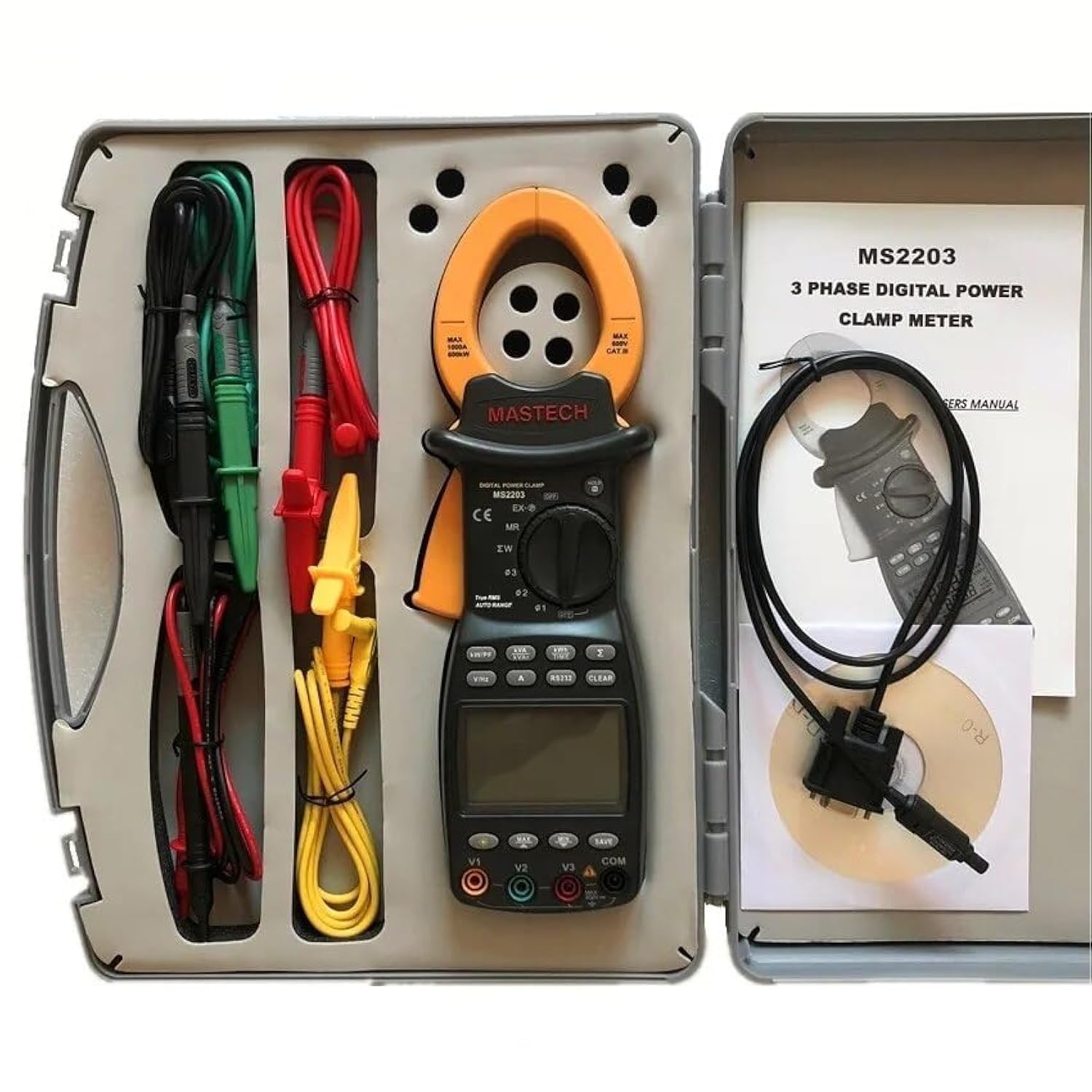

Image 3.1: The Mastech MS2203 3-Phase Digital Power Clamp Meter and its accessories, neatly organized within its protective carrying case. The kit includes the clamp meter, test leads, USB cable, and user manual.

Nøglefunktioner:

• Display: 9999 tæller
• Jaw Opening: Φ50mm/2.0"
• Automatisk og manuel rækkevidde
• Data Logging: 28 groups
• True Root Mean Square (True-RMS) measurement
• Bar Graph display
• MAX/MIN Measurement function
• Data Hold funktion
• Display Backlight for low-light conditions
• Indikator for lavt batteriniveau
• RS232 Interface for Windows OS connectivity

4. Udpakning og indhold

Carefully unpack the meter and check for any damage. Verify that all items listed below are present. If any item is missing or damaged, contact your dealer immediately.

Image 4.1: An illustrative diagram detailing the contents included with the Mastech MS2203, such as the main unit, test leads, alligator clips, RS232 cable, software, carrying case, and batteries.

Pakkeindhold:

• Mastech MS2203 3-faset digital strømforsyningamp Måler
• Test Leads (Red, Yellow, Green, Black)
• Alligator klip
• RS232 Interface Cable
• PC data record graph software (CD-ROM)
• Bæretaske
• Batterier (2 x LR44, medfølger)
• Hurtig startvejledning
• Kalibreringscertifikat

5. Opsætning

5.1 Batteriinstallation

1. Find batteridækslet på bagsiden af ​​måleren.
2. Use a screwdriver to loosen the screw(s) and remove the cover.
3. Insert the two LR44 batteries, observing the correct polarity (+/-) as indicated inside the compartment.
4. Replace the battery cover and secure it with the screw(s).

5.2 Tilslutning af testledninger

Insert the banana plugs of the test leads into the appropriate input jacks on the meter. For most measurements, the common (COM) jack will be used with the black lead, and the V1, V2, V3, or A jacks will be used with the colored leads (red, yellow, green) depending on the measurement type and phase configuration.

5.3 USB/RS232 Interface Setup

To connect the meter to a computer for data logging and analysis:

1. Install the provided PC data record graph software from the CD-ROM onto your Windows OS computer.
2. Connect one end of the RS232 interface cable to the meter's RS232 port.
3. Connect the other end of the cable to an available USB port on your computer (an RS232-to-USB adapter may be required if your computer lacks an RS232 port).
4. Follow the software instructions to establish communication with the meter.

6. Betjeningsvejledning

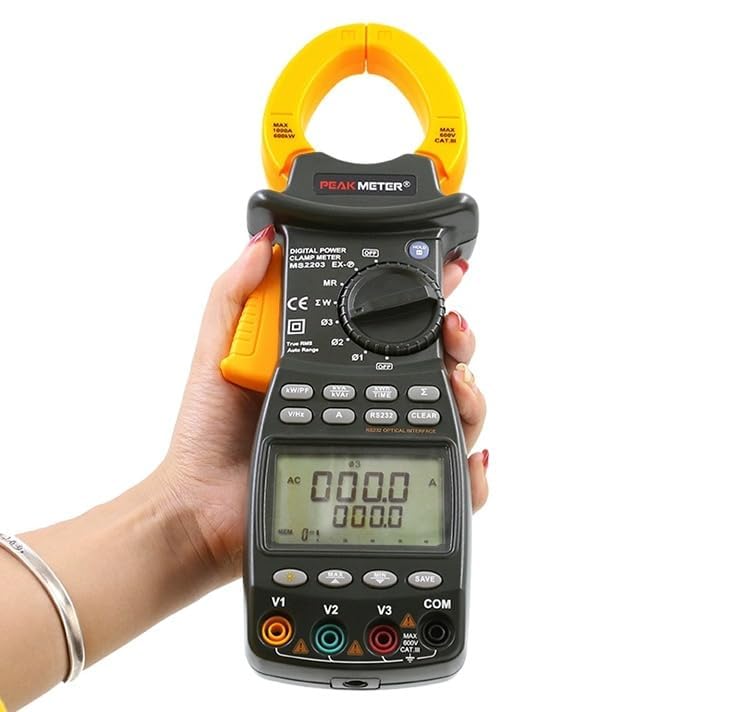

Image 6.1: The Mastech MS2203 in use, highlighting the digital display and the rotary selector for various measurement functions.

6.1 Tænd/sluk

To power on the meter, rotate the function switch from the 'OFF' position to any desired measurement function. To power off, rotate the switch back to 'OFF'.

6.2 Funktionsvalg

The rotary switch allows selection of different measurement modes. Ensure the switch is set to the appropriate function before taking a measurement.

6.3 Måleprocedurer

AC-strømmåling:

1. Rotate the function switch to the 'A' (AC Current) position.
2. Åbn clamp kæberne ved at trykke på aftrækkeren.
3. Enclose only one conductor of the circuit within the jaws. Ensure the jaws are fully closed.
4. Aflæs den aktuelle værdi på displayet.

AC Voltage Measurement (3-Phase):

1. Rotate the function switch to the 'V' (AC Voltage) stilling.
2. Connect the test leads to the V1, V2, V3, and COM input jacks.
3. Connect the test leads to the respective phase conductors and neutral/ground of the 3-phase system.
4. The meter will display the voltage readings for each phase.

Power Measurement (Active, Apparent, Reactive, Power Factor):

1. Rotate the function switch to the 'W/PF' (Power/Power Factor) position.
2. Connect the test leads and clamp the current jaws as required for 3-phase power measurement.
3. The meter will display active power (W), apparent power (VA), reactive power (VAR), and power factor (PF).

6.4 Specialfunktioner

• Data Hold: Tryk på 'HOLD'-knappen for at fryse den aktuelle aflæsning på displayet. Tryk igen for at slippe.
• MAX/MIN Measurement: Press the 'MAX/MIN' button to record the maximum and minimum values during a measurement session. Press again to cycle through MAX, MIN, and current readings.
• Datalogning: The meter can store up to 28 groups of data. Refer to the detailed software manual for instructions on logging and retrieving data via the RS232 interface.
• Baggrundsbelysning: Press the backlight button to illuminate the display for use in dimly lit environments.
• True-RMS: The MS2203 provides True-RMS measurements for accurate readings on non-sinusoidal waveforms.

7. Vedligeholdelse

7.1 Rengøring

Tør måleren af ​​med reklameamp klud og mildt rengøringsmiddel. Brug ikke slibemidler eller opløsningsmidler. Sørg for, at måleren er helt tør før brug.

7.2 Udskiftning af batteri

When the low battery indicator appears on the display, replace the batteries as described in Section 5.1. Remove batteries if the meter is not to be used for an extended period.

7.3 Opbevaring

Store the meter in its carrying case in a cool, dry environment, away from direct sunlight and extreme temperatures.

8. Fejlfinding

• Ingen visning: Check battery installation and charge. Ensure the rotary switch is not in the 'OFF' position.
• Upræcise læsninger: Verify correct function selection and proper test lead connection. Ensure the clamp jaws are fully closed around a single conductor for current measurements. Check for low battery.
• No PC Communication: Ensure the RS232 cable is correctly connected and the software drivers are installed. Check COM port settings in the software.

9. Specifikationer

Image 9.1: A detailed overview of the Mastech MS2203's technical specifications, including measurement ranges and display capabilities.

10. Garanti og support

Mastech products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Mastech website. Do not attempt to repair the meter yourself, as this may void the warranty and pose a safety risk.
