Rabalux Tesia 71041 LED Suspension Light User Manual

1. Introduktion

Thank you for choosing the Rabalux Tesia 71041 LED Suspension Light. This modern ceiling fixture is designed to provide versatile illumination with adjustable color temperature and dimmable features, controlled conveniently by a remote. Please read this manual carefully before installation and use to ensure safe and optimal operation of your new light fixture.

2. Sikkerhedsinstruktioner

• Elektrisk sikkerhed: Always disconnect power at the main circuit breaker before installation, maintenance, or cleaning. Installation should be performed by a qualified electrician to prevent electric shock or fire.
• Håndtering: Håndter lampen forsigtigt. Tab den ikke, og udsæt den ikke for hårde stød.
• Miljø: This product is rated IP20, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. Do not install in damp eller våde steder.
• Ventilation: Ensure adequate air circulation around the fixture. Do not cover the light fixture with any materials.
• Rensning: Brug kun en tør eller let fugtetamp, soft cloth for cleaning. Do not use abrasive cleaners or solvents.

3. Pakkens indhold

Kontroller venligst, at alle komponenter er til stede og ubeskadigede, før du fortsætter installationen:

• Rabalux Tesia LED Suspension Light Fixture (integrated LED plate)
• Fjernbetjening
• Monteringshardware (skruer, ankre osv.)
• Brugervejledning (dette dokument)

4. Opsætning og installation

Vigtig: Installation must be carried out by a qualified electrician and in accordance with local electrical codes.

1. Forbered til installation: Sluk for hovedstrømforsyningen ved afbryderen, før du påbegynder noget elektrisk arbejde.
2. Marker monteringspunkter: Determine the desired location for the light fixture on the ceiling. Use the mounting bracket as a template to mark the drilling points.
3. Bore huller: Bor huller på de markerede punkter, og isæt passende vægankre om nødvendigt.
4. Fastgør monteringsbeslag: Fastgør monteringsbeslaget til loftet med de medfølgende skruer.
5. Ledningsforbindelse: Connect the household electrical wires to the light fixture's wires. Ensure correct polarity (Live to Live, Neutral to Neutral, Ground to Ground). Use appropriate wire connectors.
6. Sikker armatur: Carefully lift the light fixture and attach it to the mounting bracket, ensuring all wires are tucked safely inside the canopy.
7. Juster ophængshøjde: The suspension cables can be adjusted to achieve the desired height (maximum 120 cm). Adjust evenly for a level fixture.
8. Gendan strøm: Når installationen er færdig, og alle forbindelser er sikre, skal strømmen genoprettes ved afbryderen.

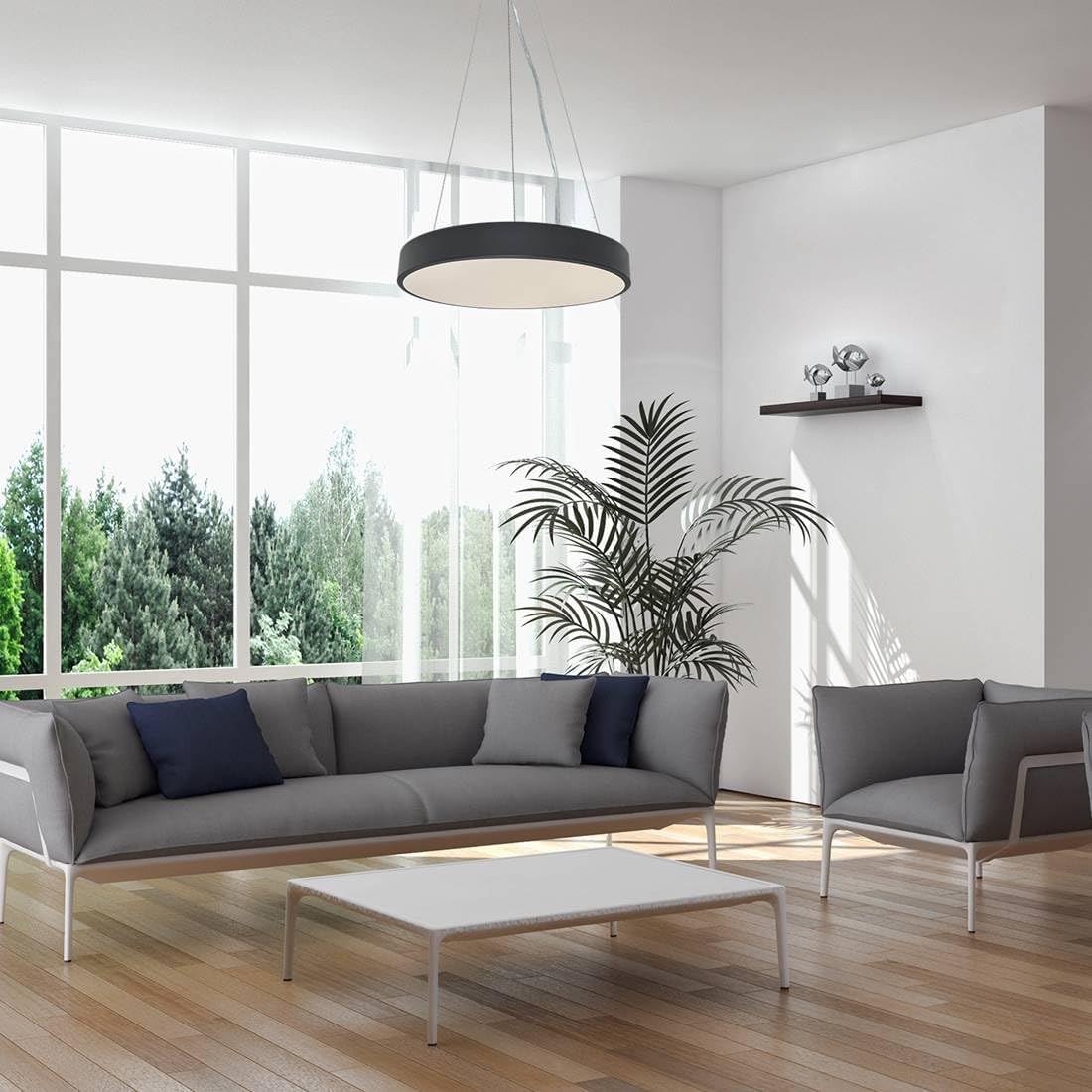

Image 4.1: The Rabalux Tesia LED Suspension Light elegantly installed in a modern living room setting, showcasing its aesthetic appeal and illumination.

Image 4.2: A technical diagram illustrating the dimensions of the Rabalux Tesia LED Suspension Light, with a diameter of 600mm and a maximum height of 1200mm.

5. Betjeningsvejledning

The Rabalux Tesia LED Suspension Light is operated using the included remote control.

Image 5.1: The remote control for the Rabalux Tesia LED Suspension Light, featuring buttons for power, brightness, and color temperature adjustments.

5.1 Fjernbetjeningsfunktioner

• TIL/FRA: Tryk på knappen 'ON' for at tænde lyset, og tryk på knappen 'OFF' for at slukke det.
• Justering af lysstyrke: Use the '+' and '-' buttons (often depicted as sun icons) to increase or decrease the light intensity. The light is fully dimmable.
• Farvetemperaturjustering: Use the 'K+' and 'K-' buttons to adjust the color temperature. You can cycle through warm white (3000K), natural white (4000K), and cool white (6000K). Dedicated buttons for 3000K, 4000K, and 6000K may also be present for direct selection.
• Hukommelsesfunktion: The light typically remembers the last brightness and color temperature setting when turned off and on again.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din lampes levetid og optimale ydeevne.

• Rensning: Sørg for, at strømmen er slukket, inden rengøring. Tør armaturet af med en blød, tør eller let fugtet klud.amp klud. Brug ikke skrappe kemikalier, slibende rengøringsmidler eller spray direkte på armaturet.
• lysdioder: The LED plate is integrated and not user-replaceable. Do not attempt to disassemble the LED module.
• Inspektion: Periodically check the suspension cables and mounting points for any signs of wear or loosening. Tighten screws if necessary, ensuring power is off.

7. Fejlfinding

Hvis du støder på problemer med din lampe, kan du se følgende almindelige problemer og løsninger:

• Lyset tænder ikke:
  • Kontroller om hovedstrømforsyningen er tændt.
  • Ensure the remote control batteries are not depleted. Replace if necessary.
  • Verify that the electrical connections are secure (only if you are a qualified electrician).
• Fjernbetjening virker ikke:
  • Kontrollér og udskift batterierne i fjernbetjeningen.
  • Sørg for, at der ikke er nogen forhindringer mellem fjernbetjeningen og lysarmaturet.
  • Try re-pairing the remote if your model supports it (refer to specific pairing instructions if provided separately).
• Lyset flimrer eller dæmpes uventet:
  • Kontroller for stabil strømforsyning.
  • Ensure the fixture is not overheating due to improper ventilation.
  • If the issue persists, contact a qualified electrician or customer support.

For problems not listed here, please contact Rabalux customer support or your retailer.

8. Specifikationer

9. Garanti og support

For warranty information, please refer to the terms and conditions provided by your retailer or contact Rabalux directly. Information regarding spare parts availability is not provided in this manual. For technical support or further assistance, please contact the point of purchase or Rabalux customer service.
