inphic X9 trådløs vertikal mus brugermanual

1. Introduktion

Thank you for choosing the inphic X9 Wireless Vertical Mouse. This manual provides detailed instructions for the proper setup, operation, and maintenance of your new ergonomic mouse. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.

Image 1.1: The inphic X9 Wireless Vertical Mouse, showcasindens ergonomiske design.

2. Pakkens indhold

Kontroller venligst, at alle varer er til stede i din pakke:

• inphic X9 Wireless Vertical Mouse
• USB Receiver (2.4Ghz)
• USB-C ladekabel
• Brugervejledning (dette dokument)

Image 2.1: The inphic X9 mouse alongside its compact USB receiver.

3. Opsætningsvejledning

1. Oplad musen: Before first use, connect the included USB-C charging cable to the mouse's charging port and to a USB power source (e.g., computer USB port, USB wall adapter). The mouse has a 400mAh rechargeable battery.
2. Indsæt USB-modtager: Locate the USB receiver, typically stored in a compartment on the underside of the mouse. Plug the USB receiver into an available USB port on your computer (Laptop or Personal Computer).
3. Tænd: Turn on the mouse using the power switch located on the underside of the device.
4. Automatisk forbindelse: The mouse should automatically connect to your computer. No additional drivers are typically required for Windows XP, Linux, or other compatible operating systems.

Image 3.1: Illustration of the 2.4G wireless connection process between the mouse, USB receiver, and computer, with a stable 10-meter transmission distance.

Billede 3.2: Detaljeret view of the mouse's underside, indicating the optical light, power switch, anti-slip pads, USB receiver slot, Type-C charging port, side button, and 'Boss-coming Key'.

4. Betjeningsvejledning

4.1 Grundlæggende funktioner

• Venstre klik: Standardvalg og aktivering.
• Højreklik: Åbner kontekstmenuer.
• Scrollhjul: Navigerer lodret gennem dokumenter og web sider.
• Sideknapper: Typically function as Forward/Backward for web gennemsyn.

4.2 Lydløs klikfunktion

The inphic X9 mouse is designed with silent click buttons, reducing noise during use. This feature allows for a focused work environment without disturbing others.

Image 4.1: The inphic X9 mouse highlighting its silent click capability, indicated by a muted speaker icon.

4.3 DPI Adjustment (5 Levels)

The mouse features a DPI switch button, allowing you to adjust cursor sensitivity. There are 5 adjustable DPI levels for precise tracking and responsiveness:

• 800 DPI
• 1200 DPI
• 1600 DPI
• 2000 DPI
• 2400 DPI

Press the DPI button (usually located near the scroll wheel) to cycle through the settings. A red indicator light may flash to confirm the change.

Image 4.2: Diagram illustrating the 5-level DPI switch on the inphic X9 mouse, with a red indicator light showing DPI changes.

4.4 "Return to Desktop" Key

The mouse includes a dedicated "Return to Desktop" key, often referred to as a "Boss-coming Key". Pressing this button instantly minimizes all open windows and displays your desktop, enhancing privacy and efficiency.

Image 4.3: The inphic X9 mouse highlighting the "Boss-coming Key" which provides a one-click return to the desktop function.

5. Ergonomisk design

The inphic X9 features an ergonomic vertical design, angled at 57 degrees, to promote a natural hand and wrist posture. This design aims to reduce wrist strain and discomfort often associated with traditional mouse usage, helping to prevent "mouse hand" syndrome.

Image 5.1: Illustration demonstrating the 57-degree ergonomic angle of the inphic X9 mouse, designed to maintain a natural wrist posture and alleviate discomfort.

Image 5.2: A diagram illustrating the difference between a natural, untwisted wrist posture promoted by the vertical mouse and a twisted wrist posture from a traditional mouse.

6. Vedligeholdelse

• Rensning: Brug en blød, tør klud til at rengøre musen. Undgå at bruge skrappe kemikalier eller slibende materialer.
• Opbevaring: Opbevar musen et køligt og tørt sted, når den ikke er i brug.
• Batteripleje: To prolong battery life, avoid fully discharging the mouse frequently. Recharge when the battery indicator suggests low power.

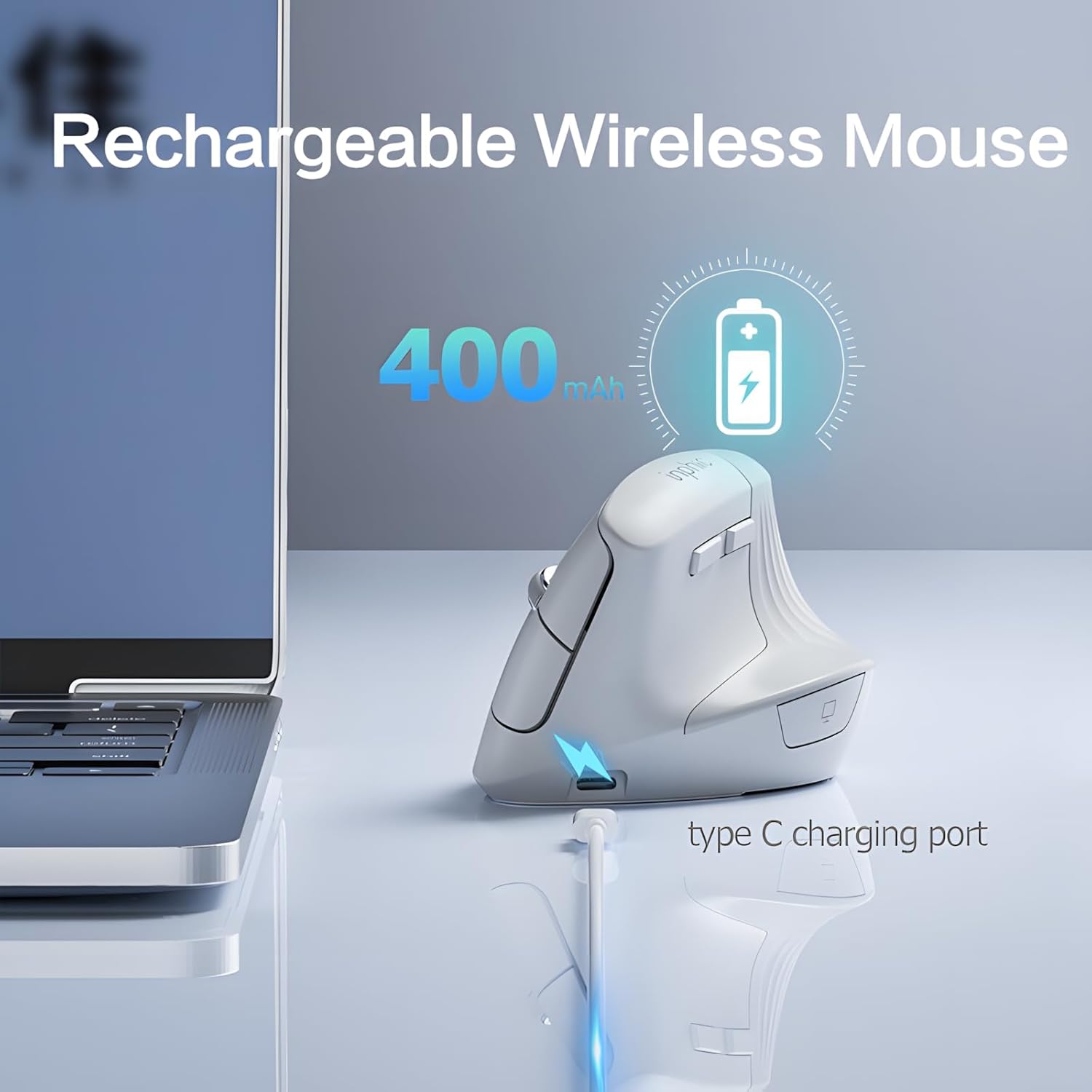

Image 6.1: The inphic X9 mouse connected to a Type-C charging cable, illustrating its rechargeable feature with a 400mAh battery.

7. Fejlfinding

Musen svarer ikke:

- Ensure the USB receiver is securely plugged into a working USB port.

- Check if the mouse is powered on using the switch on the underside.

- Recharge the mouse if the battery is low.

- Try plugging the USB receiver into a different USB port.

- Genstart din computer.

Markørbevægelsen er uregelmæssig eller langsom:

- Clean the optical sensor on the underside of the mouse.

- Sørg for at bruge musen på en passende overflade (ikke-reflekterende, ikke-transparent).

- Adjust the DPI setting to a higher level if the cursor is too slow (refer to Section 4.3).

Forbindelsesproblemer:

- Ensure the mouse is within the 10-meter operating range of the USB receiver.

- Avoid placing the receiver near strong interference sources (e.g., other wireless devices, large metal objects).

8. Specifikationer

9. Garanti og support

inphic products are manufactured with quality and reliability in mind. For warranty information and technical support, please refer to the official inphic webwebstedet eller kontakt din lokale forhandler. Gem din købskvittering til garantikrav.

For yderligere hjælp kan du besøge inphic Store on Amazon.
