1. Produktet er slutview
The AUTOOL OD720 is a versatile pneumatic oil drainer and extractor designed for efficient management of waste oil. It combines four key operations: extracting waste oil, draining waste oil, recycling waste oil, and discharging waste oil from the steel tank. This unit is ideal for automotive workshops and maintenance facilities, offering a robust solution for handling various corrosive oil types including engine oil, transmission oil, and coolant.
Image 1.1: The AUTOOL OD720 Self-Evacuating Portable Oil Drainer.

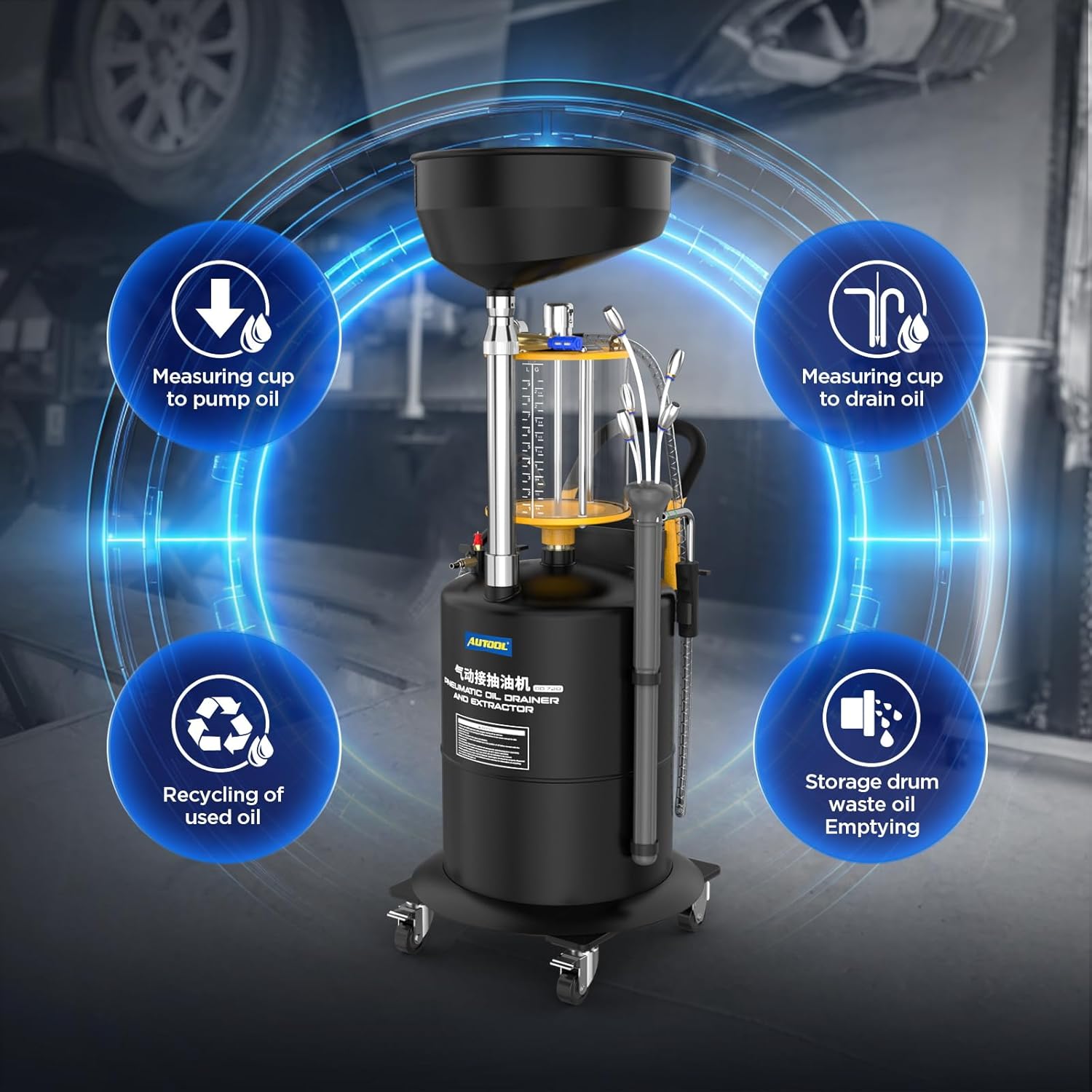

Billede 1.2: Overview of the four primary functions of the OD720 unit.
2. Sikkerhedsoplysninger
Always adhere to the following safety guidelines when operating the AUTOOL OD720:
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling waste oil.
- Ensure the unit is placed on a stable, level surface before operation.
- Do not exceed the maximum working oil temperature of 60°C (140°F) for the transparent measuring bowl.
- Maintain the air supply pressure within the specified range of 6-8 bar.
- Never leave the unit unattended during operation.
- Dispose of waste oil according to local environmental regulations.
- Keep children and unauthorized personnel away from the equipment during use.
- Regularly inspect hoses, connections, and valves for wear or damage. Do not operate with damaged components.
3. Komponenter og funktioner
The AUTOOL OD720 is engineered with several key components and features to ensure efficient and safe operation:
- 18.5-Gallon (70L) Heavy-Duty Steel Tank: Constructed with 1.5mm thickened material to prevent oil and air leakage, capable of servicing 10 to 20 vehicles without emptying.
- 2-Gallon (10L) Transparent Graduated Measuring Bowl: Allows visual inspection of oil quantity and quality before draining into the main tank. Heat-resistant up to 140°F (60°C), with high strength and transparency.
- 16-inch Diameter Funnel: Designed to prevent waste oil spills during gravity draining.
- 5-Foot Suction Hose: Capable of withstanding high temperatures for effective liquid pumping.
- Five Evacuation Wands: Made from corrosion-resistant copper and PVC, available in various sizes and extraction speeds to suit different vehicle types.
- Justerbar højde: The unit's height can be adjusted from 52 inches (1.32m) to 59 inches (1.5m) for draining fluids from vehicles on lifts.
- Oil Level Observation Window: Used to monitor the recovery of waste oil and determine when to discharge the waste oil from the tank.
- 360° Swivel Casters: Equipped with locking devices for maximum mobility and stability.
- Molded-in Tool Tray: Conveniently stores common oil change tools.
Image 3.1: Detailed diagram of AUTOOL OD720 components.
Image 3.2: Capacities and material resistances of the OD720.
Image 3.3: The five different evacuation wands included with the unit.
4. Opsætning og montering
Follow these steps to assemble and prepare your AUTOOL OD720 for use:
- Attach the Measuring Cup Assembly: Rotate the measuring cup assembly clockwise to securely fasten it onto the positioning seat of the oil storage tank. Ensure it is firmly seated.
Image 4.1: Securing the measuring cup assembly.
- Fix the Lifting Rod and Oil Pan Funnel: Rotate the lifting rod and oil pan funnel in a clockwise direction to fix them securely in place.
Image 4.2: Fixing the lifting rod and funnel.
- Ensure Vertical Position: After installation, confirm that the lifting pole is in a vertical position relative to the equipment.
Image 4.3: Verifying the vertical alignment of the lifting pole.
- Adjust Lifting Rod Height: Adjust the lifting rod device by turning it counter-clockwise to raise the height of the lifting rod oil pan funnel. Turn it clockwise to lower and tighten.
Image 4.4: Adjusting the height of the lifting rod.
5. Betjening
The AUTOOL OD720 supports four primary waste oil management functions:
5.1. Waste Oil Extraction (Vacuum Extraction)
This method uses compressed air to create a vacuum, extracting oil through a wand inserted into the engine's oil inlet. This process can complete oil extraction in approximately 3 minutes.
Video 5.1: Demonstration of AUTOOL Fluid Evacuator & Fluid Drainer Vacuum Extraction.
This video illustrates the process of extracting waste oil using the vacuum system, including selecting the appropriate wand, inserting it into the oil inlet, connecting the air supply, checking the pressure gauge, attaching the wand to the extraction hose, turning on the extraction valve, and starting the extraction process. It also shows the oil draining from the measuring cup into the tank.
- Prepare the Measuring Cup: Adjust the measuring cup press valve to the center slot position (valve closed).
- Connect Extraction Wand: Close the suction hose valve and connect an appropriate extraction wand to the suction hose.
- Tilslut luftkilde: Connect the air source to the vacuum inlet and open the air source valve.
- Set Negative Pressure: Turn the negative pressure gauge needle to the rated negative pressure of 50-65cmHg.
- Begin Extraction: Insert the wand into the engine compartment's oil inlet and open the valve of the suction hose to begin extracting the waste oil.
Image 5.1.1: Steps for Waste Oil Extraction.
5.2. Waste Oil Draining (from Measuring Cup to Tank)
Once the transparent measuring bowl is filled, the collected oil can be transferred to the main storage tank.
- Overvåg olieniveau: When the level of the measuring bowl reaches the warning line, it's time to empty the measuring bowl of waste oil.
- Aftapningsolie: Press and rotate the measuring bowl push valve to the top left or right slot position (open). The waste oil in the measuring bowl will automatically flow into the steel tank.
Image 5.2.1: Steps for Waste Oil Draining from Measuring Cup.
5.3. Waste Oil Recycling (Gravity Draining)
This method involves gravity draining oil directly from the vehicle's oil pan into the unit's funnel.
- Løftekøretøj: Lift the vehicle using a suitable lifting device.
- Position Equipment: In a safe workplace, move the equipment under the engine of the vehicle with the funnel aligned with the engine oil drain hole. Adjust the height of the funnel as needed.
- Unscrew Drain Plug: Unscrew the oil drain plug of the vehicle engine.
- Discharge Oil: The waste oil will be discharged through the funnel into the steel tank.
Image 5.3.1: Steps for Waste Oil Recycling.
5.4. Emptying the Waste Oil Storage Tank
When the main 18.5-gallon tank is full, it needs to be emptied for continued use.
- Luk ventiler: Close the measuring bowl press valve, the suction hose valve, and the tank air inlet valve.
- Connect Air Source to Tank: Connect the air source to the tank inlet valve.
- Pressurize Tank: Open the tank inlet valve to pressurize the body. The check valve will automatically close when a certain pressure is reached. If the air pressure in the tank exceeds 1.0 bar, the safety valve will automatically release the pressure.
- Aftapningsolie: After approximately 5 seconds, slowly open the drain valve to drain the oil into a suitable container.
Image 5.4.1: Steps for Emptying the Waste Oil Storage Tank.
6. Vedligeholdelse
Regular maintenance ensures the longevity and optimal performance of your AUTOOL OD720:
- Rensning: Regularly clean the exterior of the unit and the funnel to prevent buildup of oil and debris. Use a mild detergent and water, then dry thoroughly.
- Hose and Wand Inspection: Periodically inspect all hoses and evacuation wands for cracks, kinks, or blockages. Replace any damaged components immediately.
- Seal and Connection Check: Ensure all connections and seals are tight to prevent air or oil leaks.
- Vedligeholdelse af hjul: Keep the swivel casters clean and free of debris to ensure smooth mobility. Check the locking mechanisms for proper function.
- Opbevaring: Opbevar enheden et rent og tørt sted, når den ikke er i brug.
7. Fejlfinding
If you encounter issues with your AUTOOL OD720, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No vacuum or weak vacuum during extraction. | Insufficient air supply pressure; Air leaks in connections or hoses; Clogged venturi pump. | Check air compressor and ensure 6-8 bar pressure; Inspect all connections and tighten; Clean or replace venturi pump. |
| Slow oil extraction. | Incorrect evacuation wand size; Oil too cold/viscous; Partial blockage in wand or hose. | Use a larger diameter wand; Allow engine oil to warm up (40-60°C); Clear any blockages. |
| Oil not draining from measuring cup to tank. | Measuring bowl push valve is closed or not fully open. | Ensure the push valve is rotated to the open position (top left or right slot). |
| Vanskeligheder med at flytte enheden. | Casters are locked; Debris caught in casters. | Unlock the casters; Clean any debris from the wheels. |
8. Specifikationer
Detailed technical specifications for the AUTOOL OD720:
| Parameter | Værdi |
|---|---|
| Model | OD720 |
| Lufttilførselstryk | 6-8 bar |
| Olieudløbstryk | 0.6-0.8 bar |
| Luftforbrug | 150 L / min |
| Vakuum niveau | 0-65 cmHg |
| Tank kapacitet | 70 L (18.5 gal) |
| Målebægerkapacitet | 10 L (2.6 gal) |
| Olieopsamlingsbakkekapacitet | 20 L (5.3 gal) |
| Arbejdsolietemperatur | 40-60°C (104-140°F) |
| Evacuation Wands Quantity | 5 STK |
| Justerbart højdeområde | 52" (1.32m) to 59" (1.5m) |
| Emballeringsmål | 53 x 53 x 100 cm |
Billede 8.1: Produktspecifikationer ovenforview.
9. Garanti og support
AUTOOL tilbyder en Tre års garanti for the OD720. In case of any defects or quality problems, AUTOOL will provide a new replacement or suitable solutions to ensure customer satisfaction without delay. Additionally, lifetime technical support is offered for this product. For any assistance or inquiries, please contact AUTOOL customer support, and they will respond within 24 hours.
