Indledning
Thank you for choosing the YITAHOME Foldable Hand Truck Trolley. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new hand truck. Please read this manual thoroughly before use and retain it for future reference.
This heavy-duty hand truck is designed for transporting various items, featuring a foldable design for easy storage and large industrial wheels for smooth movement across different terrains. It has a maximum load capacity of 150 kg (330.7 lbs).
Sikkerhedsoplysninger
Always prioritize safety when operating the hand truck. Failure to follow these instructions may result in injury or damage to the product.
- Belastningskapacitet: Do not exceed the maximum load capacity of 150 kg (330.7 lbs). Overloading can cause instability and damage.
- Sikre læs: Always secure items on the platform using the provided elastic ropes or other appropriate restraints to prevent shifting or falling during transport.
- Korrekt løft: Use proper lifting techniques when placing or removing heavy items from the hand truck to avoid personal injury.
- Ujævne overflader: Exercise caution when moving the hand truck over uneven terrain, ramps, or stairs. Maintain a firm grip on the handles.
- Ryd sti: Ensure your path is clear of obstacles before moving the hand truck.
- Børn og kæledyr: Keep children and pets away from the hand truck during operation.
- Inspektion: Before each use, inspect the hand truck for any signs of damage, loose parts, or worn wheels. Do not use if damaged.
Opsætning og montering
The YITAHOME Foldable Hand Truck Trolley comes largely pre-assembled. Follow these steps for final setup:
- Pakker ud: Fjern forsigtigt alle komponenter fra emballagen.
- Fold rammen ud: Gently pull the handle upwards to extend the main frame. Ensure all locking mechanisms (if any) click into place.
- Extend the Loading Plate: Fold down the anti-slip loading plate until it is fully extended and locked into position.
- Juster håndtagshøjde: Press the yellow buttons on the side of the handle frame and slide the handle to your desired height. Release the buttons to lock the handle in place.
- Attach Elastic Ropes: The two included elastic ropes can be attached to the frame for securing cargo.

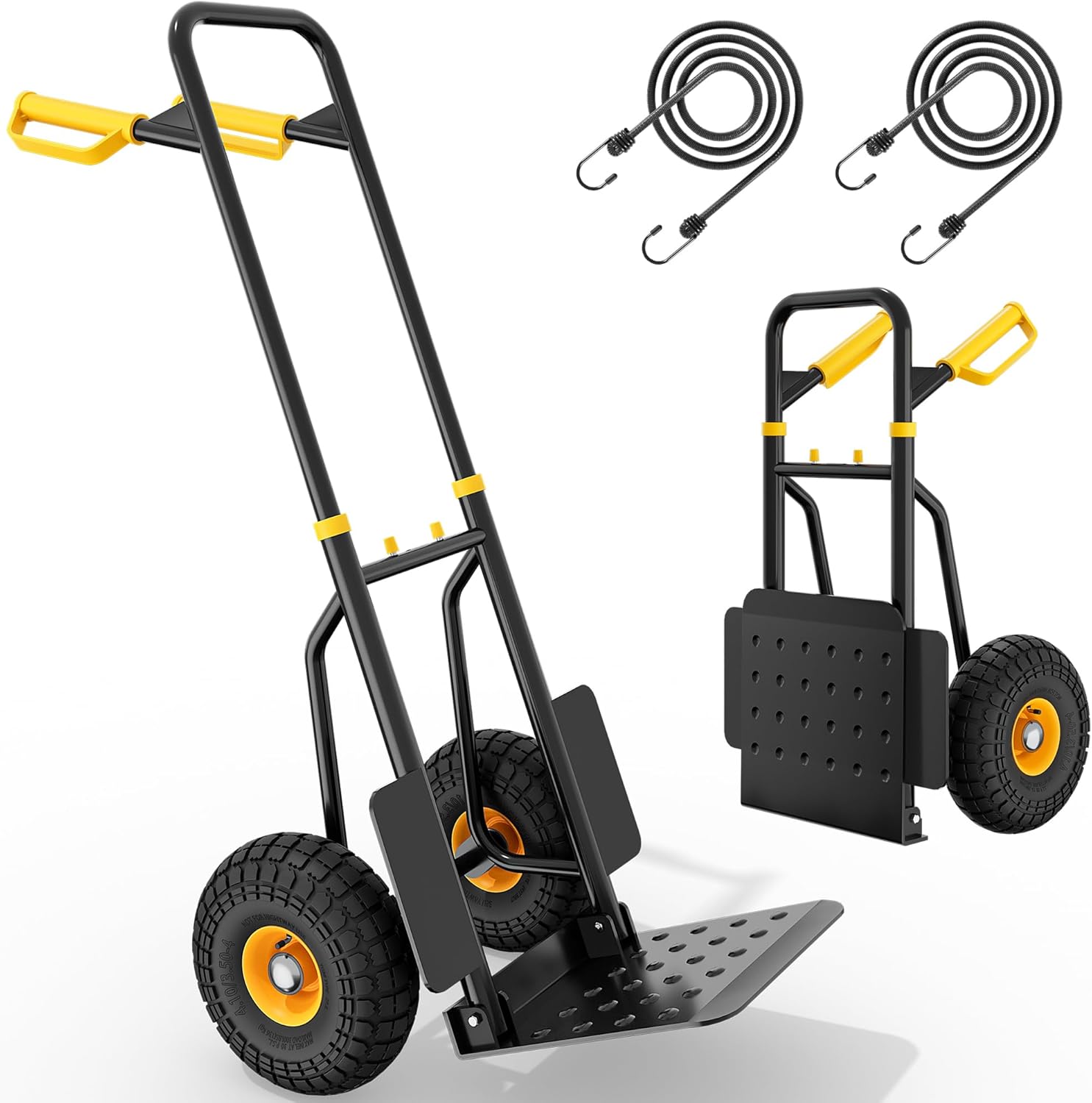

Image 1: The YITAHOME Foldable Hand Truck Trolley in its fully assembled state, shown with the two included elastic ropes.
Image 2: Illustration of the folding mechanism. Press the yellow buttons to adjust the handle height or fold the hand truck for storage.
Betjeningsvejledning
Follow these steps for effective and safe operation of your hand truck:
- Forbered sækkevognen: Ensure the loading plate is fully extended and the handle is adjusted to a comfortable height.
- Indlæs varer: Place items onto the anti-slip loading platform. For optimal stability, position heavier items at the bottom and closer to the frame.
- Sikker last: Use the provided elastic ropes to firmly secure your cargo to the hand truck frame. This prevents items from shifting or falling during transport. The side support plates also aid in load stability.
- Transport:
- Grip the non-slip handles firmly.
- Tilt the hand truck backward slightly to balance the load on the wheels.
- Push or pull the hand truck smoothly. The large rubber wheels are designed for various terrains including lawn, dirt roads, asphalt, and cobbled roads.
- aflæsning: Once at your destination, carefully tilt the hand truck forward to rest the loading plate on the ground. Unsecure the cargo and remove items one by one.
- Sammenfoldning til opbevaring: To fold the hand truck, press the yellow buttons on the handle to retract it. Then, fold the loading plate upwards. The compact design allows for space-saving storage.
Image 3: A person demonstrating the use of the hand truck to transport boxes.
Image 4: Detail of the 25cm diameter wheel and its suitability for various terrains including lawn, dirt road, asphalt road, and cobbled road.
Image 5: Key features including the non-slip handle, reinforced support bar, side support panels, and the enlarged anti-slip loading plate.
Image 6: The hand truck in use, demonstrating its utility for transporting items in environments such as warehouses.
Opretholdelse
Regular maintenance ensures the longevity and safe operation of your YITAHOME Hand Truck:
- Rensning: Tør stellet og hjulene af med en kludamp klud til at fjerne snavs og snavs. Undgå skrappe kemikalier.
- Hjulinspektion: Periodically check the wheels for wear, damage, or proper inflation (if pneumatic). Ensure they spin freely.
- Fastgørelsesmidler: Check all bolts and fasteners regularly to ensure they are tight. Tighten any loose connections.
- Opbevaring: Store the hand truck in a dry, protected area when not in use. Its foldable design makes it easy to store in compact spaces.
Fejlfinding
Her er nogle almindelige problemer og deres løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Hand truck is difficult to move. | Overloaded; wheels are dirty or damaged; low tire pressure (if pneumatic). | Reduce load; clean wheels; check and inflate tires to recommended pressure; inspect for damage. |
| Cargo shifts or falls during transport. | Cargo not properly secured; uneven load distribution; exceeding load capacity. | Always use elastic ropes to secure cargo; distribute weight evenly; do not exceed 150 kg capacity. |
| Handle does not lock in place. | Buttons not fully released; obstruction in the locking mechanism. | Ensure buttons are fully released after adjusting; check for debris. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | YITAHOME |
| Modelnummer | IMISMH-0009-E |
| Materiale | Legeret stål, gummi, plastik |
| Farve | Orange (Accents) |
| Varens vægt | 12.1 kilo (26.6 pund) |
| Produktdimensioner (udvidet) | 52 cm L x 48 cm B x 110 cm H (20.4 cm L x 18.9 cm B x 43.3 cm H) |
| Produktdimensioner (foldet) | 18.9"B x 11.4"D x 29.1"H (48 cm B x 29 cm D x 74 cm H) |
| Hjultype | Pneumatic (Rubber) |
| Hjul diameter | 9.8" (25 cm) |
| Hjulbredde | 3.5" (8.5 cm) |
| Belastningskapacitet | 150 kilo (330.7 lbs) |
| Antal hjul | 2 (Main industrial wheels) |
| Inkluderet tilbehør | 2x Elastic Ropes |
| UPC | 197839811584 |
Image 7: Detailed dimensions of the hand truck in both its folded and extended configurations.
Garanti og support
YITAHOME products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official YITAHOME webwebsted.
If you encounter any issues or have questions regarding your YITAHOME Foldable Hand Truck Trolley, please contact YITAHOME customer support. Contact details can typically be found on the product packaging or the official brand webwebsted.
Online support: Besøg YITAHOME-butikken på Amazon
