Indledning
The FREEWOLF M96 Wireless Gaming Keyboard is designed for versatile use, offering both Bluetooth and 2.4G wireless connectivity. It features a mechanical feel, RGB LED backlighting, a digital display screen, and durable PBT keycaps. This manual provides detailed instructions to help you set up, operate, and maintain your keyboard for optimal performance.
Produkt overview
The FREEWOLF M96 keyboard combines advanced features with a user-friendly design. Key components include:
- Dobbelt tilslutning: Supports Bluetooth (BT1, BT2) and 2.4G wireless modes for seamless switching between multiple devices.
- Digital skærm: Provides real-time information on battery capacity, connection mode, and charging status.
- Multimedia Control Knob: Allows for easy adjustment of volume and backlight settings.
- PBT-taster: Durable, spherical keycaps designed for comfortable typing and longevity.
- RGB LED-baggrundsbelysning: Customizable lighting effects to enhance your gaming or typing experience.
- Langtidsholdbart batteri: Equipped with a 3000 mAh battery for extended use.
- Ergonomisk design: Features adjustable feet for optimal typing comfort.
Billede: Overview of the FREEWOLF M96 Wireless Keyboard, highlighting its 90% US layout, PBT keycaps, Bluetooth/2.4G connectivity, LED backlight, 3000 mAh battery, multimedia knob, LED screen, and compatibility with Win/Mac/Linux/iOS/Android systems.
Billede: Nærbillede view of the PBT color blocking keycaps, emphasizing their durability and longer lifespan.
Opsætning
1. Opladning af tastaturet
Before first use, it is recommended to fully charge the keyboard. Connect the provided USB-C cable to the charging port on the keyboard and the other end to a USB power source (e.g., computer USB port, wall adapter).
- The digital display screen will indicate the charging status.
- En fuld opladning tager typisk flere timer.
Billede: Side view of the keyboard illustrating the power switch, Type-C charging port, and the 2.4G/BT1/BT2 mode switch. The Type-C port is for charging only and cannot be used for wired connection.
2. Connecting via 2.4G Wireless
- Locate the 2.4G wireless receiver (USB dongle), usually stored in a compartment on the keyboard's underside.
- Sæt 2.4G-modtageren i en ledig USB-port på din computer.
- Slide the mode switch on the keyboard to the "2.4G" position.
- The keyboard should automatically connect to your device. The display screen will show the 2.4G connection status.
3. Tilslutning via Bluetooth
The keyboard supports two Bluetooth channels (BT1 and BT2) for connecting to multiple devices.
- Slide the mode switch on the keyboard to either "BT1" or "BT2" position.
- Aktiver Bluetooth på din enhed (computer, tablet, smartphone) og søg efter nye enheder.
- Select "FREEWOLF M96" (or similar name) from the list of available devices.
- If prompted, enter the pairing code displayed on your device.
- Once connected, the digital display screen will show the active Bluetooth channel (BT1 or BT2).
To switch between connected Bluetooth devices, simply slide the mode switch to the desired BT1 or BT2 channel.
Video: Demonstrates the dual-mode connectivity of the FREEWOLF M96 Wireless Gaming Keyboard, showing how to switch between 2.4G wireless and Bluetooth connections (BT1, BT2) for seamless multi-device operation.
Betjeningsvejledning
1. Digital skærm
The integrated electronic display provides essential information at a glance:
- Batterikapacitet: Viser den aktuelle batteriprocenttage.
- Tilslutningstilstand: Indicates whether the keyboard is in 2.4G, BT1, or BT2 mode.
- Opladningsstatus: Displays an icon when the keyboard is charging.
- Indikator for lavt batteri: Alerts you when the battery is low.
Billede: Detaljeret view of the digital display screen on the FREEWOLF M96 keyboard, showing indicators for power display, connection status (2.4G, BT1, BT2), charging, and low battery.
2. Multimedia Control Knob
The knob located on the top right of the keyboard offers dual functionality:
- Default Function (Volume Control):
- Drej med uret for at øge lydstyrken.
- Drej mod uret for at sænke lydstyrken.
- Tryk på knappen for at slå lyden til/fra.
- Baggrundslys kontrol:
- Press and hold the knob for five seconds to switch to backlight control mode.
- In backlight control mode:
- Rotate clockwise to increase backlight brightness.
- Rotate counter-clockwise to decrease backlight brightness.
- Press the knob to switch between different backlight effects/modes.
Image: Illustration of the advanced dial control, detailing its default functions for volume (volume up, volume down, mute) and its backlight control functions (backlight brightness up, backlight brightness down, light effect switching) when pressed and held for 5 seconds.
3. Backlight Control (Function Keys)
In addition to the knob, you can control the backlight using function key combinations:
- FN + N: Skift baggrundslystilstand
- FN + Up Arrow / Down Arrow: Juster baggrundsbelysningens lysstyrke
- FN + Left Arrow / Right Arrow: Juster baggrundsbelysningens hastighed

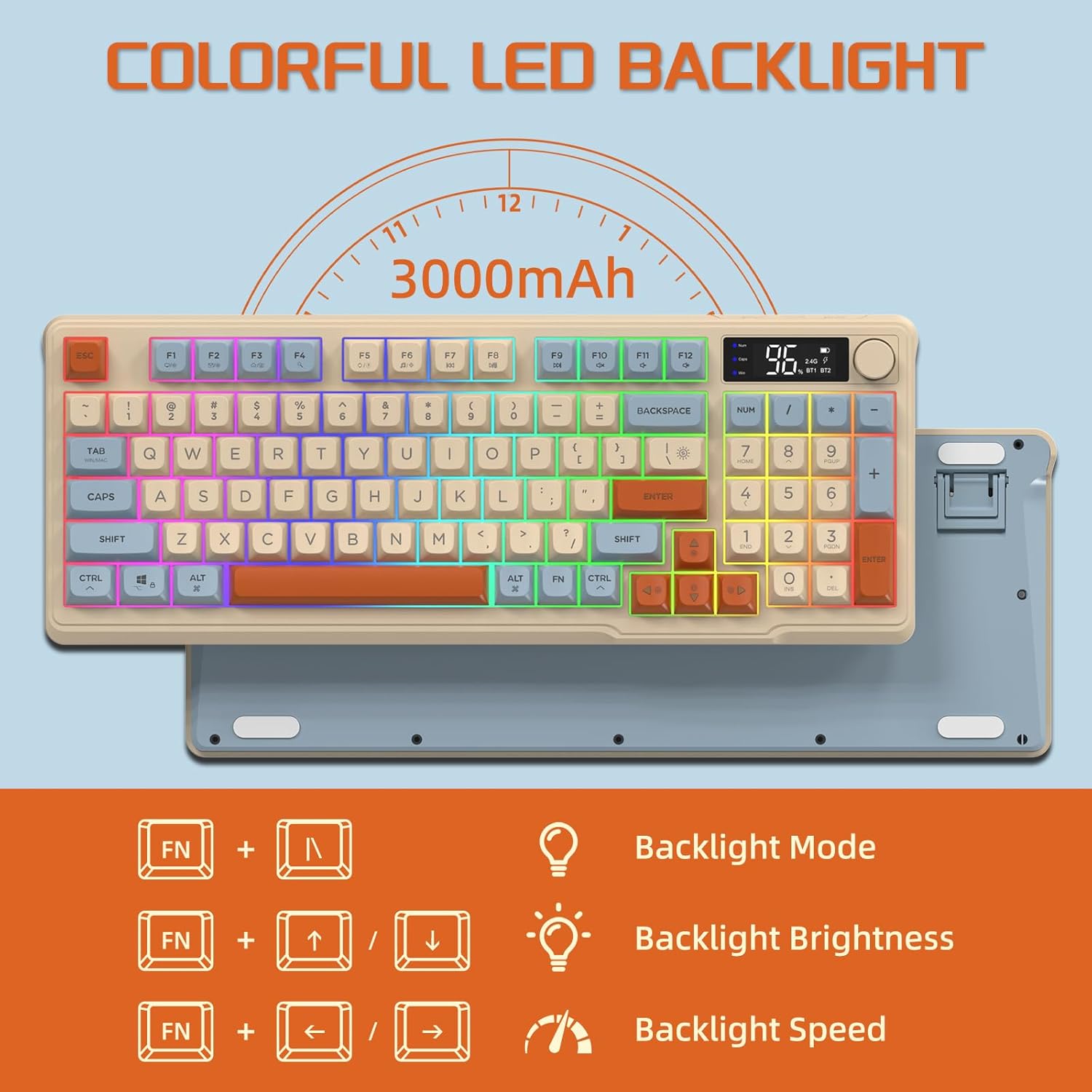

Image: The keyboard displaying the key combinations for controlling the colorful LED backlight, including changing backlight mode, brightness, and speed using the FN key with N, arrow keys.
4. Strømbesparende tilstande
The keyboard is designed with power-saving features to extend battery life:
- Sleep Mode (3 minutes inactivity): After 3 minutes of inactivity, the keyboard enters sleep mode, and the backlight turns off.
- Deep Sleep Mode (10 minutes inactivity): After 10 minutes in sleep mode, the keyboard enters deep sleep. The first key press will be ignored to wake the keyboard, and the second key press will activate it.
5. Kompatibilitet
The FREEWOLF M96 keyboard is compatible with a wide range of operating systems, including Windows, Mac, and Linux, ensuring broad usability.
Opretholdelse
1. Rensning
- Sluk tastaturet før rengøring.
- Brug en blød, fnugfri klud lidt dampskylles med vand eller en mild rengøringsopløsning til at tørre overfladen af.
- For cleaning between keycaps, use compressed air or a small brush.
- Undgå at bruge skrappe kemikalier eller slibende materialer.
2. Batteripleje
- Undgå at aflade batteriet helt ofte.
- Opbevar tastaturet et køligt og tørt sted, når det ikke er i brug i længere perioder.
- Use only the provided charging cable or a compatible USB-C cable.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Tastaturet svarer ikke. | Low battery; incorrect connection mode; receiver not plugged in (2.4G); Bluetooth not paired. | Charge the keyboard; switch to correct mode (2.4G/BT1/BT2); ensure 2.4G receiver is connected; re-pair Bluetooth. |
| Baggrundsbelysningen virker ikke. | Backlight turned off; low battery; brightness set to minimum. | Check backlight settings using the knob or FN key combinations; charge the keyboard. |
| Keys not registering or ghosting. | Software conflict; low battery; interference. | Restart your device; charge the keyboard; move closer to the receiver/device; check for driver updates. |
| Bluetooth-forbindelsen er ustabil. | Interference; distance from device; low battery. | Reduce interference (other wireless devices); move keyboard closer to device; charge keyboard. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | FRIULV |
| Modelnummer | M96 |
| Forbindelsesteknologi | Bluetooth, 2.4G trådløs |
| Tastaturbeskrivelse | Mechanical feel with PBT keycaps |
| Antal nøgler | 94 keys (US Layout) |
| Baggrundsbelysning | RGB LED baggrundslys |
| Batterikapacitet | 3000 mAh |
| Særlige funktioner | Electronic display, multimedia control knob, power saving modes |
| Kompatible enheder | PC (Windows, Mac, Linux), iOS, Android |
| Farve | Blueberry (Myrtille) |
| Produktdimensioner | 385mm (15.16 inch) x 145mm (5.71 inch) x 40mm (1.57 inch) |
Image: Diagram illustrating the product dimensions of the FREEWOLF M96 keyboard: 385mm (15.16 inches) length, 145mm (5.71 inches) width, and 40mm (1.57 inches) height.
Garanti og support
This FREEWOLF M96 Wireless Gaming Keyboard comes with a standard manufacturer's warranty. Please refer to the product packaging or the seller's information for specific warranty terms and conditions. For technical support or further assistance, please contact the retailer or manufacturer directly.
For the latest information and support, visit the official FREEWOLF webwebsted eller kontakt deres kundeservice.
