Laresar Elite 5 Trådløs Støvsuger Brugervejledning

1. Vigtige sikkerhedsinstruktioner

Please read all instructions carefully before using the Laresar Elite 5 Cordless Vacuum Cleaner. Retain this manual for future reference.

• Dette apparat er kun til husholdningsbrug. Må ikke anvendes udendørs eller på våde overflader.
• Lad ikke børn bruge støvsugeren. Nøje opsyn er nødvendigt, når den bruges i nærheden af ​​børn.
• Saml ikke brændbare eller brændbare væsker, såsom benzin, og brug ikke i områder, hvor de kan være til stede.
• Tag ikke noget op, der brænder eller ryger, såsom cigaretter, tændstikker eller varm aske.
• Må ikke bruges uden støvskål og/eller filtre på plads.
• Turn off the appliance before connecting or disconnecting the motorized brush, extension wand, or other accessories.
• Brug kun den oplader, der er leveret af producenten, til at genoplade.
• Hvis opladningskablet er beskadiget, skal det udskiftes af producenten, dennes servicerepræsentant eller lignende kvalificerede personer for at undgå fare.
• Store the vacuum cleaner indoors in a dry place.

2. Produktet er slutview og pakkeindhold

Familiarize yourself with the components of your Laresar Elite 5 Cordless Vacuum Cleaner.

Figur 2.1: All components of the Laresar Elite 5 Cordless Vacuum Cleaner, including the main unit, extension wand, floor brush, various nozzles, wall mount, charger, and user manual.

Pakkeindhold:

• Main Vacuum Unit (with dust cup and battery)
• Forlængerstav
• Motoriseret gulvbørste
• Sprækkeværktøj
• 2-i-1 børsteværktøj
• Vægmonteringsbeslag
• Strømadapter/oplader
• Brugermanual
• Additional Filter (HEPA)

Nøglefunktioner:

• 400W børsteløs motor: Provides strong suction power up to 33Kpa with a quiet operation (58dB).
• LareSmart Dust Sensing: Justerer automatisk sugekraften baseret på registrerede støvniveauer.
• Lang løbetid: Up to 55 minutes in automatic mode, powered by a 7 x 2500 mAh lithium-ion battery.
• 7-Stage Filtreringssystem: Advanced filtration to capture fine dust and allergens.
• Anti-Tangle Floor Brush: Designed to prevent hair from tangling around the brush roll.
• LED display: Provides real-time information on battery level and suction mode.

3. Opsætning og montering

3.1 Montering

1. Fastgør forlængerstangen: Sæt forlængerskaftet ind i hovedstøvsugerenheden, indtil det klikker sikkert på plads.
2. Fastgør gulvbørsten: Connect the motorized floor brush to the other end of the extension wand until it clicks. Alternatively, attach other accessories (crevice tool, 2-in-1 brush) directly to the main unit or extension wand as needed.

Figur 3.1: The Laresar Elite 5 assembled in full stick mode, and as a handheld unit with different attachments.

3.2 Opladning af batteriet

Before first use, fully charge the vacuum cleaner for approximately 4 hours.

1. Connect the power adapter to the charging port on the main vacuum unit.
2. Sæt adapteren i en stikkontakt.
3. The LED display will indicate the charging status. A full battery icon signifies a complete charge.

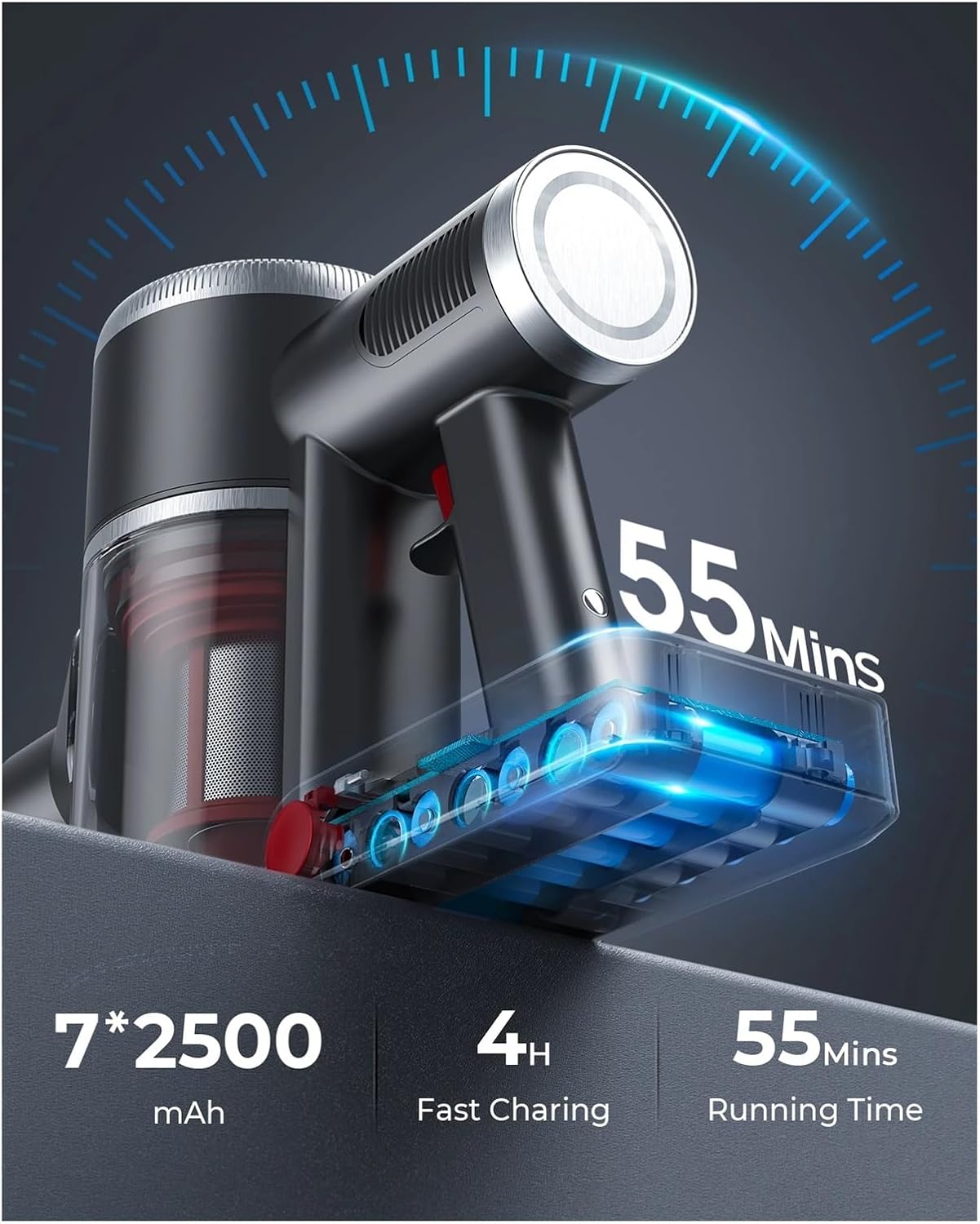

Figur 3.2: Illustration of the 7*2500 mAh battery, indicating 4 hours for fast charging and up to 55 minutes running time.

The battery can be charged while attached to the main unit or separately if removed.

4. Betjeningsvejledning

4.1 Tænd/sluk og sugefunktioner

1. Tænd: Press the power button on the main unit to start the vacuum cleaner. It will typically start in automatic mode.
2. Skift sugetilstand: Press the mode button to cycle through the available suction modes: Low (8Kpa), Medium (15Kpa), High (33Kpa), and Auto (LareSmart Dust Sensing).
3. Sluk: Tryk på tænd/sluk-knappen igen for at slukke for støvsugeren.

Figur 4.1: The all-in-one LED display showing battery level and current suction mode (Auto, Min, Max).

4.2 LareSmart Dust Sensing

In Auto mode, the LareSmart dust detection chip automatically adjusts the suction power based on the amount of debris detected, optimizing cleaning efficiency and battery life.

Figur 4.2: The vacuum cleaner actively sensing dust and adjusting suction power (e.g., 15Kpa, 28Kpa) on a carpeted surface.

4.3 Brug af vedhæftede filer

• Motoriseret gulvbørste: Ideal for cleaning carpets and hard floors. Its V-shaped bristles and independent motor effectively pick up debris and prevent hair tangles.


Figur 4.3: The motorized floor brush effectively cleaning dust and debris from a corner on a carpet.

• Sprækkeværktøj: Use for narrow gaps, corners, and hard-to-reach areas.
• 2-i-1 penselværktøj: Suitable for cleaning upholstery, curtains, keyboards, and delicate surfaces.

5. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid.

5.1 Tømning af støvbeholderen

Tøm støvbeholderen efter hver brug, eller når MAX-påfyldningslinjen er nået.

1. Sørg for, at støvsugeren er slukket.
2. Locate the dust cup release button and press it to detach the dust cup from the main unit.
3. Hold the dust cup over a trash bin and press the bottom release latch to open the lid and empty the contents.
4. Luk låget, og sæt støvbeholderen på hovedenheden igen, indtil den klikker.

5.2 Rengøring af filtrene

The Laresar Elite 5 features a 7-stage filtration system. Clean the filters regularly to maintain suction power.

1. Fjern støvbeholderen som beskrevet ovenfor.
2. Twist and pull out the filter assembly from inside the dust cup.
3. Separate the individual filter components (e.g., mesh filter, HEPA filter).
4. Tap off loose dirt. Rinse washable filters under cold running water until the water runs clear. Do not use detergent.
5. Allow all filter components to air dry completely for at least 24 hours before reassembling and placing them back into the vacuum. Ensure they are completely dry to prevent mold or damage.

5.3 Rengøring af børstevalsen

The anti-tangle design minimizes hair wrapping, but occasional cleaning may still be necessary.

1. Turn off the vacuum cleaner and detach the motorized floor brush.
2. Locate the brush roll release tab or latch on the side of the floor brush and open it.
3. Fjern børsterullen.
4. Use scissors or a cleaning tool to cut and remove any tangled hair or debris from the brush roll.
5. Reinsert the brush roll and secure the release tab/latch.

6. Fejlfinding

Hvis du støder på problemer, kan du se følgende almindelige problemer og løsninger.

7. Specifikationer

8. Garanti og support

For warranty information or technical support, please refer to the warranty card included in your product packaging or contact the manufacturer directly.

Manufacturer: FJSKMA

Hav venligst modelnummeret (9887) og købsdatoen klar, når du kontakter support.
