1. Sikkerhedsoplysninger
Please read this manual carefully before operating the device and retain it for future reference. Improper use may result in damage to the product or personal injury.
- Sørg for, at kameraet er installeret et stabilt sted for at forhindre det i at falde.
- Brug kun den medfølgende strømadapter for at undgå skader.
- Udsæt ikke kameraet for ekstreme temperaturer eller direkte sollys i længere perioder.
- Keep the device away from strong electromagnetic interference sources like refrigerators or microwave ovens to prevent audio distortion.
- Avoid opening the camera casing; overlad al service til kvalificeret personale.
2. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- 1x JOOAN S-3MP A6M-U Security Camera
- 1x 3M Type-C Cable
- 1x strømadapter
- 1x Pack of Screws (for mounting)
- 1x produktmanual
Image: Contents of the JOOAN S-3MP A6M-U Security Camera package.
3. Produktet er slutview
3.1 Kamerakomponenter
Billede: Bund view of the camera, displaying the model number A6M-U and regulatory information.
The camera features a lens, two LED lights for night vision, a microphone, and a speaker. The base includes a reset button and a Micro SD card slot.
3.2 Nøglefunktioner
- HD1296P Resolution: Giver klar og detaljeret videofootage.
- WiFi-forbindelse: Easy wireless connection to your home network.
- Outdoor/Indoor Use: IP65 weatherproof rating ensures durability in various conditions.
- Bevægelsesdetektering og advarsler: Sends instant notifications to your smartphone upon detecting movement.
- Tovejs lyd: Communicate with visitors or deter intruders remotely.
- Farve Night Vision: Offers clear, full-color video even in low-light conditions.
- Arbejder med Alexa: Integrates with Amazon Alexa for voice control and smart home automation.
- Flere opbevaringsmuligheder: Supports Micro SD card (up to 256GB) and cloud storage (30-day trial available).
4. Opsætningsvejledning
4.1 Tænding af kameraet
- Connect the provided 3M Type-C cable to the camera and the power adapter.
- Sæt strømadapteren i en almindelig stikkontakt.
- Kameraet tændes, hvilket indikeres af en LED-lampe.
Image: The camera connected to a power source using the 3M Type-C cable.
4.2 Download af app og oprettelse af konto
- Scan the QR code in the manual or search for the recommended app (e.g., 'Cam720' or similar as indicated in the manual) on your smartphone's app store (App Store for iOS, Google Play Store for Android).
- Download og installer appen.
- Åbn appen og følg instruktionerne på skærmen for at oprette en konto og logge ind.
4.3 Connecting the Camera to WiFi
- In the app, tap the '+' icon to add a new device.
- Select your camera model or choose the 'Scan QR code' option if available on the camera.
- Follow the app's instructions to connect the camera to your 2.4GHz WiFi network. Ensure your phone is also connected to the same WiFi network during setup.
- If prompted, reset the camera by pressing the reset button on the bottom of the device for 5 seconds until you hear a prompt or see a change in the LED indicator.
Image: A finger pressing the reset button located on the camera's base.
4.4 Fysisk installation
The camera can be placed on a flat surface or mounted to a wall or ceiling. The adjustable base allows for flexible positioning.
- Overfladeplacering: Simply place the camera on a stable surface like a shelf or table.
- Væg/loft montering: Use the provided screws to secure the mounting plate to your desired location. Attach the camera to the mounting plate.
Billede: Eksamples of the camera mounted on a wall, ceiling, and placed on a table, demonstrating versatile installation options.
Image: The camera's base allows for manual adjustment of the viewing angle (Pan 360°, Tilt 90°).
5. Betjeningsvejledning
5.1 Live View
Once connected, open the app to access the live video feed from your camera. You can view it on your smartphone or tablet.

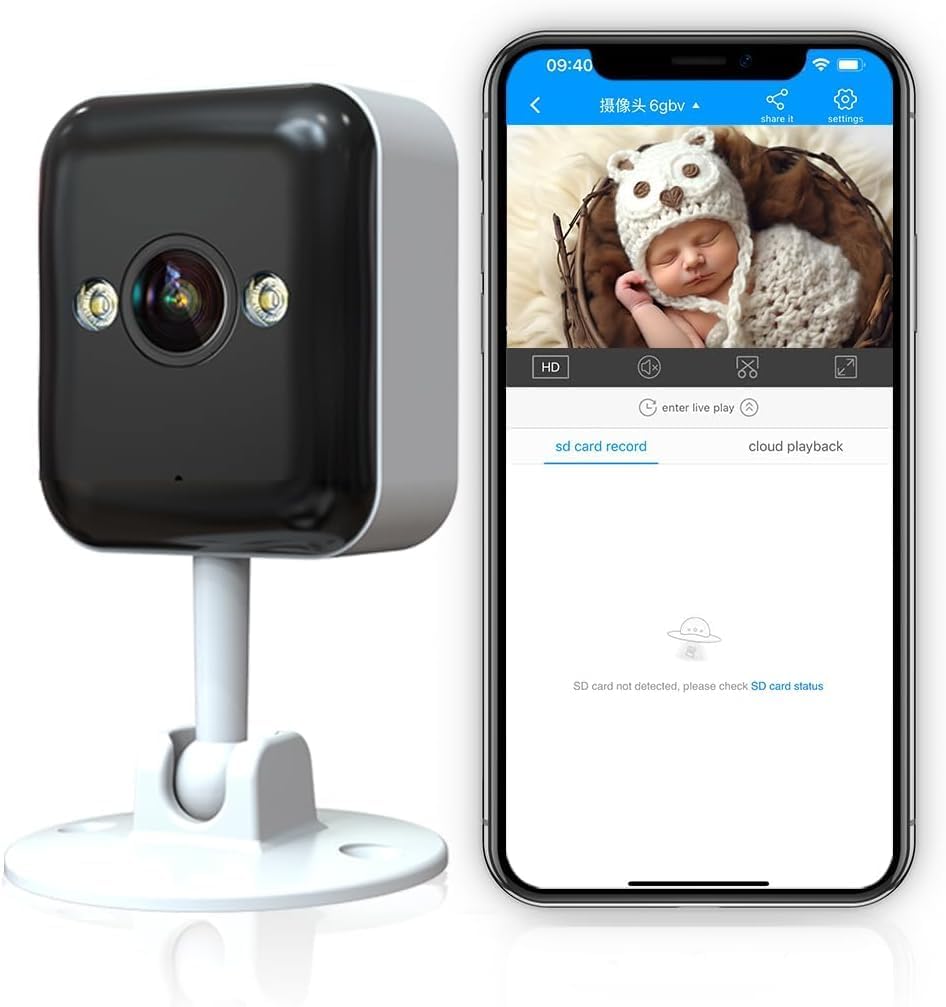

Image: The camera's live feed displayed on a smartphone, showing a baby in a basket.
5.2 Tovejslyd
The camera features a built-in microphone and speaker, allowing for two-way communication.
- Tryk på mikrofonikonet i appen for at tale gennem kameraets højttaler.
- Kameraets mikrofon opfanger lyd fra omgivelserne.
Image: A girl communicating with her mother via the camera's two-way audio feature.
Image: Visual representation of the camera's two-way audio capability, showing a baby and audio waves.
5.3 Bevægelsesdetektion og advarsler
The camera can detect motion and send instant notifications to your phone.
- Aktiver bevægelsesdetektion i appindstillingerne.
- Adjust sensitivity levels and define detection areas to minimize false alarms.
- Modtag push-notifikationer på din smartphone, når der registreres bevægelse.
Image: A smartphone showing an instant notification from the camera after detecting motion, with a kitten in the background.
Image: The camera's advanced chip enables both motion and sound detection, sending alerts for events like a baby crying.
5.4 Nattesynstilstande
The camera offers multiple night vision options for clear monitoring in the dark.
- Full Color Light: Utilizes built-in white lights for full-color night vision.
- Infrared Normal Light: Standard sort-hvid infrarød nattesyn.
- Smart Color Light: Automatically switches to color night vision when motion is detected in dark environments.
Image: Comparison of the three night vision modes: Full Color Light, Infrared Normal Light, and Smart Color Light, showing how the camera adapts to different lighting conditions.
Image: A split screen on a smartphone showing the difference between traditional IR night vision and enhanced color night vision.
5.5 Video Storage and Playback
The camera supports both local and cloud storage options for recorded footage.
- Micro SD-kort: Insert a Micro SD card (up to 256GB, not included) into the designated slot for 24/7 continuous recording.
- Cloud Storage: A 30-day trial is available. Subscribe to cloud services for secure, remote storage and access to your video history.
- Afspilning: Access recorded videos through the app's playback feature, allowing you to review begivenheder efter dato og tidspunkt.
Image: Icons representing cloud storage, Micro SD card storage, and video playback features.
Image: A timeline showing 24/7 local recording capability, with a child playing in the background.
5.6 Multi-person Sharing
Share access to your camera's live feed and recordings with family and friends through the app.
- Navigate to the sharing options within the camera settings in the app.
- Invite other users by entering their account details.
- Manage permissions for each shared user.
Image: The camera surrounded by icons of people, illustrating the multi-person sharing feature.
6. Vedligeholdelse
- Rensning: Use a soft, dry cloth to clean the camera lens and body. Avoid harsh chemicals.
- Firmwareopdateringer: Tjek regelmæssigt appen for tilgængelige firmwareopdateringer for at sikre optimal ydeevne og sikkerhed.
- Strømforsyning: Ensure the power cable is securely connected and not damaged.
- Netværks forbindelse: Periodically check your WiFi signal strength to ensure a stable connection for the camera.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Kamera offline | No power; WiFi disconnected; Router issue | Check power connection; Reconnect WiFi in app; Restart router. |
| Bevægelsesalarmer ikke modtaget | Motion detection off; App notifications disabled; Incorrect sensitivity | Enable motion detection in app; Allow app notifications in phone settings; Adjust sensitivity. |
| Dårlig videokvalitet | Weak WiFi signal; Dirty lens | Move camera closer to router or use a WiFi extender; Clean the lens. |
| Two-way audio echo/noise | Camera too close to phone; Electromagnetic interference | Maintain distance (>8m) between phone and camera during intercom; Move camera away from interference sources. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | A6M-U |
| Opløsning | HD1296P (3MP) |
| Forbindelse | Trådløs (Wi-Fi) |
| Indendørs/Udendørs brug | Udendørs (IP65 vejrbestandig) |
| Night Vision Range | 30 Feet (Color Night Vision available) |
| To-vejs lyd | Ja |
| Bevægelsesdetektion | Ja |
| Opbevaringsmuligheder | Micro SD-kort (op til 256 GB), Cloud-lagring |
| Kompatible enheder | Smartphone, Tablet (Works with Alexa) |
| Dimensioner (L x B x H) | 12.7 x 8.8 x 8 Centimetres |
| Varens vægt | 210 g |
Image: Detailed dimensions of the JOOAN S-3MP A6M-U Security Camera.
Image: The camera is shown with water droplets, illustrating its IP65 weatherproof rating for outdoor use.
9. Garanti og support
For warranty information and technical support, please refer to the contact details provided in the product packaging or visit the official JOOAN webwebsted. Behold din købskvittering som købsbevis i tilfælde af garantikrav.
Online support: Check the JOOAN webwebsted med ofte stillede spørgsmål, fejlfindingsvejledninger og softwaredownloads.
Kundeservice: Contact JOOAN customer service for further assistance.
