Brugermanual

Indledning

The STRONG ATRIA Mesh Extender 1200 is designed to enhance your existing Wi-Fi network. It can be used as an additional component to the ATRIA Wi-Fi Mesh Home Kit 1200, significantly extending coverage by up to 150 m² with seamless, super-fast roaming. This device supports Wi-Fi speeds up to 1200 Mbit/s. You can connect up to six ATRIA Mesh Extender 1200 units to achieve coverage of up to 900 m² across multiple floors, ensuring a robust and uninterrupted Wi-Fi experience. Featuring integrated Mesh technology and the powerful Wi-Fi 802.11ac standard, it delivers maximum speed, coverage, and connectivity to your home network.

Alternatively, the ATRIA Mesh Extender 1200 can function as a standalone device in two distinct modes:

• Adgangspunkttilstand: Operates as a Dual Band 802.11ac Access Point, providing speeds up to 1200 Mbit/s. This mode offers an immediate upgrade to your current single-band modem's Wi-Fi network without requiring its replacement.
• Repeater-tilstand: Functions as a universal dual-band Repeater, doubling the coverage of your 802.11ac modem or router within minutes, also at 1200 Mbit/s.

The device is equipped with three Gigabit Ethernet ports, allowing you to connect various network-compatible devices such as Smart TVs, desktop game consoles, media players, Android TV boxes, Apple TV, and more, directly to the internet.

Pakkens indhold

• 1 x ATRIA Mesh Extender 1200 unit
• 1 x Power Adapter (12V/1A DC)
• 1 x CAT5E Ethernet Cable
• 1 x Installationsvejledning
• 1 x Garantibevis

Produkt overview

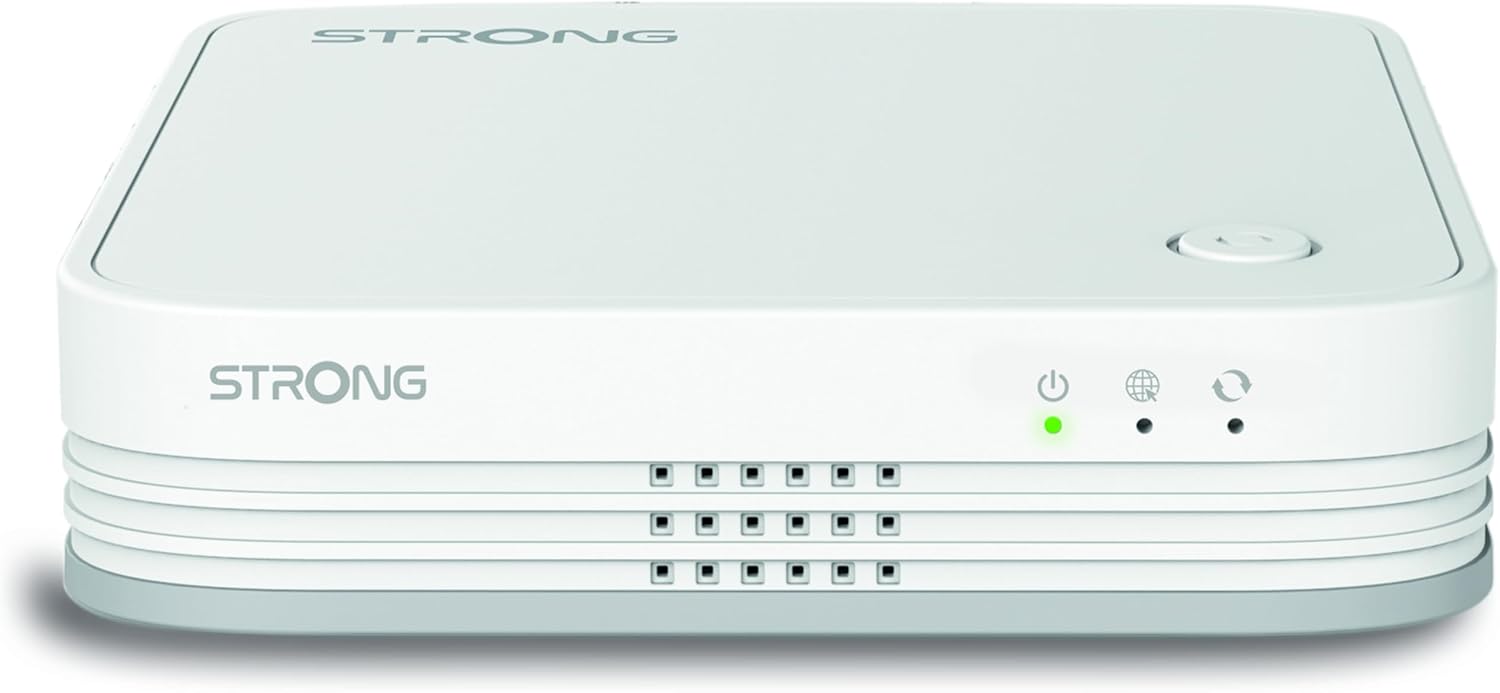

Figur 1: Øverst view of the ATRIA Mesh Extender 1200. Shows the device's sleek white design with the STRONG logo and front-facing indicator lights for power, internet, and mesh status.

Figur 2: Vinklet view of the ATRIA Mesh Extender 1200. Highlights the compact form factor and ventilation grilles on the sides.

Figure 3: Rear panel of the ATRIA Mesh Extender 1200. Displays the three Gigabit Ethernet ports (LAN 1, LAN 2, WAN/LAN 3), the recessed reset button, and the 12V power input.

Opsætning

1. Indledende placering

Place the ATRIA Mesh Extender 1200 in a central location within your desired coverage area, ideally between your existing router/modem and the area where you need improved Wi-Fi. Avoid placing it near large metal objects, concrete walls, or other devices that may cause interference (e.g., microwaves, cordless phones).

2. Strømtilslutning

1. Connect the provided power adapter to the 12V DC input port on the rear of the ATRIA Mesh Extender 1200 (refer to Figure 3).
2. Plug the power adapter into a standard electrical outlet. The Power LED on the front of the device should illuminate.

3. Tilslutningstilstande

The ATRIA Mesh Extender 1200 supports three main operation modes: Mesh, Access Point, and Repeater.

3.1. Mesh Mode (Add-on to ATRIA Wi-Fi Mesh Home Kit 1200)

If you are adding this extender to an existing ATRIA Wi-Fi Mesh Home Kit 1200, follow these steps:

1. Ensure your existing ATRIA Mesh Home Kit is powered on and functioning correctly.
2. Power on the new ATRIA Mesh Extender 1200 as described in "2. Power Connection".
3. Wait for the Power LED to become solid green.
4. Press the "Pair" button on your existing ATRIA Mesh Home Kit main unit.
5. Within two minutes, press the "Pair" button on the new ATRIA Mesh Extender 1200 (located on the top surface, refer to Figure 1).
6. The Mesh LED on both devices will blink during the pairing process and turn solid green once successfully connected.

Once paired, the extender will automatically adopt the Wi-Fi settings of your existing Mesh network, providing seamless roaming.

3.2. Adgangspunkttilstand

To use the device as a standalone Access Point:

1. Connect one end of the provided Ethernet cable to the WAN/LAN 3 port on the rear of the ATRIA Mesh Extender 1200 (refer to Figure 3).
2. Connect the other end of the Ethernet cable to a LAN port on your existing modem or router.
3. Power on the ATRIA Mesh Extender 1200.
4. Få adgang til enhedens web interface (usually via a default IP address like 192.168.1.1 or 192.168.0.1, check the label on the device or the full manual for exact details) from a computer connected to the extender's Wi-Fi or via another LAN port.
5. Configure the Access Point settings, including Wi-Fi name (SSID) and password, through the web interface.

3.3. Repeater-tilstand

To use the device as a standalone Repeater:

1. Power on the ATRIA Mesh Extender 1200.
2. Place the extender within range of your existing Wi-Fi network.
3. Få adgang til enhedens web interface from a computer or mobile device connected to the extender's default Wi-Fi network (SSID and password usually printed on the device label).
4. Navigate to the Repeater setup section.
5. Scan for available Wi-Fi networks and select your existing network.
6. Enter the password for your existing Wi-Fi network to establish the connection. The extender will then broadcast an extended Wi-Fi signal.

Drift

Indikatorlys

Tilslutning af enheder

Once the ATRIA Mesh Extender 1200 is set up in your desired mode, you can connect your devices:

• Wi-Fi Devices: Søg efter the Wi-Fi network name (SSID) broadcast by the extender (either your existing Mesh SSID or the new SSID if in AP/Repeater mode) and connect using the appropriate password.
• Kablede enheder: Use standard Ethernet cables to connect devices like Smart TVs, game consoles, or PCs to the LAN 1 or LAN 2 ports on the rear of the extender (refer to Figure 3).

Opretholdelse

Rensning

Wipe the device with a soft, dry cloth. Do not use liquid cleaners or aerosol sprays. Ensure the ventilation grilles are free from dust buildup to prevent overheating.

Firmware opdateringer

Periodically check the official STRONG webwebsted (www.strong.tv) for firmware updates. Keeping your device's firmware up-to-date ensures optimal performance, security, and access to new features. Firmware updates are typically performed via the device's web ledelsesgrænseflade.

Nulstilling af enheden

If you encounter persistent issues or wish to revert to factory default settings, you can perform a factory reset:

1. With the device powered on, use a paperclip or a thin object to press and hold the recessed "Reset" button on the rear panel (refer to Figure 3) for approximately 10 seconds.
2. Release the button when the indicator lights flash or the device reboots.
3. The device will restart with factory default settings. You will need to reconfigure it as per the "Setup" section.

Fejlfinding

Ingen strøm

• Ensure the power adapter is securely connected to the device and the electrical outlet.
• Kontroller, at stikkontakten fungerer ved at tilslutte en anden enhed.

No Internet Connection (Internet LED Off)

• In Access Point mode, check the Ethernet cable connection between the extender and your modem/router.
• In Repeater mode, ensure the extender is within range of your main Wi-Fi network and has the correct Wi-Fi password.
• Verify that your main modem/router has an active internet connection.
• Restart both the extender and your main modem/router.

Poor Wi-Fi Signal or Slow Speed

• Relocate the extender to a more optimal position, closer to your main router/modem but still within the area needing coverage.
• Avoid physical obstructions (thick walls, metal objects) and sources of interference (microwaves, cordless phones).
• Ensure your devices are connecting to the extender's Wi-Fi network.
• Check for firmware updates for the extender.

Cannot Pair in Mesh Mode

• Ensure both the main Mesh unit and the extender are powered on and within close proximity during the initial pairing process.
• Press the "Pair" buttons on both devices within the specified two-minute window.
• If issues persist, try resetting both devices to factory defaults and attempt pairing again.

Specifikationer

Garanti og support

Dette produkt leveres med en 4 års garanti. For detailed warranty terms and conditions, please refer to the included Warranty Certificate.

For technical support, frequently asked questions, and the latest firmware updates, please visit the official STRONG webwebsted:

Visit Strong Support Webwebsted
