CoolFire VB01B Dual Alarm Clock with Bed Shaker Instruction Manual

1. Introduktion

Welcome to the CoolFire VB01B Dual Alarm Clock with Bed Shaker. This device is designed to provide a reliable and effective wake-up solution, especially for heavy sleepers, individuals with hearing impairments, and frequent travelers. It combines powerful vibration, adjustable alarm sounds, and convenient features to ensure you wake up on time.

2. Pakkens indhold

• CoolFire VB01B Dual Alarm Clock
• Vibrating Bed Shaker
• USB opladningskabel
• Brugervejledning (dette dokument)

3. Produktet er slutview

The CoolFire VB01B features a compact design with an intuitive control panel and a clear LCD display. The device is shaped uniquely for portability and ease of use.

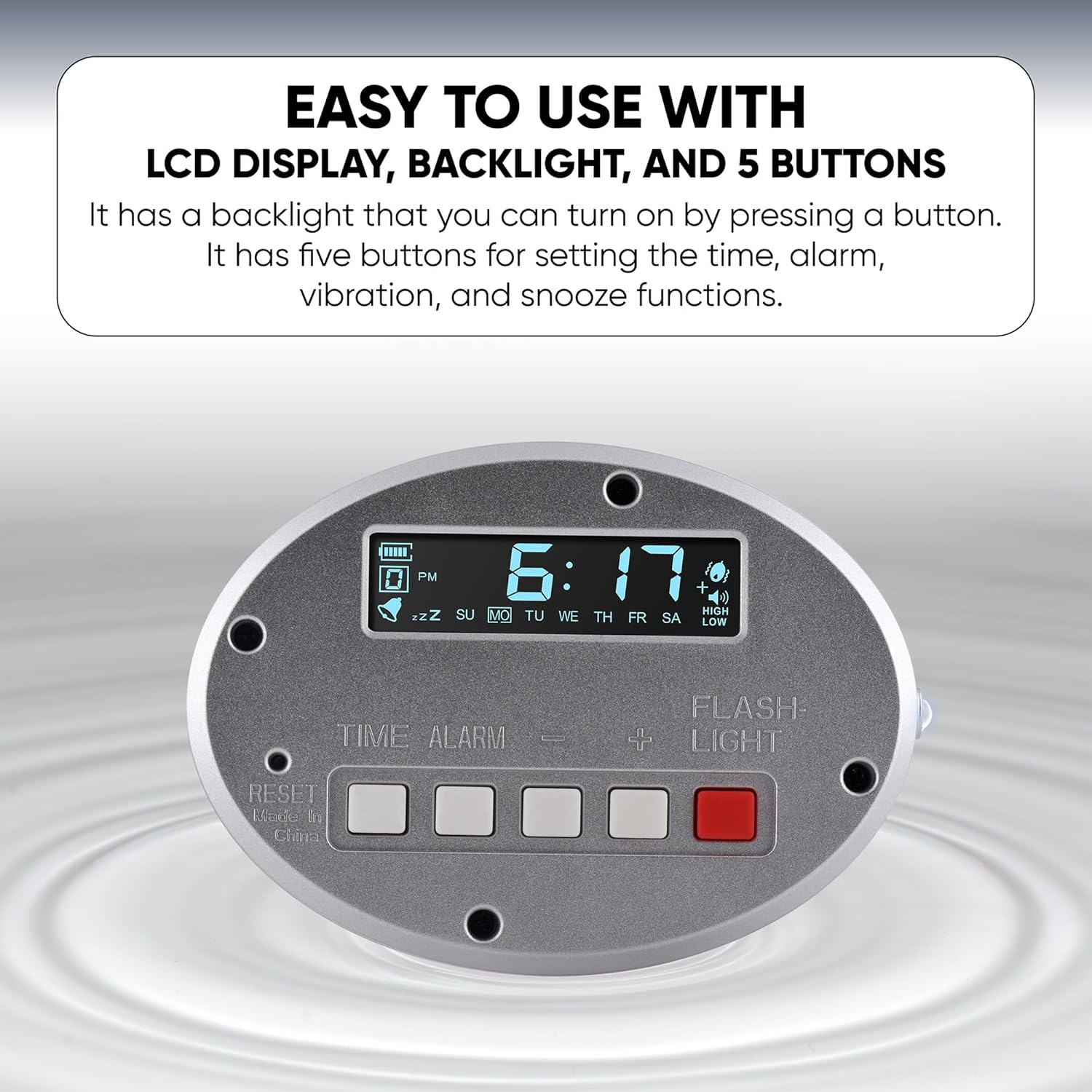

Figure 1: CoolFire VB01B Dual Alarm Clock with its control panel.

3.1. Hovedkomponenter

• LCD-skærm: Shows time, date, and alarm settings.
• Kontrolknapper: Five buttons for setting time, alarms, vibration, and snooze functions.
• Lommelygte: Integrated light for night-time convenience.
• Vibrationsenhed: Connects to the main unit for silent, powerful alerts.
• USB-port: For charging the internal rechargeable battery.

4. Opsætning

4.1. Første opladning

Before first use, fully charge your CoolFire alarm clock. Connect the provided USB charging cable to the device's USB port and plug the other end into any standard USB power adapter (not included) or a computer USB port. A full charge provides weeks of uninterrupted use.

Figure 2: Connecting the USB cable for charging.

4.2. Backup Battery (Optional)

The device does not include batteries, but it supports backup batteries (e.g., AAA batteries, not included) to retain time and alarm settings during power outages or when the main rechargeable battery is depleted. Refer to the battery compartment for proper installation.

5. Betjeningsvejledning

5.1. Indstilling af tid og dato

Use the dedicated buttons on the control panel to set the current time and date. The LCD display will guide you through the process. The device supports 12-hour and 24-hour formats and features automatic Daylight Saving Time (DST) adjustment.

Figure 3: Control panel for setting time and alarms.

5.2. Indstilling af alarmer

The CoolFire alarm clock supports up to four independent alarms. Follow the on-screen prompts using the control buttons to set your desired wake-up times. You can configure alarms for specific days of the week, allowing for different schedules on weekdays and weekends.

5.3. Alarmtilstande

Choose from three distinct alarm modes:

• Kun vibration: Ideal for silent wake-ups without disturbing others.
• Kun lyd: A loud audible alarm.
• Vibration + Sound: Combines both methods for maximum effectiveness.

5.4. Using the Bed Shaker

For optimal performance, place the vibrating bed shaker unit under your pillow or mattress. You can adjust the vibration intensity and duration to suit your personal preference, ensuring a powerful wake-up for even the deepest sleepers.

Figure 4: The CoolFire VB01B designed for heavy sleepers.

5.5. Lommelygtefunktion

The alarm clock includes a built-in flashlight. Press the designated button to activate or deactivate the bright, focused light, useful for navigating in the dark without disturbing others.

Figure 5: Flashlight function for night-time convenience.

5.6. Snooze-funktion

When an alarm activates, press the snooze button to temporarily pause the alarm for a short period. The alarm will reactivate after the snooze duration ends.

5.7. Justering af skærmens lysstyrke

The LCD display features adjustable brightness settings. Use the appropriate control button to cycle through brightness levels to suit your environment.

6. Vedligeholdelse

To maintain your CoolFire alarm clock, wipe it with a soft, dry cloth. Avoid using abrasive cleaners or solvents. Keep the device away from water and extreme temperatures.

7. Fejlfinding

• Enheden tænder ikke: Ensure the device is fully charged. Check the USB cable connection.
• Alarmen aktiveres ikke: Verify that the alarm is set correctly and enabled. Check the selected alarm mode (vibration, sound, or both).
• Difficulty setting time/alarms: Refer to Section 5.1 and 5.2. Ensure you are pressing the correct buttons in sequence. Some users find initial setup requires patience.
• Opladningsproblemer: Sørg for, at USB-kablet er korrekt tilsluttet til både enheden og strømkilden. Prøv en anden USB-port eller adapter.
• Vibration not strong enough: Adjust the vibration intensity settings. Ensure the bed shaker is placed directly under your pillow or mattress.

8. Specifikationer

9. Garanti og support

For warranty information or technical support, please refer to the contact details provided with your product packaging or visit the official Coolfire webwebsted. Gem din købskvittering for garantikrav.
