1. Introduktion
This manual provides detailed instructions for the SUPERONE 99W Retractable Car Charger, Model PT-27. This device is designed to provide efficient and organized charging for multiple electronic devices within your vehicle. Please read this manual thoroughly before use to ensure proper operation and safety.
Image 1.1: The SUPERONE 99W Retractable Car Charger.
2. Nøglefunktioner
- Dual 80cm Retractable Cables: Features two 80cm (31.5 inches) extendable cables (USB-C and Apple Lightning) for organized charging without cable clutter.
- 6-in-1 Fast Charging Solution: Equipped with a PD 30W USB-C cable, a 12W USB Apple cable, three additional 15W USB-C ports, and one 12W USB-A port, allowing simultaneous fast charging for up to six devices.
- Kompakt og pladsbesparende design: With dimensions of 2.14 inches (length), 1.31 inches (width), and an exposed height of 3.17 inches, it integrates seamlessly into various car interiors.
- Adjustable 180-Degree Charging Plug: The stable plug, featuring a built-in 15A fuse, can pivot 180 degrees to ensure secure and adaptable charging, even on uneven road surfaces.
- Bred enhedskompatibilitet: Supports a wide range of devices including iPhone 17/16/15/14/13/12 series, Samsung Galaxy S22/S23 series, Google Pixel, OnePlus, Motorola, Nokia, LG, Sony, HTC, and other USB-C and USB-A compatible devices.
- Integrerede sikkerhedsfunktioner: Includes protections against over-current, over-voltage, over-temperature, and short-circuits.
Image 2.1: Comparison showing organized cables with the retractable charger versus tangled cables.
3. Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- 1 x SUPERONE 99W Retractable Car Charger (Model PT-27)
- 1 x brugermanual
4. Opsætningsvejledning
- Indsæt opladeren: Plug the SUPERONE car charger firmly into your vehicle's 12V or 24V cigarette lighter socket.
- Juster vinklen: The charger's plug can be rotated 180 degrees. Adjust it to a comfortable and secure position that does not obstruct driving controls or other vehicle features.
- Strømindikator: Once properly inserted, a blue LED light will illuminate, indicating the charger is powered on and ready for use.
Image 4.1: The charger's 180-degree adjustable plug for optimal positioning.
5. Betjeningsvejledning
- Extend Retractable Cables: Gently pull the desired USB-C or Apple Lightning cable from its slot to extend it. The cables can extend up to 80cm (31.5 inches).
- Tilslut din enhed: Plug the appropriate connector into your smartphone, tablet, or other compatible device.
- Use Additional Ports: For other devices, utilize the available USB-C ports (3A output) or the USB-A port (2.4A output) by connecting your own charging cables.
- Retract Cables: To retract a cable, pull it gently until it clicks, then release it to allow it to smoothly retract back into the charger housing.
Image 5.1: Demonstrates the 80cm retractable cables for convenient use.

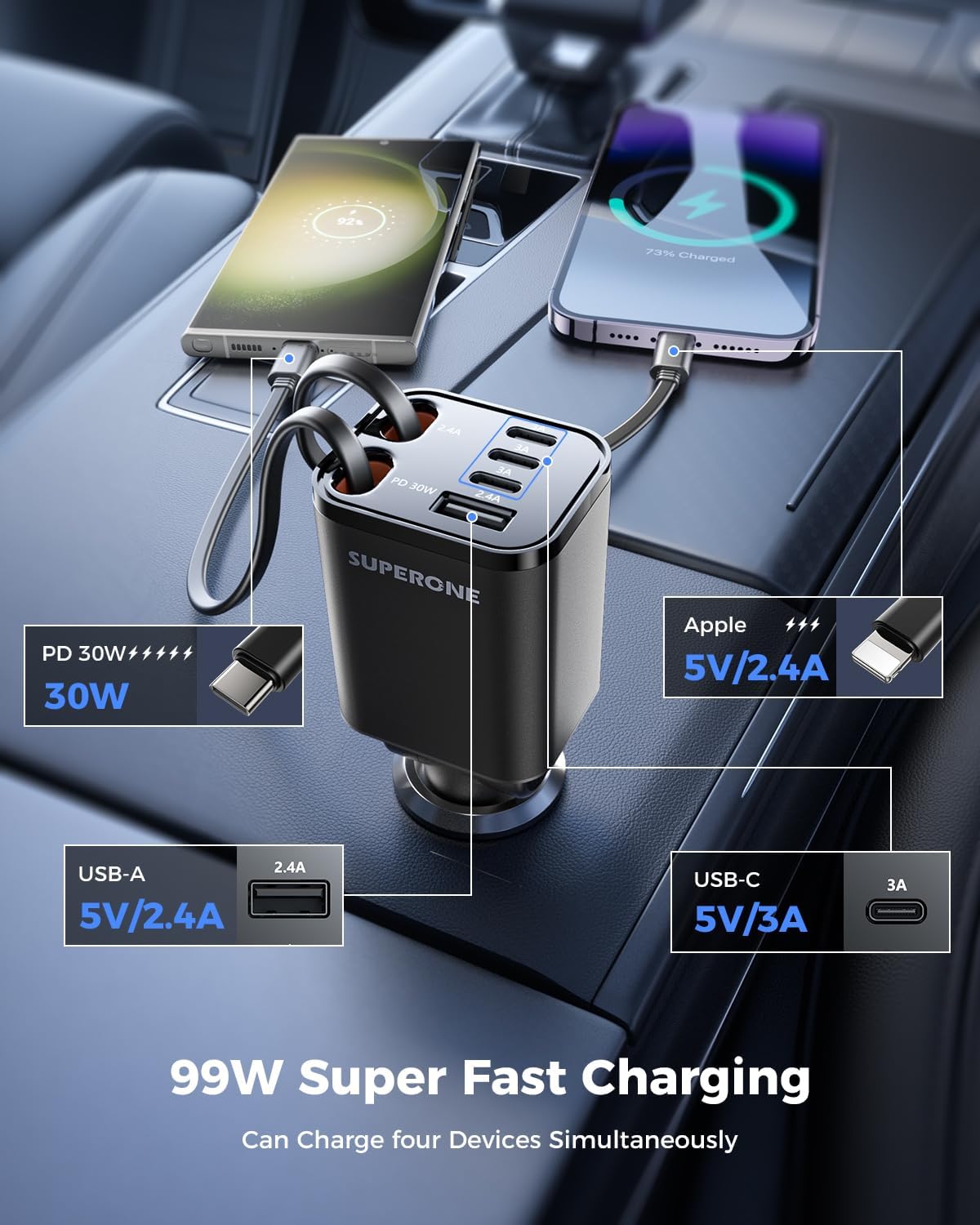

Image 5.2: Illustration of the charger powering multiple devices concurrently.
Officiel produktvideo
Video 5.3: En overview of the SUPERONE retractable car charger's features and functionality.
6. Kompatibilitet
The SUPERONE 99W Retractable Car Charger is designed for broad compatibility with various devices and vehicles:
Kompatible enheder:
- Apple-enheder: iPhone 17/17 Pro/17 Pro Max/17 Air, iPhone 16/16 Pro/16 Pro Max/16 Plus, iPhone 15/15 Pro/15 Pro Max/15 Plus, iPhone 14/14 Pro/14 Pro Max/14 Plus, iPhone 13/13 mini/13 Pro/13 Pro Max, iPhone 12/12 mini/12 Pro/12 Pro Max, iPhone SE, iPhone 11/11 Pro/11 Pro Max, iPhone XS/XR/XS Max/X, iPhone 8/8 Plus, iPhone 7/7 Plus, iPhone 6s/6 Plus/6, iPhone 5s/5/4s/4, iPad Pro/Air/Mini, AirPods Series, Apple Watch.
- Samsung-enheder: Galaxy S22/S22 Ultra, S23/S23+/S23 Ultra, S21 5G/S21+ 5G/S21 Ultra 5G, Note20, S20/S20+/S20 Ultra 5G, Note10/Note10+, S10/S10+/S10e, S9/S9+, S8/S8+, Note 8, S7/S7 Edge, S6/S6 Edge, S5/S4, Fold/Z Flip Phones.
- Other Android Devices: Google Pixel 4/4 XL/3a XL/3a/3 XL/3/XL/2 XL/2/Pixel, OnePlus 7Pro/6T/6/5T/X, Motorola Droid/G7/Z3, Nokia 7.1/6.1, LG, Sony, HTC, etc.
- Andre enheder: Nintendo Switch, DJI Drone, Wireless Chargers.
Kompatible køretøjer:
- Biler
- SUV'er
- autocampere
- Lastbiler

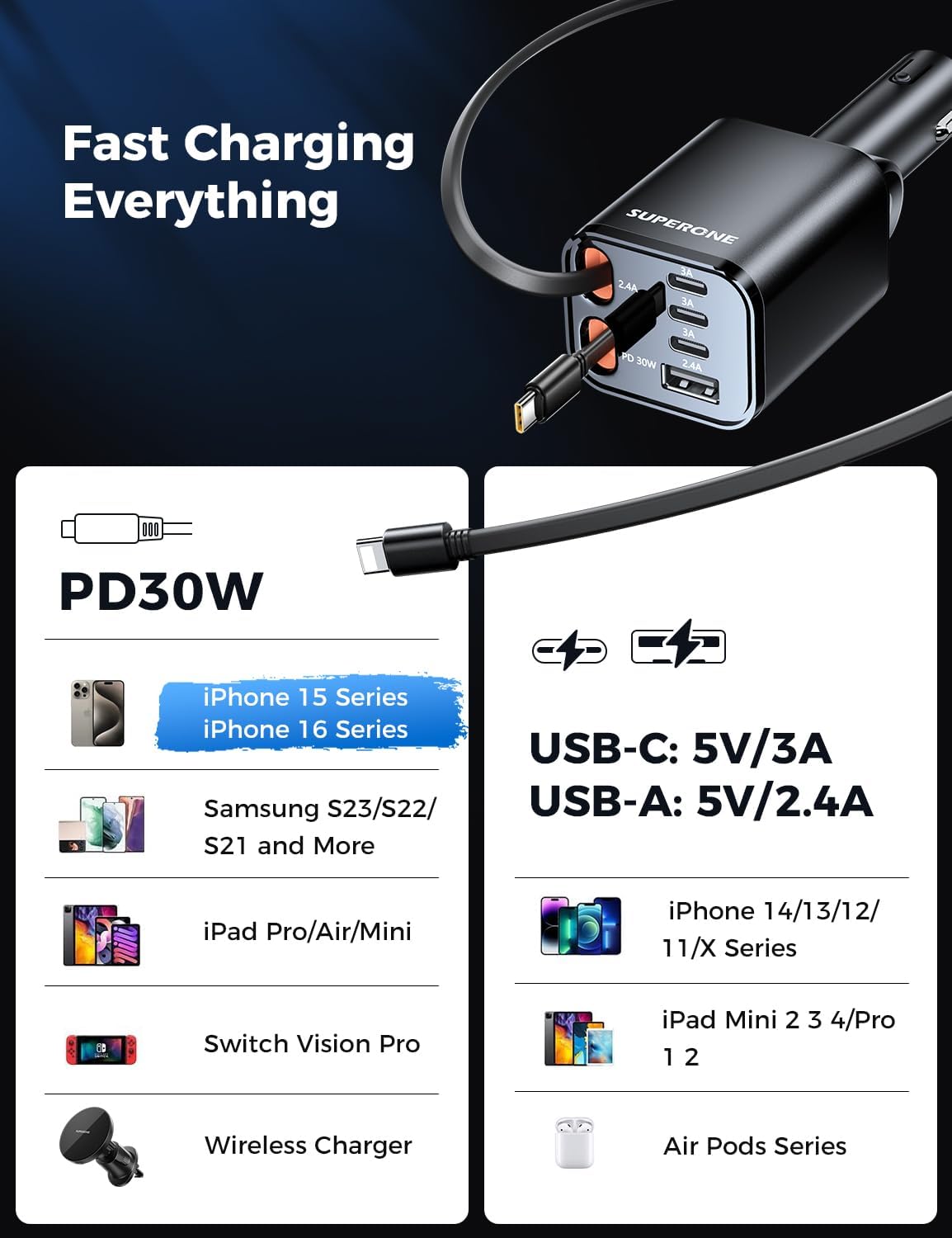

Image 6.1: Visual representation of the charger's broad device and vehicle compatibility.
7. Sikkerhedsforanstaltninger
- Udsæt ikke opladeren for væsker, fugt eller ekstreme temperaturer.
- Avoid disassembling, modifying, or repairing the device yourself. Contact customer support if service is required.
- Opbevares utilgængeligt for børn.
- Ensure the charger is securely plugged into the cigarette lighter socket to prevent dislodgement during vehicle movement.
- If the charger becomes excessively hot during use, disconnect it immediately and allow it to cool down.
- The built-in 15A fuse provides protection against power surges. If the charger stops working, check your vehicle's fuse box.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | PT-27 |
| Samlet effekt | 99W |
| Udtrækkelig kabellængde | 80 cm (2.6 fod) |
| Retractable Cable 1 | USB-C (PD 30W) |
| Retractable Cable 2 | USB Apple (12W) |
| Additional USB-C Ports | 3 ports (5V/3A each) |
| Additional USB-A Port | 1 port (5V/2.4A) |
| Input bindtage | 12V-24V DC |
| Varens vægt | 4.9 ounce |
| Dimensioner (pakke) | 6.26 x 2.2 x 1.54 tommer |
| Farve | Sort |
9. Vedligeholdelse
- Rensning: Use a soft, dry cloth to clean the charger. Do not use abrasive cleaners or solvents.
- Opbevaring: When not in use, ensure retractable cables are fully retracted to prevent damage. Store in a cool, dry place away from direct sunlight.
- Kabelpleje: Avoid excessive force when pulling or retracting cables to prevent internal mechanism damage.
10. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Charger not powering on (no LED light) | Loose connection; vehicle's cigarette lighter socket is off or fused; charger malfunction. | Ensure the charger is firmly inserted. Check if the vehicle's power outlet is active. Inspect vehicle's fuse box for a blown fuse. |
| Enheden oplader ikke eller oplader langsomt | Loose cable connection; device not compatible with fast charging; damaged cable; multiple devices drawing too much power. | Ensure cables are securely connected. Verify your device supports fast charging. Try a different cable or port. Reduce the number of devices charging simultaneously. |
| Charger or device overheating | Overload; poor ventilation; environmental factors. | Disconnect devices and allow the charger to cool. Ensure adequate ventilation around the charger. Avoid charging in direct sunlight or extremely hot environments. |
| Udtrækkeligt kabel trækkes ikke jævnt tilbage | Internal mechanism obstruction or damage. | Gently pull the cable fully out until it clicks, then release. If the issue persists, contact customer support. |
11. Garanti og support
The SUPERONE 99W Retractable Car Charger comes with an 18-Month Hassle-free Warranty og Lifetime Support. If you encounter any issues or have questions regarding your product, please contact SUPERONE customer service for assistance. Our team aims to respond within 12 hours.
