MeesMeek Digital Rejsevækkeur Model 6201 Brugermanual

1. Introduktion

Thank you for choosing the MeesMeek Digital Travel Alarm Clock. This compact and versatile device is designed to provide accurate timekeeping, alarm functions, and temperature display, making it ideal for travel and daily use. This manual will guide you through the setup, operation, and maintenance of your new alarm clock.

2. Produktet er slutview

2.1 Nøglefunktioner

• 3.54-inch LCD Display: Shows time, alarm time, date, day of the week, and indoor temperature.
• Intuitive Controls: 6 front-facing buttons for easy operation.
• Time Formats: Switchable between 12-hour and 24-hour display.
• Temperature Display: Switchable between Fahrenheit (℉) and Celsius (℃).
• 9-Minute Snooze: Provides additional sleep time after the alarm sounds.
• Weekend Mode: Alarm activates only from Monday to Friday.
• Adjustable Alarm Volume: Two levels (70dB/85dB) to suit user preference.
• 5-Second Backlight: Illuminates the display for visibility in low light conditions.
• Battery Operated: Powered by 2 AAA batteries (included) with a low battery alert.
• Compact and Foldable Design: Ideal for portability and travel.

2.2 Komponenter

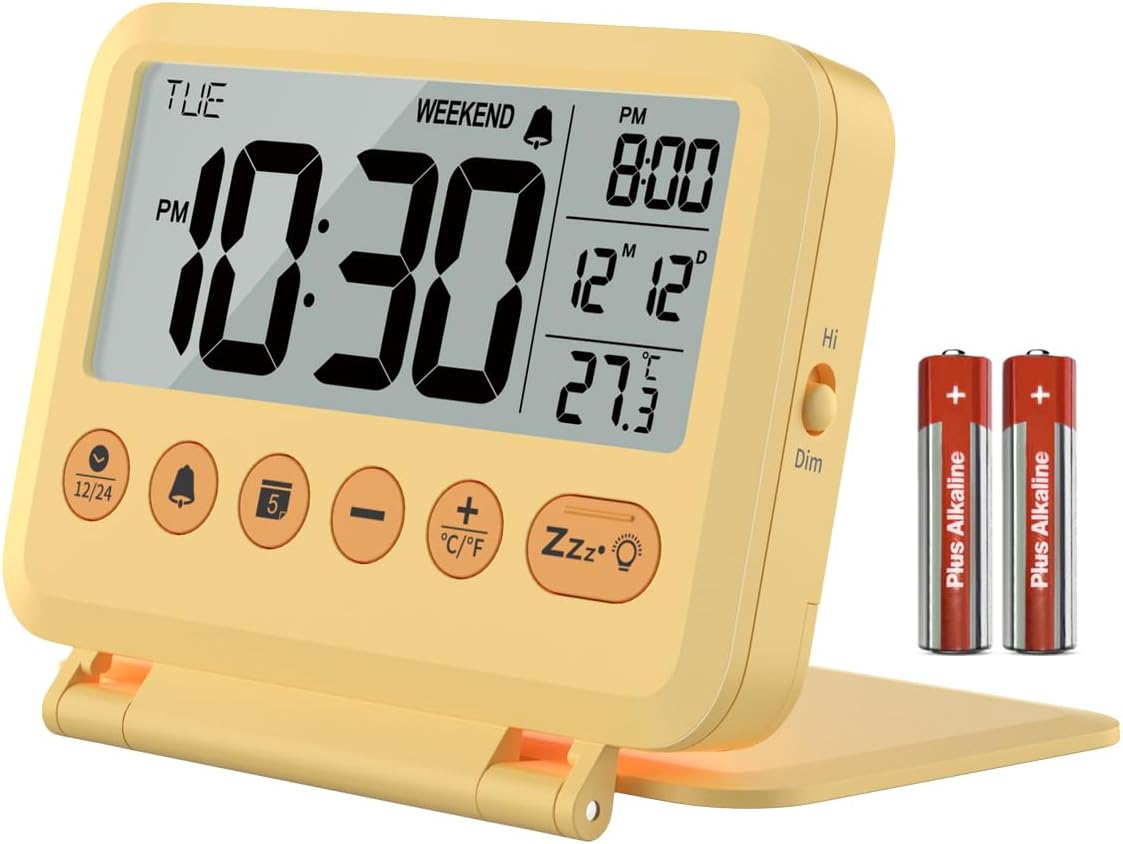

Billede 2.2.1: Forside view of the MeesMeek Digital Travel Alarm Clock, showing the LCD display, control buttons, and included AAA batteries.

Image 2.2.2: Diagram illustrating the compact dimensions (4 inches wide, 3.17 inches high) and key features of the alarm clock, including 12/24 time format, 2 volume levels, 5-second backlight, 9-minute snooze, calendar, temperature, weekend mode, and battery power.

The clock features a foldable cover that also acts as a stand. The front panel includes the LCD display and six control buttons. A toggle switch for backlight brightness is located on the side.

3. Opsætning

3.1 Batteriinstallation

1. Åbn batterirummets dæksel på bagsiden af ​​uret.
2. Isæt to AAA-batterier, og sørg for at polerne vender korrekt (+ og -).
3. Luk batterirummets dæksel forsvarligt.

The clock will power on automatically once batteries are installed. A new pair of AAA batteries can last up to 6 months.

Image 3.1.1: The alarm clock displaying time, date, and temperature, with an inset showing the battery compartment on the back.

3.2 Indledende indstillinger

Upon first use or after battery replacement, you may need to set the time, date, and other preferences.

4. Betjeningsvejledning

4.1 Indstilling af tid og dato

1. Press and hold the '12/24' button to enter time setting mode. The hour digit will flash.
2. Brug knapperne '+' eller '-' til at justere timetallet.
3. Press the '12/24' button again to move to minute setting. Use '+' or '-' to adjust minutes.
4. Continue pressing '12/24' to cycle through year, month, and day settings, adjusting each with '+' or '-'.
5. Press '12/24' one last time to exit setting mode, or wait for 10 seconds for it to exit automatically.

4.2 12H/24H Time Format

In normal time display mode, press the '12/24' button to switch between 12-hour (with AM/PM indicator) and 24-hour time formats.

Image 4.2.1: The alarm clock displaying time in both 12-hour (AM/PM) and 24-hour formats, illustrating the switchable feature.

4.3 Indstilling af alarmen

1. Press and hold the 'Alarm' button (bell icon) to enter alarm setting mode. The alarm hour will flash.
2. Brug knapperne '+' eller '-' til at justere alarmens time.
3. Press the 'Alarm' button again to move to alarm minute setting. Use '+' or '-' to adjust minutes.
4. Press the 'Alarm' button one last time to confirm and exit, or wait for 10 seconds.

4.4 Activating/Deactivating Alarm and Weekend Mode

1. In normal time display mode, press the 'Alarm' button once to turn the alarm ON or OFF. An alarm icon will appear/disappear on the display.
2. To activate Weekend Mode (alarm only Mon-Fri), press the 'Weekend' button (sun icon) once. A 'WEEKEND' indicator will appear on the display. Press again to deactivate.

Image 4.4.1: The alarm clock on a bedside table, illustrating the 9-minute snooze function and the weekend mode which prevents the alarm from sounding on weekends.

4.5 Snooze -funktion

When the alarm sounds, press the large 'Snooze/Light' button (Zzz•☼ icon) to activate the snooze function. The alarm will pause for 9 minutes and then sound again. This cycle repeats up to 3 times. If no button is pressed, the alarm will sound for 3 minutes, snooze for 7 minutes, and repeat the cycle 3 times before turning off automatically.

4.6 Justering af alarmlydstyrke

The alarm offers two volume levels: 70dB and 85dB. To adjust, locate the volume switch on the side of the clock and slide it to your desired level.

Image 4.6.1: The alarm clock displaying time, temperature, and calendar, with graphics indicating the two alarm volume levels (70dB and 85dB).

4.7 Baggrundsbelysningsfunktion

Press the 'Snooze/Light' button (Zzz•☼ icon) to illuminate the display for 5 seconds. The backlight is not continuously on. A toggle switch on the right side of the alarm clock allows you to select between High Bright and Dim backlight intensity.

Image 4.7.1: A split image showing the alarm clock in a well-lit room and a dark room, with the backlight activated for 5 seconds by pressing the snooze button.

4.8 Temperaturenhedskontakt

In normal time display mode, press the '•C/•F' button to switch the temperature display between Celsius (℃) and Fahrenheit (℉).

5. Vedligeholdelse

• Rengør uret med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Undgå at udsætte uret for ekstreme temperaturer, direkte sollys eller høj luftfugtighed.
• Hvis uret ikke skal bruges i længere tid, skal batterierne fjernes for at forhindre lækage.

6. Fejlfinding

• Skærmen er tom eller svag: Check battery installation. Replace batteries if they are low. The low battery icon will appear, or the display may flash '8888' and beep when batteries are critically low.
• Alarmen lyder ikke: Ensure the alarm is activated (bell icon visible). Check alarm volume setting. Ensure Weekend Mode is not active if you expect the alarm to sound on a weekend.
• Forkert tidspunkt/dato: Re-enter time and date settings as per Section 4.1.
• Backlight not staying on: The backlight is designed to illuminate for 5 seconds only. This is normal operation.

7. Specifikationer

8. Garanti og support

This MeesMeek product comes with a limited warranty. For specific warranty details or technical support, please refer to the warranty card included with your product or visit the official MeesMeek store online.

For yderligere hjælp kan du besøge MeesMeek Brand Store.
