Indledning
This manual provides essential information for the safe and efficient operation of your Shop-Vac 5430087 Cordless Rechargeable Lithium 20V Handheld Vacuum. This high-quality product is designed for various cleaning needs, offering dependability and performance. Please read these instructions thoroughly before use and retain them for future reference.
Image: The Shop-Vac 5430087 handheld vacuum shown with its included accessories, including the main unit, battery, charger, and various nozzles.
Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke. Hvis der mangler eller er beskadigede varer, bedes du kontakte kundesupport.
- Shop-Vac 5430087 Handheld Vacuum Unit
- 2.0A Lithium Battery (20V Max)
- Hurtigoplader
- Gulper-dyse
- Sprækkeværktøj
- Extension Wands x 2
- Patronfilter
- Tilbehørssæt
Image: All components of the handheld vacuum, including the main unit, battery, charger, gulper nozzle, crevice tool, extension wands, and cartridge filter, are displayed on a white background.
Opsætning
- Oplad batteriet: Before first use, fully charge the 2.0A lithium battery using the provided fast charger. The charging time is approximately 1 hour.
- Installer batteriet: Slide the fully charged battery into the base of the handheld vacuum unit until it clicks securely into place.
- Vedhæft tilbehør: Select the appropriate nozzle or tool for your cleaning task.
- Gulper-dyse: Ideal for larger debris and general cleaning.
- Sprækkeværktøj: Bruges til trange rum, hjørner og kanter.
- Forlængerstave: Connect one or both wands to extend reach for floors or high areas.
Billede: En front view of the handheld vacuum, highlighting the nozzle and dustbin assembly.
Betjeningsvejledning
- Tænd/sluk: Tryk på tænd/sluk-knappen på håndtaget for at tænde støvsugeren. Tryk igen for at slukke den.
- Rensning: Move the vacuum slowly over the surface to be cleaned. For optimal suction, ensure the nozzle makes good contact with the surface.
- Brug af tilbehør:
- For car interiors, use the crevice tool to reach between seats and in tight corners.
- The gulper nozzle is effective for larger areas like car mats or upholstery.
- Extension wands can be used for floor-level cleaning or reaching higher spots.
- Batterilevetid: A fully charged 2.0A battery provides approximately 15 minutes of running time. A 4.0A battery (sold separately) can provide up to 28 minutes.
Video: An official demonstration of the Shop-Vac 5430087 handheld vacuum in use, showcasing its features and accessories for various cleaning tasks.

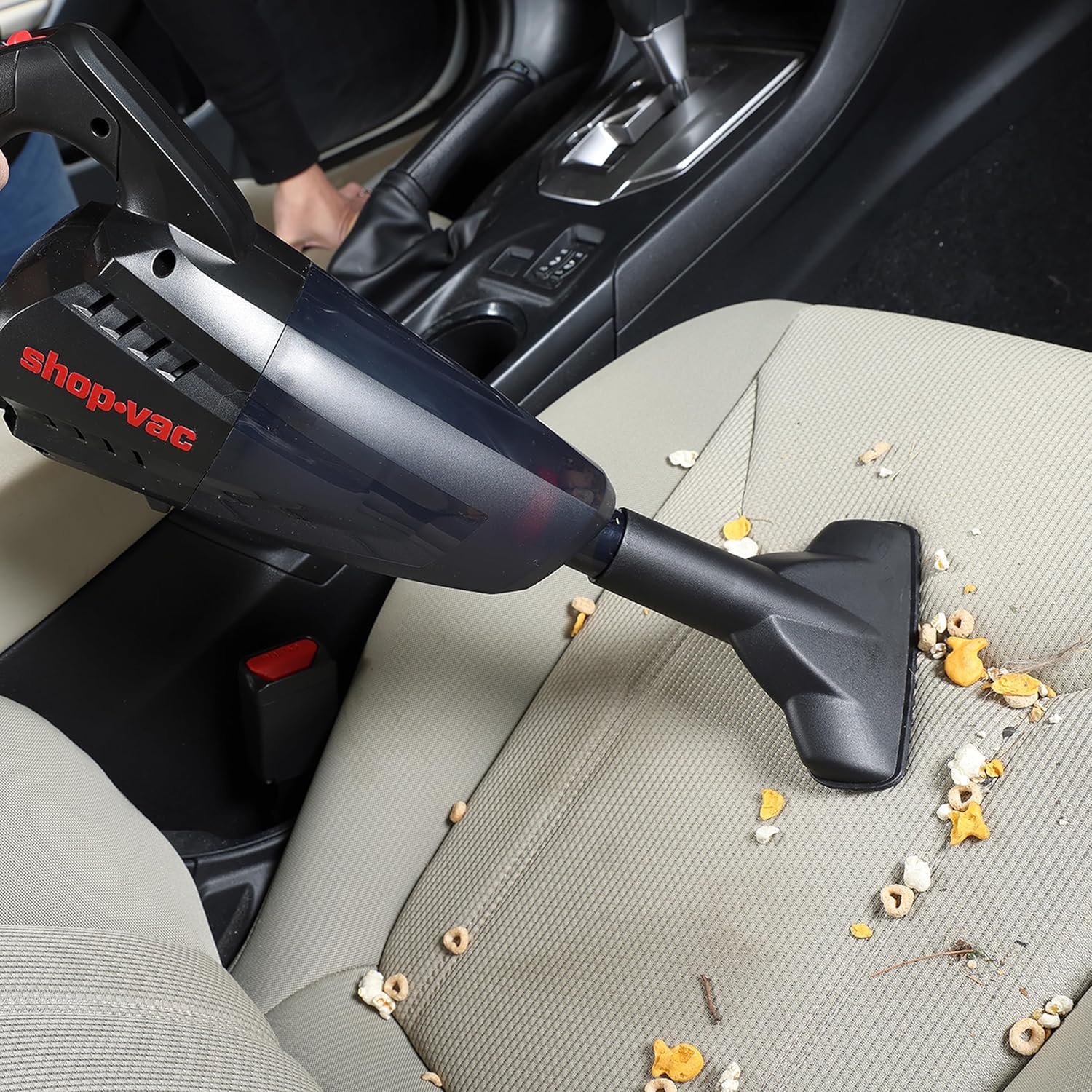

Image: The handheld vacuum with the gulper nozzle attached, effectively cleaning crumbs and debris from a car seat.

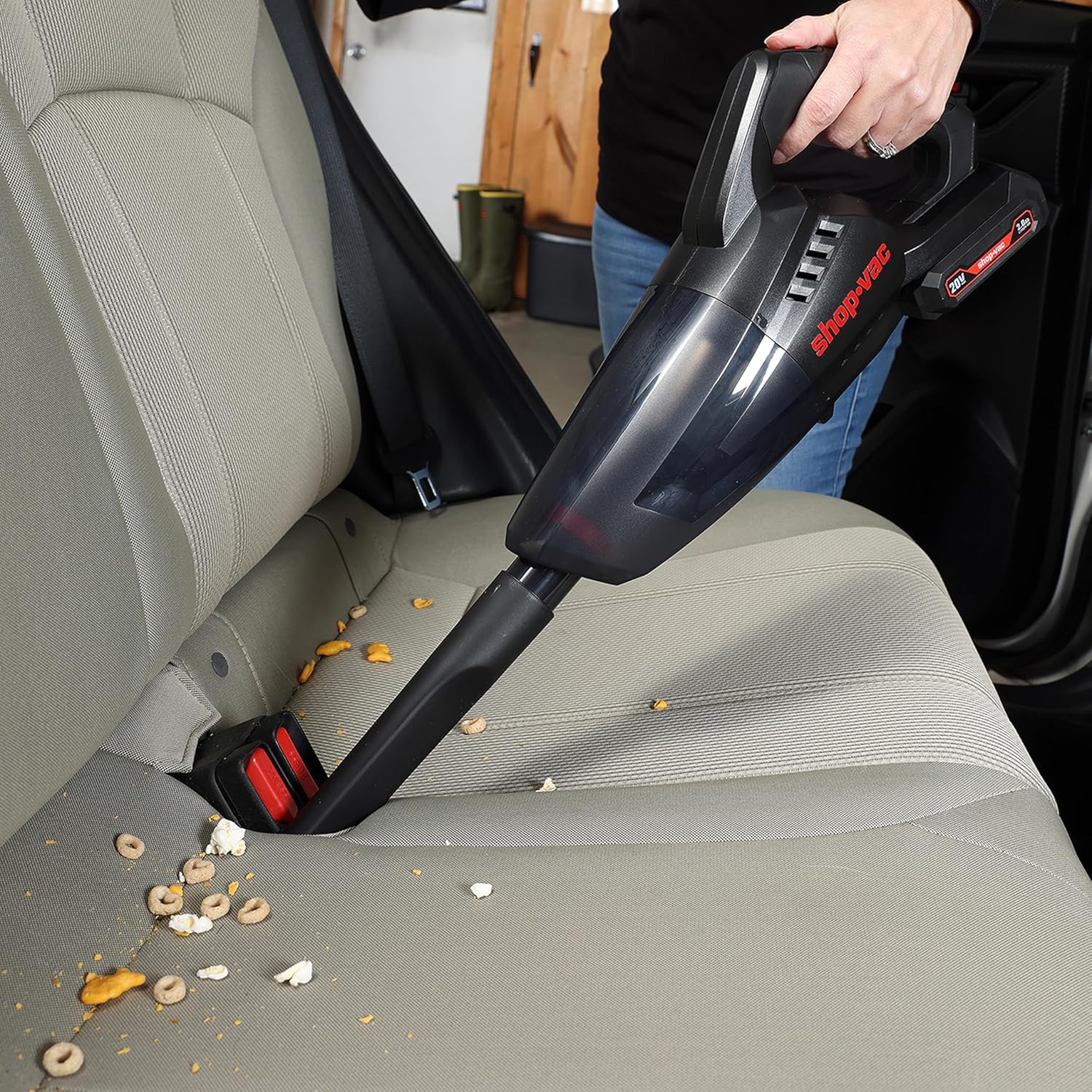

Image: The handheld vacuum with the crevice tool attached, reaching into the tight space between a car seat and the console to remove debris.
Image: The handheld vacuum with an accessory, possibly the gulper nozzle or a brush, being used to clean pet hair from the carpeted floor of a car, with a dog observing from the back seat.
Opretholdelse
- Tømning af skraldespanden:
- To empty the dustbin, press the release button located on the side of the vacuum.
- Rotate the dustbin counter-clockwise and pull it away from the main unit.
- Carefully empty the contents into a trash receptacle.
- Cleaning the Cartridge Filter:
- Remove the cartridge filter from the dustbin.
- Tap the filter gently over a trash can to dislodge dust and debris.
- For a more thorough cleaning, the filter can be rinsed with water. Ensure it is completely dry before reinserting it into the dustbin.
- Genmontering: After emptying and cleaning, reinsert the filter into the dustbin, then align the dustbin with the main unit and twist clockwise until it locks into place.
Image: The handheld vacuum showing the dustbin rotating, indicating the mechanism for detachment and emptying.
Image: The handheld vacuum with its transparent dustbin detached from the main unit, ready for emptying.
Image: Two hands holding the separate components of the vacuum's filtration system: a pleated cartridge filter and a metal mesh screen, indicating they are removable for cleaning.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Støvsugeren tænder ikke. | Batteriet er ikke opladet eller ikke korrekt installeret. | Sørg for, at batteriet er fuldt opladet og klikket sikkert på plads. |
| Lav sugeevne. | Støvbeholderen er fuld, eller filteret er tilstoppet. | Empty the dustbin and clean the cartridge filter. Ensure filter is dry before reassembly. |
| Usædvanlig støj under drift. | Blokering i dysen eller slangen. | Turn off the vacuum and check for any blockages in the nozzle, extension wands, or main suction inlet. |
Note: Replacement filters are essential for maintaining optimal performance. Please contact Shop-Vac customer support for information on purchasing udskiftningsfiltre.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | 5430087 |
| Mærke | Shop-Vac |
| Voltage | 20V Maks |
| Magt | 180W |
| Tank kapacitet | 0.65 Liters / 22oz |
| Vakuumtryk | 9Kpa |
| Max luftgennemstrømning | 40CFM |
| Maks effektivitet | 25 % Maks |
| Batteritype | Lithium Ion (2.0A included) |
| Opladningstid | 1 time |
| Running Time (2.0A battery) | 15 minutter |
| Running Time (4.0A battery) | 28 minutter |
| Filtertype | Patron |
| Varens vægt | 4.4 pund |
| Produktdimensioner | 16.53 cm L x 5.7 cm B x 11 cm H |
| Støjniveau | 40 decibel |
Garanti & Support
For warranty information, product support, or to purchase replacement parts and accessories, please visit the official Shop-Vac webwebstedet eller kontakt deres kundeserviceafdeling. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
