DieseRC Smart WiFi 2-Channel Relay Module with Bluetooth Transmitter (Model EW748) User Manual

1. Introduktion

This manual provides comprehensive instructions for the installation, operation, and maintenance of your DieseRC Smart WiFi 2-Channel Relay Module with Bluetooth Transmitter. This device allows for remote control of various electrical appliances via Wi-Fi, Bluetooth, and voice commands through compatible smart home systems.

Image 1.1: The DieseRC Smart WiFi 2-Channel Relay Module and its accompanying Bluetooth remote control.

2. Produktet er slutview

The DieseRC Smart WiFi Relay Module is designed for versatile control of electrical devices. It features two independent relays, Wi-Fi connectivity for app control, Bluetooth for remote control, and compatibility with voice assistants.

2.1 Nøglefunktioner

• Trådløs forbindelse: Supports 2.4 GHz Wi-Fi for remote control via the eWelink app.
• Bluetooth kontrol: Includes a Bluetooth transmitter for local remote operation.
• Stemmestyring: Kompatibel med Amazon Alexa og Google Home for håndfri betjening.
• Dual Relays: Two independent 10A relays with Normally Open (NO), Common (COM), and Normally Closed (NC) terminals.
• Fleksibel strømindgang: Operates on DC 5V or DC 7V-48V.
• Kompakt design: Dimensions of 60x32x17 mm (2.4x1.3x0.7 inches) for easy integration.
• Flere driftstilstande: Configurable as toggle mode or inching mode.

2.2 Komponentidentifikation

Billede 2.1: Detaljeret view of the relay module showing terminals and indicators.

• NO (Normally Open) Pin: Contact is open when the relay is de-energized.
• COM (Common) Pin: Common terminal for the relay contact.
• NC (Normally Closed) Pin: Contact is closed when the relay is de-energized.
• Relay Indicator Light: Illuminates when the corresponding relay is active.
• Open the key / Pairing button: Used for pairing with the eWelink app and Bluetooth remote.
• WiFi Network Indicator Light: Viser status for Wi-Fi-forbindelsen.
• Input USB 5V/0.5A: Micro USB port for 5V DC power input.
• +V / -V Terminals: Screw terminals for DC 7V-48V power input.

3. Specifikationer

4. Opsætning

4.1 Powering the Module

The module can be powered in two ways:

• USB 5V: Connect a standard Micro USB cable to the USB port on the module and a 5V/0.5A power adapter.
• DC 7V-48V: Connect the positive (+) and negative (-) wires of your DC power supply to the corresponding +V and -V screw terminals on the module. Ensure correct polarity.

Image 4.1: Powering the module via USB 5V or DC 7V-48V terminals.

4.2 eWelink App Installation and Pairing

1. Download the eWelink App: Scan QR-koden nedenfor eller besøg http://app.coolkit.cc/dl.html to download the eWelink app for your Android or iOS device.


Image 4.2: QR code for eWelink app download.

2. Registrer/Log ind: Open the eWelink app and create an account or log in if you already have one.
3. Gå ind i parringstilstand: Power on the DieseRC module. Press and hold the "Open the key / Pairing button" on the module for approximately 5-7 seconds until the Wi-Fi indicator light blinks rapidly.
4. Tilføj enhed i appen: In the eWelink app, tap the "+" icon to add a new device. Follow the on-screen instructions to select "Quick Pairing Mode" or "Compatible Pairing Mode" as needed.
5. Opret forbindelse til Wi-Fi: Enter your 2.4GHz Wi-Fi network name (SSID) and password when prompted. The module does not support 5GHz Wi-Fi.
6. Fuld parring: Once connected, the Wi-Fi indicator light on the module will stop blinking and remain solid. The device will appear in your eWelink app.

4.3 Bluetooth Remote Pairing

The included Bluetooth remote control (RM2.4G) is pre-paired with the module. If re-pairing is necessary:

1. Sørg for, at modulet er tændt.
2. Press and hold the pairing button on the module until the Wi-Fi indicator light blinks.
3. Press any button on the Bluetooth remote. The module's indicator light should confirm successful pairing.

5. Betjeningsvejledning

5.1 eWelink App Control

Once paired, you can control the module from anywhere using the eWelink app:

• Open the eWelink app and select your device.
• You will see virtual buttons for each relay (e.g., Channel 1, Channel 2). Tap to toggle the relay on/off.
• The app allows for scheduling, timers, and sharing control with family members.

Image 5.1: Remote control of devices via the eWelink app.

5.2 Stemmestyring (Alexa/Google Home)

To enable voice control, link your eWelink account with Amazon Alexa or Google Home:

1. Åbn Alexa- eller Google Home-appen.
2. Navigate to "Skills & Games" (Alexa) or "Works with Google" (Google Home).
3. Søg efter "eWelink" and enable the skill/service.
4. Link your eWelink account using your credentials.
5. Discover devices. Your DieseRC module will appear.
6. Du kan nu bruge stemmekommandoer som f.eks.:
   • "Alexa, turn on Channel 1."
   • "Hey Google, turn off Channel 2."

Image 5.2: Voice control integration with smart home assistants.

5.3 Bluetooth fjernbetjening

Use the included Bluetooth remote for local control:

• Press buttons 1 or 2 to control the respective relays.
• "ALL ON" and "ALL OFF" buttons control both relays simultaneously.

6. Driftsformer

The module supports two main operating modes, configurable via the eWelink app:

• Skift tilstand: Each press of the button (app, voice, or remote) will switch the relay state (ON to OFF, or OFF to ON). This is suitable for lights or devices that need to stay on until manually turned off.
• Inching Mode (Momentary): The relay will turn ON for a set duration (e.g., 0.5 seconds) after a button press, then automatically turn OFF. This is ideal for momentary actions like garage door openers or electric locks. The duration can be configured in the eWelink app.

Image 6.1: The module can be configured to act as a momentary switch (push button) or a toggle switch (rocker switch).

7. Ledningsdiagrammer

Vigtig: Sørg for, at strømmen er afbrudt, før du udfører nogen form for ledningsføring. Hvis du er usikker på den elektriske ledningsføring, skal du kontakte en kvalificeret elektriker.

7.1 Relay Contact Configuration

Image 7.1: Illustration of NO, COM, and NC terminals for each relay.

• NO (Normally Open) to COM: The circuit is open when the relay is off and closes when the relay is on.
• NC (Normally Closed) to COM: The circuit is closed when the relay is off and opens when the relay is on.

7.2 Eksample Wiring Scenarios

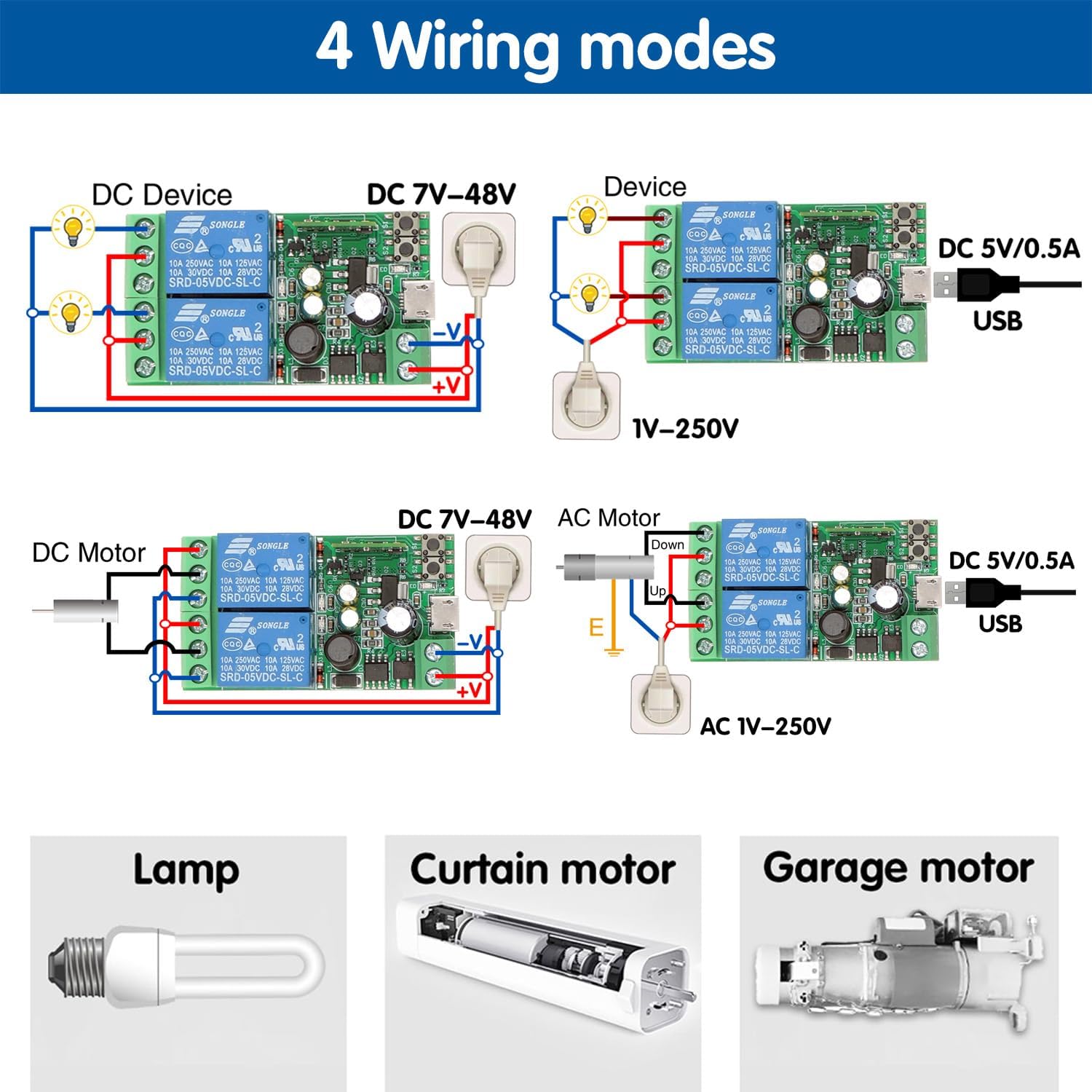

Image 7.2: Various wiring configurations for different applications.

• DC Device (DC 7V-48V): Connect the DC power supply to the module's +V and -V terminals. Connect the device's power input to the relay's COM and NO terminals.
• AC Device (1V-250V): Power the module via USB 5V. Connect the AC power source to the device and route one of the AC lines through the relay's COM and NO terminals.
• DC Motor (DC 7V-48V): For controlling a DC motor, two relays can be used for forward/reverse or on/off control, depending on the motor type and desired functionality.
• Garage Door/Curtain Motor: The module can be integrated into existing control circuits for garage doors or curtain motors, typically using the inching mode to simulate a momentary button press.

For specific applications, refer to the device's wiring requirements and ensure compatibility with the relay's specifications (10A, 250VAC/30VDC).

8. Vedligeholdelse

• Opbevar modulet et tørt sted, væk fra fugt og ekstreme temperaturer.
• Do not expose the module to direct sunlight or corrosive substances.
• Regularly check wiring connections for security.
• Ensure the power supply matches the module's specifications.
• Periodically check for eWelink app updates to ensure optimal performance and security.

9. Fejlfinding

• Modulet tænder ikke:
  • Check power connections (USB 5V or DC 7V-48V).
  • Ensure the power adapter provides sufficient voltage and current (at least 0.5A).
• Kan ikke oprette forbindelse til Wi-Fi:
  • Ensure your Wi-Fi network is 2.4GHz. The module does not support 5GHz.
  • Bekræft, at din Wi-Fi-adgangskode er korrekt.
  • Place the module closer to your Wi-Fi router during pairing.
  • Reset the module by holding the pairing button until the Wi-Fi indicator blinks rapidly, then try pairing again.
• App-styring virker ikke:
  • Tjek din internetforbindelse.
  • Ensure the module's Wi-Fi indicator is solid, indicating a stable connection.
  • Restart the eWelink app.
• Stemmestyring svarer ikke:
  • Verify that your eWelink account is correctly linked to Alexa/Google Home.
  • Ensure the device is discovered in your Alexa/Google Home app.
  • Tjek dine stemmekommandoer for nøjagtighed.
• Bluetooth remote not working:
  • Sørg for, at fjernbetjeningen har fungerende batterier.
  • Re-pair the remote with the module as described in Section 4.3.

10. Garanti og support

For warranty information and technical support, please refer to the product packaging or contact DieseRC customer service through the retailer where the product was purchased. You can also visit the official DieseRC webwebsted for yderligere hjælp.
