FLIPSKY 14S150A

FLIPSKY 14S 150A LiFePO4/Li-ion Battery Management System (BMS) User Manual

Model: 14S150A

1. Introduktion

This manual provides essential instructions for the safe and effective use of the FLIPSKY 14S 150A Battery Management System (BMS). This BMS is designed to protect LiFePO4 and Li-ion battery packs, commonly used in applications such as ESK8 and electric scooters, by monitoring and managing various battery parameters.

Please read this manual thoroughly before installation and operation to ensure proper functionality and to prevent damage to the BMS or battery pack.

2. Sikkerhedsoplysninger

Adherence to safety guidelines is critical when working with battery management systems and high-power battery packs. Failure to follow these instructions can result in serious injury, fire, or damage to equipment.

  • Always ensure correct wiring polarity. Incorrect connections can cause immediate damage to the BMS and battery.
  • Do not short-circuit the battery terminals or BMS output.
  • Handle the BMS and battery pack with care to avoid physical damage.
  • Sørg for tilstrækkelig ventilation under opladning og afladning.
  • Operating temperature range: -30°C to +80°C. Avoid operating outside this range.
  • Working power consumption: <35µA. Over-discharge power consumption (Sleeping State): <10µA.
  • If any abnormal behavior is observed, immediately disconnect the battery pack from the load and charger.

3. Produktfunktioner

The FLIPSKY 14S 150A BMS offers comprehensive protection and management for your battery pack:

  • Beskyttelse mod overopladning: Forhindrer, at celler oplades ud over deres sikre volumentage grænse.
  • Beskyttelse mod overafladning: Beskytter celler mod at blive afladet under deres sikre volumen.tage grænse.
  • Overstrømsbeskyttelse: Safeguards against excessive discharge currents.
  • Balanced Protection: Actively balances cell voltages during charging to prolong battery life.
  • Temperaturkontrolbeskyttelse: Monitors battery temperature and prevents operation outside safe thermal limits.
  • Applicable for 8-14S battery configurations.
Diagram illustrating the key features of the BMS including overcharge, temperature control, overcurrent, overdischarge, balanced protection, and battery gear adjustment.

Figure 1: Key Features of the FLIPSKY 14S 150A BMS.

4. Specifikationer

Top-down view of the Flipsky 14S 150A BMS, showing connection points for pack negative, discharge negative, charge negative, and the 14-pin balance connector.

Figure 2: FLIPSKY 14S 150A BMS Overview.

ParameterVærdi
Ladestrøm<60A
Udledningsstrøm<150A
Indre modstand≤15mΩ
Opladning Voltage(Number of Li-ion cells in series) x 4.2V
LedningstypeDifferent Port (Separate charge/discharge)
Overcharge Detection Voltage4.25±0.025V
Overcharge Release Voltage4.15±0.05V
Over-discharge Detection Voltage2.75±0.1V
Over-discharge Release Voltage3.0±0.1V
Balance Detection Voltage4.15±0.025V
Balancestrøm42 ± 5mA
Overafladningsstrømbeskyttelse300±50A, 450±50A, 600±60A (Configurable)
Kortslutningsbeskyttelsesforsinkelse300 µs
Charge/Discharge Over-temperature Protection55°C
Charge/Discharge High Temperature Release75°C
Driftstemperaturområde-30°C til +80°C
Dimensioner (L*B*H)121mm * 50mm * 12.8mm (4.76 x 1.97 x 0.5 inches)
Nettovægt244 g (8.6 oz)
Diagram showing the dimensions of the BMS: 121mm length, 50mm width, and 12.7mm thickness.

Figure 3: BMS Dimensions.

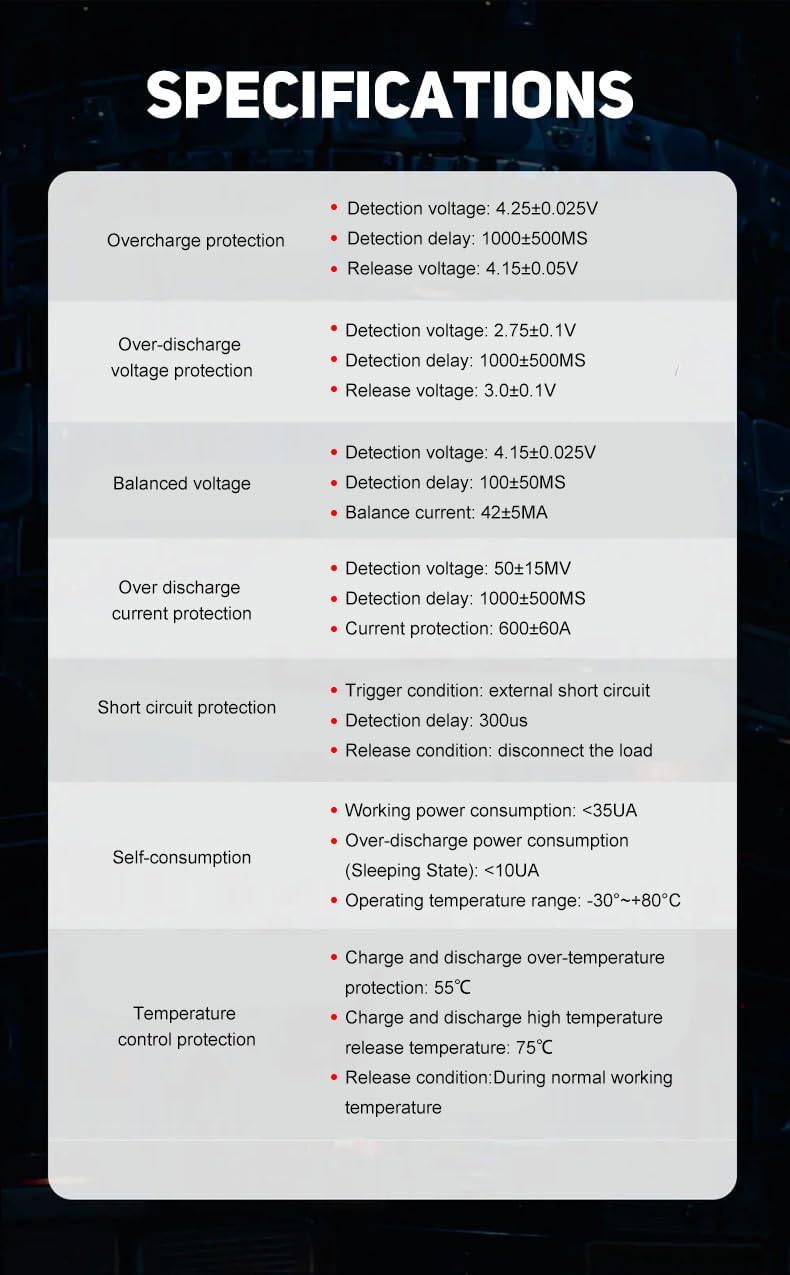

Detailed table of specifications for the BMS, including detection voltages, delays, and release conditions for various protections like overcharge, over-discharge, balance, over-current, short circuit, self-consumption, and temperature control.

Figure 4: Detailed Technical Specifications.

5. Opsætning og installation

Careful installation is crucial for the proper functioning and safety of the BMS. Follow these steps precisely:

  1. Initial Connection Precaution: It is strictly forbidden to insert the balance wires into the BMS before connecting the main battery terminals (B-). Ensure the main negative battery cable (B-) is securely connected first.
  2. Balance Wire Soldering: Make sure all balance cables are correctly soldered to their respective battery cell positive terminals.
  3. Sequence of Connecting Balance Wires:
    • Start from the thin black balance wire (B0 or B-) which connects to the main negative terminal of the battery pack.
    • Connect the second wire (thin red wire, B1) to the positive terminal of the first battery cell.
    • Continue connecting each subsequent balance wire to the positive terminal of the next cell in series, in ascending order (B2, B3, ..., B14), until the last positive terminal (B+) of the battery pack is connected.
  4. Voltage Verification (Crucial Step): Do not insert the balance plug directly after connecting the cables. First, measure the voltage between each two adjacent metal terminals on the back of the balance plug.
    • For ternary polymer batteries, the voltage between adjacent terminals should be between 3.0V and 4.2V.
    • For iron-lithium (LiFePO4) batteries, the voltage skal være mellem 2.0V og 3.6V.
    • Voltage between adjacent terminals should be approximately 1.5V to 2.75V for other cell types, depending on their nominal voltage.
  5. Balance Plug Insertion: After confirming that the wiring sequence and voltages of all balance cables are correct, carefully insert the balance plug into the corresponding socket on the protection board.

    Attention: Cables from different manufacturers are not universally compatible. Always use the matching cables provided with your BMS or verified compatible replacements.

  6. Final Voltage Tjek: After the wiring is completed, measure the voltage between battery B+ and B-, and the voltage between B- and C-. If these voltages are equal, the protection board is working normally and can be used. If they are not equal, recheck all wiring connections.
Wiring diagram for a 14S BMS with a different port configuration. It shows connections for B- (pack negative), P- (discharge negative), C- (charge negative), and the 14-pin balance connector (C0 to C14) to the battery pack, charger, and motor/load.

Figure 5: 14S BMS Wiring Diagram (Different Port).

6. Betjening

Once correctly installed, the BMS operates automatically to protect your battery pack. It continuously monitors cell voltages, strømme og temperaturer.

  • Opladning: Connect your charger to the C+ and C- terminals. The BMS will manage the charging process, including cell balancing and overcharge protection.
  • Afladning: Connect your load (e.g., ESK8 motor, electric scooter motor) to the P+ and P- terminals. The BMS will monitor discharge current and cell voltages to prevent over-discharge and overcurrent conditions.
  • Aktivering af beskyttelse: If any parameter exceeds its safe limit (e.g., overcharge, over-discharge, overcurrent, over-temperature), the BMS will temporarily disconnect the battery from the charger or load to prevent damage. It will automatically resume operation once conditions return to safe levels.

7. Vedligeholdelse

The FLIPSKY BMS is designed for minimal maintenance. However, periodic checks can help ensure its longevity and reliable performance:

  • Visuel inspektion: Periodically inspect the BMS and all wiring for any signs of damage, corrosion, or loose connections.
  • Renhed: Keep the BMS free from dust, dirt, and moisture. Use a dry, soft cloth for cleaning.
  • Temperaturstyring: Ensure the BMS and battery pack are operated within their specified temperature ranges. Good airflow around the unit is beneficial, especially during high current draw. The aluminum alloy shell aids in heat dissipation.
Tværsnit view of the BMS highlighting the aluminum alloy shell designed for better heat dissipation, with arrows indicating heat flow.

Figur 6: Skal af aluminiumslegering til varmeafledning.

8. Fejlfinding

If you encounter issues with your BMS or battery pack, consider the following troubleshooting steps:

  • Ingen strømudgang:
    • Check all main power connections (B-, P-, C-) for secure contact and correct polarity.
    • Verify the balance wire connections are correct and the plug is fully seated.
    • Mål individuelle cellevolumenertages. If any cell is significantly out of balance or below its minimum voltage, the BMS may have activated under-voltage beskyttelse.
    • Check for short circuits in the load or wiring.
  • Opladningsproblemer:
    • Ensure the charger is functioning correctly and provides the correct voltage.
    • Verify the C+ and C- connections.
    • Check for overcharge protection activation if cells are already full.
  • Overophedning af BMS:
    • Reduce the load current if possible.
    • Ensure adequate ventilation around the BMS.
    • Verify that the BMS is rated for your application's continuous and peak current draw.
  • Ubalancerede celler:
    • Sørg for, at alle balanceledninger er korrekt tilsluttet og har god kontakt.
    • Allow the battery pack to sit connected to the BMS for an extended period (e.g., overnight) to allow passive balancing to occur.

If problems persist after troubleshooting, contact FLIPSKY customer support for further assistance.

9. Pakkens indhold

The package for the FLIPSKY 14S 150A BMS typically includes:

  • 1x PCBA board (FLIPSKY 14S 150A BMS)
  • 1x HY2.0 single head 15P line (Balance cable)
Image showing the contents of the package: one PCBA board (BMS) and one HY2.0 single head 15P balance cable.

Figur 7: Pakkens indhold.
