KickAss Flexicharge 32A Smart 12V Battery Charger

1. Introduktion og overview

The KickAss Flexicharge 32A Smart 12V Battery Charger is an advanced, microprocessor-controlled charging unit designed for optimal battery health and longevity. It features a 9-stage smart charging process, adjustable output, and compatibility with various battery chemistries, including Lead Acid, AGM, Gel, Lithium, and LiFePO4. This manual provides essential information for safe and effective operation of your charger.

Image 1: The KickAss Flexicharge 32A Smart 12V Battery Charger with its power cable, Anderson connector, and alligator clamps.

2. Nøglefunktioner

• Automatisk 9-StagSmart opladning: Utilizes a high-tech microprocessor to manage the charging process in nine distinct stages, ensuring optimal current and voltage delivery for maximum efficiency and battery longevity.
• Fast Charge with 32A Peak Output: Delivers a peak output of 32A per hour, significantly reducing charging time while optimizing the charging process through advanced smart charging technology.
• Adjustable Output for Various Battery Sizes: Offers adjustable amperage outputs of 8A, 16A, and 32A, providing versatility for different battery capacities and charging needs.
• Compatibility with Multiple Battery Chemistries: Supports a wide range of battery types including AGM, Gel, Lithium, LiFePO4, and Lead Acid, with adjustable amperage to suit specific battery requirements.
• Lithium Activation Mode: Capable of reviving lithium batteries that have fallen below their Battery Management System (BMS) safety voltage parameters, charging them until the cut-in voltage is reached for normal charging to resume.
• AGM Recondition Mode: Designed to restore the capacity and performance of AGM batteries by breaking down lead sulphate deposits, particularly useful for deeply discharged or long-unused batteries.
• Flere beskyttelsesfunktioner: Includes short circuit protection, overheating protection, and other safeguards to protect your valuable battery and the charger itself.

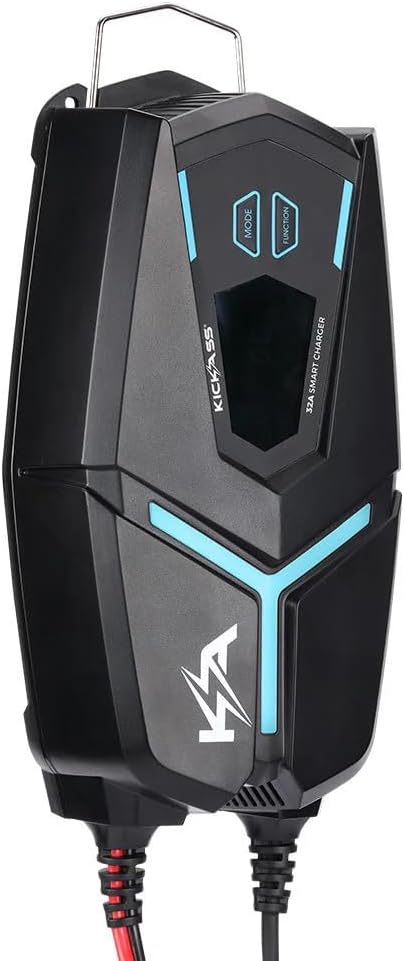

Image 2: Close-up of the charger's display and control buttons (MODE, FUNCTION).

3. Opsætning og forbindelser

Before operating the charger, ensure all connections are secure and correct. The charger comes with both Anderson connectors and alligator clamps for versatile connection options.

3.1 Tilslutning til et batteri

1. Ensure the charger is disconnected from any power source.
2. Connect the desired battery connection accessory (Anderson connector or alligator clamps) to the charger's output port.
3. For alligator clamps, connect the red positive (+) clamp til den positive batteripol og den sorte negative (-) polamp til batteriets negative pol. Sørg for en sikker forbindelse.
4. For Anderson connectors, ensure the battery is equipped with a compatible Anderson plug and connect it securely to the charger's output.
5. Once connected to the battery, you can then connect the charger to a 240V AC power outlet.

Image 3: Alligator clamps and Anderson connector for connecting the charger to a battery.

4. Betjeningsvejledning

The Flexicharge 32A Smart Charger offers various modes for charging and testing your battery and vehicle's electrical system.

4.1 Battery Health Check (Battery Test Mode)

This mode allows you to quickly assess the health of your battery, cranking system, and alternator. The charger provides visual feedback (blue for good, yellow for fair, red for bad) on the display.

1. Connect the charger to your vehicle's battery using the alligator clamps as described in Section 3.1.
2. The charger will automatically begin its first test, displaying the battery's measurement.
3. To check the cranking health, press the FUNGERE button. The charger will display the cranking power.
4. To check the alternator health, press the FUNGERE button again. The charger will display the alternator's performance.

4.2 opladningstilstande

The charger automatically detects the battery type and selects the appropriate charging mode. You can also manually select specific modes or adjust ampslette.

• Automatisk opladning: Once connected to a battery and power, the charger will automatically begin the 9-stage opladningsproces.
• Justering Ampalder: Brug MODE button to cycle through available amperage settings (8A, 16A, 32A) to match your battery's capacity and charging requirements.
• Lithium Activation Mode: If a lithium battery is deeply discharged, this mode will attempt to bring it back to a voltage where normal charging can commence.
• AGM Recondition Mode: For AGM batteries that have suffered from sulfation, this mode helps to restore their capacity. Consult the charger's display for activation instructions if needed.

5. Vedligeholdelse og pleje

• Hold opladeren ren og fri for støv og snavs. Brug en blød, tør klud til rengøring.
• Opbevar opladeren på et køligt, tørt sted, når den ikke er i brug.
• Regularly inspect cables and connectors for any signs of damage or wear. Replace if necessary.
• Do not expose the charger to extreme temperatures or direct sunlight for prolonged periods.

6. Fejlfinding

7. Specifikationer

• Model: KACHG1232
• Mærke: GIVE DEN GAS
• Input bindtage: 240V AC (typical)
• Udgang Voltage: 12V DC
• Max udgangsstrøm: 32A
• Oplader Stages: 9-Stage Smart opladning
• Kompatible batterityper: Lead Acid, AGM, Gel, Lithium, LiFePO4
• Justerbar Ampalder: 8A, 16A, 32A
• Dimensioner: 29.8 x 15.2 x 8.7 cm
• Vægt: 2.7 kg
• ASIN: B0D21MSFT7

Image 4: The KickAss Flexicharge 32A Smart 12V Battery Charger shown with its retail packaging, highlighting key features.

8. Garanti og support

For warranty information, technical support, or service inquiries, please refer to the official KICKASS webwebstedet eller kontakt deres kundeservice direkte. Gem din købsbevis til garantikrav.
