NXR 3 Burner Portable Gas Grill

Vigtige sikkerhedsoplysninger

Read all instructions carefully before assembling or operating this grill. Failure to follow these instructions could result in fire, explosion, or serious injury.

• For outdoor use only. Do not operate this appliance inside any building, garage, or other enclosed area.
• Hold altid børn og kæledyr væk fra grillen.
• Brug altid grillen på en plan, stabil og ikke-brændbar overflade.
• Opbevar eller brug ikke benzin eller andre brændbare dampe og væsker i nærheden af ​​dette eller noget andet apparat.
• Always check for gas leaks before each use and after replacing the gas cylinder.
• Dette produkt indeholder kemikalier, der af staten Californien vides at forårsage kræft og fødselsdefekter eller anden reproduktionsskade.

Produkt overview

The NXR 3 Burner Portable Gas Grill (Model: 880-0022B) is designed for convenient outdoor cooking. It features three main burners, stainless steel construction, and a compact design for portability.

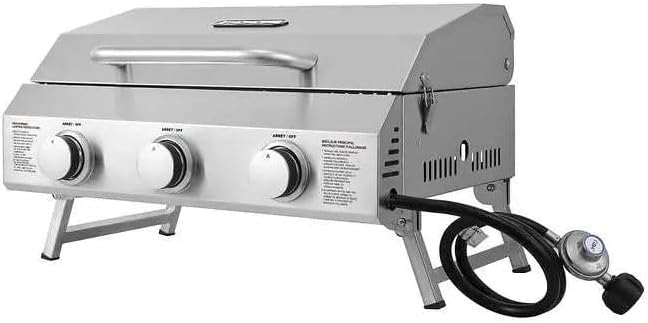

Figur 1: The NXR 3 Burner Portable Gas Grill with its lid closed, showcasing the control knobs and the attached gas hose with regulator. This view highlights its compact and portable design.

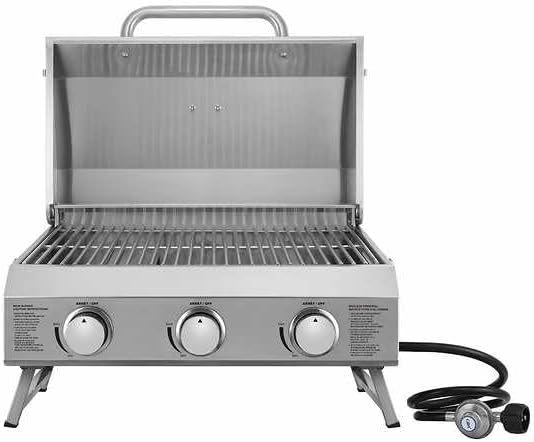

Figur 2: The NXR 3 Burner Portable Gas Grill with the lid open, providing a clear view of the stainless steel cooking grates and the burner area. This demonstrates the ample cooking surface.

Figur 3: A detailed close-up of the durable stainless steel cooking grates, designed for even heat distribution and easy cleaning.

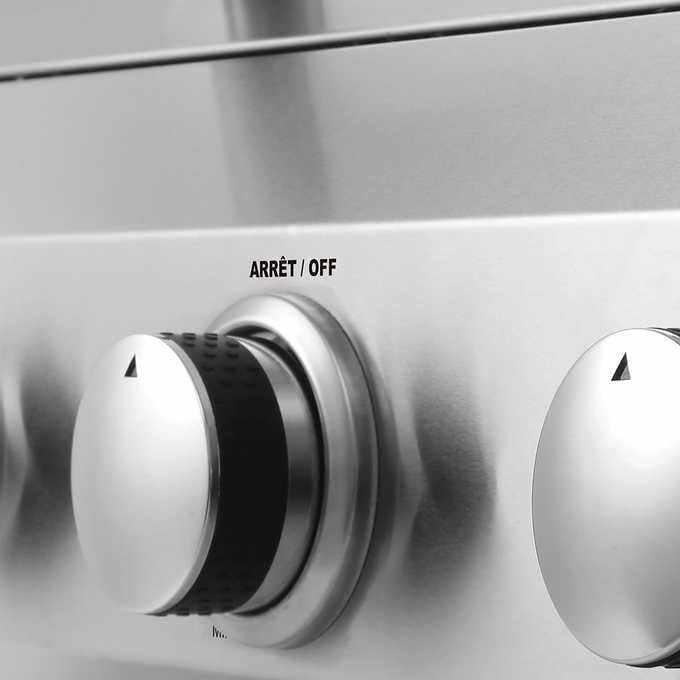

Figur 4: A close-up of one of the control knobs, clearly marked with "ARRÊT / OFF" (Stop / Off), allowing precise control over each burner's flame intensity.

Figur 5: Et interiør view of the grill, showing the stainless steel heat deflectors positioned above the burners. These deflectors help distribute heat evenly and protect the burners from drippings.

Figur 6: The easily accessible and removable grease tray located beneath the grill, designed to collect drippings for convenient cleaning and maintenance.

Opsætning

1. Montering

The NXR Portable Gas Grill requires some assembly. Follow the detailed instructions provided in the separate assembly guide included with your product. Ensure all components are securely fastened before proceeding.

• Pak alle komponenter ud, og verificer dem i forhold til styklisten.
• Attach the legs and handle as per the assembly guide.
• Install the cooking grates and heat deflectors.

2. Connecting the Gas Cylinder

This grill is designed for use with a standard 20 lb (9.1 kg) propane gas cylinder (not included). Ensure the cylinder is upright and on a level surface.

1. Sørg for, at alle brænderens kontrolknapper er i "OFF"-positionen.
2. Connect the regulator hose to the gas cylinder valve. Turn the coupling nut clockwise until it is fully tightened. Do not overtighten.
3. Open the gas cylinder valve slowly, turning it counter-clockwise.

3. Leak Test

Perform a leak test every time the gas cylinder is connected or if you suspect a leak.

1. Prepare a soap and water solution (50/50 mix).
2. Ensure all burner knobs are "OFF".
3. Åbn gasflaskeventilen.
4. Apply the solution to all gas connections, including the hose, regulator, and manifold connections.
5. Look for bubbles. If bubbles appear, there is a leak. Close the gas cylinder valve immediately and tighten the connection. Repeat the test. If bubbles persist, do not use the grill and contact customer support.
6. Rinse off any soap solution after testing.

Betjeningsvejledning

1. Tænding af grillen

1. Ensure the gas cylinder valve is fully open.
2. Åbn grilllåget.
3. Push in and turn one burner control knob to the "HIGH" position.
4. Press the igniter button repeatedly until the burner lights. You should hear a clicking sound and see a flame.
5. If the burner does not light within 5 seconds, turn the knob to "OFF", wait 5 minutes for gas to dissipate, and repeat the lighting procedure.
6. Once one burner is lit, you can light the other burners by turning their respective knobs to "HIGH".

2. Forvarmning

After lighting, close the lid and allow the grill to preheat for 10-15 minutes on high heat. This helps to burn off any manufacturing residues and ensures the cooking grates are hot enough for optimal cooking.

3. Temperaturkontrol

Adjust the burner control knobs to achieve the desired cooking temperature. Turn the knobs towards "LOW" for lower heat and "HIGH" for maximum heat. The three independent burners allow for direct and indirect cooking zones.

4. Slukning af grillen

1. Drej alle brænderkontrolknapper til "OFF"-positionen.
2. Close the gas cylinder valve by turning it clockwise until fully closed.
3. Lad grillen køle helt af, før den flyttes eller rengøres.

Opretholdelse

Regelmæssig vedligeholdelse vil forlænge grillens levetid og sikre optimal ydeevne.

1. Rengøring af grillristen

• After each use, once the grill has cooled, brush off any food residue from the grates using a grill brush.
• For deeper cleaning, remove the grates and wash with warm soapy water. Rinse thoroughly and dry completely before reinstalling.

2. Cleaning the Grease Tray

• Regularly check and empty the grease tray (Figure 6).
• Remove the tray and dispose of accumulated grease safely.
• Wash the tray with warm soapy water, rinse, and dry thoroughly.

3. Udvendig rengøring

• Wipe down the stainless steel surfaces with a soft cloth and a mild detergent or stainless steel cleaner.
• Undgå slibende rengøringsmidler eller skuresvampe, da disse kan ridse overfladen.

4. Opbevaring

When not in use, store the grill in a dry, protected area. Disconnect the gas cylinder and store it outdoors in a well-ventilated area, away from direct sunlight or heat sources.

Fejlfinding

Specifikationer

Garanti og support

For warranty information or technical support, please refer to the warranty card included with your product or visit the official NXR website. You may also contact NXR customer service directly for assistance with product operation, parts, or troubleshooting beyond this manual.

Keep your purchase receipt and model number (880-0022B) handy when contacting support.
