1. Introduktion
Thank you for choosing the NXGKET Walkie Talkies. This 6-pack set is designed for reliable long-range communication, featuring NOAA weather alerts, 22 FRS channels, and a built-in 1800mAh Li-ion battery for extended use. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and safety.
2. Hvad er der i æsken
- Walkie-talkies x 6
- Batteri (indbygget)
- Bælteclips
- 3-in-1 USB Cable x 2
- Oplader
Figure 2.1: Package Contents of the NXGKET Walkie Talkies.
3. Produktfunktioner
- Powerful Long Range Coverage: Up to 5-mile communication range, depending on terrain and conditions. FRS 22 channels and 121 privacy codes (2,662 combinations) for easy channel finding.
- NOAA Weather Scan and Alert: Scans 10 NOAA radio channels for weather alerts. Features an upgraded speaker for clear audio, 150% increased maximum volume, Vibrate Alert, and 9 levels of VOX.
- Rechargeable 1800mAh Li-ion Battery: Built-in 1800mAh lithium battery, eliminating the need for disposable batteries. Charge 3 walkie talkies simultaneously with the included 3-in-1 USB-C cable.
- Easy to Use with Multi-features: Bright color finish for visibility, large LCD screen, volume adjustment, Voice-activated (iVOX), Auto squelch, Auto memory, Auto scan, Low battery alert, Keypad lock (Channel-lock), Adjustable power, Drop-protection, and built-in flashlight.
- Alsidig brug: Suitable for men, women, kids, and elders. Ideal for skiing, hiking, bicycling, camping, road trips, cruises, commercial use, and job sites.
Figure 3.1: Key Components and Controls of the Walkie Talkie.
4. Opsætning
4.1 Indledende opladning
Before first use, fully charge all walkie talkies. The built-in 1800mAh Li-ion battery is not removable. Use the provided 3-in-1 USB-C cables and chargers to charge up to three units simultaneously.
Figure 4.1: Charging the Walkie Talkie via USB-C.
4.2 Tænd/sluk
To turn the radio on or off, rotate the Volume/Power knob clockwise or counter-clockwise until you hear a click and the display illuminates or turns off.
5. Betjeningsvejledning
5.1 Kanalvalg
The NXGKET Walkie Talkies operate on 22 FRS channels. To select a channel:
- Tryk på MENU button. The channel number will flash on the LCD.
- Brug Op (▲) or Ned (▼) knapperne for at vælge den ønskede kanal.
- Tryk på PTT knappen for at bekræfte dit valg og afslutte menuen.
5.2 Privatlivskoder (CTCSS/DCS)
To ensure private communication and minimize interference, you can set privacy codes (121 available). All radios in your group must be on the same channel and privacy code to communicate.
- Tryk på MENU knappen to gange for at åbne indstillingen for privatlivskoden.
- Brug Op (▲) or Ned (▼) buttons to select a privacy code.
- Tryk på PTT knappen for at bekræfte og afslutte.
5.3 Afsendelse og modtagelse
For at sende, tryk og hold nede PTT (Push-to-Talk) knappen på siden af radioen. Tal tydeligt ind i mikrofonen. Slip PTT button to receive. Ensure the microphone is close to your mouth for clear transmission.
5.4 NOAA Vejrvarsler
The walkie talkies can scan 10 NOAA radio channels to provide real-time weather alerts.
- Tryk på MAN button (or dedicated NOAA button if available) to activate NOAA weather scan.
- The radio will automatically scan for active weather channels.
- An alert will sound if a weather warning is detected.
Figure 5.1: NOAA Weather Scan and Alert Feature.
5.5 VOX (Voice-Activated Transmission)
VOX allows hands-free operation. The radio transmits when it detects your voice.
- Tryk på MENU button until the VOX icon appears on the display.
- Brug Op (▲) or Ned (▼) buttons to select a VOX sensitivity level (1-9, with 9 being most sensitive).
- Tryk på PTT knappen for at bekræfte og afslutte.
Figure 5.2: VOX Talk and Long Range Capability.
5.6 Lommelygte
The walkie talkie includes a built-in LED flashlight for convenience in low-light conditions.
- To turn on/off the flashlight, press the dedicated flashlight button (usually located below the PTT button).

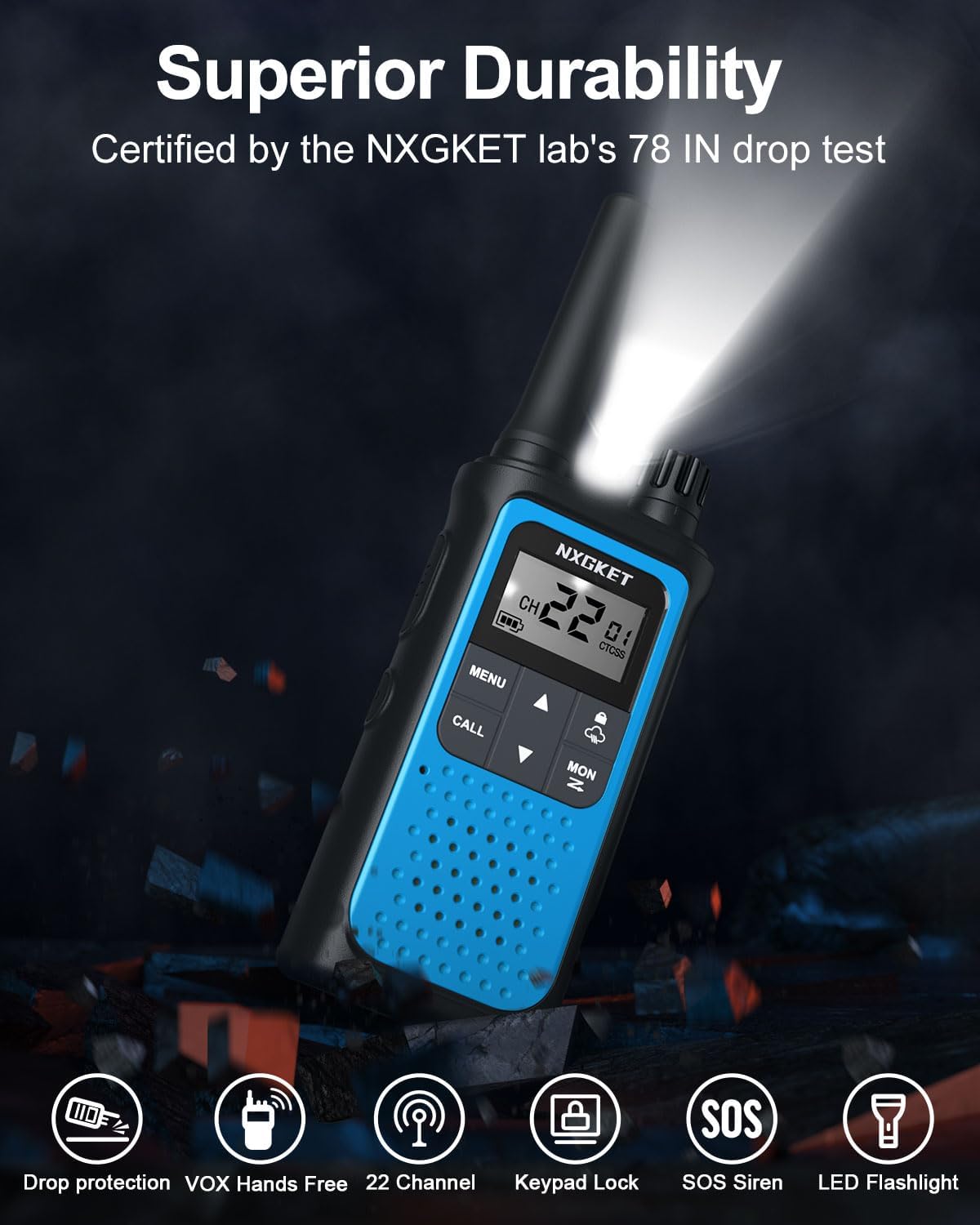

Figure 5.3: Walkie Talkie with LED Flashlight Activated.
5.7 Tastaturlås
The keypad lock prevents accidental changes to your settings.
- To lock/unlock the keypad, press and hold the Låse button (often indicated by a padlock icon) until the lock icon appears/disappears on the display.
6. Vedligeholdelse
6.1 Rengøring
Rengør radioen med en blød kludamp cloth. Do not use abrasive cleaners or solvents. Ensure the USB-C port cover is securely closed to prevent dust and moisture ingress.
6.2 Pleje af batterier
To prolong battery life, avoid fully discharging the battery frequently. Charge the walkie talkies regularly, especially if they will not be used for an extended period.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Batteriet er lavt eller afladet. | Charge the walkie talkie. |
| Kan ikke kommunikere med andre radioer | Different channel or privacy code. | Ensure all radios are on the same channel and privacy code. |
| Svagt eller intet signal | Uden for rækkevidde eller forhindringer. | Move closer to other radios or to an open area. Avoid large obstacles like buildings or dense foliage. |
| Statisk eller interferens | Interference from other devices or channels. | Change to a different channel or privacy code. Ensure no other electronic devices are too close. |
| Tastaturet er låst | Tastaturlåsen er aktiveret. | Press and hold the Lock button to unlock the keypad. |
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | NXGKET |
| Modelnummer | ZX-808 |
| Antal kanaler | 22 FRS-kanaler |
| Privatlivskoder | 121 (CTCSS/DCS) |
| Batteri | 1800mAh Li-ion (included, non-removable) |
| Opladningsport | USB-C |
| Maximum Talking Range | 5 Miles (terrain and conditions dependent) |
| Frekvensområde | 300 MHz - 3 GHz |
| Særlige funktioner | Digital Display, Emergency Alarm, Long Range, Rechargeable, Voice Operated Transmission (VOX), NOAA Weather Alerts, Flashlight, Keypad Lock |
| Varens vægt | 4.8 ounce |
| Produktdimensioner | 0.9 x 2 x 7.6 tommer |
| Vandmodstandsniveau | Vandtæt |
9. Garanti og support
9.1 Garantioplysninger
The NXGKET Walkie Talkies come with a 1 års garanti and free replacement for manufacturing defects. Please retain your proof of purchase for warranty claims.
9.2 Kundesupport
For any questions, technical assistance, or warranty claims, please contact NXGKET customer support through the retailer's platform or visit the official NXGKET store page on Amazon: NXGKET Store.
