1. Introduktion
This manual provides detailed instructions for the safe and effective use of your ThruNite Archer Pro S EDC Flashlight. Please read this manual thoroughly before operating the device and retain it for future reference.
The ThruNite Archer Pro S is a compact and powerful Everyday Carry (EDC) flashlight, featuring a high-performance LED, USB-C rechargeable battery, and a versatile tail switch for various lighting modes.
2. Sikkerhedsoplysninger
- Do not shine the flashlight directly into eyes. The high lumen output can cause temporary vision impairment.
- Opbevares utilgængeligt for børn.
- Do not disassemble the sealed head of the flashlight, as this may damage the light and void the warranty.
- Undgå at udsætte lommelygten for ekstreme temperaturer eller direkte sollys i længere perioder.
- Ensure the USB-C charging port is clean and dry before charging to prevent damage.
3. Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- ThruNite Archer Pro S Cool White Flashlight x1
- Integrated Battery x1
- Pocket Clip x1
- USB-C ladekabel x1
Image: Package contents of the ThruNite Archer Pro S flashlight.
4. Produktet er slutview
The ThruNite Archer Pro S features a durable aluminum body, a high-performance LED, and a tactical tail switch for intuitive operation. Its compact design and dual-direction pocket clip enhance portability.
Image: The ThruNite Archer Pro S flashlight.
Image: Flashlight with dual-direction pocket clip.
5. Opsætning
5.1 Indledende opladning
Before first use, fully charge the flashlight. The Archer Pro S features an integrated USB-C charging port.
- Locate the head cap of the flashlight.
- Rotate the head cap counter-clockwise to reveal the USB-C charging port.
- Connect the provided USB-C cable to the flashlight's port and the other end to a USB power source (e.g., wall adapter, computer).
- The indicator light will show charging status. It typically turns green when fully charged.
- Once charging is complete, rotate the head cap clockwise to seal the charging port, ensuring water resistance.
Image: Accessing the USB-C charging port.
Image: Flashlight connected for USB-C charging.
6. Betjeningsvejledning
The Archer Pro S utilizes a single tactical tail switch for all operations.
Image: Operating the tactical tail switch.
6.1 Grundlæggende betjening
- Tænd/sluk: Single click the tail switch to turn the flashlight on or off. The light will turn on in the last used mode (except Firefly, Turbo, and Strobe).
- Ildfluetilstand: When the flashlight is off, press and hold the tail switch for approximately 1 second to activate Firefly mode.
- Turbo tilstand: Double click the tail switch from any mode (on or off) to activate Turbo mode.
- Strobetilstand: Triple click the tail switch from any mode (on or off) to activate Strobe mode.
6.2 Changing Brightness (Infinity Mode)
When the flashlight is on in a regular mode (not Firefly, Turbo, or Strobe):
- Press and hold the tail switch to cycle through brightness levels (Infinity Low to Infinity High).
- Release the switch at your desired brightness level.
- To reverse the dimming/brightening direction, release the switch and press and hold again.
6.3 Lock/Unlock Mode
Låsefunktionen forhindrer utilsigtet aktivering, sparer batteri og forhindrer utilsigtet lysudsendelse.
- At låse: From Firefly mode, press and hold the tail switch for approximately 1 second. The light will flash briefly to indicate it is locked.
- Sådan låses op: When the flashlight is locked, press and hold the tail switch for approximately 1 second. The flashlight will activate in Firefly mode, indicating it is unlocked.
- If the tail switch is clicked while locked, the light will flash briefly to remind you it is in lockout mode.
Image: Versatile use of the ThruNite Archer Pro S flashlight.
7. Vedligeholdelse
7.1 Rengøring
- Rengør lommelygtehuset med en blød,amp klæde.
- For the lens, use a lens cleaning cloth to avoid scratches.
- Brug ikke skrappe kemikalier eller slibende materialer.
7.2 Vandtæthed
The Archer Pro S is rated IPX8 waterproof, meaning it can be submerged in water up to 2 meters for 30 minutes. Ensure the head cap is fully tightened to maintain water resistance.

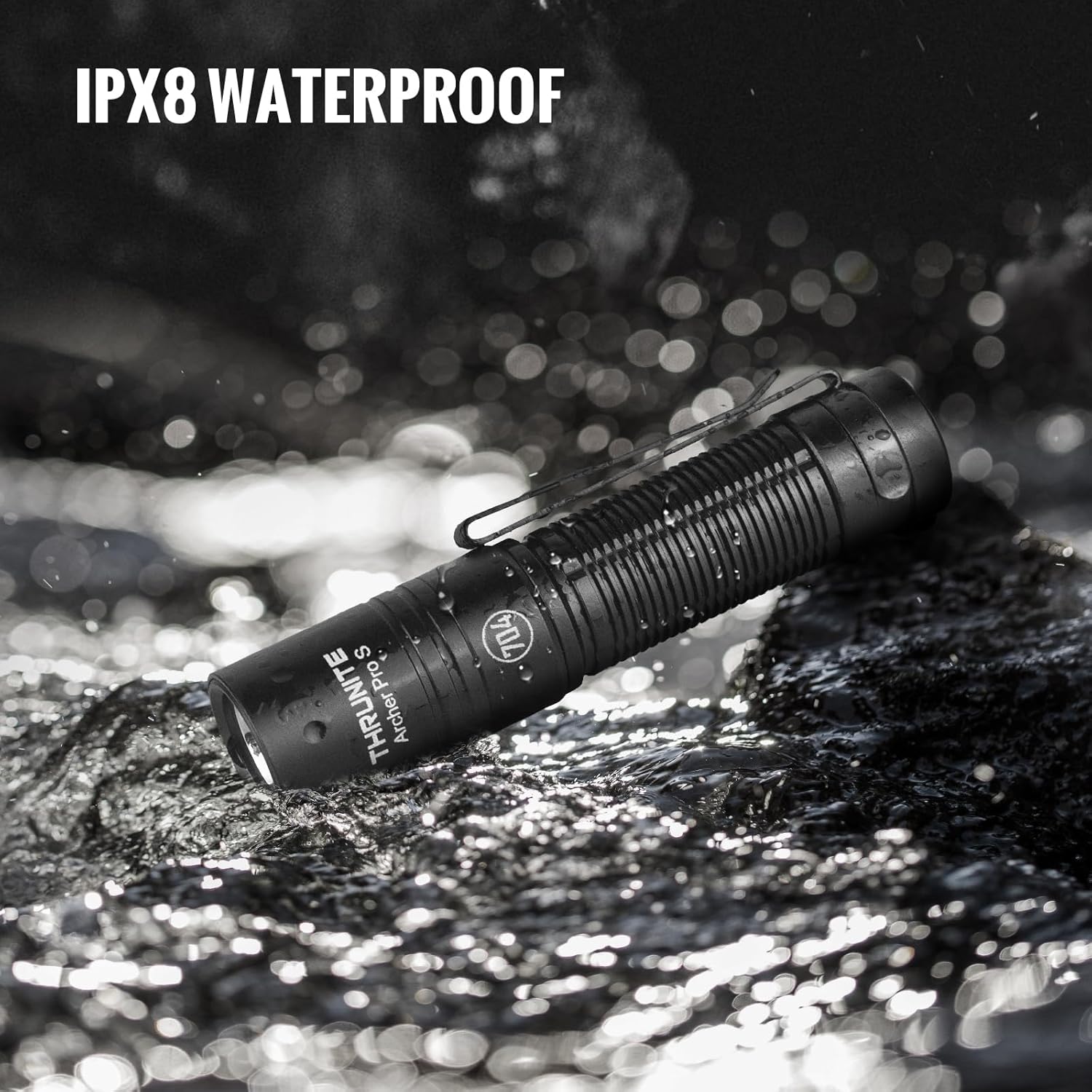

Image: ThruNite Archer Pro S demonstrating IPX8 water resistance.
8. Fejlfinding
- Lommelygten tænder ikke: Check if the flashlight is in lockout mode. Press and hold the tail switch to unlock. Ensure the battery is charged.
- Lysudbyttet er svagt: Batteriet er muligvis lavt. Genoplad lommelygten.
- Opladningsproblemer: Ensure the USB-C cable is properly connected and the head cap is rotated to expose the charging port. Try a different USB power source or cable.
- Inconsistent mode changes: Sørg for, at bagkontakten er ren og fri for snavs.
9. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | ThruNite |
| Model | Archer Pro S |
| Lyskildetype | LED |
| Materiale | Aluminium |
| Max lysstyrke | 1459 lumen |
| Maksimal stråleafstand | 160 meter |
| Strømkilde | Batteridrevet (integreret litium-ion) |
| Opladningsgrænseflade | USB-C |
| Vandmodstandsniveau | IPX8 (2 meters, 30 minutes) |
| Produktdimensioner | 0.79"D x 0.79"W x 3.67"H (98mm x 21mm) |
| Varens vægt | 2.29 ounce (65 g) |
| Særlige funktioner | Adjustable Light Modes, High Power, Impact Resistant, Non-Slip Grip, Rechargeable |
Image: Comparison of Archer Pro S and Archer Pro specifications.
10. Garanti og support
ThruNite products are designed for durability and performance. For warranty information or technical support, please refer to the official ThruNite webwebstedet eller kontakt deres kundeservice direkte. Behold din købskvittering som købsbevis.
Official ThruNite Webwebsted: www.thrunite.com
