1. Vigtige sikkerhedsoplysninger
Read all instructions before using the appliance. Keep this manual for future reference. Follow all safety warnings to reduce the risk of fire, electric shock, or injury.
- Sørg for, at køleskabet er korrekt jordforbundet.
- Beskadig ikke kølemiddelkredsløbet.
- Brug ikke elektriske apparater inde i madopbevaringsrummene, medmindre de er af den type, der anbefales af producenten.
- Tag stikket ud af stikkontakten før rengøring eller vedligeholdelse.
- Hold ventilationsåbninger fri af forhindringer.
- Dette apparat er kun beregnet til husholdningsbrug.
2. Produktet er slutview
The Hitachi RV760PUK7K is a 550-liter top mount refrigerator featuring an Inverter control system and Dual Fan cooling for efficient and consistent temperature management. It includes a freezer compartment at the top and a fresh food compartment below.
Front view of the Hitachi RV760PUK7K Top Mount Refrigerator in Brilliant Silver finish.
Indre view of the refrigerator and freezer compartments, showing shelves, drawers, and door storage.
3. Opsætning og installation
3.1 Udpakning
Fjern forsigtigt al emballage. Undersøg køleskabet for eventuelle skader. Hold emballagen utilgængeligt for børn.
3.2 Placering
- Placer køleskabet på et fast, plant gulv.
- Ensure adequate ventilation space around the appliance (minimum 10 cm at the back, 5 cm on sides, and 30 cm at the top).
- Undgå direkte sollys eller varmekilder.
- Apparatet er designet til fritstående installation.
3.3 Elektrisk tilslutning
Connect the refrigerator to a dedicated 220 Volt AC power outlet. Ensure the outlet is properly grounded. Do not use extension cords or adapters.
3.4 Indledende drift
After installation, wait at least 2-4 hours before plugging in the refrigerator to allow the refrigerant to settle. Once plugged in, allow the appliance to run for several hours (e.g., 4-6 hours) to reach optimal operating temperatures before storing food.
4. Betjeningsvejledning
4.1 Temperature Control (Touch Screen Controller)
The refrigerator features a Touch Screen Controller for adjusting temperature settings. Refer to the display for current settings and adjustment options.
4.2 Dual Sensing Control and Inverter System
The refrigerator utilizes Dual Sensing Control with an Inverter Compressor and Dual Fan Cooling system to maintain precise temperatures in both the freezer and refrigerator compartments independently, optimizing energy efficiency.
Illustration of the Inverter Compressor and Dual Fan Cooling system, showing airflow to both freezer and refrigerator sections.
4.3 Fresh Select Compartment
The Fresh Select lever allows you to adjust the temperature of a specific compartment to suit different food storage needs. You can switch between Vegetable Mode (approximately 5°C) and Dairy/Meat Mode (approximately 1°C).
Diagram illustrating the Fresh Select lever and its two modes: Vegetable (approx. 5°C) and Dairy/Meat (approx. 1°C).
4.4 Flytbar Twist-isbakke
The ice tray can be moved or removed entirely to optimize storage space within the freezer compartment. To make ice, fill the tray with water and place it in the freezer. Once frozen, twist the tray to release the ice cubes into the collection bin.

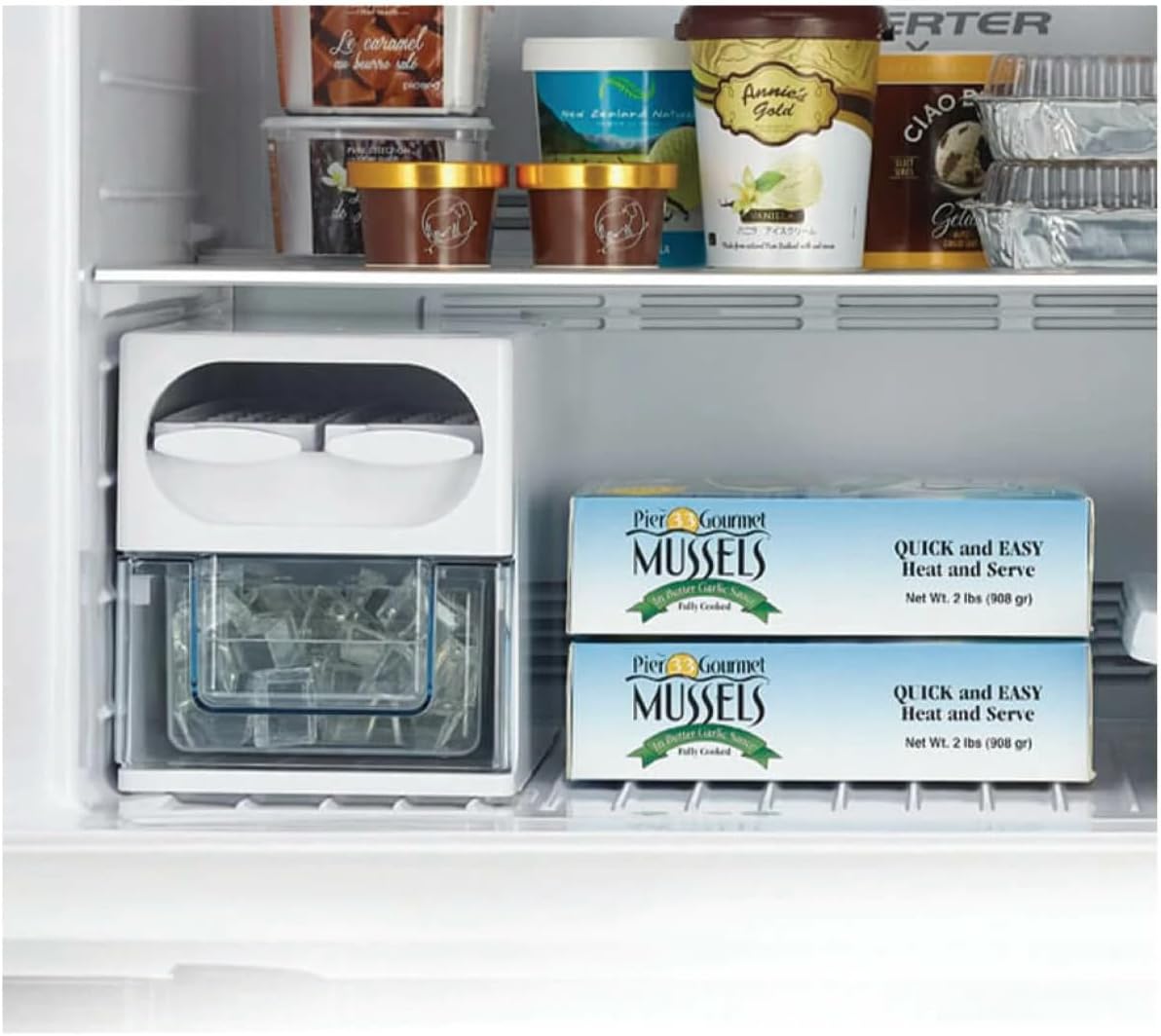

Nærbillede view of the Movable Twist Ice Tray and its ice collection bin within the freezer.
Images demonstrating how the Movable Twist Ice Tray can be repositioned or removed for flexible storage.
4.5 hylder i hærdet glas
The refrigerator is equipped with scratch-proof and heat-resistant tempered glass shelves, each capable of holding up to 100 kg. These shelves can be adjusted to different heights to accommodate various items.
Nærbillede views of the durable tempered glass shelves, highlighting their robust construction and load-bearing capacity.
4.6 LED belysning
The interior of the refrigerator is illuminated by bright, energy-saving LED lights, providing clear visibility of stored items.
View of the refrigerator interior, highlighting the bright and energy-efficient LED lighting.
5. Vedligeholdelse og rengøring
Regelmæssig rengøring og vedligeholdelse sikrer optimal ydeevne og levetid for dit køleskab.
5.1 Generel rengøring
- Tag altid stikket ud af køleskabet før rengøring.
- Rengør de indvendige og udvendige overflader med en blød klud og en mild rengøringsmiddelopløsning.
- Tør af med en ren klud.
- Do not use abrasive cleaners, solvents, or hot water.
- The refrigerator features a Frost Free defrost system, eliminating the need for manual defrosting.
5.2 Mouldproof Door Gasket
The door gasket has a mouldproofing treatment for easier maintenance. Regularly wipe the door gaskets with a damp cloth to keep them clean and ensure a proper seal.
Illustration highlighting the mouldproof door gasket, designed for easy cleaning and hygiene.
5.3 Cleaning Shelves and Drawers
Remove shelves and drawers for thorough cleaning. Wash them with mild soap and water, rinse, and dry completely before returning them to the refrigerator.
6. Fejlfinding
Før du kontakter service,view følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Køleskabet fungerer ikke. | Ingen strømforsyning; netledningen er ikke sat i; afbryderen er udløst. | Kontroller strømforbindelsen; sørg for, at stikkontakten fungerer; nulstil afbryderen. |
| Temperaturen er ikke kold nok. | Døren er stået åben; for meget mad i rummet; for høj temperaturindstilling; dårlig ventilation. | Ensure door is closed; reduce food load; adjust temperature setting; check ventilation. |
| Usædvanlige lyde. | Appliance not level; items vibrating inside; normal operating sounds (e.g., refrigerant flow). | Level the appliance; rearrange items; normal sounds are expected. |
| Vand på gulvet. | Drain hose blocked or dislodged. | Kontroller og rens afløbsslangen. |
If the problem persists after attempting these solutions, contact authorized service personnel.
7. Specifikationer
| Mærke | HITACHI |
| Modelnummer | RV760PUK7K |
| Samlet kapacitet | 550 liter |
| Køleskab Friske fødevarer Kapacitet | 30 liter |
| Fryser kapacitet | 170 liter |
| Produktmål (D x B x H) | 80 cm x 65 cm x 180 cm |
| Varens vægt | 90 kilo |
| Farve | Brilliant sølv |
| Voltage | 220 volt |
| Effektivitetsvurdering | A++ (Energy Star Certified) |
| Årligt energiforbrug | 419750 kilowatttimer pr. år (Note: This value may be a typo. Please refer to the product label for accurate energy consumption.) |
| Optøningssystem | Frostfri |
| Installationstype | Frit stående |
| Særlige funktioner | Dual Sensing Control, Inverter Control, Dual Fan Cooling, Fresh Select, LED Light, Movable Twist Ice Tray, Powerful Cooling at 60C, Tempered Glass Shelves, Mouldproof Door Gasket |
| Inkluderede komponenter | Æggebakke, Glashylder, Isbakke |
8. Garanti og support
8.1 Garantioplysninger
This Hitachi refrigerator comes with an International Warranty. Specific terms and conditions, including warranty duration for different components (e.g., 10-year warranty on the intelligent compressor), are detailed in the warranty card provided with your appliance. Please retain your proof of purchase for warranty claims.
Front view of the refrigerator highlighting key features such as the 10-year warranty on the intelligent compressor, ECO Thermo-Sensor, Nano Titanium, and Inverter x Dual Fan Cooling.
8.2 Kundesupport
For technical assistance, service requests, or inquiries regarding your Hitachi refrigerator, please contact your local authorized Hitachi service center. Refer to the contact information provided in your warranty documentation or visit the official Hitachi webwebsted for din region.
