Cisco Catalyst 1300-12XT-2X Administreret Switch Brugermanual

1.Overview

The Cisco Catalyst 1300-12XT-2X is a fully managed switch designed to provide reliable and secure network connectivity for small to medium-sized businesses. It offers full Layer 2/3 capabilities, an intuitive web interface, advanced networking features, and Power over Ethernet Plus (PoE+) support. This manual provides instructions for the installation, configuration, and maintenance of your switch.

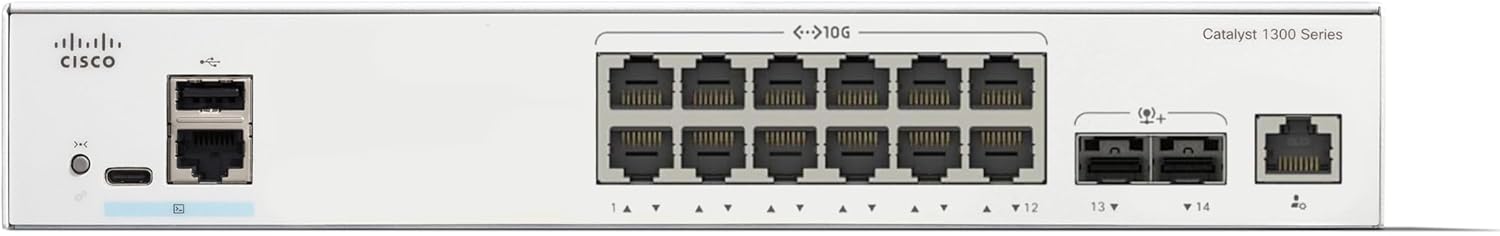

Billede: Forside view of the Cisco Catalyst 1300-12XT-2X Managed Switch, showcasing its 12 10G copper ports and 2 10GE SFP+ ports.

2. Hvad er der i æsken

Bekræft at alle komponenter er til stede i din pakke:

• Skifte
• Netledning eller adapter
• USB Type C kabel
• Monteringsudstyr

3. Fysiske egenskaber

3.1. Frontpanel

The front panel features 12 10G Copper ports (RJ-45) for high-speed wired connections and 2 10GE SFP+ ports for fiber optic uplinks. A dedicated GE Management Port is also present for network administration. Status indicator LEDs provide visual feedback on port activity and system status.

3.2. Bagpanel

The rear panel includes the power input connector for the external power adapter and a grounding screw for proper electrical grounding.

3.3. Dimensioner

The switch measures approximately 11.81 inches (L) x 10.55 inches (W) x 1.73 inches (H) and weighs around 7.92 pounds (3.6 kg).

4. Opsætning

4.1. Indledende opsætning

1. Udpak og verificér: Carefully remove the switch and all accessories from the packaging. Confirm all items listed in the 'What's in the Box' section are present.
2. Tilslut strøm: Connect the power cord or adapter to the switch's power input and then to a power outlet.
3. Tilslut til router: Use an Ethernet cable to connect the switch's GE Management Port or any 10G Copper port to your network router or gateway.
4. Tilslut netværksenheder: Connect your network devices (computers, servers, access points) to the available 10G Copper or 10GE SFP+ ports on the switch.

4.2. Configuration via Cisco Business Mobile App

The Cisco Business mobile app provides an intuitive way to set up and manage your switch:

1. Download app: Download and install the Cisco Business mobile app from your device's app store.
2. Create Site: Launch the app and follow the prompts to create your first site and add your network's physical address.
3. Konfigurer indstillinger: Answer a few questions within the app to configure basic network settings and credentials.
4. Tilføj enheder: Use the app to discover and add your wired and wireless devices to the network.

4.3. Konfiguration via Web UI / Cisco Business Dashboard

For advanced configuration and management, access the switch's web user interface or integrate it with the Cisco Business Dashboard. Refer to the Cisco documentation portal for detailed instructions on these methods.

5. Betjeningsvejledning

Once configured, the Cisco Catalyst 1300-12XT-2X switch operates automatically. You can monitor its status and manage connected devices using the Cisco Business mobile app or the web interface.

• Monitoring Device Status: Check the status of the switch and individual ports through the management interface to ensure optimal performance.
• Managing Connected Clients: View a list of connected clients, their network usage, and apply policies as needed.
• Network Usage: Monitor overall network traffic and identify potential bottlenecks or unusual activity.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your switch:

• Firmwareopdateringer: Periodically check for and install the latest firmware updates from the Cisco support website to enhance security and features.
• Regelmæssig rengøring: Keep the switch free from dust and debris. Use a soft, dry cloth for cleaning. Ensure ventilation openings are clear.
• Miljøhensyn: Operate the switch within recommended temperature and humidity ranges to prevent damage.

7. Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på:

7.1. Almindelige problemer

• Ingen strøm: Ensure the power cord is securely connected to both the switch and a working power outlet. Check the power adapter and outlet.
• Ingen netværksforbindelse: Verify all Ethernet cables are properly connected. Check the status LEDs on the switch ports. Ensure your router is functioning correctly.
• Langsom netværksydelse: Check for excessive network traffic or faulty cables. Consider updating firmware or reviewing configuration settings.
• Enhed ikke genkendt: Ensure the connected device is powered on and its network adapter is enabled. Try a different port or cable.

7.2. Supportressourcer

For yderligere hjælp, besøg den officielle Cisco Support Webwebsted or consult the comprehensive documentation portal.

8. Specifikationer

9. Garanti og support

The Cisco Catalyst 1300-12XT-2X Managed Switch comes with a limited lifetime hardware warranty, providing peace of mind for your investment.

Additionally, complimentary 1-year technical support is included to assist with any setup or operational queries. For detailed warranty terms and to access technical support, please visit the official Cisco Support Portal.
