VOLISUN 44-inch Low Profile Ceiling Fan with Light (Model 21378ZM) Instruction Manual

1. Introduktion

This manual provides detailed instructions for the safe installation, operation, and maintenance of your VOLISUN 44-inch Low Profile Ceiling Fan with Light. Please read all instructions carefully before beginning installation and retain this manual for future reference.

Image 1: VOLISUN 44-inch Low Profile Ceiling Fan with Light, showcasing its sleek black design with five blades and an integrated LED light. A remote control and two blade color options (black and wood grain) are also visible.

2. Sikkerhedsoplysninger

Følg altid grundlæggende sikkerhedsforanstaltninger ved installation og betjening af elektriske apparater for at reducere risikoen for brand, elektrisk stød og personskade.

• Sørg for, at strømmen er afbrudt ved afbryderen før installation eller service.
• Al ledningsføring skal være i overensstemmelse med nationale og lokale el-forskrifter.
• Kontakt en kvalificeret elektriker, hvis du er usikker på ledningsføringsprocedurerne.
• Mount the fan to a ceiling outlet box marked 'Acceptable for Fan Support of 35 lbs (15.9 kg) or less'.
• Bøj ikke knivholderne under installation eller rengøring.
• Keep hands clear of fan blades when the fan is operating.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Motorhus
• Ventilatorblade (5)
• Blade Brackets (5)
• Downrod
• Baldakin
• Monteringsbeslag
• LED-lys sæt
• Fjernbetjening
• Hardwarepakke (skruer, skiver, møtrikker osv.)

4. Installation

4.1 Forinstallation

• Sluk for strømmen ved afbryderen.
• Ensure the mounting location is suitable for a ceiling fan.
• Pak alle komponenter ud, og læg dem frem, så de er lette at få adgang til.

4.2 Monteringstrin

1. Attach the fan blades to the blade brackets using the provided screws.
2. Secure the assembled blade and bracket units to the motor housing.
3. Connect the LED light kit wiring and attach the light kit to the motor housing.
4. Assemble the downrod with the canopy and secure it to the motor housing.
5. Install the mounting bracket to the ceiling outlet box.
6. Hang the fan assembly onto the mounting bracket, ensuring the groove in the downrod ball aligns with the ridge on the hanger bracket.
7. Connect the fan's electrical wires to the household wiring (Live, Neutral, Ground).
8. Fastgør baldakinen til monteringsbeslaget.

For en visuel vejledning, se venligst den officielle installationsvideo:

Video 1: Official VOLISUN guide demonstrating the assembly and installation process of the ceiling fan, including attaching blades, connecting the light kit, and mounting the fan to the ceiling.

5. Betjeningsvejledning

Your VOLISUN ceiling fan is operated via the included remote control.

5.1 Fjernbetjeningsfunktioner

• Tænd/sluk: Tænder eller slukker ventilatoren og lyset.
• Blæserhastighed: Adjusts between 6 wind speed options (gentle breeze to strong airflow).
• Lys til/fra: Slår LED-lyset til/fra.
• Lys Lysstyrke: Dims the light from 10% to 100%.
• Farvetemperatur (3CCT): Cycles through 3000K (warm white), 4000K (neutral white), and 6000K (cool white).
• Vendbar funktion: Changes the direction of fan rotation for summer (downward airflow) or winter (upward airflow).
• Timer: Sets the fan to turn off automatically after 1, 2, 4, or 8 hours.
• Naturtilstand: Simulates natural wind by varying fan speeds.

Image 2: Illustration of the fan's customizable light feature, showing three color temperature options (3000K, 4000K, 6000K) and a dimmable range from 10% to 100% (220LM to 2200LM).

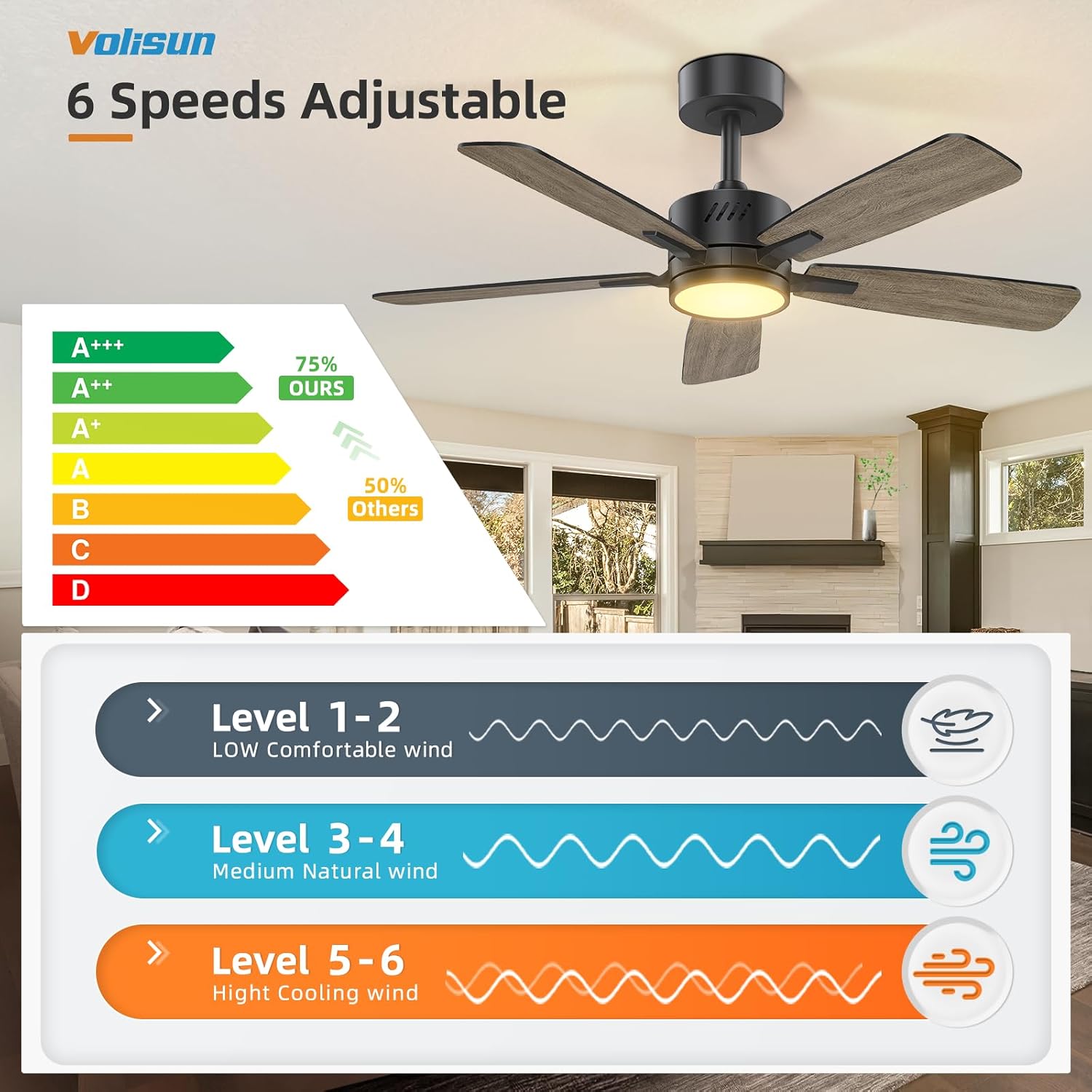

Image 3: Visual representation of the fan's 6 adjustable wind speeds, categorized into low (Level 1-2), medium (Level 3-4), and high (Level 5-6) settings for various comfort levels.

Image 4: Diagram illustrating the reversible function for year-round use, showing downward airflow for cooling in summer and upward airflow for warming in winter.

5.2 Hukommelsesfunktion

The fan features a memory function that recalls your last used fan speed and light settings (color temperature and brightness). To ensure settings are remembered, keep the light off for more than 7 seconds before turning it back on. If the light is turned on again within 7 seconds, the color temperature will cycle to the next setting.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din loftsventilator.

• Rensning: Brug en blød, damp klud til at rengøre ventilatorbladene og motorhuset. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Bladinspektion: Kontrollér regelmæssigt, at alle knivskruer er spændte. Løse skruer kan forårsage slingren og støj.
• Lyssæt: The integrated LED light is designed for long-term use and does not require bulb replacement.

7. Fejlfinding

8. Specifikationer

Image 5: Diagram illustrating the recommended room size for optimal fan performance, suggesting 10ft x 10ft to 18ft x 18ft rooms with ceiling heights of 9-12ft.

Image 6: Detailed dimensions of the ceiling fan (e.g., 41.34 inches width, 13.4 inches height) and a visual of the two available blade colors: black and wood grain.

9. Garanti og support

VOLISUN provides a 2-year service warranty for this ceiling fan light fixture. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please contact VOLISUN customer service.
