Xblitz S9 Duo For- og Bagkamera Brugermanual

1. Introduktion

Thank you for choosing the Xblitz S9 Duo Dash Cam. This device is designed to provide reliable front and rear vehicle surveillance, capturing high-quality video footage of your journeys and while parked. Equipped with advanced features such as 2K resolution, Wi-Fi connectivity, Wide Dynamic Range (WDR), and a dedicated parking mode, the S9 Duo ensures comprehensive coverage and peace of mind. Please read this manual carefully to understand the proper installation, operation, and maintenance of your dash cam.

2. Pakkens indhold

Før du fortsætter installationen, skal du kontrollere, at alle nedenstående varer er til stede i din pakke:

• Xblitz S9 Duo Front Dash Cam
• Bagkamera
• Sugekopmontering
• Opladningskabel (biloplader)
• Installationsværktøj
• Garantikort

If any components are missing or damaged, please contact Xblitz customer support.

3. Produktet er slutview

Familiarize yourself with the main components of your Xblitz S9 Duo Dash Cam.

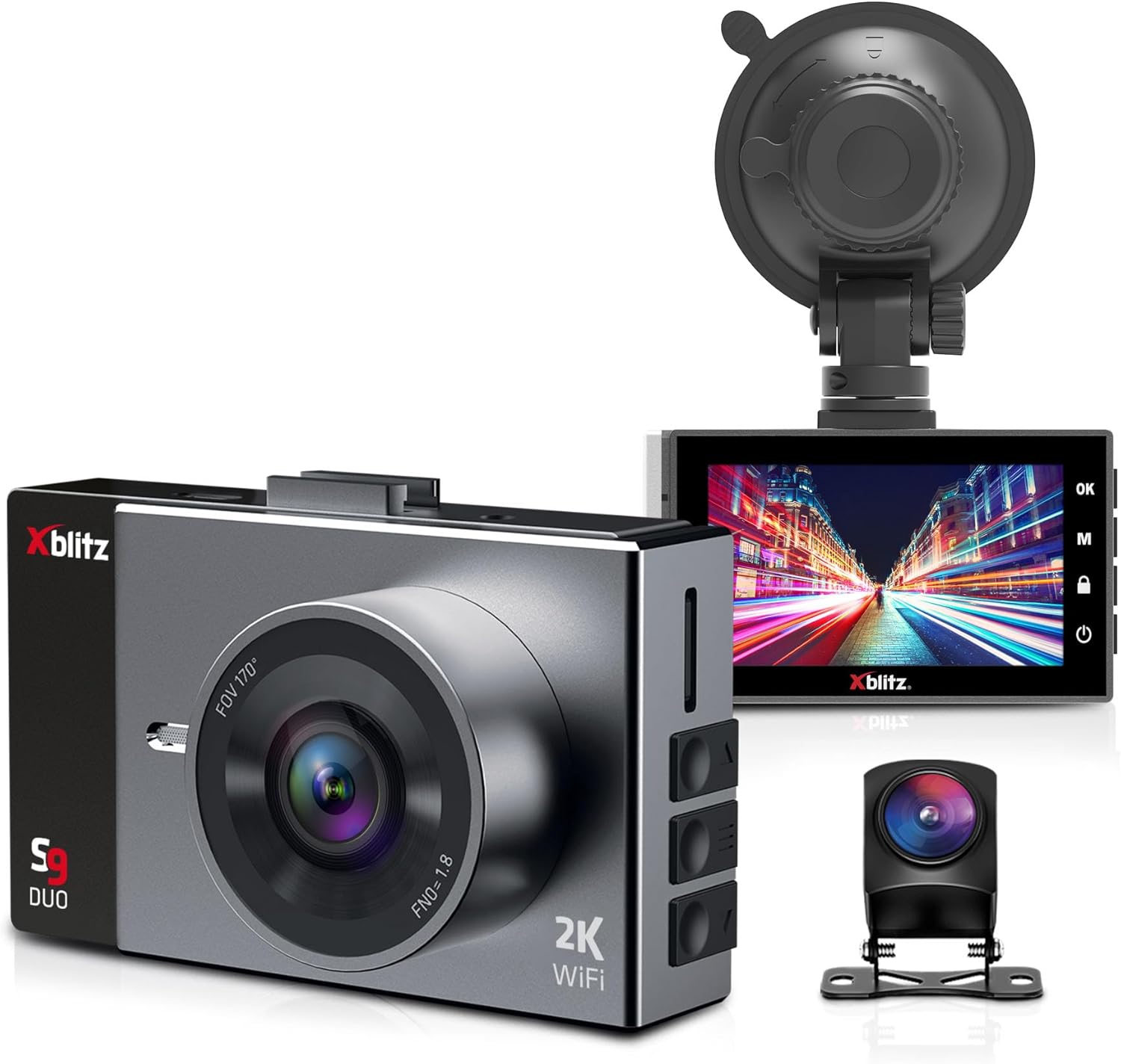

Figur 3.1: The Xblitz S9 Duo dash cam kit, showing the front camera with its wide-angle lens, the rear camera, and the suction cup mount. The front camera features a 2K resolution and Wi-Fi capability.

Figur 3.2: Nærbillede view of the Xblitz S9 Duo dash cam's 3-inch display, showing the user interface with control buttons on the side. The screen provides clear visibility for settings and video playback.

Figur 3.3: The Xblitz S9 Duo dash cam, its rear camera, and the product packaging. This image illustrates the complete product set as it would appear out of the box.

4. Opsætning og installation

Follow these steps for proper installation of your Xblitz S9 Duo Dash Cam.

4.1. Indsættelse af hukommelseskortet

1. Sørg for, at dashcam'et er slukket.
2. Locate the microSD card slot on the side of the main unit.
3. Insert a high-speed microSD card (Class 10 or higher, up to 128GB recommended) into the slot until it clicks into place.
4. For at fjerne det skal du forsigtigt skubbe kortet ind, indtil det springer ud.

4.2. Montering af frontkameraet

1. Rengør forruden, hvor du har til hensigt at montere kameraet.
2. Fastgør sugekopbeslaget til dashcam'et.
3. Press the suction cup firmly against the windshield, ideally behind the rearview mirror, and secure the lever.
4. Juster kameravinklen for at sikre et klart billede view af vejen foran, undgå forhindringer bagfraview mirror or wipers.

4.3. Montering af bakkameraet

1. Connect the rear camera cable to the main front camera unit.
2. Route the cable neatly along the vehicle's headliner and pillar trim to the rear of the vehicle.
3. Monter bakkameraet på bagruden, og sørg for en klar view of the road behind. Use the provided adhesive or screws if applicable.
4. Juster vinklen på bagkameraet for optimal dækning.

4.4. Strømtilslutning

1. Tilslut bilopladeren til dashcam'ets strømindgang.
2. Sæt den anden ende af bilopladeren i bilens 12V-stikkontakt (cigarettænder).
3. Før strømkablet diskret for at undgå forstyrrelser under kørslen.
4. The dash cam will typically power on automatically when the vehicle starts and power off when the engine is turned off.

5. Betjeningsvejledning

Understand the various functions and modes of your Xblitz S9 Duo Dash Cam.

5.1. Grundlæggende betjening

• Tænd/sluk: Enheden tændes automatisk med bilens tænding. For at tænde/slukke manuelt skal du trykke på tænd/sluk-knappen og holde den nede.
• Indspilning: Once powered on, the dash cam automatically begins loop recording. A red indicator light or icon on the screen confirms recording is active.
• Skærmvisning: The 3-inch screen offers various display configurations: split-screen for front and rear views, rear camera view within the front camera view, or quick switching between front and rear camera views.

5.2. Wi-Fi Module and Mobile Application

The S9 Duo features a built-in Wi-Fi module, allowing you to connect the camera to your smartphone for remote control and file ledelse.

1. Download the dedicated mobile application (check the user manual or product packaging for the app name).
2. Enable Wi-Fi on your dash cam through the settings menu.
3. Connect your smartphone to the dash cam's Wi-Fi network (SSID and password will be displayed on the dash cam screen or in the manual).
4. Use the mobile application to view live footage, gennemse optagede videoer, downloade files til din telefon, og juster kameraindstillingerne.

5.3. Loop-optagelse

This function ensures continuous recording by automatically overwriting the oldest unlocked files when the memory card is full. This eliminates the need for manual file sletning.

5.4. G-sensor (tyngdekraftssensor)

The G-Sensor detects sudden acceleration, braking, or impacts (e.g., collisions). When triggered, the S9 Duo automatically locks the current video file, protecting it from being overwritten by loop recording. These protected files can serve as evidence for police or insurance claims.

5.5. Bevægelsesdetektion

When activated, motion detection allows the S9 Duo to record automatically when it senses movement around the vehicle. This provides surveillance when the vehicle is parked, capturing events in front of and behind the car.

5.6. Parkeringstilstand

In parking mode, the camera remains active (until its integrated battery is discharged) and records video and audio around the vehicle when parked. This feature helps monitor for damage attempts, theft, or other incidents. For 24/7 surveillance, the parking mode can be extended with the Xblitz R6 power kit (sold separately) for constant power supply.

5.7. Bredt dynamisk område (WDR)

WDR technology helps balance bright and dark areas in challenging lighting conditions, such as intense sunlight, changing tunnel lighting, or night driving. This results in clearer and more uniform images, improving detail capture.

5.8. Bakkameraets funktionalitet

The rear camera expands the surveillance area to cover the space behind your vehicle, providing improved visibility and assistance during reverse maneuvers. When reverse gear is engaged, the device automatically displays parking guidelines on the screen to aid in parking.

5.9. Bred Viewi vinkel

The wide-angle lens of the Xblitz S9 Duo captures a comprehensive view, typically covering three lanes in front of and behind the vehicle. This minimizes blind spots and ensures that incidents are not missed, enhancing overall driving safety.

6. Vedligeholdelse og pleje

Proper care will extend the lifespan of your dash cam.

• Rensning: Brug en blød, tør klud til at rengøre kameralinsen og skærmen. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Temperatur: Avoid exposing the device to extreme temperatures, both hot and cold, as this can affect battery life and component performance.
• Firmwareopdateringer: Periodically check the Xblitz official webwebstedet for tilgængelige firmwareopdateringer for at sikre optimal ydeevne og adgang til nye funktioner.
• Hukommelseskort: Format the microSD card regularly (e.g., once a month) within the camera's settings to maintain its performance and prevent data corruption.

7. Fejlfinding

If you encounter issues with your Xblitz S9 Duo, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Xblitz customer support for further assistance.

8. Specifikationer

Key technical specifications for the Xblitz S9 Duo Dash Cam:

9. Garanti og support

The Xblitz S9 Duo Dash Cam comes with a standard manufacturer's warranty. Please refer to the included warranty card for specific terms and conditions, including warranty duration and coverage details.

For technical support, troubleshooting assistance, or warranty claims, please contact Xblitz customer service. Contact information can typically be found on the warranty card, the official Xblitz website, or the product packaging.

It is recommended to register your product on the Xblitz website, if available, to receive updates and support.
