DYONDER 2.4 GHz trådløs spilcontroller brugermanual

1. Introduktion

Thank you for choosing the DYONDER 2.4 GHz Wireless Game Controller. This manual provides detailed instructions on how to set up, operate, and maintain your new controller. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

Image: The DYONDER 2.4 GHz Wireless Game Controller in blue, shown alongside its compact USB wireless dongle.

2. Pakkens indhold

Kontroller venligst, at alle varer er til stede i din pakke:

• 1 x DYONDER 2.4 GHz Wireless Game Controller (Blue)
• 1 x 2.4 GHz USB Wireless Receiver
• 1 x USB-datakabel
• 1 x brugsanvisning

3. Produktet er slutview

Familiarize yourself with the various components and buttons of your DYONDER wireless controller:

Image: A detailed diagram illustrating the various buttons and ports on the DYONDER wireless controller, including the Left Joystick, Home Button, View Button, Menu Button, X/Y/A/B Buttons, Right Joystick, Share Button, Arrow Button (D-pad), RT Button, RB Button, USB Charging Port, Signal Search Button, and LT Button.

• Venstre joystick: Til retningsbestemt kontrol.
• Hjemknappen: Access console/PC dashboard.
• View Knap: Contextual menu or map.
• Menu-knap: Game menu or options.
• X/Y/A/B-knapper: Handlingsknapper.
• Højre joystick: Til kamerastyring eller sigtning.
• Del knap: Optag skærmbilleder eller videoklip.
• Arrow Button (D-pad): Retningsbestemt input.
• RT (Right Trigger) & LT (Left Trigger): Analog triggers for precise input.
• RB (Right Bumper) & LB (Left Bumper): Digital buttons.
• USB opladningsport: For connecting the data cable.
• Signal Search Button: For pairing.

4. Opsætning

4.1 Batteriinstallation

The controller requires AA batteries (not included). It also supports rechargeable batteries (not included). To install:

1. Open the battery compartment cover on the back of the controller.
2. Isæt to AA-batterier, og sørg for at polariteten (+/-) vender korrekt.
3. Luk batterirummets dæksel forsvarligt.

4.2 Tilslutning til din enhed

The DYONDER controller uses 2.4 GHz wireless technology for a stable connection.

1. Insert the included 2.4 GHz USB wireless receiver into an available USB port on your Xbox console (Xbox One, Xbox Series X/S, Xbox One S/X) or PC (Windows 7/8/10/11).
2. Turn on the controller by pressing the Home button. The controller will automatically search for the receiver.
3. Once connected, the indicator light on the controller will become solid, indicating a successful pairing.

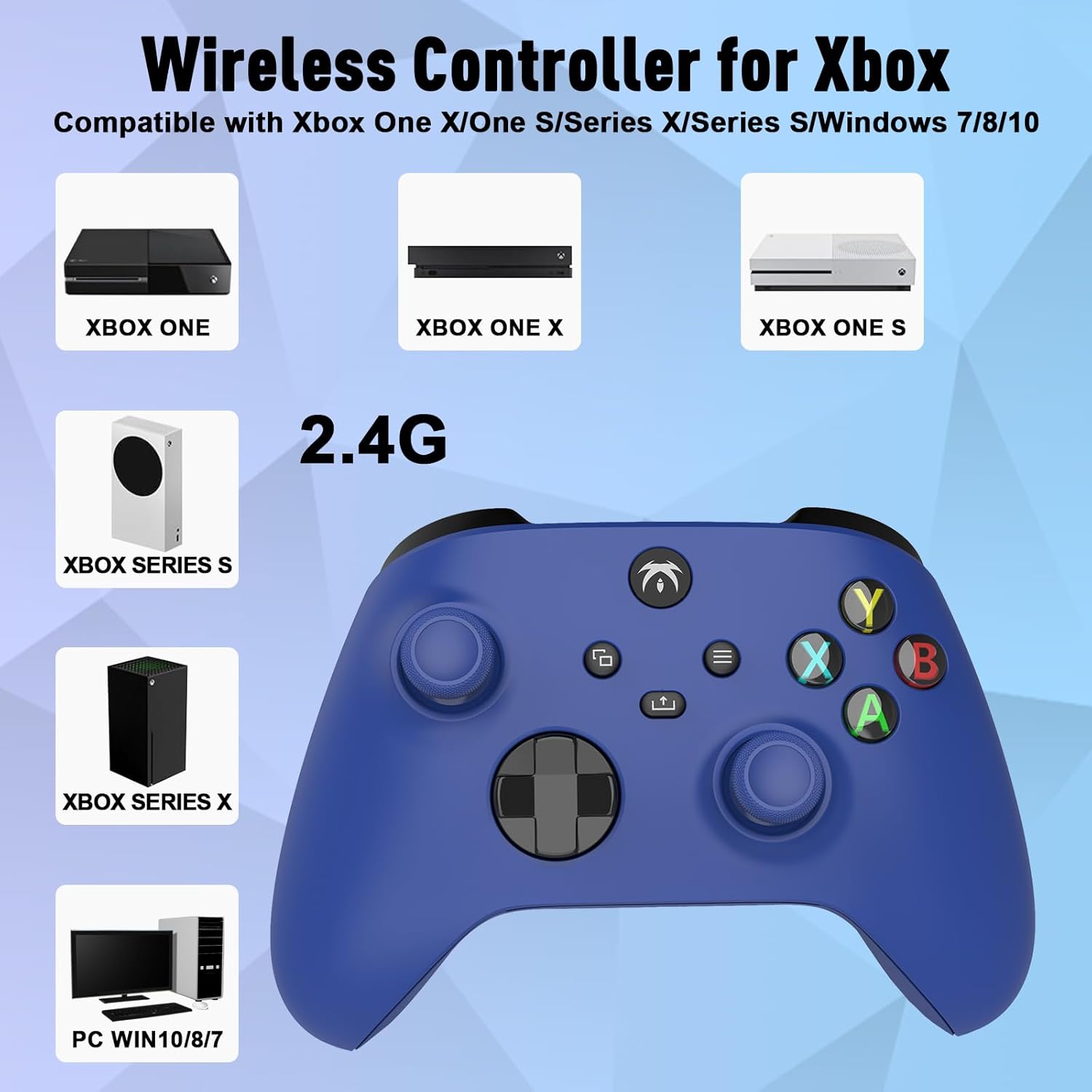

Image: An illustration demonstrating the broad compatibility of the DYONDER wireless controller with Xbox One, Xbox One X, Xbox One S, Xbox Series S, Xbox Series X, and PC (Windows 7/8/10/11) via its 2.4G wireless connection.

Image: A user holding the DYONDER wireless controller, demonstrating its 2.4G wireless stable connection while playing a game on a monitor, highlighting low energy consumption.

5. Betjeningsvejledning

5.1 Kompatibilitet

The DYONDER wireless controller is designed for powerful compatibility with a range of gaming platforms, including:

• Xbox One
• Xbox Series X|S
• Xbox One S / X
• Xbox Elite Controller Series
• Xbox Core
• PS3
• PC (Windows 11/10/8/7)

5.2 Hall Linear Triggers

Experience enhanced precision and control with the Hall linear triggers. These triggers provide increased sensitivity and speed control, particularly beneficial for racing games where precise acceleration and braking are crucial.

5.3 dobbelte vibrationsmotorer

The controller is equipped with dual motor vibration feedback, offering an immersive gaming experience. The motors provide varied vibration intensities and directions, enhancing realism in gameplay, such as impacts, explosions, or terrain changes.

Image: A visual representation highlighting the Dual Vibration feature for an immersive gaming experience and the Hall Trigger for precise linear control, especially in racing games.

5.4 3.5 mm lydstik

The integrated 3.5mm headphone jack allows you to connect your compatible audio device directly to the controller. This feature provides convenience for in-game audio and communication with other players without needing to connect to the console.

Image: The DYONDER controller featuring its 3.5mm audio jack, with a headphone cable plugged in, emphasizing direct audio connectivity.

5.5 Share Button Functionality

The dedicated Share button allows you to easily capture and share your gaming moments. Press the Share button to take screenshots or record game clips, preserving your best plays.

Billede: Et nærbillede view of the controller's central buttons, highlighting the Share button and a pop-up indicating "Game clip recorded," demonstrating its functionality.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your DYONDER wireless controller, follow these maintenance guidelines:

• Rensning: Brug en blød, tør klud til at tørre controlleren af. Ved genstridigt snavs, tør letampRengør kluden med vand. Undgå at bruge skrappe kemikalier eller slibende rengøringsmidler.
• Opbevaring: Opbevar controlleren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Batteripleje: If the controller will not be used for an extended period, remove the batteries to prevent leakage and damage.
• Undgå dråber: Beskyt controlleren mod fald og stød, som kan beskadige de interne komponenter.

7. Fejlfinding

If you encounter issues with your DYONDER wireless controller, refer to the following common problems and solutions:

8. Specifikationer

9. Garanti og support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact DYONDER customer service through the retailer where the product was purchased. Please retain your proof of purchase for any warranty claims.
