Indledning
This manual provides comprehensive instructions for the safe and effective operation of the MASTECH MS6252D Digital Anemometer. Please read this manual thoroughly before using the device and retain it for future reference.
The MS6252D is a versatile digital anemometer designed for measuring wind speed, air volume, ambient temperature, and humidity. It features a wireless interface for convenient data transfer and a clear display with backlight for easy readability.
Produkt overview
Figur 1: Forside view of the MS6252D Digital Anemometer, showing the impeller, LCD display, and control buttons.

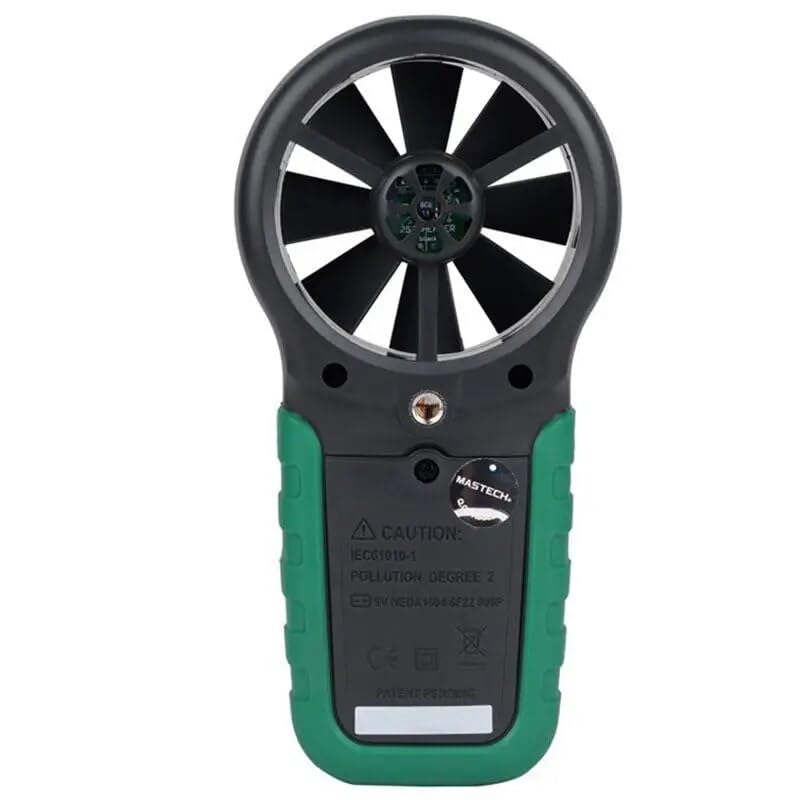

Figur 2: Tilbage view of the MS6252D Digital Anemometer, showing the battery compartment cover.

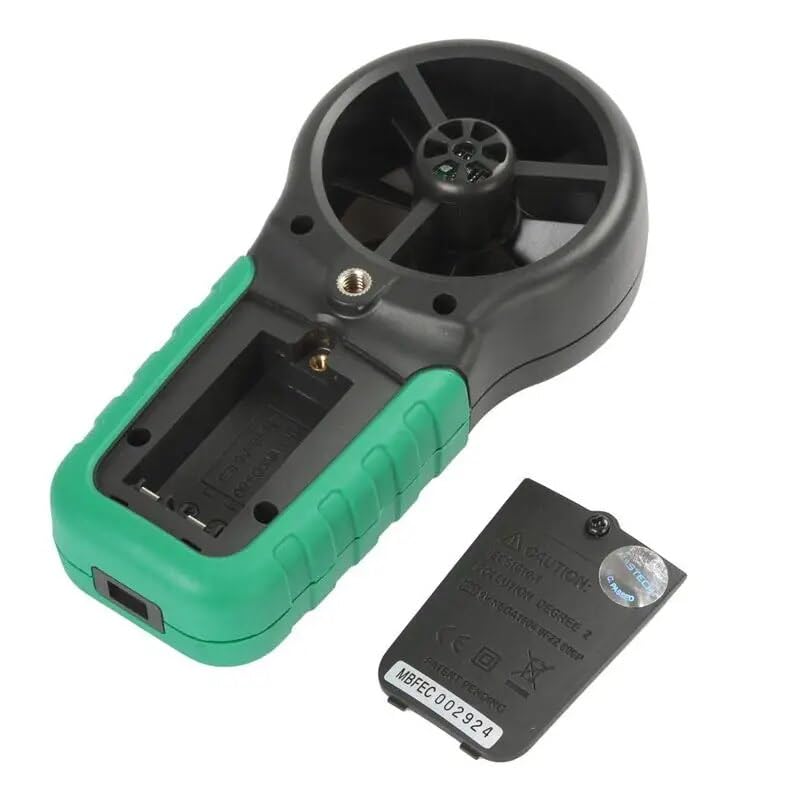

Figur 3: Tilbage view of the MS6252D Digital Anemometer with the battery compartment open, revealing the battery slot.
Nøglefunktioner:
- Display 9999 counts for precise readings.
- Automatic Power Off function to conserve battery life.
- Adjustable Flow Area Setting for accurate air volume calculations.
- MAX / MIN measurement modes to capture extreme values.
- Data Hold function to freeze current readings on the display.
- Display Backlight for improved visibility in low-light conditions.
- Low Battery Display indicator.
- Selectable temperature units (℃/℉).
- Measurement of Ambient temperature, Dew Point, and Wet Bulb temperature.
- Wireless Interface for data connectivity.
Opsætning
Batteri installation:
- Find batterirummet på bagsiden af enheden.
- Brug en lille skruetrækker til at åbne batteridækslet.
- Insert 2 LR44 batteries, ensuring correct polarity (+/-).
- Sæt batterirummets dæksel på igen og fastgør det med skruen.
Første gang tændt:
Tryk på MAGT button to turn on the device. The display backlight will illuminate, and the device will perform a self-test before entering measurement mode.
Betjeningsvejledning
Measuring Wind Speed:
Hold the anemometer so that the impeller faces directly into the airflow. The wind speed will be displayed on the LCD. Use the ENHED button to cycle through different units (m/s, km/h, ft/s, Knots, mile/h, ft/m).
Measuring Air Volume:
To measure air volume (CFM, CMM, CMS), you must first set the flow area. Refer to the 'Flow Area Setting' section for detailed instructions. Once the area is set, the device will calculate and display the air volume based on the measured wind speed.
Temperature and Humidity Measurement:
The device automatically measures ambient temperature and humidity. Press the FUNK button to cycle through Ambient Temperature, Dew Point, and Wet Bulb temperature displays. Use the ℃ / ℉ knappen for at skifte mellem Celsius og Fahrenheit.
MAX/MIN and Data Hold:
- Trykke MAX/MIN once to display the maximum recorded value. Press again for the minimum value. Press a third time to exit MAX/MIN mode.
- Trykke HOLDE to freeze the current reading on the display. Press HOLDE again to release and resume live measurements.
Displaybaggrundsbelysning:
Tryk på LYS button to turn the display backlight on or off. The backlight will automatically turn off after a period of inactivity to save power.
Opretholdelse
Rensning:
Tør enheden af med en blød, damp cloth. Do not use abrasive cleaners or solvents. Ensure the impeller is free from dust and debris for accurate readings.
Udskiftning af batteri:
When the low battery indicator appears on the display, replace the batteries as described in the 'Battery Installation' section. Dispose of old batteries responsibly.
Opbevaring:
If the device will not be used for an extended period, remove the batteries to prevent leakage. Store the anemometer in a cool, dry place, away from direct sunlight and extreme temperatures.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Døde eller forkert installerede batterier. | Kontroller batteripolariteten, eller udskift batterierne. |
| Upræcise aflæsninger. | Impeller obstructed or dirty; incorrect flow area setting. | Clean the impeller; verify and adjust flow area setting. |
| Skærmen er svag eller tom. | Lavt batteri; baggrundslys slukket | Replace batteries; press the LIGHT button to activate backlight. |
| Problemer med trådløs forbindelse. | Out of range; interference; software issue. | Move closer to the receiver; check for sources of interference; restart device and software. |
Specifikationer
Figur 4: Overview of MS6252D features, specifications, and included accessories.
Figure 5: Detailed technical specifications including measurement ranges, resolutions, and accuracies.
| Parameter | Værdi |
|---|---|
| Modelnummer | GL-MS6252D |
| Vis tæller | 9999 |
| Strømkilde | 2 x LR44-batterier (inkluderet) |
| Produktmål (L x B x H) | 6.3 x 3.54 x 1.97 tommer |
| Varens vægt | 0.5 kilogram (1.1 pund) |
| Materiale | Acrylonitril Butadien Styren (ABS) |
| Temperaturområde | -10℃ til 60℃ (14℉ til 140℉) |
| Wind Speed Range (m/s) | 0.80 ~ 30.00 m / s |
| Wind Speed Range (km/h) | 2.88 ~ 108.0 km / t |
| Wind Speed Range (ft/s) | 2.62 ~ 98.50 ft/s |
| Wind Speed Range (Knots) | 1.6 ~ 58.30 knob |
| Wind Speed Range (mile/h) | 1.8 ~ 90.00 mile/h |
| Wind Speed Range (ft/m) | 157.5 ~ 5900 ft/m |
| Relativ luftfugtighedsområde | 20-80% RF |
| Interface | Trådløs |
Garanti og support
MASTECH/MGL provides a 1-year EU Spare Part Availability Duration for this product. For technical support, warranty claims, or service inquiries, please contact your local distributor or visit the official MASTECH webwebsted.
Gem venligst din købskvittering som købsbevis af garantiårsager.
