Brugermanual til Schneider Electric X-serien 15A 125V Wi-Fi-energiovervågningsstikkontakt

1. Introduktion

This manual provides detailed instructions for the installation, setup, operation, and maintenance of your Schneider Electric X Series 15A 125V Wi-Fi Energy Monitoring Socket Outlet. This device integrates smart home functionality, allowing for remote control, energy monitoring, and compatibility with various smart home ecosystems via Matter certification.

2. Vigtige sikkerhedsoplysninger

Please read and understand all instructions before installing or using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Sluk for strømmen: Always disconnect power at the circuit breaker or fuse box before installing or servicing the outlet.
• Uddannet elektriker: Hvis du er i tvivl om nogen del af disse instruktioner, skal du kontakte en kvalificeret elektriker.
• Neutral ledning påkrævet: This device requires a neutral wire for proper operation. Verify that your electrical box has a neutral wire (typically white) before installation.
• Kun indendørs brug: Dette produkt er kun beregnet til indendørs brug på tørre steder.
• Voltage og Ampalder: Ensure the circuit voltage og amperage are compatible with the outlet's ratings (125V, 15A).
• Tamper-resistent: This outlet features tamper-resistente beholdere for øget sikkerhed.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Schneider Electric X Series 15A 125V Wi-Fi Energy Monitoring Socket Outlet
• Screwless Wall Plate (included with some models, or sold separately)
• Installationsskruer

4. Produktet er slutview

Familiarize yourself with the components of your smart outlet.

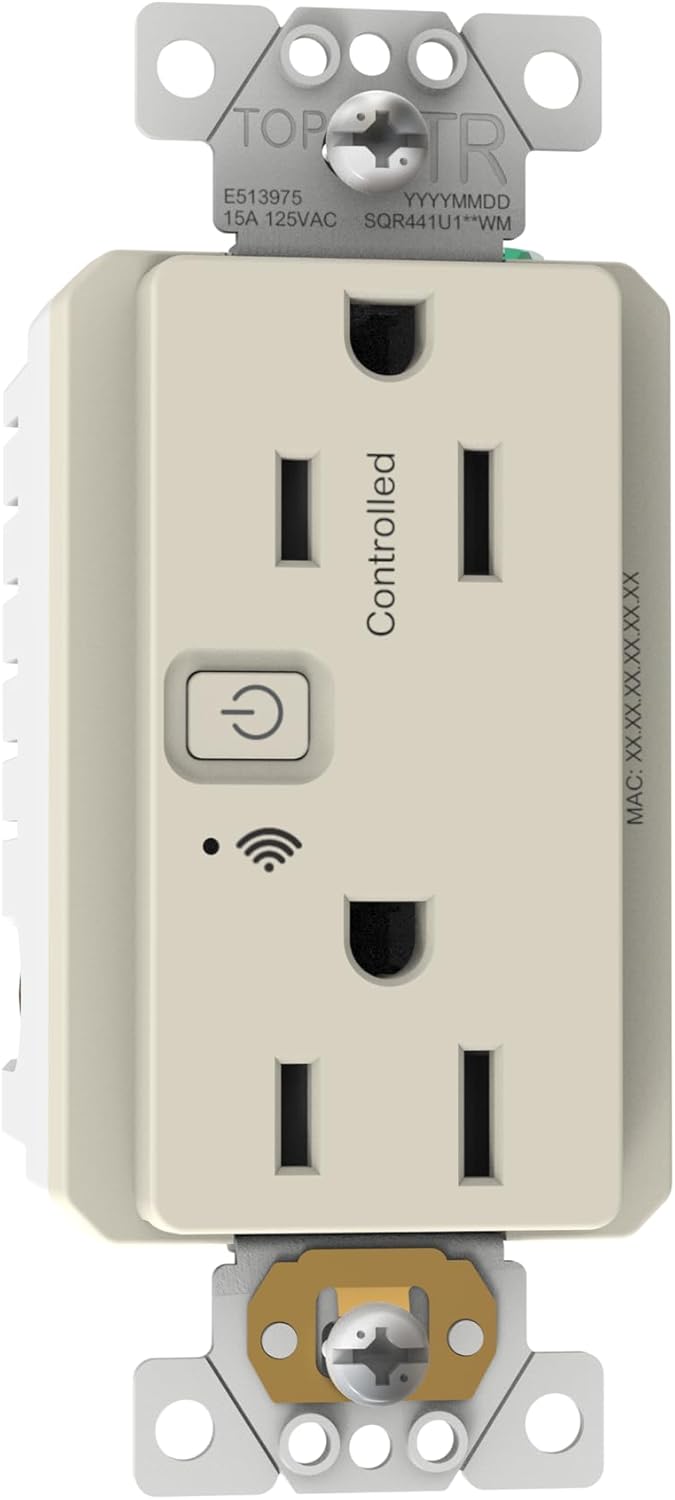

Billede 4.1: Front view of the Schneider Electric X Series Wi-Fi Energy Monitoring Socket Outlet. It shows the two receptacles, a power button with an indicator light, and a Wi-Fi signal icon. The top receptacle is labeled 'Controlled'.

Billede 4.2: Side view of the outlet, displaying the Wi-Fi logo, a QR code for pairing, and terminal screws for wiring connections.

• Top Receptacle: This outlet is controlled by the smart features (app, voice, schedule).
• Bottom Receptacle: This outlet is always on and not controlled by smart features.
• Tænd/sluk-knap/indikator: Press to manually turn the controlled outlet on/off. The indicator light shows the status (e.g., solid for on, blinking for pairing mode).
• Wi-Fi-indikator: Viser status for Wi-Fi-forbindelse.
• Ledningsklemmer: Screw terminals on the sides for connecting Hot, Neutral, and Ground wires.

5. Installationsvejledning

Follow these steps carefully to install your smart outlet.

1. Sluk for strømmen: At the circuit breaker or fuse box, turn off the power to the outlet you are replacing. Verify power is off using a voltage tester.
2. Fjern gammel stikkontakt: Unscrew and carefully pull the existing outlet from the wall box. Disconnect the wires, noting which wire was connected to which terminal (Hot, Neutral, Ground).
3. Forbered ledninger: If necessary, strip approximately 1/2 inch of insulation from the ends of the electrical wires in the wall box. Ensure wires are straight and free of nicks.
4. Tilslut ledninger:
   • Tilslut Hot (sort) wire from the wall box to the brass screw terminal on the smart outlet.
   • Tilslut Neutral (hvid) wire from the wall box to the silver screw terminal on the smart outlet.
   • Tilslut Ground (Bare Copper or Green) wire from the wall box to the green screw terminal on the smart outlet.
   Ensure all connections are secure. This outlet supports 12-14 AWG wires.
5. Monter udtag: Carefully push the wired outlet back into the wall box. Secure it with the provided mounting screws.
6. Installer vægplade: Snap the screwless wall plate onto the outlet for a clean finish.
7. Gendan strøm: Turn the power back on at the circuit breaker. The outlet's indicator light should illuminate.

6. Wi-Fi and Smart Home Setup

Your X Series outlet is Matter certified, allowing for seamless integration with various smart home platforms.

1. Download the Schneider Home App: Søg efter "Schneider Home" in your device's app store (iOS or Android) and download the application.
2. Opret en konto: Åbn appen, og følg instruktionerne for at oprette en ny brugerkonto eller log ind, hvis du allerede har en.
3. Tilføj enhed: In the Schneider Home app, select the option to add a new device. The app will guide you through the pairing process.
4. Matter Pairing: The outlet supports Matter. You can typically initiate pairing by scanning the QR code located on the side of the device (refer to Image 4.2) or by entering a numerical code provided with the product. Ensure your smart home hub (e.g., Apple HomePod, Google Nest Hub, Amazon Echo) is within range and in pairing mode.
5. Wi-Fi-forbindelse: The app will prompt you to connect the outlet to your 2.4GHz Wi-Fi network. Ensure your phone is connected to the same 2.4GHz network during setup.
6. Integrer med stemmeassistenter: Once paired with the Schneider Home app or your Matter-compatible smart home system, you can link it to voice assistants like Amazon Alexa, Google Assistant, or Apple Home for voice control. Follow the instructions within your preferred smart home app to enable this integration.

Billede 6.1: The Schneider Electric X Series outlet shown alongside a smartphone displaying the Schneider Home app interface, which lists various smart plugs and their energy usage.

7. Operating the Smart Outlet

You can control your smart outlet in several ways:

• Manuel kontrol: Press the power button on the front of the outlet to manually turn the controlled receptacle on or off.
• App kontrol: Use the Schneider Home app or your integrated smart home app (e.g., Apple Home, Google Home, Alexa app) to remotely turn the controlled receptacle on/off, set schedules, or create automation routines.
• Stemmestyring: Once integrated with a voice assistant, use commands such as "Alexa, turn on the kitchen outlet" or "Hey Google, turn off the lamp."
• Energiovervågning: The Schneider Home app provides real-time energy consumption data for the controlled receptacle. This allows you to monitor power usage and identify opportunities for energy savings.

8. Vedligeholdelse

The Schneider Electric X Series outlet requires minimal maintenance.

• Rensning: To clean the outlet, wipe it with a soft, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at strømmen er slukket, før rengøring.
• Firmwareopdateringer: Periodically check the Schneider Home app for available firmware updates to ensure optimal performance and security.

9. Fejlfinding

If you encounter issues with your smart outlet, refer to the following common solutions:

• Outlet reagerer ikke:
  • Kontroller, om afbryderen er udløst.
  • Ensure the outlet is receiving power.
  • Verify the power button indicator light is on.
• Cannot Connect to Wi-Fi / Pairing Issues:
  • Ensure your Wi-Fi network is 2.4GHz. This device may not connect to 5GHz networks.
  • Move the outlet closer to your Wi-Fi router during the initial setup.
  • Temporarily disable any mesh Wi-Fi satellites or 5GHz bands on your router during pairing, if possible.
  • Genstart din Wi-Fi-router, og prøv parringsprocessen igen.
  • Perform a factory reset on the outlet (refer to the Schneider Home app or manufacturer's webwebsted for specifikke instruktioner).
  • Ensure your smart home hub (for Matter pairing) is updated and functioning correctly.
• Energy Monitoring Not Working:
  • Verify the outlet is properly connected to Wi-Fi and the Schneider Home app.
  • Ensure the device plugged into the controlled outlet is drawing power.
  • Check for app updates or firmware updates for the outlet.
• Stemmestyring virker ikke:
  • Confirm the outlet is successfully linked within your voice assistant's app (Alexa, Google Home, Apple Home).
  • Ensure your voice commands are clear and match the device name configured in your smart home app.

10. Tekniske specifikationer

Billede 10.1: Product label detailing electrical specifications, including voltage, amperage, wattage og certificeringer.

11. Garanti og support

Schneider Electric products are designed for reliability and performance. This product is covered by a manufacturer's warranty. For specific warranty terms, technical support, or service inquiries, please refer to the official Schneider Electric webwebstedet eller kontakt deres kundesupport direkte. Gem din købsbevis til garantikrav.

Online ressourcer: Besøg Schneider Electric webwebsted for additional product information, FAQs, and support documentation.
