Indledning
This instruction manual provides comprehensive guidance for the installation and operation of the Idatalink Maestro HRN-SR-VW1 T-Harness. This product is designed to facilitate the replacement of a factory radio in select Volkswagen vehicles manufactured between 2002 and 2016, while ensuring the retention of essential factory features such as steering wheel controls and the use of the factory amplifier. For optimal performance and safety, please read this manual thoroughly before proceeding with installation.
Hvad er der i æsken
- Idatalink Maestro HRN-SR-VW1 T-Harness
Kompatibilitet
The HRN-SR-VW1 T-Harness is specifically designed for use with the iDatalink Maestro ADS-MSR module (sold separately) and is compatible with select Volkswagen and Audi vehicles. It is crucial to verify your vehicle's make, model, and year against the compatibility charts provided to ensure proper functionality.
Volkswagen Compatibility

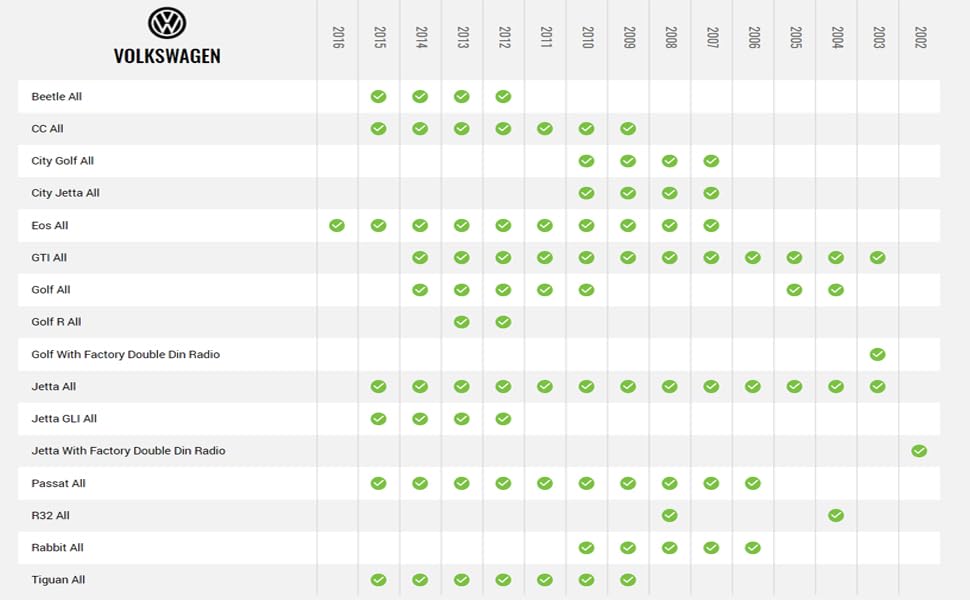

Image: Volkswagen vehicle compatibility chart for the HRN-SR-VW1 T-Harness, showing various models and compatible years from 2002 to 2016.
Audi Compatibility

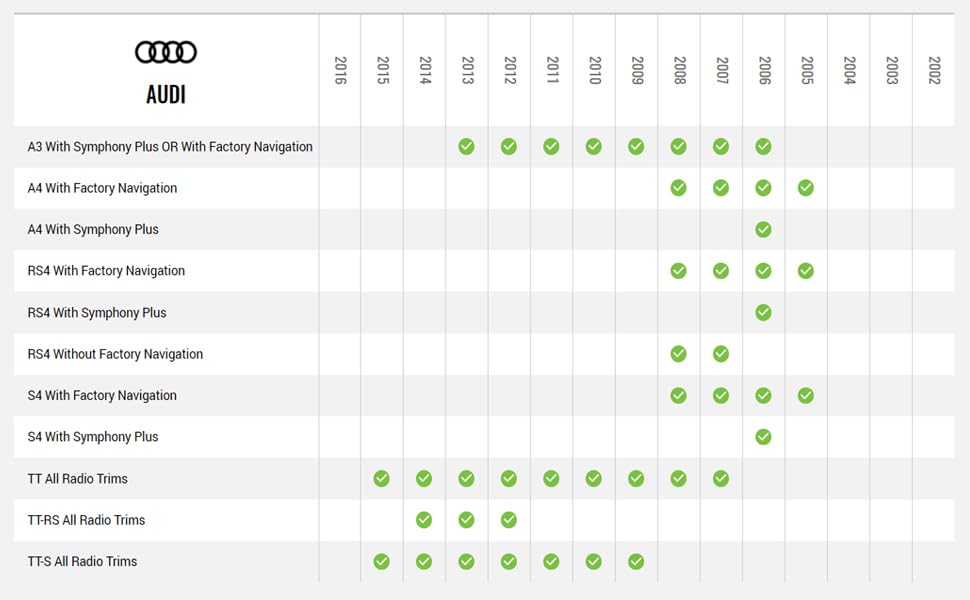

Image: Audi vehicle compatibility chart for the HRN-SR-VW1 T-Harness, showing various models and compatible years from 2002 to 2016.
Opsætning og installation
The installation process involves connecting the HRN-SR-VW1 T-Harness with an iDatalink Maestro ADS-MSR module and a corresponding Head-Unit specific T-Harness (e.g., ACC-HU-ALP1, ACC-HU-PIO1, ACC-HU-SON1, ACC-HU-KEN1/2/3, ACC-HU-BOS1), all sold separately. This system simplifies radio replacement while retaining key factory features.
Nødvendige komponenter
- iDatalink Maestro ADS-MSR module
- Corresponding Head-Unit specific T-Harness (e.g., ACC-HU-ALP1 for Alpine, ACC-HU-PIO1 for Pioneer, etc.)
Image: The Idatalink Maestro HRN-SR-VW1 T-Harness, shown with its packaging, ready for installation.
Billede: Et nærbillede view of the HRN-SR-VW1 T-Harness connected to the compact ADS-MSR module, illustrating the plug-and-play design.
WebLink Desktop Programming Tutorial
Video: This tutorial guides users through downloading and installing WebLink Desktop on a Windows PC, creating a WebLink account, and flashing the Maestro module with the correct firmware for their vehicle and aftermarket radio.
Key Installation Features
- Forenklet installation: Works exclusively with the iDatalink Maestro ADS-MSR module for streamlined radio replacement.
- Steering Wheel Control Retention: Maintains original steering wheel controls for functions like volume and track seeking.
- Fabrik Amplifier Retention: Preserves the functionality of any factory-installed amplivligere.
- Plug and Play Design: Features dedicated plugs for quick and accurate connections, ensuring seamless integration.
Operating the Maestro SR System
Once installed and programmed, the Maestro SR system enhances your driving experience by integrating aftermarket radio features with your vehicle's existing functionalities.
iDatalink Maestro SR Overview
Video: Denne video giver et overblikview of the iDatalink Maestro SR module, highlighting its features for radio replacement, steering wheel control retention, and vehicle settings integration.
Ratbetjeninger
The Maestro SR system allows you to retain and customize your vehicle's factory steering wheel controls. Through the WebLink Desktop application, you can configure each button to perform specific commands on your new aftermarket radio, including single press and press-and-hold functions.
Vehicle Settings Retention
Many modern vehicles allow control over various settings (e.g., lighting, door locks, safety features) via the factory radio. The Maestro SR ensures these settings remain accessible. If using a Maestro-compatible aftermarket radio, these settings can be controlled directly from the radio's touchscreen. For non-Maestro compatible radios, the Maestro Central mobile app (available on App Store and Google Play) can be used via Bluetooth to access and adjust vehicle settings.
Kameraintegration
The Maestro SR supports the retention of factory reverse cameras, 360-degree cameras, and cargo cameras. It can also integrate aftermarket front or side-view kameraer. Views can be controlled via steering wheel buttons, and advanced camera settings allow for triggering side-view cameras with turn signals and front cameras based on transmission position.
Programmerbare udgange
The Maestro SR module features two programmable outputs. These outputs can be configured to trigger various accessories, such as additional lighting or cameras, or to convert digital data messages from the vehicle into analog outputs for specific functions. For example, outputs can be programmed to activate when the brake is pressed, headlights are turned on, or the vehicle shifts into drive.
Specifikationer
- Varemodelnummer: HRN-SR-VW1
- Materiale: Acrylonitril-butadienstyren
- Varens vægt: 0.13 Kilograms (approximately 4.41 ounces)
- Pakkedimensioner: 7.72 x 4.8 x 1.85 tommer
- UPC: 627780004822
- Fabrikant: Idatalink
Fejlfinding
If you encounter any issues during installation or operation, please refer to the detailed installation guide downloaded from the WebLink Desktop application. Ensure all connections are secure and that the module has been programmed with the correct firmware for your specific vehicle and aftermarket radio. For further assistance, consult the official Idatalink support resources.
Garanti og support
This product is covered by the manufacturer's warranty. Please retain your proof of purchase for any warranty claims. For technical support, additional guides, or to contact customer service, visit the official Idatalink webwebsted: www.idatalink.com.
For vehicle compatibility inquiries, you may also use the QR code found on the product packaging or visit https://l.ead.me/bbSyLG.
