RAF Slowjuicer 150W, Model R.2831 Brugermanual

Indledning

This manual provides essential information for the safe and efficient use of your RAF Slow Juicer 150W, Model R.2831. Please read all instructions carefully before operating the appliance.

The RAF Slow Juicer is designed for extracting juice from various fruits and vegetables, utilizing a low-speed cold press mechanism to preserve nutrients and minimize oxidation. Its simplified operation and easy cleaning features make it convenient for daily use.

Vigtige sikkerhedsinstruktioner

• Læs alle instruktioner før brug af apparatet.
• Ensure the juicer is properly assembled before plugging it into a power outlet or operating it. The built-in protection design prevents operation if not correctly installed.
• Nedsænk ikke motorbasen i vand eller anden væske.
• Hold hænder og redskaber væk fra indføringstragten under drift for at forhindre skader. Brug altid den medfølgende fødevareskubber.
• Træk stikket ud af stikkontakten, når det ikke er i brug, før du samler eller adskiller dele og før rengøring.
• Dette apparat er kun beregnet til husholdningsbrug.
• Opbevares utilgængeligt for børn.
• Betjen ikke apparatet med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.

Produktkomponenter

The RAF Slow Juicer R.2831 includes the following main parts and accessories:

• Motor Base
• Juicingkammer
• Auger (Screw)
• Filter/si
• Montering af foderskakt
• Pulp Outlet Cap
• Juice Outlet Cap
• Madskubber
• juice Cup
• Pulp Cup
• Rengøringsbørste

eksploderede view of the RAF Slow Juicer R.2831 showing its main components: the motor base, juicing chamber, auger, filter, and feeding chute assembly. This image illustrates the parts for assembly and disassembly.

The RAF Slow Juicer R.2831 with included accessories: a food pusher, two juice/pulp cups, and a cleaning brush. These accessories aid in operation and maintenance.

Opsætning og montering

Before first use, wash all detachable parts (excluding the motor base) in warm, soapy water, then rinse and dry thoroughly.

1. Placer motorbasen på en stabil, plan overflade.
2. Align the juicing chamber with the groove in the motor base and rotate it clockwise until it locks securely into place.
3. Insert the filter/strainer into the juicing chamber.
4. Place the auger (screw) into the center of the filter/strainer, pushing it down firmly.
5. Attach the feeding chute assembly, ensuring it is properly aligned and locked onto the juicing chamber.
6. Place the juice cup under the juice outlet and the pulp cup under the pulp outlet.

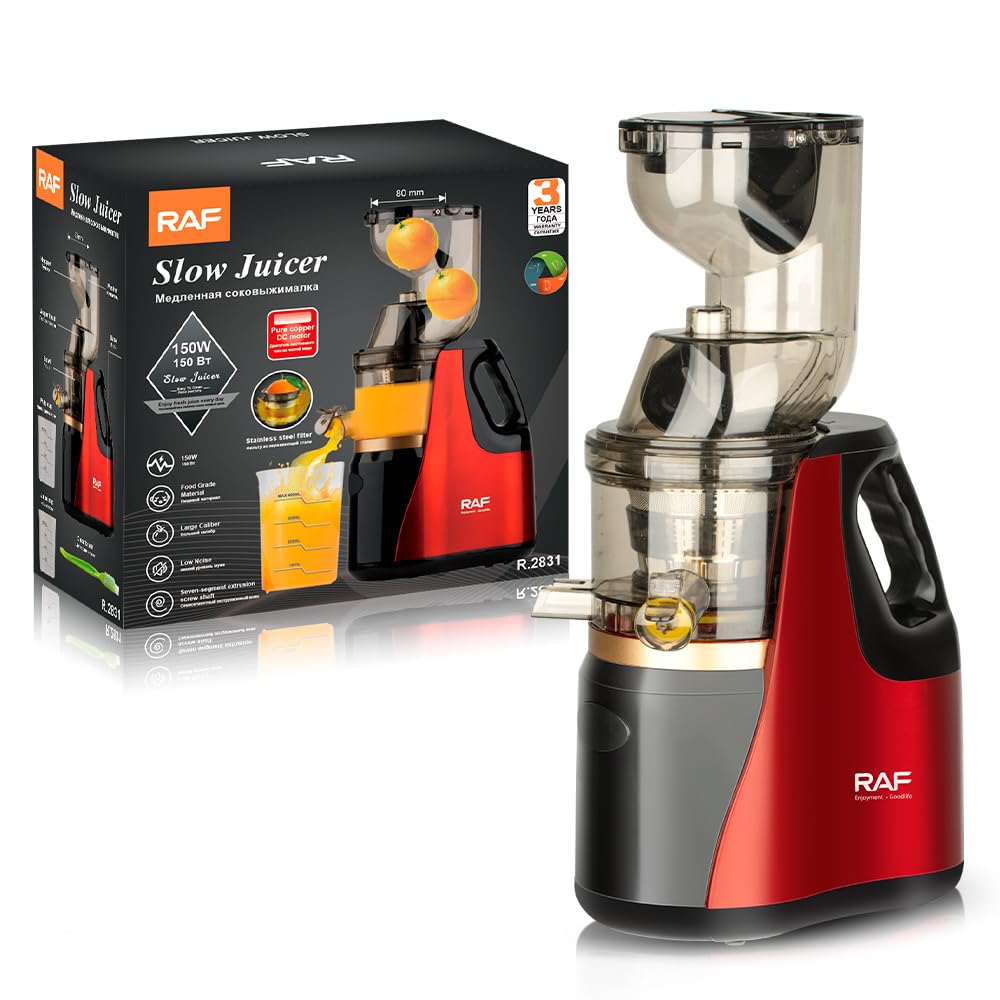

Fully assembled RAF Slow Juicer R.2831, displaying its compact design and dimensions (43cm height, 22cm width, 11cm depth). The juicer features a red and black finish.

Betjeningsvejledning

1. Forberedelse

• Vask frugt og grøntsager grundigt.
• Cut larger items into pieces that fit comfortably into the feeding chute.
• Remove hard pits, large seeds, and thick, inedible peels (e.g., citrus peels).

2. Tænd

• Plug the juicer into a 220V power outlet.
• Turn the juicer ON using the power switch. The elegant LED display panel will illuminate.

3. Juicing

• Select the appropriate speed setting using the control panel:
• "SOFT" mode (50-60 RPM): Ideal for soft and juicy fruits and vegetables such as watermelon, orange, grape, celery, and cucumber.
• "HARD" mode (100-110 RPM): Suitable for hard fruits and vegetables like apple, pear, carrot, beets, ginger, and kale.
• Gradually feed prepared ingredients into the feeding chute. Use the food pusher to gently guide ingredients down. Do not force ingredients, as this can strain the motor.
• The juicer will efficiently separate juice into the juice cup and dry pulp into the pulp cup.

4. After Juicing

• Once all ingredients are processed, turn the juicer OFF and unplug it from the power outlet.

Vedligeholdelse og rengøring

Regular cleaning ensures optimal performance and extends the lifespan of your juicer.

1. Demontering

• Sørg for, at juiceren er taget ud af stikkontakten.
• Disassemble the feeding chute assembly, auger, filter, and juicing chamber from the motor base.

2. Skylning

• Skyl alle aftagelige dele under rindende vand umiddelbart efter brug for at forhindre, at frugtkødet tørrer og sætter sig fast.

3. Rensning

• The filter-free strainers with large, elongated grooves are designed for easy cleaning. Use the provided cleaning brush to remove any remaining pulp.
• All detachable parts are made of high-quality Food Grade material and are dishwasher-safe for convenient cleaning.
• Tør motorbasen af ​​med adamp cloth. Never immerse the motor base in water or place it in a dishwasher.

4. Tørring og opbevaring

• Tør alle dele grundigt, før de monteres igen eller opbevares.
• Store the juicer in a clean, dry place, away from direct sunlight and heat sources.

Fejlfinding

If you encounter any issues with your RAF Slow Juicer, please refer to the following common problems and solutions:

• Juicer does not start:
  • Sørg for, at netledningen er korrekt tilsluttet en fungerende stikkontakt.
  • Verify that all parts (juicing chamber, filter, auger, feeding chute) are correctly assembled and locked into place. The juicer has a safety protection design that prevents operation if not properly installed.
• Lavt saftudbytte eller for meget våd pulp:
  • Ensure you are using the correct speed setting for the type of produce. Use "HARD" mode for harder produce and "SOFT" mode for softer produce.
  • Cut ingredients into smaller pieces to allow for more efficient extraction.
  • Feed ingredients slowly and steadily, allowing the juicer to process them thoroughly.
• Motoren stopper under drift:
  • The juicer may be overloaded. Turn off the appliance, unplug it, and clear any blockages. Allow the motor to cool down for 15-20 minutes before restarting.
  • Check for any hard objects or foreign materials in the juicing chamber that might be causing a jam.
• Loud noise or excessive vibration:
  • Ensure all parts are correctly assembled and securely locked into position.
  • Check for any foreign objects or blockages within the juicing mechanism.

Specifikationer

Garanti og kundesupport

For detailed warranty information, please refer to the specific documentation provided with your purchase or contact your retailer directly.

For customer support, technical assistance, or service inquiries, please contact your retailer or visit the manufacturer's official webhjemmeside for yderligere vejledning.
